Lenco Marine - 102 Series Standard Actuator - Stroke, 24V - 4-1/4"
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Precision and Power for Your Vessel

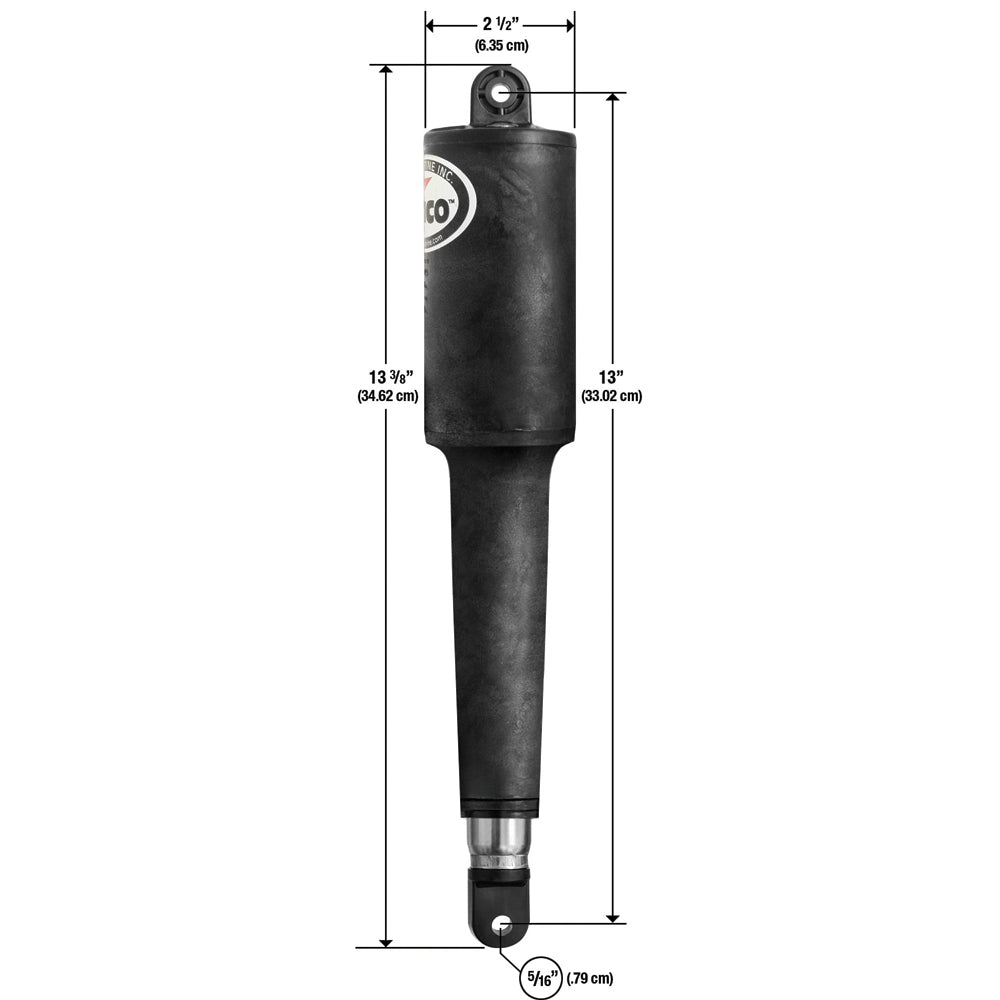

The Lenco 102 Series Standard Actuator is designed to enhance the performance and reliability of your marine equipment. This robust 24V actuator, with a 4-1/4" stroke, ensures instant response and dependable operation, making it ideal for trolling tab systems and OEM applications.
Enhanced Design and Durability
Engineered for durability and precision, the 102 Series Standard Actuator is constructed from high-impact, glass fiber-filled, ultraviolet-resistant nylon material, coupled with 316 super buff stainless steel tubing. This combination guarantees long-lasting performance even in the harshest marine environments.
Key Features and Benefits
- Advanced Seal System: Anti Extrusion Ring (AXR) seal stabilization system for improved durability.
- Enhanced Construction: Stronger top cap and mounting clevis design, and a thicker, more robust motor housing wall.
- Integrated Protection: Pressure-tight torx screws and an integrated wiper seal at the actuator base ensure maximum protection.
- Reliable Performance: Lenco's ballscrew design offers greater reliability and twice the power compared to typical hydraulics.
- High Torque Motor: Easily pushes up to 500 pounds, providing exceptional performance.
- Waterproof Connections: Features Plug & Play Deutsch connectors to prevent water intrusion.
Specifications
- Voltage: 24V
- Stroke: 4-1/4 inches
- Overall Length: 14 inches (tip to tip)
- Material: High impact glass fiber-filled, UV-resistant nylon with 316 stainless steel tubing
- Mounting Hardware: 5/16" included
- Cable Length: 6 feet
Superior Features
- Anti Extrusion Ring (AXR): Enhances seal stabilization for long-lasting performance.
- Top Cap and Clevis Design: Strengthened for improved durability.
- Pressure-Tight Torx Screws: Ensures a secure and tight fit.
- Integrated Wiper Seal: Provides added protection at the actuator base.
- Molded-In Brass Thrust Bearing: Designed for increased reliability.
- Over-Molded Cable: Provides a stronger, tighter seal to prevent water ingress.
- Mounting Bracket with Gland Seal: Ensures secure and reliable installation.
Dimensions
- Stroke: 4-1/4 inches
- Overall Length: 14 inches
