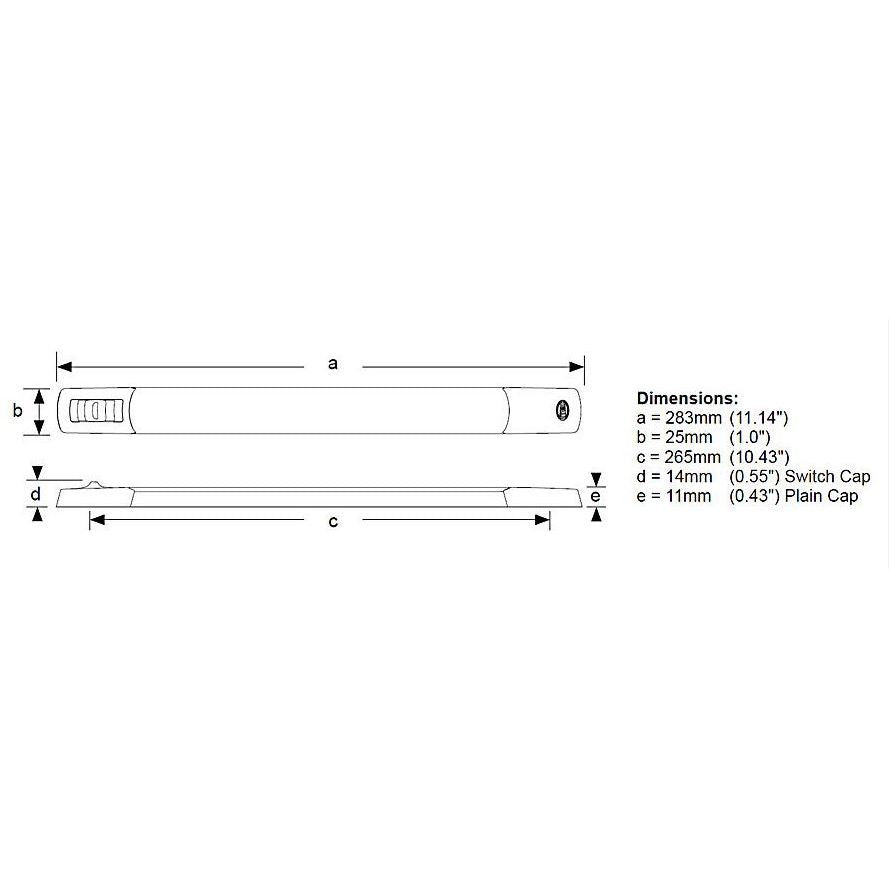

Hella Marine LED Surface Mount Strip Lamp, IP67, 283 x 25mm, 500mm Tinned Cable
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Hella Marine Surface Strip is a surface-mount LED strip lamp that keeps a low profile on bulkheads, under shelves, inside lockers, and along galley or chart areas where space is tight. It runs on 12V DC or 24V DC systems, draws less than 3.0W (under 0.25A at 12V or under 0.16A at 24V), and is completely sealed to IP67 for use in wet or dry locations.

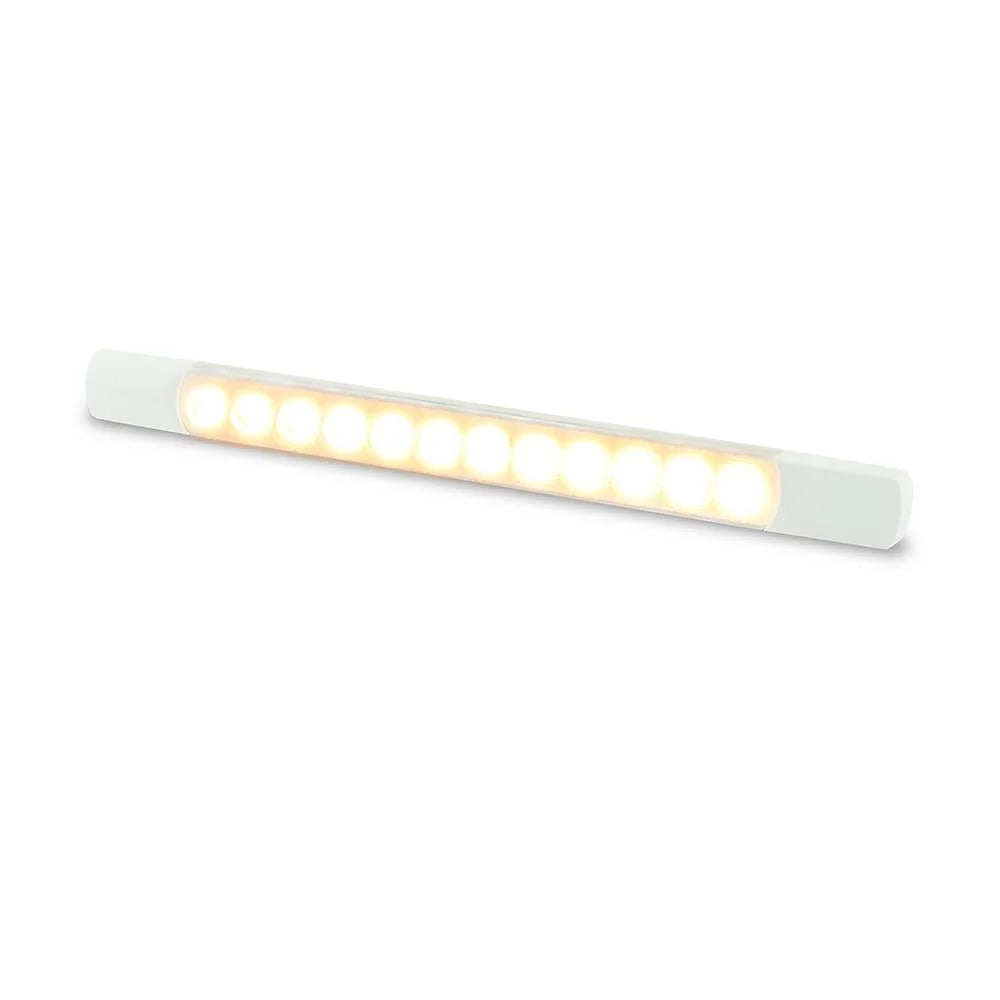

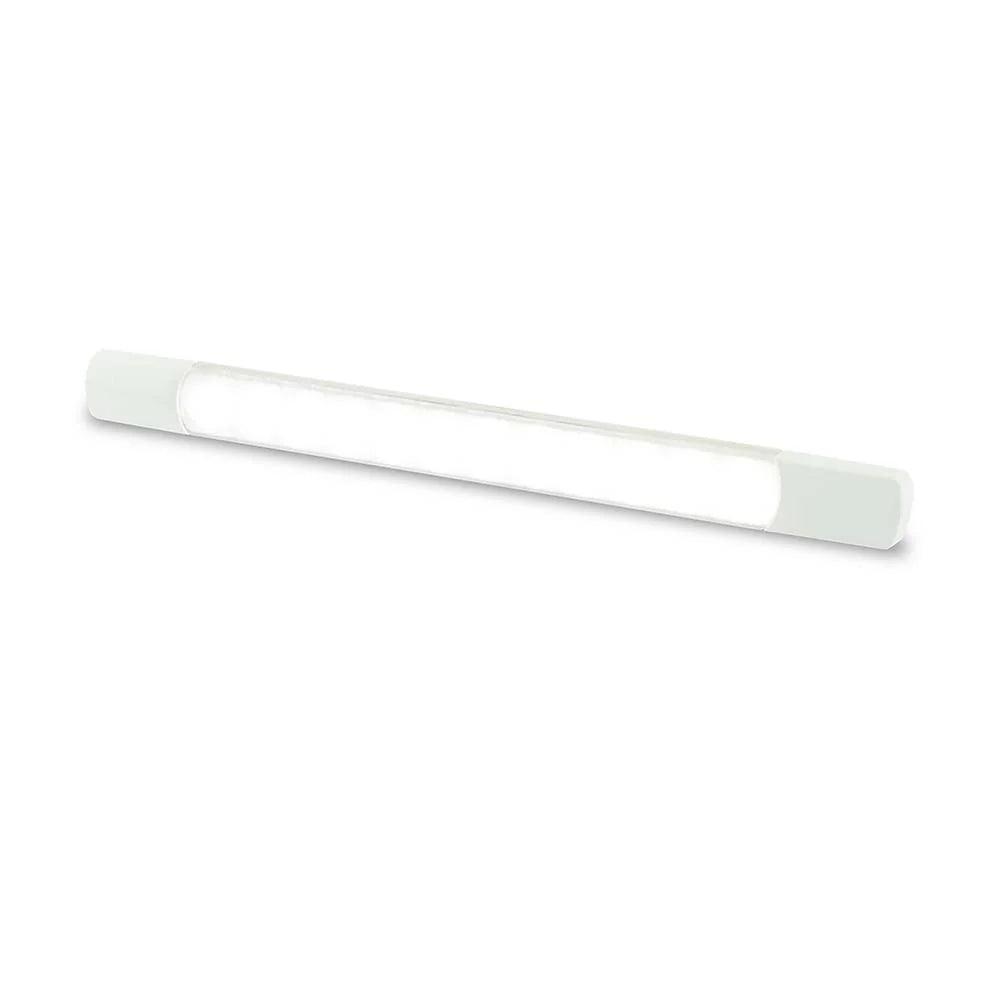

Single-colour versions are available in 5000K White or 2700K Warm White, and the White output is rated at 250 lumens with a CRI of 85. The lamp is pre-wired with 500mm of tinned marine cable, and the fastenings at each end are hidden under snap-on end caps for a clean finish once it is mounted.
The lens is UV resistant enhanced impact acrylic, and the design is built to sit on board without becoming a source of electrical noise. Approvals include CE, RCM, and UKCA.
Key features
- 12V DC or 24V DC options to match common boat electrical systems
- Less than 3.0W power draw (under 0.25A at 12V or under 0.16A at 24V)
- IP67 completely sealed for washdowns and damp mounting locations
- UV resistant enhanced impact acrylic lens for exposed interior or exterior placements
- Pre-wired with 500mm of tinned marine cable for straightforward connections
- Low-profile surface-mount form with snap-on end caps covering the fasteners
- White output rated at 250 lumens with CRI 85; 5000K White and 2700K Warm White options
- Approvals: CE, RCM, UKCA
Variants
This series is offered in Standard and With Switch versions, with 12V and 24V models depending on the configuration. Light colour options include Warm White, White, Warm White and Blue, Warm White and Red, White and Blue, and White and Red.

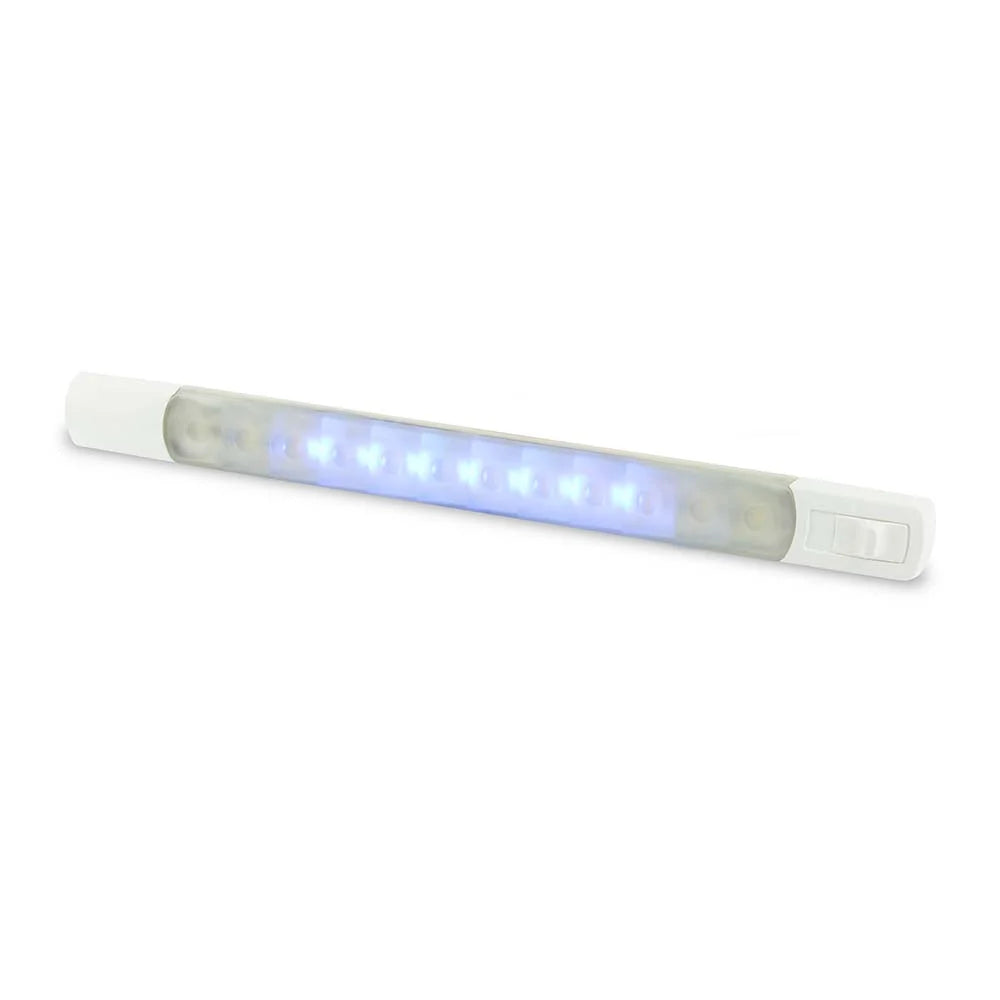

The With Switch versions include an onboard waterproof switch for local on and off control at the lamp. Dual-colour versions are not recommended for dimming, so they are typically treated as switched lights rather than dimmed task lights.
Installation and wiring
Mounting is a simple surface fit, which works well on a bulkhead, the underside of a shelf, or along a cockpit coaming where a recessed cutout is not wanted. Plan cable routing before final fastening so the 500mm lead can reach your junction point without strain, and keep the cable supported where it passes through lockers or behind liners to prevent chafe.
On Standard versions, switching is handled by your existing panel or circuit switch. On With Switch versions, the lamp still needs a constant feed from a fused lighting circuit, and the onboard switch handles local control at the fixture.
Light selection for onboard use
5000K White suits task areas like the helm, chart table, and galley where you want detail to stay clear. 2700K Warm White fits cabins and saloons where you want softer light that does not flatten wood tones. Red dual-colour options help preserve night vision, while Blue is often used for low-level accent lighting in cockpits and seating areas.
Use cases on board
This light is a good match for boats that need a small strip lamp that can live in damp spaces without fuss, including coastal cruisers, fishing rigs with bait board lighting, and sailboats that want low-profile interior lighting that does not snag gear. It also works well for refits replacing bulky fluorescent fixtures when you want a cleaner look and a lower current draw.
