Digital Yacht - 4G Xtream 4G Internet Access Gateway - With Dual External Antennas

Reliable Marine-Grade LTE Internet with Dual External Antennas

The Digital Yacht 4G Xtream delivers high-performance LTE internet connectivity for boats, offering fast and stable data access up to 25 nautical miles offshore. Designed for yachts, workboats, and commercial vessels, this advanced marine internet solution ensures uninterrupted connectivity with its dual SIM slots, auto failover, and high-gain external antennas. Whether for navigation, onboard entertainment, or IoT applications, the 4G Xtream provides a seamless online experience while at sea.

Advanced LTE Connectivity with MIMO Technology

Utilizing the latest Cat 6 LTE MIMO technology, the 4G Xtream maximizes signal reception and data speeds, reaching up to 300 Mbps (network dependent). Its two external, wide-band antennas enhance coverage, ensuring a robust connection even in challenging marine environments.

Integrated Dual-Band Wi-Fi Router

The built-in dual-band Wi-Fi router operates on both 2.4 GHz and 5 GHz frequencies, allowing independent network configurations. Multiple onboard devices, from navigation systems to personal electronics, can connect simultaneously, providing a smooth and stable connection for crew and passengers.

Seamless NMEA 2000 and IoT Integration

Designed for marine applications, the 4G Xtream includes an integrated NMEA 2000 interface, enabling the transmission of navigation and instrument data over a wireless or wired network. This allows mobile apps and onboard systems to access real-time marine data. Additionally, the built-in GPS and Bluetooth interfaces support future IoT and tracking applications.

Expandable Internet Options

For those requiring external high-power Wi-Fi to access shore-based hotspots, the 4G Xtream supports WAN connectivity, making it compatible with Digital Yacht’s WL510 system. This allows users to switch between LTE and Wi-Fi connections seamlessly.

Technical Specifications

• LTE Technology: Cat 6 LTE MIMO with speeds up to 300 Mbps (network dependent)
• Wi-Fi Router: Dual-band 2.4 GHz & 5 GHz, independently configurable
• External Antennas: Two high-gain, wide-band LTE antennas
• SIM Slots: Dual SIM with auto failover or manual selection
• NMEA 2000 Interface: Yes, for navigation and instrumentation data transmission
• GPS: Integrated GPS with external patch antenna for tracking applications
• Bluetooth: Built-in with external antenna for future applications

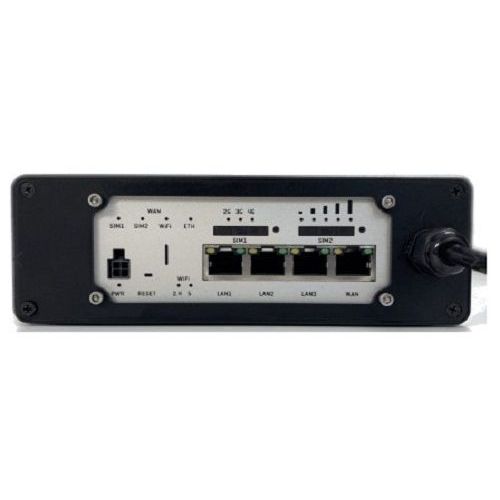

• LAN Ports: 3 x LAN ports
• WAN Port: 1 x WAN port for external Wi-Fi system integration
• SMS Control: Yes, SMS addressable for remote management

Product Dimensions

• Antenna Cable Length: 7m LMR200 (N male to N male)

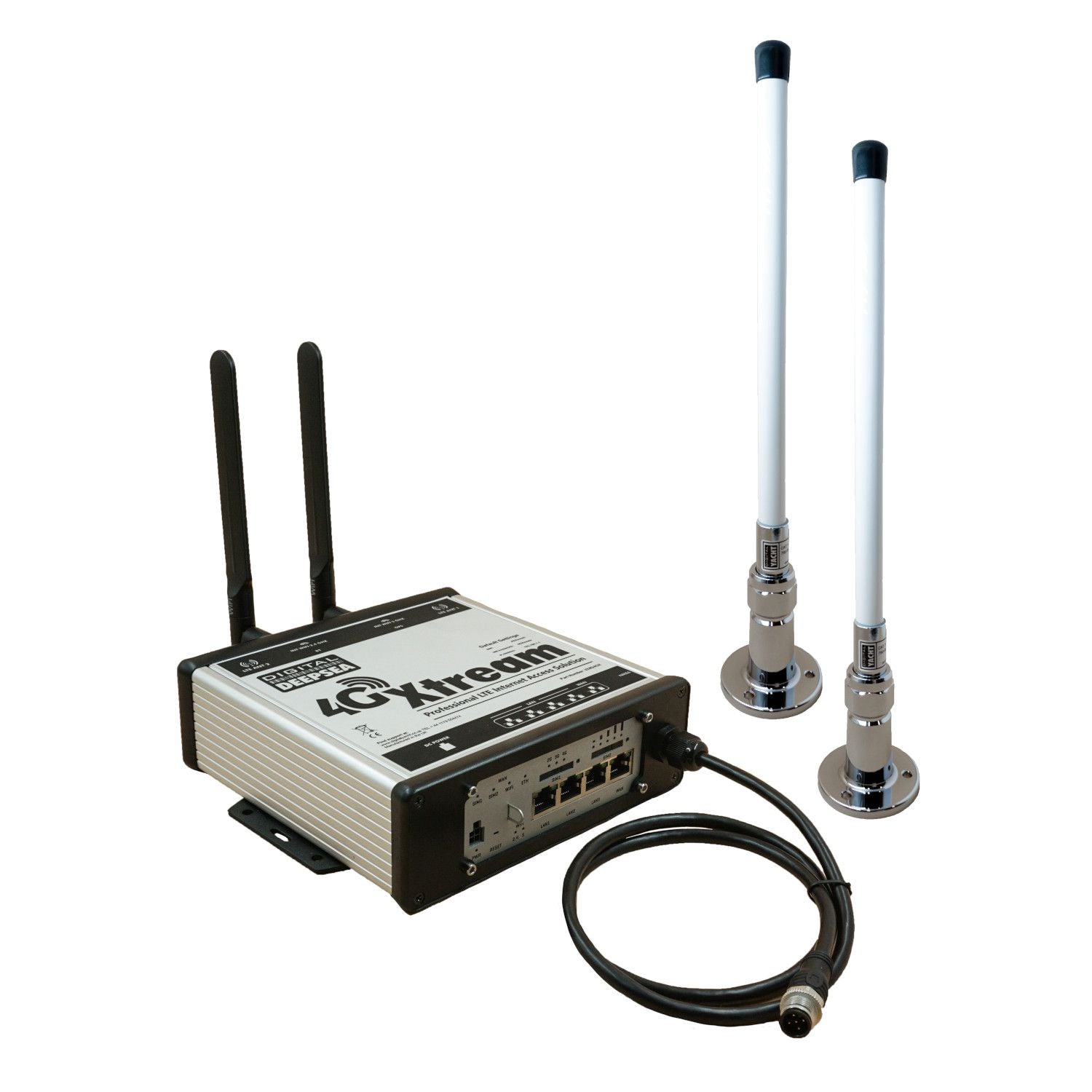

What's Included in the Box

• 4G Xtream Modem Unit with integrated NMEA 2000 cable
• DC Power/IO cable
• 2 x External antennas
• 2 x E179F antenna bases
• 2 x 7m LMR200 antenna cables
• 2 x Internal Wi-Fi antennas
• Internal GPS antenna
• Bluetooth antenna

Highlights

• High-speed LTE connectivity with extended offshore range
• Dual external antennas for superior signal reception
• Integrated NMEA 2000 for seamless marine data transmission
• Built-in dual-band Wi-Fi router for multiple device connections
• GPS and Bluetooth capabilities for IoT applications
• Supports additional WAN connection for shore-based Wi-Fi access

The Digital Yacht 4G Xtream is the ultimate solution for marine LTE connectivity, designed to provide reliable and high-speed internet access for yachts and commercial vessels operating along the coast.
