TACO Marine Manual Seat Slide, 11-1/8 in x 24 in, 6000-Series Aluminum
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The TACO Marine M20-2411 is a low-profile adjustable manual seat slide for marine helm and seating installations where a secure fore-and-aft position matters. It measures 11-1/8" x 24", has a 1.85" height, and gives the seat five equally spaced positions across 3-5/8" of travel.
This slide is built around a precision-machined 6000-series aluminum chassis with high-strength polymer glides, so the seat can move smoothly without needing a bulky mechanism under the cushion. A double pin positive side lock helps keep the seat planted once set, which is important at the helm when the boat is running through chop or when passengers shift their weight.
The front activation paddle moves with the seat, keeping adjustment within reach while seated. The universal mounting bolt pattern is intended for box applications, with fit guidance for seats 29" to 40" wide and an ideal seat length or depth of 12" to 14".
Key features
- Low-profile manual seat slide with 11-1/8" x 24" footprint and 1.85" installed height.

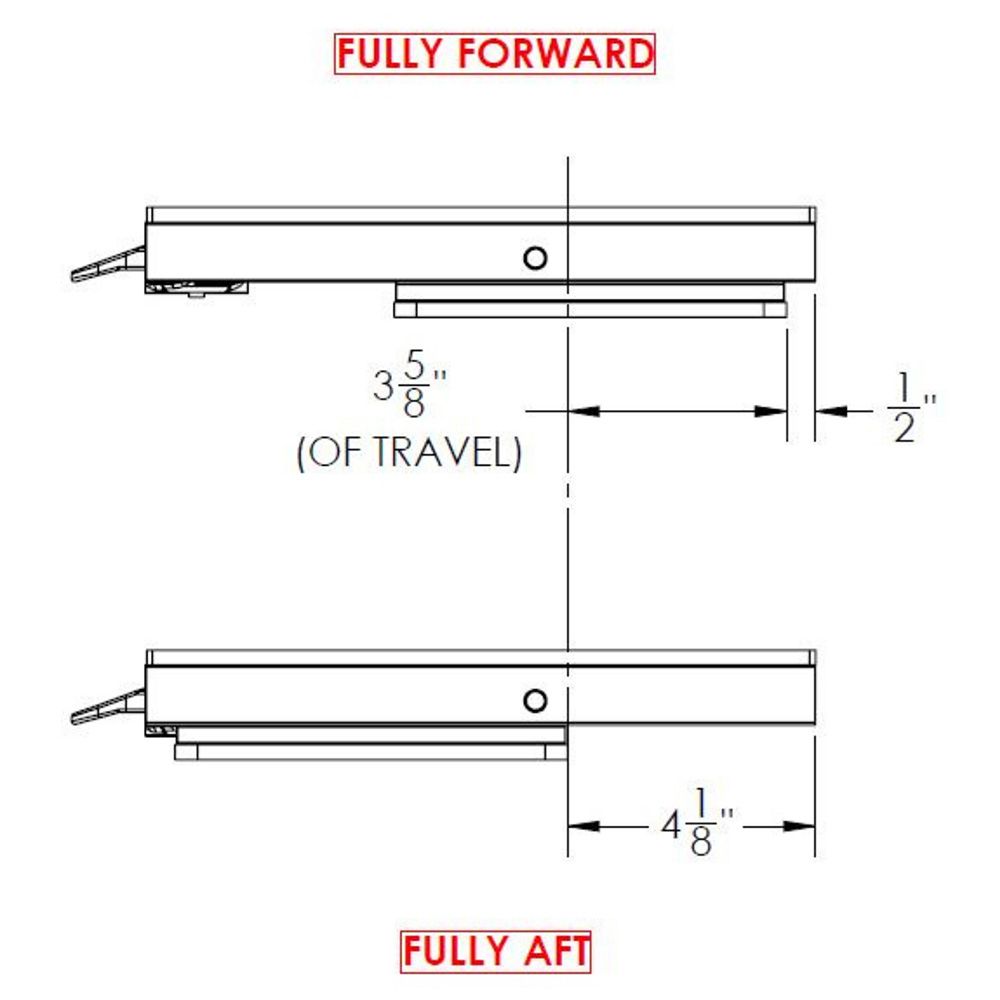

- Five equally spaced seat positions with 3-5/8" of total travel for practical helm or cockpit adjustment.
- Precision-machined 6000-series aluminum chassis for a stable base under marine seating.
- High-strength polymer glides support self-lubricated movement and help reduce rattle during use.
- Double pin positive side lock helps hold the selected seat position securely.
- Front activation paddle slides with the seat, so the release stays accessible when seated.
- Universal mounting bolt pattern for secure installation on compatible box applications.
- Meets ABYC H31 testing standards for marine seating hardware.
- Suitable for seats 29" to 40" wide, with an ideal seat length or depth of 12" to 14".
- Made in the USA and backed by a 3-year limited warranty.
Installation and fit
This seat slide is meant for boat seating layouts that use a box-style mounting surface rather than a pedestal post. Before installation, confirm that the mounting surface can accept the 24" length, 11-1/8" width, and the seat footprint needed for the chair or bench being fitted.
For the best fit, match it with seats in the 29" to 40" width range and check that the seat depth is close to the 12" to 14" guidance. The 1.85" height keeps the seating position from rising much, which helps when replacing a fixed mount or upgrading an existing helm seat without changing sightlines too dramatically.
Use on board
This slide is a good match for helm seating, cockpit seating, and other marine seating positions where the operator or passenger needs a simple manual adjustment without electrical wiring or controls. The locking action and rattle-conscious glide design are useful on fishing boats, cruisers, and other boats that see vibration, wake, and repeated seat movement during a day on the water.
