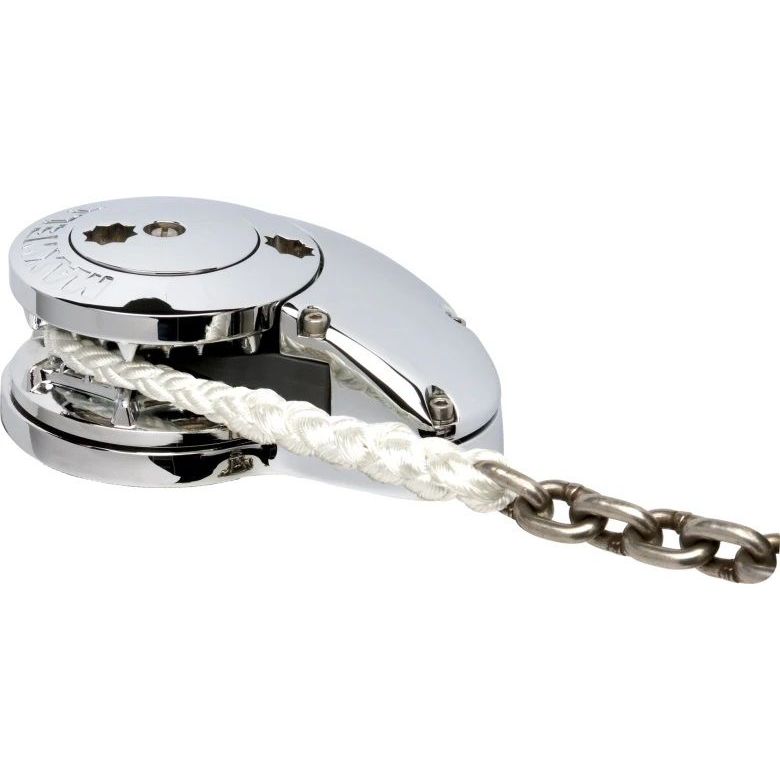

Maxwell - RC10-10 Vertical 12V Windlass - For 3/8" Chain & 5/8" Line

Powerful and Efficient Windlass for Seamless Anchoring

The Maxwell RC10-10 Vertical 12V Windlass is engineered for effortless anchoring, offering a powerful and reliable solution for marine vessels. Constructed from marine-grade AISI 316 stainless steel and chromed bronze, this windlass delivers long-term durability while maintaining an elegant and sleek appearance on the foredeck. Designed for maximum convenience, the RC10-10 automatically retrieves and deploys 10mm (3/8") chain spliced to 16mm (5/8") three-strand or 8-braid (plait) rope with exceptional efficiency.

With a unique rope/chain gypsy and a heavy-duty stainless steel pressure arm, this windlass ensures a secure grip on the splice between rope and chain, optimizing performance and reliability. The large through-deck hawse pipe throat facilitates smooth passage of the rope/chain rode into and out of the anchor locker. A sealed oil bath and a marine-grade hard-anodized alloy gearbox enhance longevity while minimizing maintenance needs.

The RC10-10 is available in a sleek Low Profile version as well as a fluted stainless steel capstan drum version. Its simple two-piece installation saves time and allows for easy retrofitting without requiring disassembly. Additionally, the unique spacer tube design supports installation through virtually any deck thickness, while multiple mounting positions and a self-aligning gearbox enable optimal motor and gearbox placement in various installation configurations.

Technical Specifications

• Rope/Chain Compatibility: Yes
• Drum: No
• Motor Power: 1200W
• Maximum Pull/Lift Capacity: 950 kg
• Chain Short Link: 10mm (3/8")
• Chain Size: 10mm (3/8")
• Rope Size: 16mm (5/8")
• Weight: 20 kg
• Installation Type: Vertical
• Voltage: 12V DC

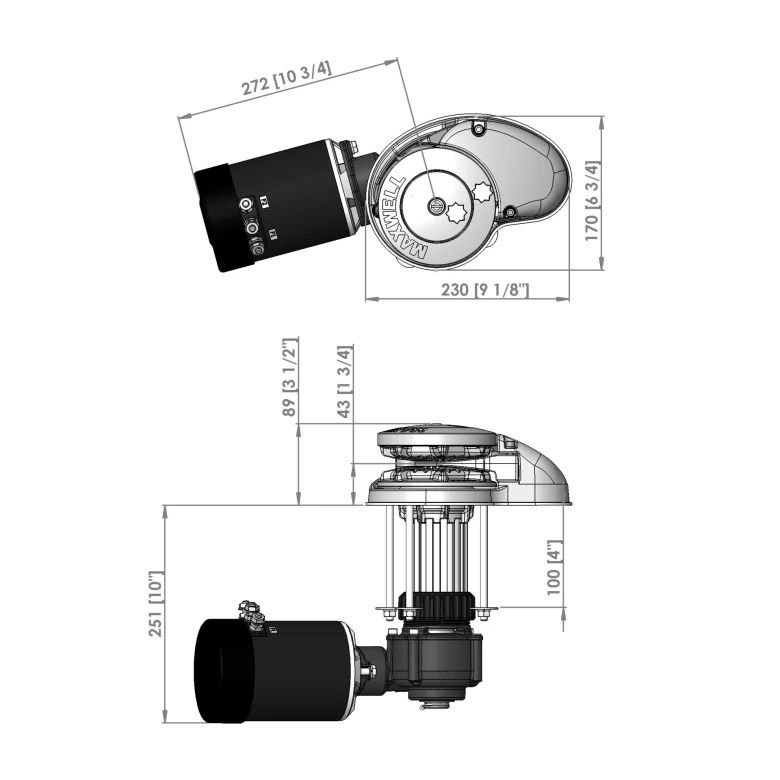

Product Dimensions

• Weight: 20 kg

Highlights

• Fully automatic retrieval and deployment of rope and chain
• Marine-grade AISI 316 stainless steel and chromed bronze construction for superior durability
• Unique rope/chain gypsy for optimal performance
• Heavy-duty stainless steel pressure arm with a preloaded spring for maximum control
• Large through-deck hawse pipe throat for seamless rode entry and exit
• Sealed oil bath and marine-grade hard-anodized gearbox for enhanced longevity
• Simple two-piece installation allows for easy retrofitting
• Multiple mounting positions and self-aligning gearbox for flexible installation

What's in the Box

• Maxwell RC10-10 12V Windlass
• Circuit breaker
• Reversing solenoid
• Up/Down panel switch
• Clutch release handle

Important Note: Maxwell windlasses must be used in conjunction with a chain stopper and/or an alternative snubbing device to relieve the load on the windlass while at anchor. These devices should also be used to secure the anchor in the fully raised position while underway.
