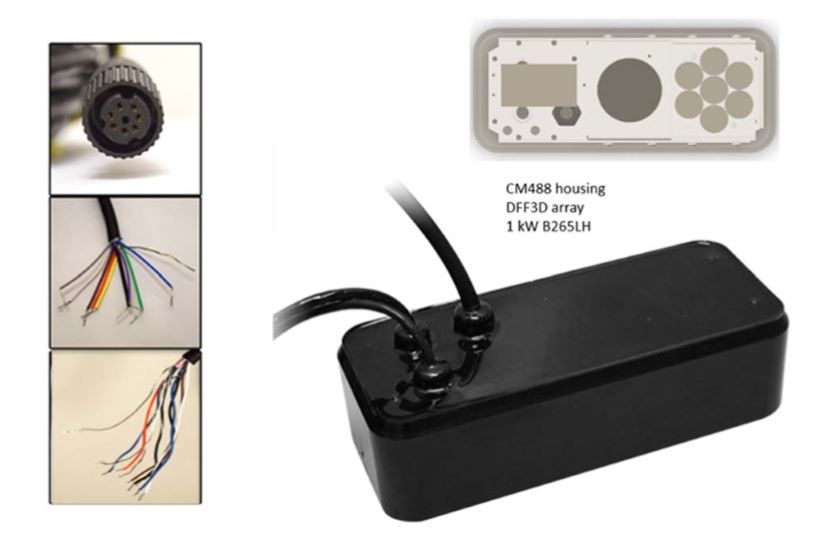

Furuno - 165T/265LH-PM488 1Kw Transducer - Pocket Mount
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Superior Sonar Performance for Enhanced Marine Navigation
The Furuno 165T/265LH-PM488 is a high-performance pocket mount transducer designed for professional and recreational marine applications. Featuring dual CHIRP technology, this 1kW transducer delivers exceptional underwater imaging for improved fish detection and seabed analysis. It is fully compatible with Furuno’s DFF3D and DFF1-UHD sounders, providing reliable performance in a wide range of marine environments. With both low- and high-frequency CHIRP capabilities, it ensures detailed, accurate sonar readings across varying depths and conditions.
Advanced CHIRP Capabilities for Precision Imaging
This transducer features dual CHIRP elements optimized for superior underwater imaging:
- DFF3D Elements (165 kHz): Delivers ultra-wide coverage for high-resolution, multi-directional fish detection.
- Low CHIRP (42 kHz - 65 kHz): Provides deep water penetration with a beamwidth ranging from 25° to 16°.
- High CHIRP (130 kHz - 210 kHz): Offers enhanced target separation with a narrower beamwidth of 10° to 6°.
Seamless Compatibility with Furuno Systems
Designed for seamless integration, the transducer includes a 12-meter cable with a 7-pin connector and a pigtail cable for DFF3D. It is highly recommended for use with Furuno’s DFF1-UHD and DFF3D installations, ensuring optimal performance with Furuno’s advanced sonar technology.
Integrated Sensors for Accurate Readings
Equipped with a built-in motion sensor and temperature sensor, this transducer enhances sonar accuracy by compensating for vessel movement while providing real-time water temperature data.
Product Dimensions
- Length: 12 inches
- Width: 5 inches
- Height: 3.5 inches
Highlights
- 1kW Dual CHIRP transducer with superior deep and shallow water performance
- Wide and narrow beam CHIRP options for versatile sonar coverage
- Multi-element DFF3D capability for detailed fish and structure detection
- Compatible with Furuno DFF1-UHD and DFF3D for seamless integration
- Built-in motion and temperature sensors for enhanced sonar accuracy
- 12-meter cable with secure connectivity for reliable data transmission
This transducer is an essential addition for marine professionals and serious anglers who demand high-precision sonar imaging and seamless system compatibility.
