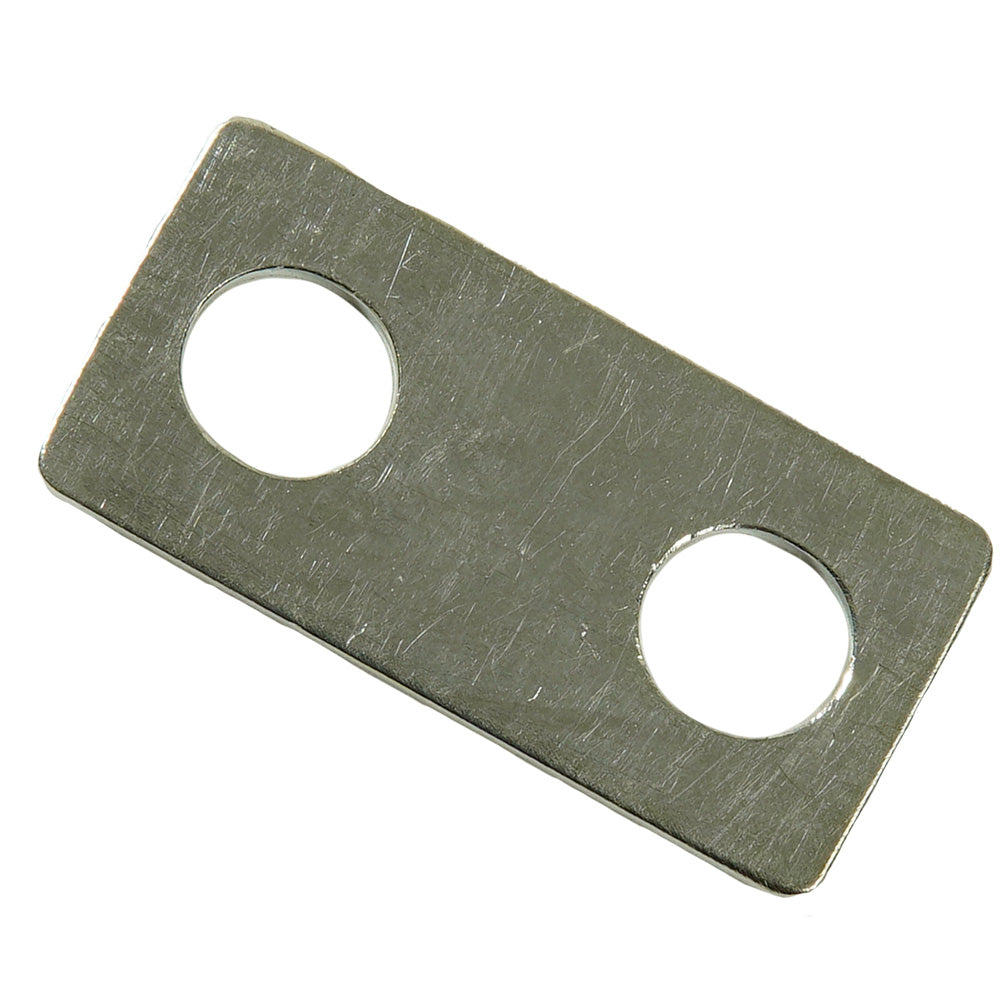

Egis Mobile Electric - XD Relay Link Busbar

Reliable Connectivity for Robust Circuit Management

The Egis XD Relay Link Busbar is a vital component for marine electrical systems, ensuring seamless circuit connectivity with its tin-plated copper construction. Designed to provide anti-corrosive properties and long-lasting durability, this busbar is essential for creating compact and efficient installations.

General Description

The Egis XD Relay Link Busbar is engineered for optimal electrical conductivity and durability. Its primary function is to link together XD Single, Dual, and Triple relays in various configurations, enhancing the capability and reliability of your marine electrical system. This busbar also connects to Egis's 8700 Mechanical Disconnect, allowing for streamlined battery management and robust circuit switching.

Features and Advantages

• Superior Electrical Conductivity: Made from high-quality tin-plated copper, this busbar ensures reliable and efficient electrical connections.
• Anti-Corrosive: The tin plating protects against corrosion, maintaining the integrity of your connections in marine environments.
• High Durability: Built to withstand high amperage loads and resist deformation from nut-tightening, ensuring long-lasting performance.
• Space-Saving Design: Link XD relays together to save installation space while maintaining a professional and organized appearance.
• Enhanced Circuit Management: Allows for robust circuit switching and efficient battery management by connecting multiple relays.

Specifications

• Continuous Current (Amps): 500
• Max Voltage (VDC): 72
• Material: Tin-plated copper
• Size (L x W): 47.8mm x 22.8mm
• Thickness: 2.8mm (1/8”)
• Terminal Stud Hole Size: 10.5mm (3/8”)

Technical Specifications

• Continuous Current Capacity: 500 Amps ensures reliable performance even under high electrical loads.
• Maximum Voltage: Capable of handling up to 72 VDC, suitable for various marine applications.
• Material Composition: Constructed from tin-plated copper for superior conductivity and corrosion resistance.

Product Dimensions

• Length: 47.8mm
• Width: 22.8mm
• Thickness: 2.8mm (1/8”)
• Terminal Stud Hole Size: 10.5mm (3/8”)

Highlights

• Durable and Reliable: Crafted to endure the challenging marine environment, providing long-term reliability.
• Efficient Installation: Simplifies the installation process by linking multiple relays, reducing space requirements, and ensuring a clean, professional setup.
• Versatile Applications: Compatible with XD Single, Dual, and Triple relays, as well as the Egis 8700 Mechanical Disconnect, for a wide range of configurations.

The Egis XD Relay Link Busbar is an indispensable component for any marine electrical system, offering unparalleled conductivity, durability, and versatility. Ensure your marine circuits are connected reliably and efficiently with this high-quality busbar.

• 1264211_qbp535821.pdf
