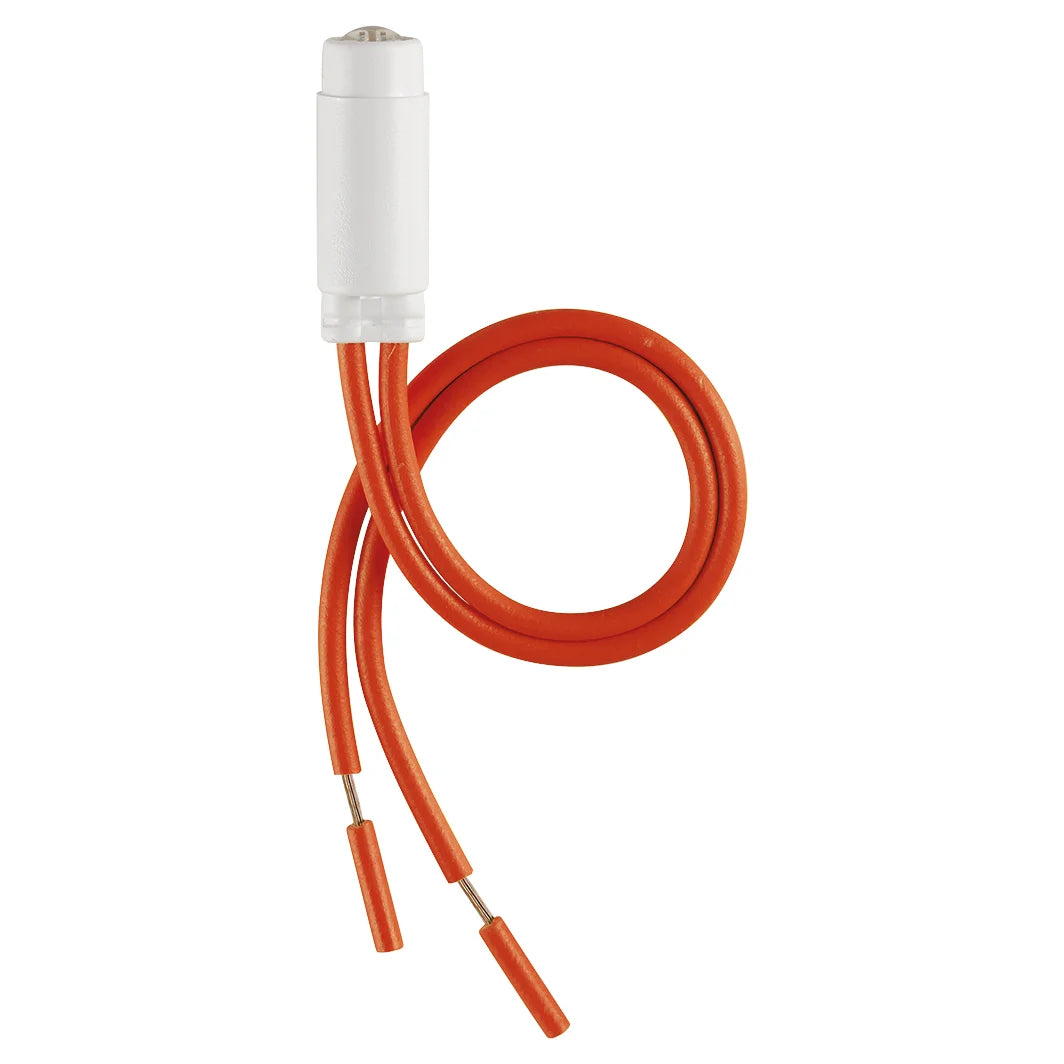

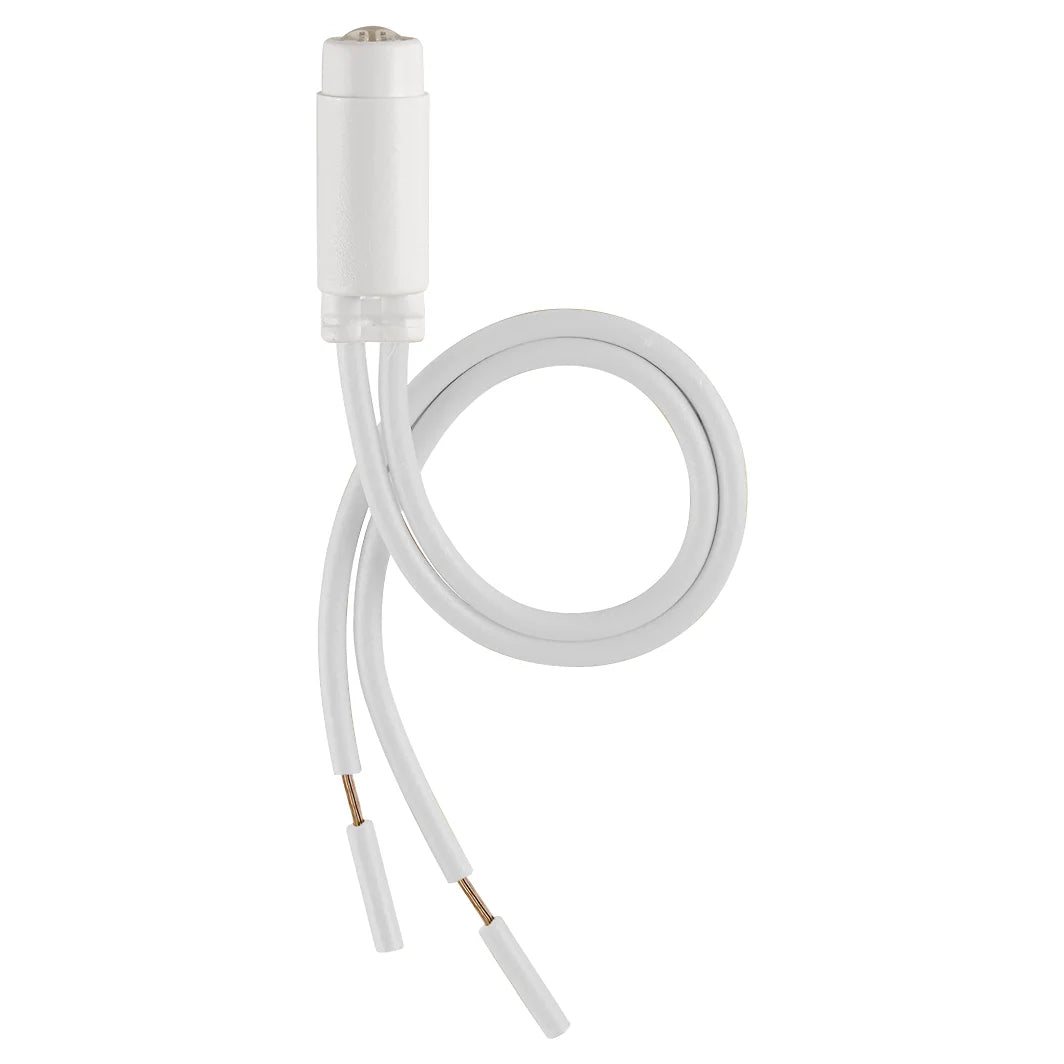

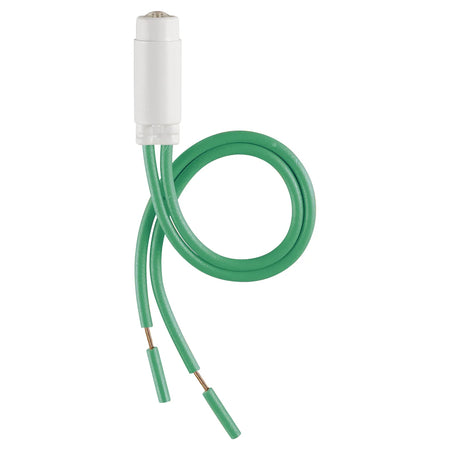

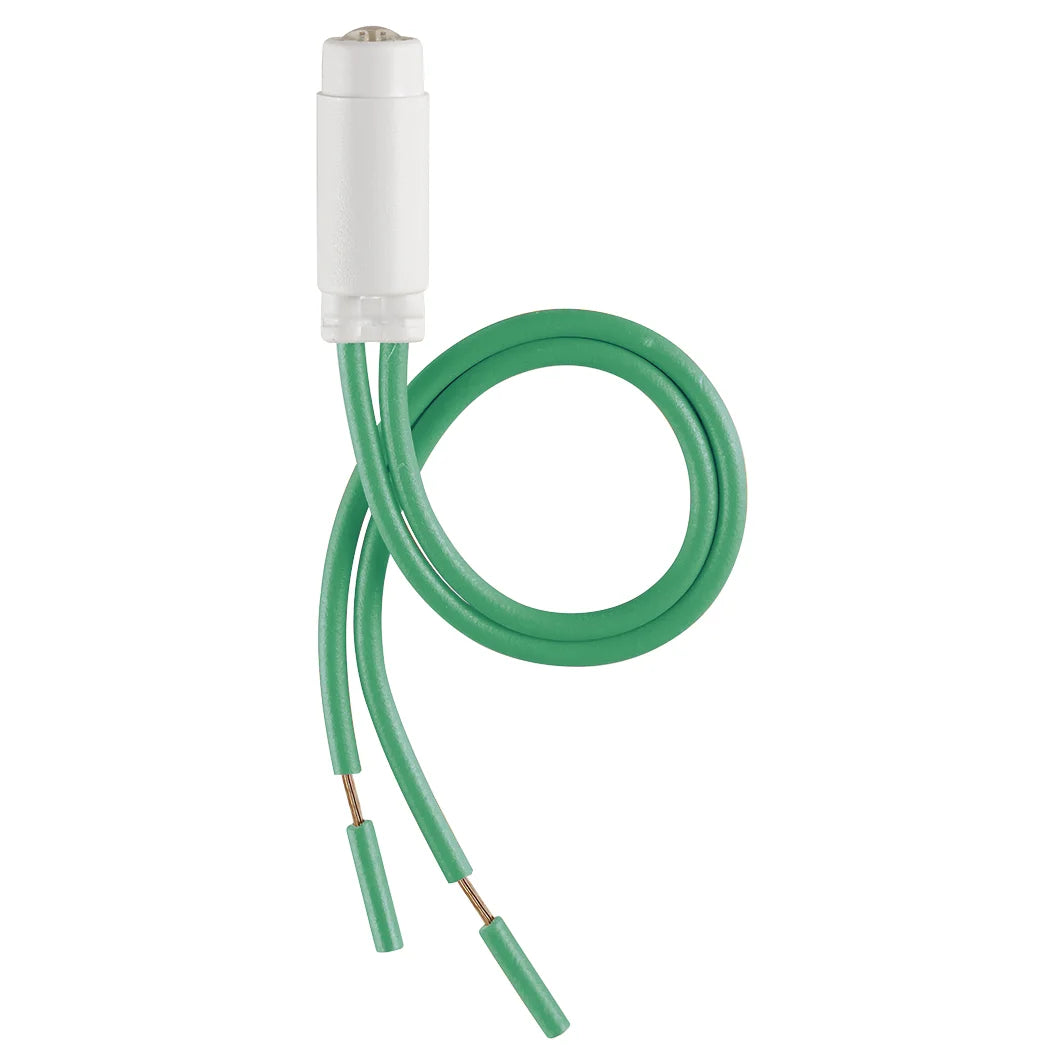

Vimar LED Signalling Unit, For Plana, Arké, Linea, Eikon and Idea Illuminable Rocker Switches

Overview

This Vimar LED signalling unit is an indicator insert for compatible switch and push-button assemblies where you need a clear status light on an onboard panel. Across this range, the electrical options cover 5 V a.c./d.c. at 0.01 W, 120 V 50/60 Hz at 0.2 W, and 250 V 50/60 Hz at 0.35 W, with light blue, amber, green, red, and white versions available.

It is used as a small visual indicator rather than a general light source, which makes it a practical fit for helm, cabin, galley, and service-area switch panels where crew need to confirm a circuit state at a glance. This is an illumination insert for switch or push-button applications, so fit depends on using a compatible device that accepts this type of signalling insert.

Key features

• LED signalling insert for switch and push-button applications
• Variant family covers 5 V a.c./d.c. 0.01 W, 120 V 50/60 Hz 0.2 W, and 250 V 50/60 Hz 0.35 W
• Color options in this range include light blue, amber, green, red, and white
• Can be wired in-line with the load when used with incandescent or halogen lamps
• Can be wired in parallel with the load for other lamp types, or connected directly to the main supply when a constant indicator is needed
• Integrated LED light source built into the insert

Variants

This product is offered in multiple configurations. Across the range, the changing points are indicator color and electrical rating.

The 5 V versions are rated at 0.01 W and operate on a.c. or d.c. The 120 V versions are rated at 0.2 W at 50/60 Hz, and the 250 V versions are rated at 0.35 W at 50/60 Hz. Color options in this family include light blue, amber, green, red, and white, which lets the indicator match panel logic or circuit identification on a compatible onboard switch panel.

Compatibility and fit

This unit belongs in a compatible switch or push-button assembly, not as a stand-alone fixture. Before ordering, match the insert to the device family in your panel and confirm both the circuit voltage and the indicator color needed for that position.

For marine use, it fits best in protected interior locations such as helm consoles, electrical cabinets, cabin controls, or other enclosed panels where a pilot light helps show power, activation, or circuit status.

Installation and setup

Wiring method matters. With incandescent or halogen lamps, the signalling unit is used in-line with the load so the indicator stays off while the controlled lamp is on. With other lamp types, it can be wired in parallel with the load so both illuminate together, or connected directly to the main supply when a permanent indicator is needed.

This is a good match for boats that already use compatible Vimar switching hardware and want a tidy indication point without adding a separate lamp body. On mixed-voltage vessels, the variant choice should follow the exact circuit the indicator will monitor.
