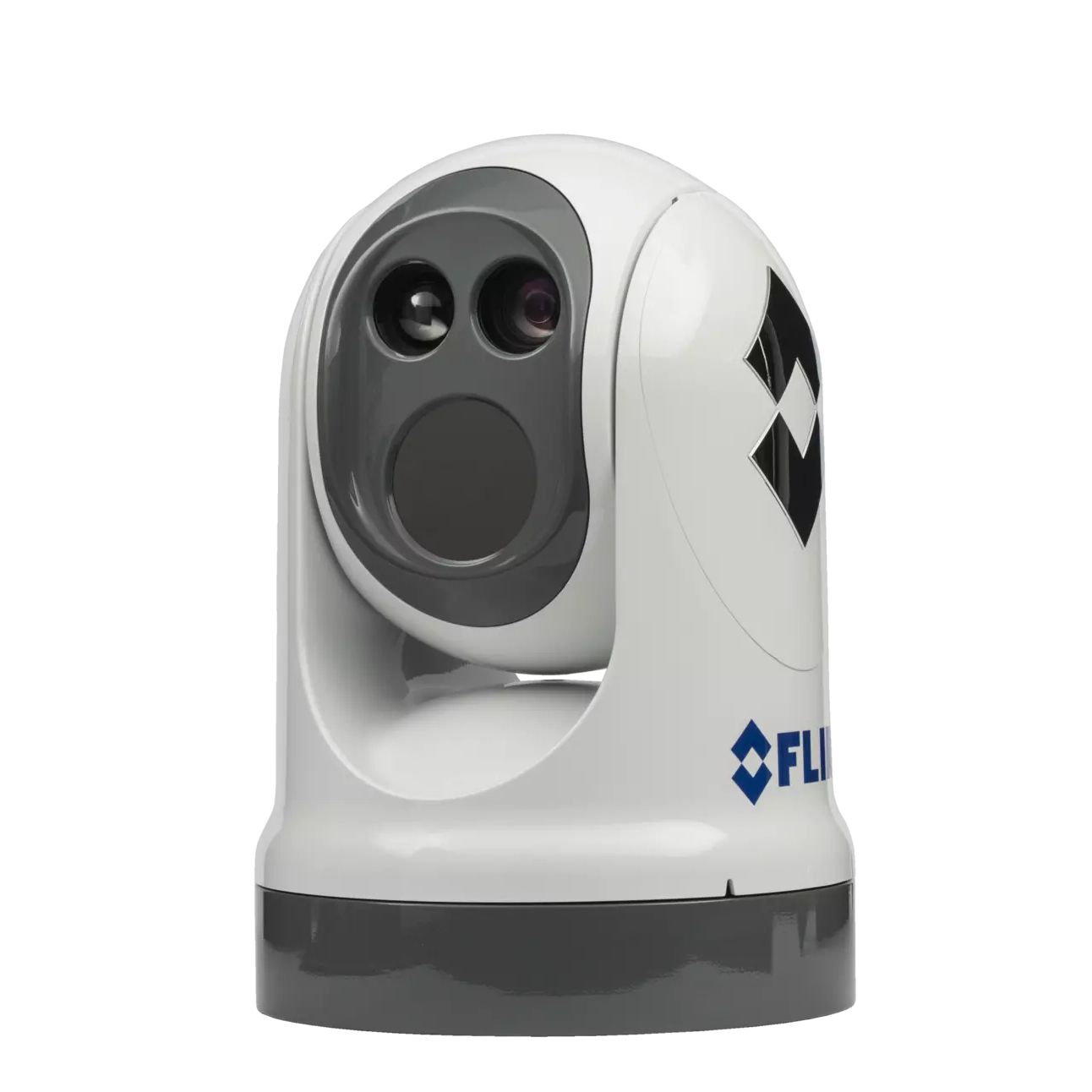

FLIR Systems - M400XR Multi-Sensor Thermal/Visible Camera Stabilized
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Thermal and Visible Imaging for Marine Operations
The FLIR Systems M400XR Multi-Sensor Thermal/Visible Camera delivers cutting-edge situational awareness for marine and first responder applications. Designed to provide superior thermal imaging and HD color camera performance, this stabilized system ensures clear visibility in all conditions. With specialized firefighting software, automatic temperature tracking, and intelligent image enhancement, the M400XR is an essential tool for navigating, surveillance, and emergency response in marine environments.
Superior Imaging with Dual-Sensor Technology
The M400XR features an integrated thermal and visible imaging system to provide unparalleled visibility. The thermal sensor includes up to 3X optical zoom, while the HD color camera offers an impressive 30X optical zoom, allowing operators to detect and track objects with precision. FLIR’s proprietary Digital Detail Enhancement™ further improves image clarity, even in low-visibility conditions.
Precision and Stability in Harsh Marine Environments
Built for the unpredictable nature of marine conditions, the rugged, waterproof gimbal enclosure is designed to withstand harsh environments. The system includes automatic window heaters that prevent fogging and ice buildup, while gyro-stabilization ensures a steady image even in rough seas.
Enhanced Situational Awareness for First Responders
The custom firefighting software enhances operational effectiveness by displaying target temperature meters and isotherms. InstAlert™ mode highlights the hottest objects in red and orange for quick identification, while IceAlert™ mode turns the coolest objects blue and green for better contrast and object tracking.
Technical Specifications
- Thermal Camera: 640 × 480 VOx Microbolometer
- Optical Zoom: 4X thermal zoom, 30X visible camera zoom
- Field of View (Thermal): 18° to 6° / 1.5° HFOV with e-zoom
- Field of View (Visible): 64° to 2.3° Optical HFOV / 0.2° NFOV e-zoom
- Image Processing: FLIR Digital Detail Enhancement™
- Video Output: Dual H.264 network streams, HD-SDI lossless video, switchable NTSC/PAL composite output
- Pan & Tilt Coverage: 360° continuous pan, ±90° tilt
- Power Requirements: 24V DC, <50W nominal, 130W peak, 270W with heaters
- Operating Temperature: -20°C to 55°C
Product Dimensions
- Camera Head Size: 15.18" x 18.68"
- Swept Volume Cylinder: 15.5" x 22"
- Weight: 45 lbs
Integrated Marine Spotlight
- Beam Angle: 5° divergence
- Brightness: 580 lumens
- Light Type: LED
Highlights
- Dual-sensor technology for thermal and HD visible imaging
- Firefighting mode with temperature tracking and isotherms
- InstAlert™ and IceAlert™ enhance situational awareness
- Fully stabilized for smooth operation in heavy seas
- Rugged, waterproof design with automatic defrosting
- Flexible connectivity with IP control, PC integration, and joystick operation
What's in the Box
- FLIR M400XR Camera
- Joystick Control Unit (JCU2)
- Ethernet switch with Power over Ethernet (PoE)
The FLIR M400XR is an industry-leading solution for marine navigation, surveillance, and emergency response, ensuring optimal performance and reliability in demanding maritime conditions.
