Vimar Neve Up 2P+E 15A USA+SASO Socket Outlet, 127V, Flush Mount

Overview

The Vimar Neve Up is a 2P+E 15 A USA+SASO socket outlet range for 127 V circuits in a 1-module flush-mounted format. Across the listed variants, it keeps the same 50-60 Hz rating and the same device size of 22.3 mm wide, 47 mm high, and 36.5 mm deep.

This outlet is built in thermoplastic and is intended for installations that use the Neve Up modular system. For onboard AC distribution, it makes sense in protected interior spaces where a USA and SASO compatible receptacle is needed and the finish needs to match the rest of the switchgear.

Key features

• 2P+E socket outlet rated 15 A at 127 V~ and 50-60 Hz
• USA and Saudi Arabian outlet format
• 1-module device for Neve Up flush-mounted installations
• Thermoplastic body with a flush-mounted form factor

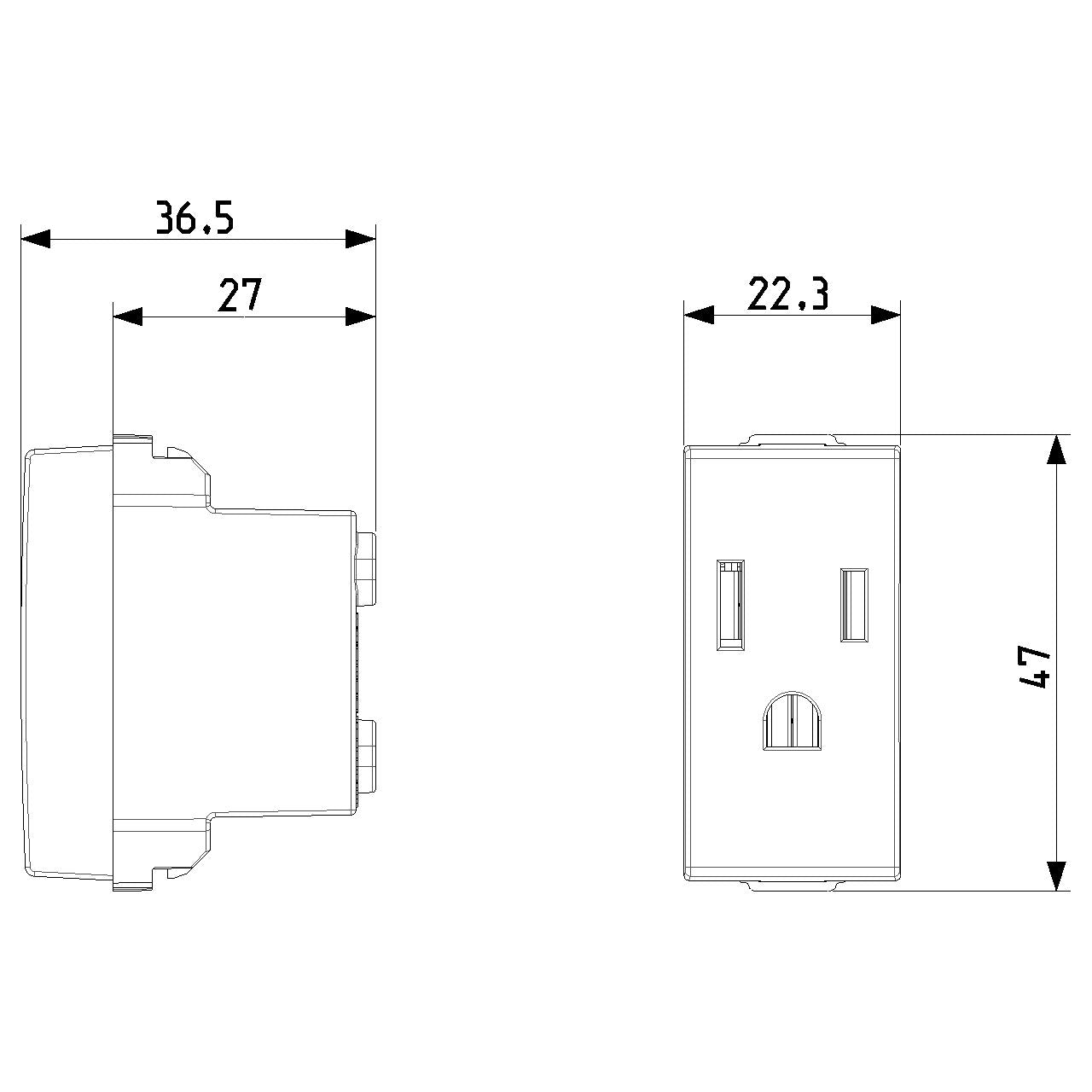

• Shared device dimensions of 22.3 x 47.0 x 36.5 mm across the listed variants

Variants

This product is offered in multiple finish options under the same Neve Up outlet format.

Across the two variants, the electrical rating, module size, mounting style, and overall dimensions stay the same. The change is the visible finish and color.

• VM09245: Color White. This version has a white face with a glossy finish and an untreated surface, which keeps the look consistent with light Neve Up trim and white interior panels.

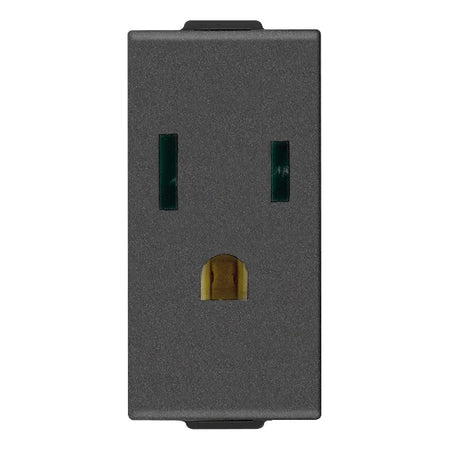

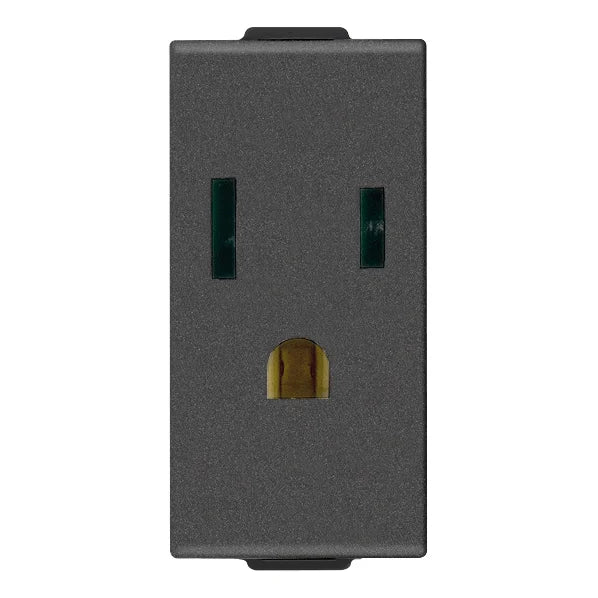

• VM09245.CM: Color Carbon Matt. This version uses a darker matt face with a lacquered surface, which works well with dark trim and more subdued interior schemes.

Installation and fit

Because this is a 1-module insert, it suits layouts where a single receptacle needs to share a frame with switches or other Neve Up devices. The 36.5 mm depth is worth checking against box depth and cable space before final assembly.

This type of outlet is best placed in protected cabin, galley, helm, or utility spaces tied into a 127 V AC system. For areas exposed to spray or washdowns, installers normally look to a protected enclosure or a sealed device instead of an interior flush outlet.

Use on board

This range is a good match for refits and new builds that already use Vimar Neve Up hardware and need a USA+SASO receptacle in a finish that matches nearby controls. It also suits installations where panel space is limited and a single-module outlet is easier to place than a larger receptacle body.
