Garmin ECHOMAP UHD2 54cv 5 in Chartplotter/Fishfinder Combo, GT20-TM Transducer Included, Keyed Display, Traditional CHIRP, ClearVü, BlueChart g3, Wi-Fi

Overview

The Garmin 010-02591-01 is a 5-inch keyed chartplotter and fishfinder combo that combines GPS charting with traditional CHIRP and ClearVü sonar when paired with the included GT20-TM transducer.

The WVGA 800 x 480 display is easy to read from the helm, and the unit runs on 9 to 18 Vdc (typical 12 V systems) with an IPX7 water rating for open-console use. A microSD card slot supports up to 1 TB for adding charts and moving data on and off the unit.

For inshore and nearshore fishing, it gives you the chart view you need to run a line and the sonar view you need to stay on structure. Built-in Wi-Fi supports wireless sharing with compatible ECHOMAP units and connects to a phone or tablet for app-based features and updates.

Key features

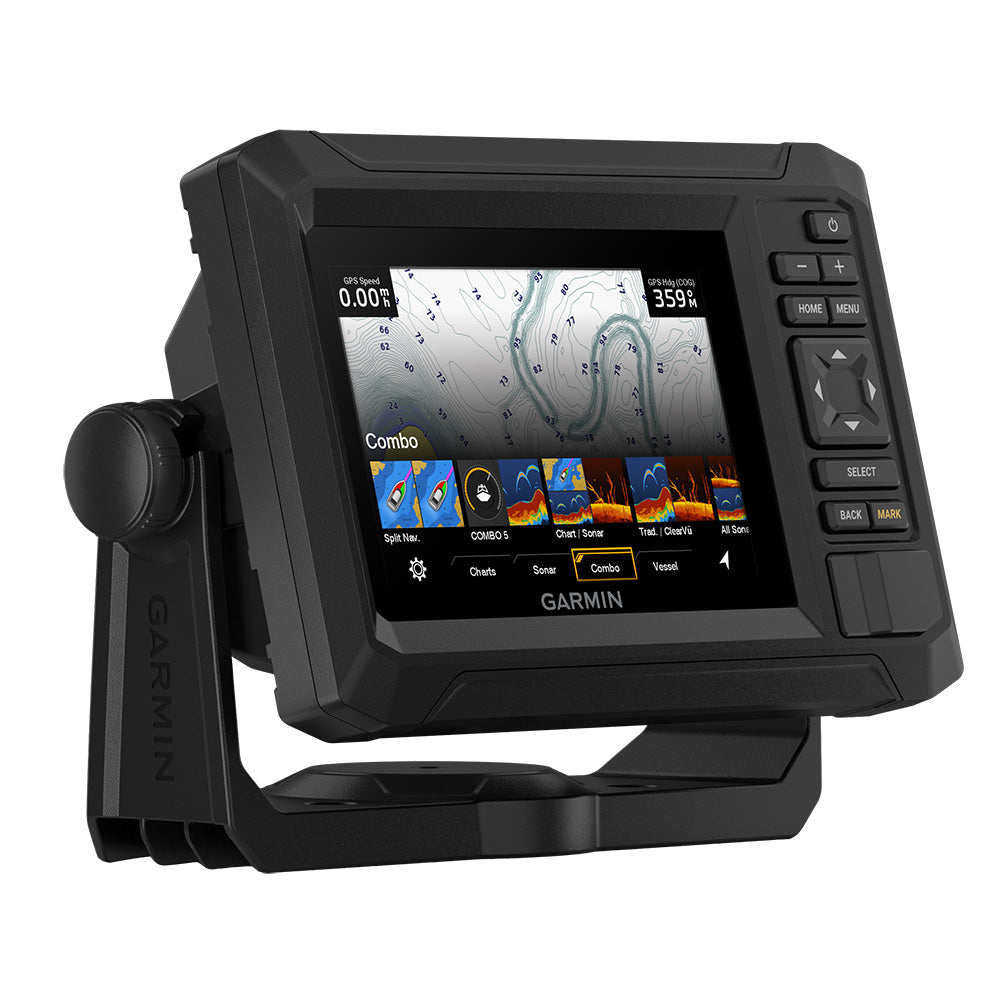

• 5-inch keyed display with 800 x 480 resolution for quick operation with wet hands
• Input power: 9 to 18 Vdc, 3 A fast-acting fuse; max power draw 8.4 W
• IPX7 water rating and polycarbonate housing for typical dash and console installs
• Single-channel CHIRP sonar (40 to 250 kHz) and ClearVü CHIRP (260/455/800 kHz) with 500 W transmit power
• Max sonar depth up to 2,300 ft at 77 kHz, depending on transducer and water conditions
• Built-in Wi-Fi (2.4 GHz) for wireless sharing with compatible ECHOMAP chartplotters and connecting mobile devices
• microSD card slot supports up to 1 TB for charts, updates, and data management
• GT20-TM transducer included for traditional 77/200 kHz and ClearVü CHIRP 455/800 kHz with a built-in temperature sensor and 20 ft cable

What's included

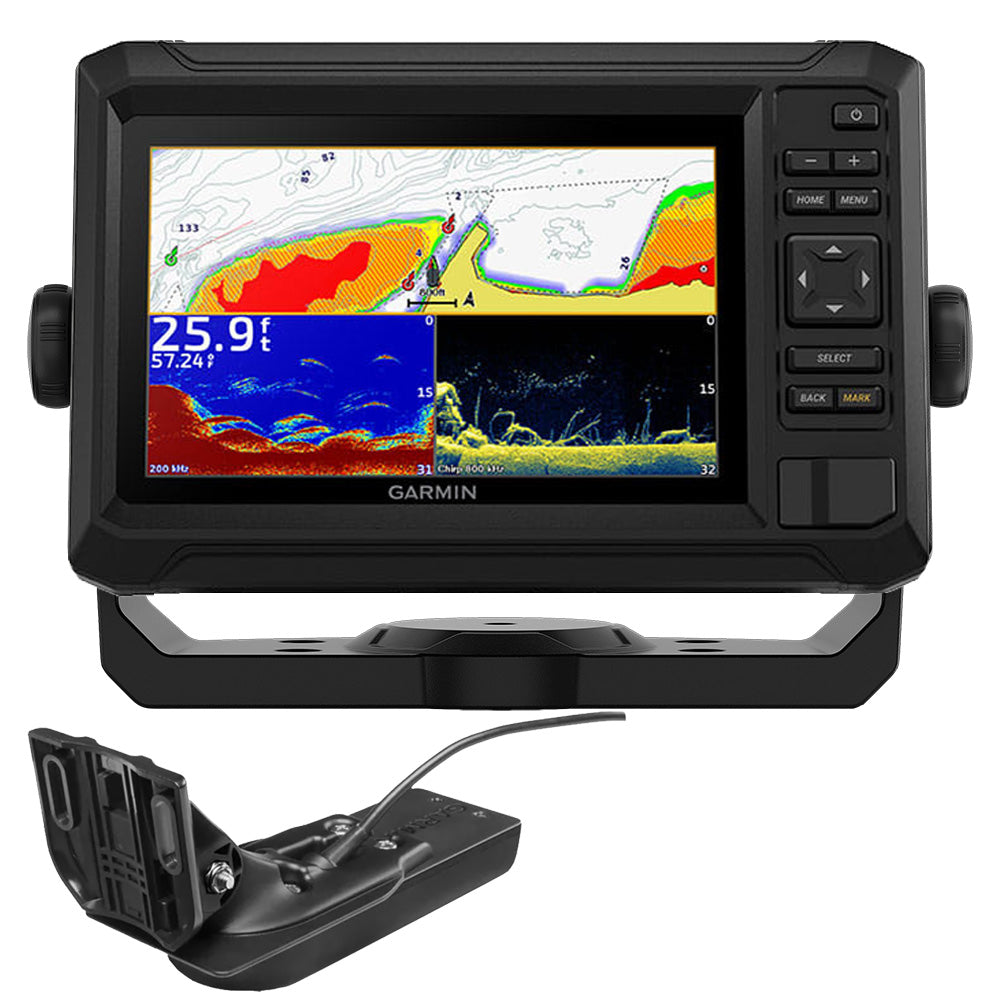

• ECHOMAP UHD2 54cv display
• GT20-TM transducer
• Power/data cable
• Tilt (bail) mount
• Flush-mount kit
• Mounting hardware
• Documentation

Installation and setup

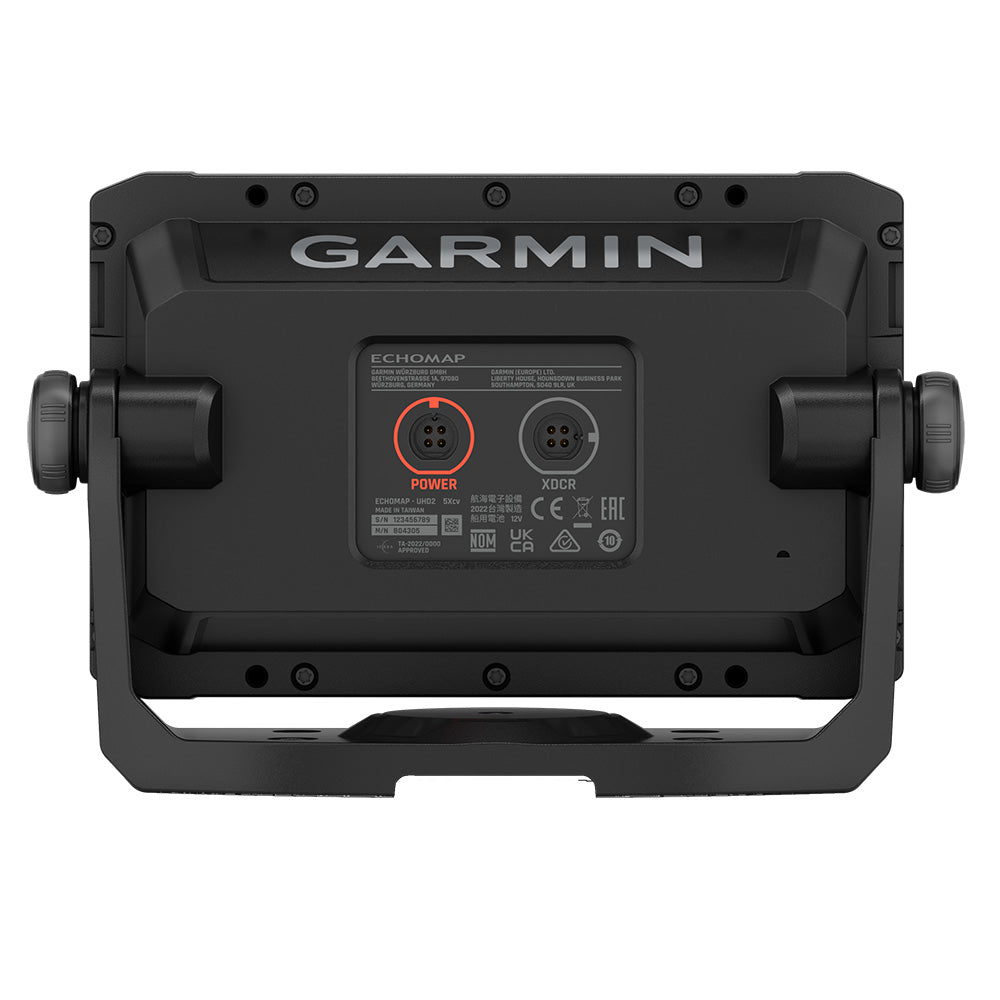

Plan the install like you would any helm electronics: pick a location that stays visible while running and leaves room behind the unit for the cable bend and strain relief. The chartplotter body is 188 x 122 x 61.5 mm (about 7.9 x 4.8 x 2.4 in.), and the keyed face makes it practical when you do not want to rely on touch controls in chop.

Power the unit from a clean 12 VDC electronics feed and protect it with a 3 A fast-acting fuse. On the transducer side, mount the GT20-TM where it has clean water flow at speed and is clear of strakes, steps, and trailer bunks. Route the transducer cable away from high-current wiring runs to help keep the sonar picture stable.

Compatibility and fit

This setup fits well on skiffs, bay boats, small center consoles, and similar boats where dash space matters but you still want chart and sonar on one screen. The unit is rated IPX7 for incidental exposure and operates from -15 to 55 C (5 to 131 F), which covers most real-world coastal seasons.

Wireless sharing works best when the units have a clear path between them and stay within about 32 m (105 ft.). If you run multiple displays, keep in mind only two compatible ECHOMAP devices can be connected to each other wirelessly at one time.

On-the-water use

This is a solid match for anglers who run inshore and nearshore structure and want traditional sonar for fish arches plus ClearVü for reading bottom detail. It also suits cruisers who want a compact chartplotter at the helm with straightforward keyed controls and simple route and waypoint handling.
