Garmin ECHOMAP Plus 9Xsv Boat Kit, GT52HW-TM Transducer, Tilt/Swivel Mount with Quick-Release Cradle, Power/Data Cable
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Garmin 020-00200-11 is a boat kit that lets you mount a 9 inch ECHOMAP Plus 9xsv combo on a boat with the right transducer, bracket, and wiring for a fixed installation.
It includes the GT52HW-TM transducer and supports high wide CHIRP traditional sonar plus ClearVü and SideVü scanning, which keeps the same on-screen views when moving your unit from a seasonal setup to open-water use.
The 9 inch unit this kit supports measures about 11 x 6.5 x 2.5 inches, which helps when planning dash space and swing clearance for the tilt/swivel bracket.
Key features
- Boat-mount hardware to transfer a 9 inch ECHOMAP Plus 9xsv display into a dedicated helm or console installation
- GT52HW-TM transducer supports high wide CHIRP traditional sonar plus ClearVü and SideVü scanning
- Tilt/swivel mount with a quick-release cradle so the display can be removed without undoing the bracket
- Power/data cable included for a clean DC hookup and a single cable run to the unit
Installation and setup
Mount the display where it is easy to see from the helm and the screen can tilt without hitting a windshield frame, throttle, or grab rail. Leave room behind the cradle for the connector bend radius and add a drip loop so water does not track into the plug.
Transducer placement matters. Install it where it stays in clean water at speed, away from strakes, steps, and pickups that can introduce air. Route the cable away from ignition leads and high-current runs when possible, and secure it along the run so vibration does not work on the connector.
Compatibility and fit
This kit is intended for Garmin ECHOMAP Plus 9xsv use when moving a 9 inch ECHOMAP Plus sv combo from one setup to a boat. Before installing, confirm you have the matching 9 inch unit and that your hull has a suitable transducer mounting location and a protected path for the cable run back to the helm.
It is a good match for anglers and cruisers who want a dedicated bracket and transducer on the boat while keeping the option to remove the display between trips or seasons.

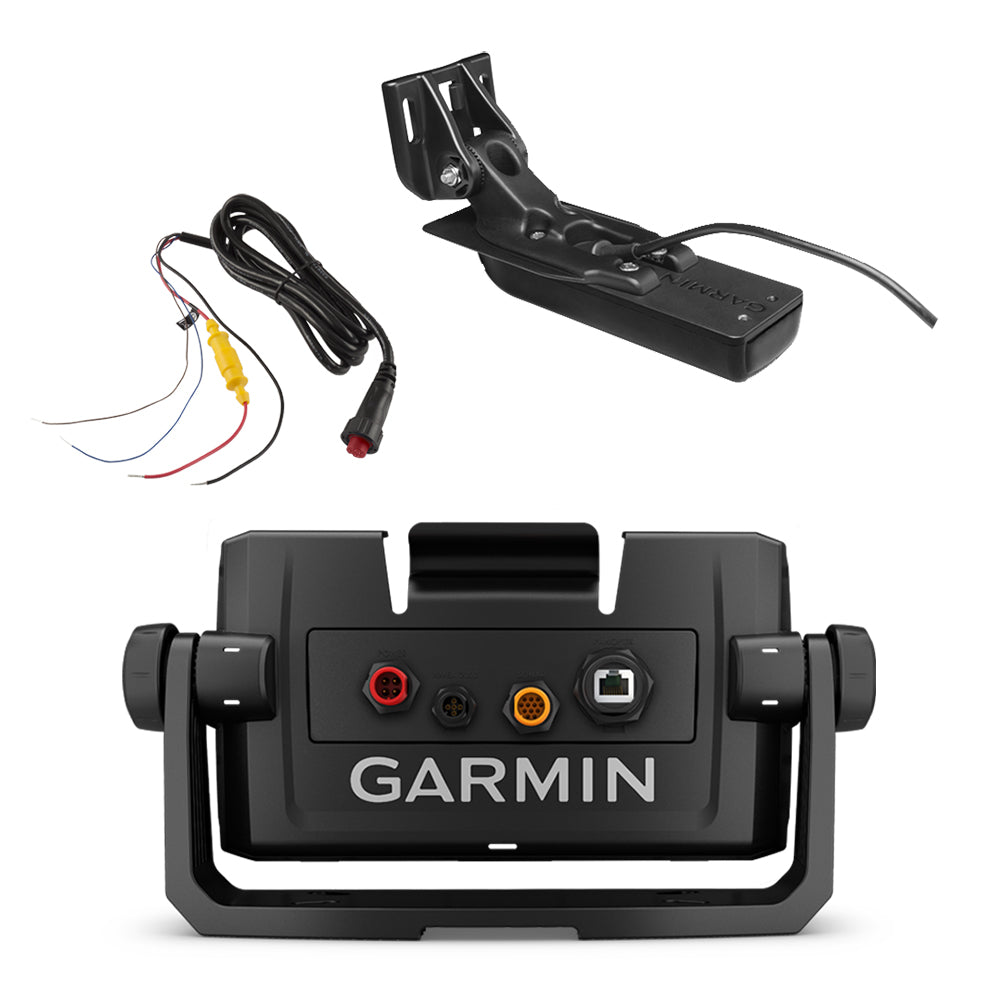

What’s included
- GT52HW-TM transducer
- Tilt/swivel mount with quick-release cradle
- Power/data cable
