Furuno - 556TID-HDD SS260 Stainless Steel Thru-Hull Transducer with Temp and Fairing Block - 10 Pin

The SS260: Unleashing the Future of Marine Exploration with Stainless Steel Thru-Hull Technology

Discover New Depths with the SS260's Ultimate Performance

If you've ever wished for a transducer that can do more—much more—then your search ends here. Introducing the SS260, our top-of-the-line stainless-steel, thru-hull stem, specifically engineered for 1 kW echosounders. Armed with dual 50 kHz and 200 kHz elements, this marvel of marine technology brings you closer to unparalleled deep-water performance and extraordinary details of bottom structures and water columns.

Technical Mastery Beneath the Waves

Equipped with a robust set of features, the SS260 offers:

• 1,000 Watts of Power: For high-definition imaging
• Dual 50/200 kHz with Diplexer: For the most detailed underwater mapping
• 20/6-degree Beam Angles: For a wide exploration range and focused imaging
• Stainless Steel Thru-Hull with Temperature Sensor: For prolonged durability and environmental adaptability
• 10-Pin Connector: For versatile connections

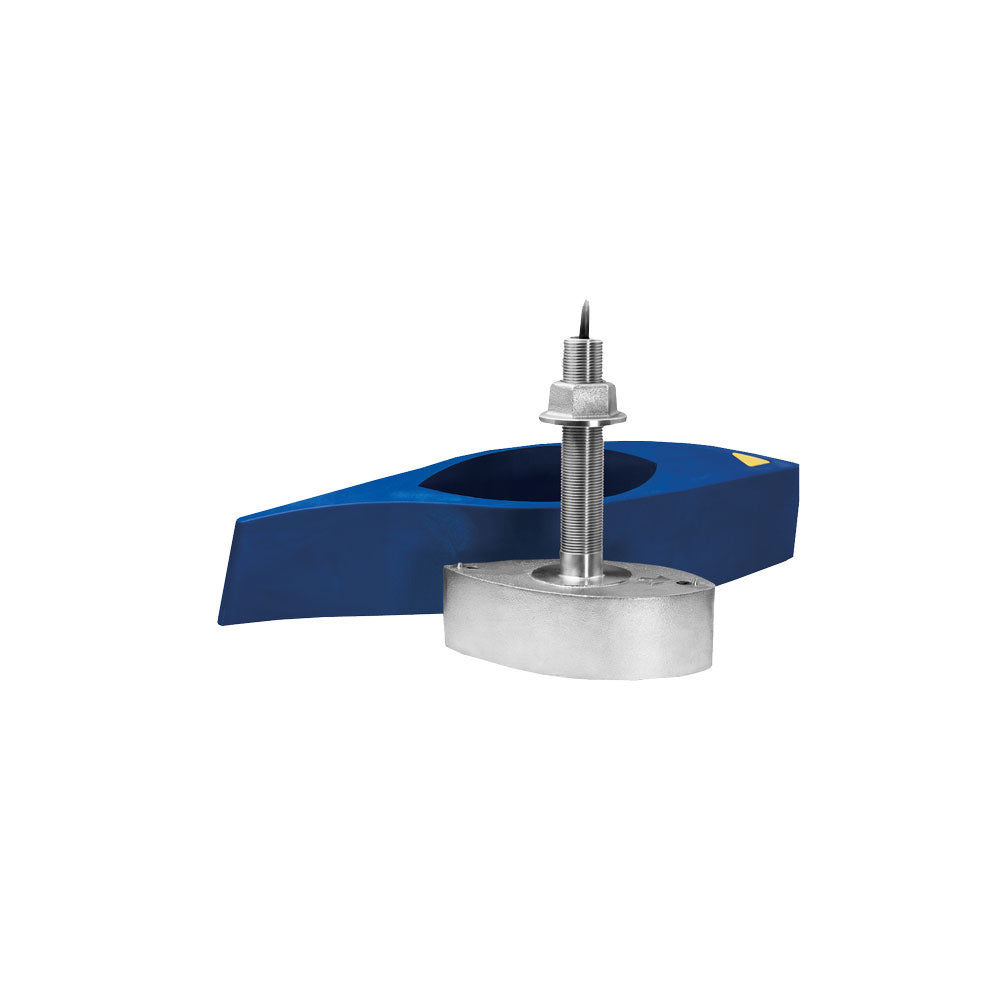

• High-Speed Fairing Block Included: For optimal hydrodynamics

Compact Design, Mighty Performance

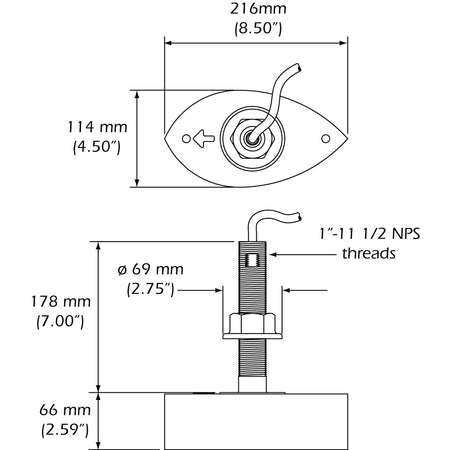

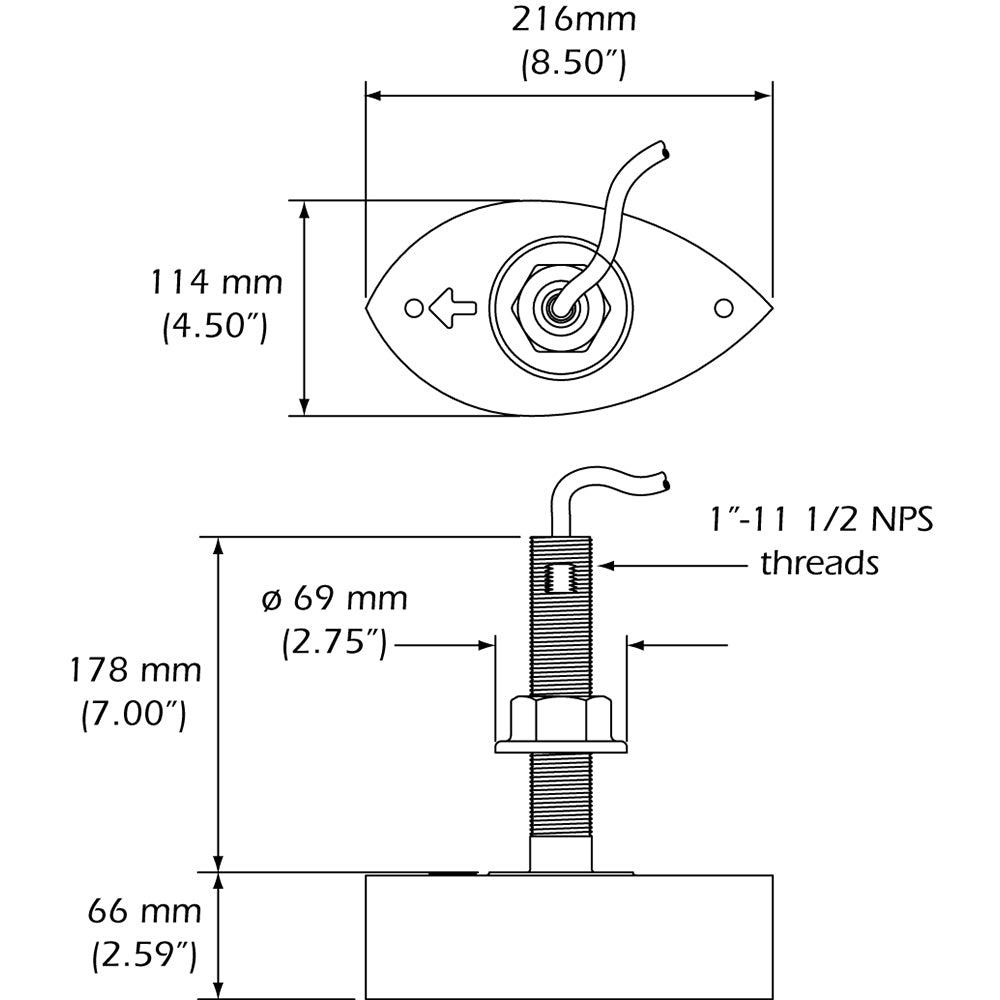

While exact dimensions will vary based on the variation you choose, each SS260 is designed to fit seamlessly into your maritime setup without taking up valuable space.

High-End Aesthetic: The SS260’s Gleaming Stainless-Steel Finish

Our SS260 transducer is not just a technological marvel; it's a masterpiece of design. Encased in an elegant stainless-steel shell, it adds a touch of class to any maritime vessel.

Why the SS260 Stands Out in a Sea of Options

• Unparalleled deep-water performance with dual 50/200 kHz elements
• Ultra-high 1,000 Watts of power for unmatched imaging
• High-speed fairing block included for optimal hydrodynamics

The SS260 Spectrum: Tailor-Made to Your Maritime Needs

While the SS260 comes standard with a 10-pin connector, we offer a variety of other connectors to suit your specific needs. Regardless of the variant you choose, rest assured that you’re getting top-notch underwater imaging and mapping capabilities.
