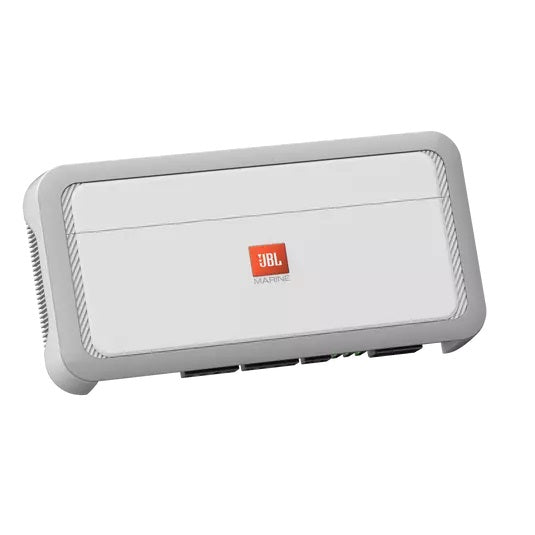

JBL MA5055AM Amplifier 50W x 4 RMS at 4 ohms and 500W x 1 RMS at 2 ohms JBLMA5055AM

JBL MA5055AM Marine Amplifier 5 channel

• The JBL marine amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
• Speaker-level and low-level inputs allow the marine to integrate with both aftermarket and factory marine stereo systems.
• Unlike many amplifiers available at similar prices, the JBL marine amplifier features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance
• The marine amplifier has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
• When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 4Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 1Vrms and 22Vrms
• On-board circuitry protects the marine amplifier from shorts, high temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
• This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the boat.
• The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver’s seat.
• The JBL marine A5055 5channels subwoofer amplifier delivers 760-Watts RMS using a Class AB+D amplifier design to ensure high output and minimum current draw.
• Turn-on-mode - This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of system tuning based on the enclosure type and location in the boat. A selectable "Turn on mode" can protect battery to avoid current drain, when you don’t expect turn on your amplifier.

The marine A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your boat, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your marine's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.

• One marine A5055 five channel amplifier
• 4 Bare wire-to-RCA adapters
• Six 30A ATO fuses (3 installed, 3 spare)
• Remote bass control module
• 16.5' Remote control cable (RJ-25 plugs on both ends)
• 2 Self-tapping screws for remote (M3 x 15mm)
• 4 Mounting screws (M4 x 53mm)
• Owner's Manual
• Two JBL stickers
• 1 logo badge
