Hella Marine 4-Pole Plug & Socket, Water-Resistant, Chrome-Plated Brass, Socket Cap, For 6.5mm Cable

Overview

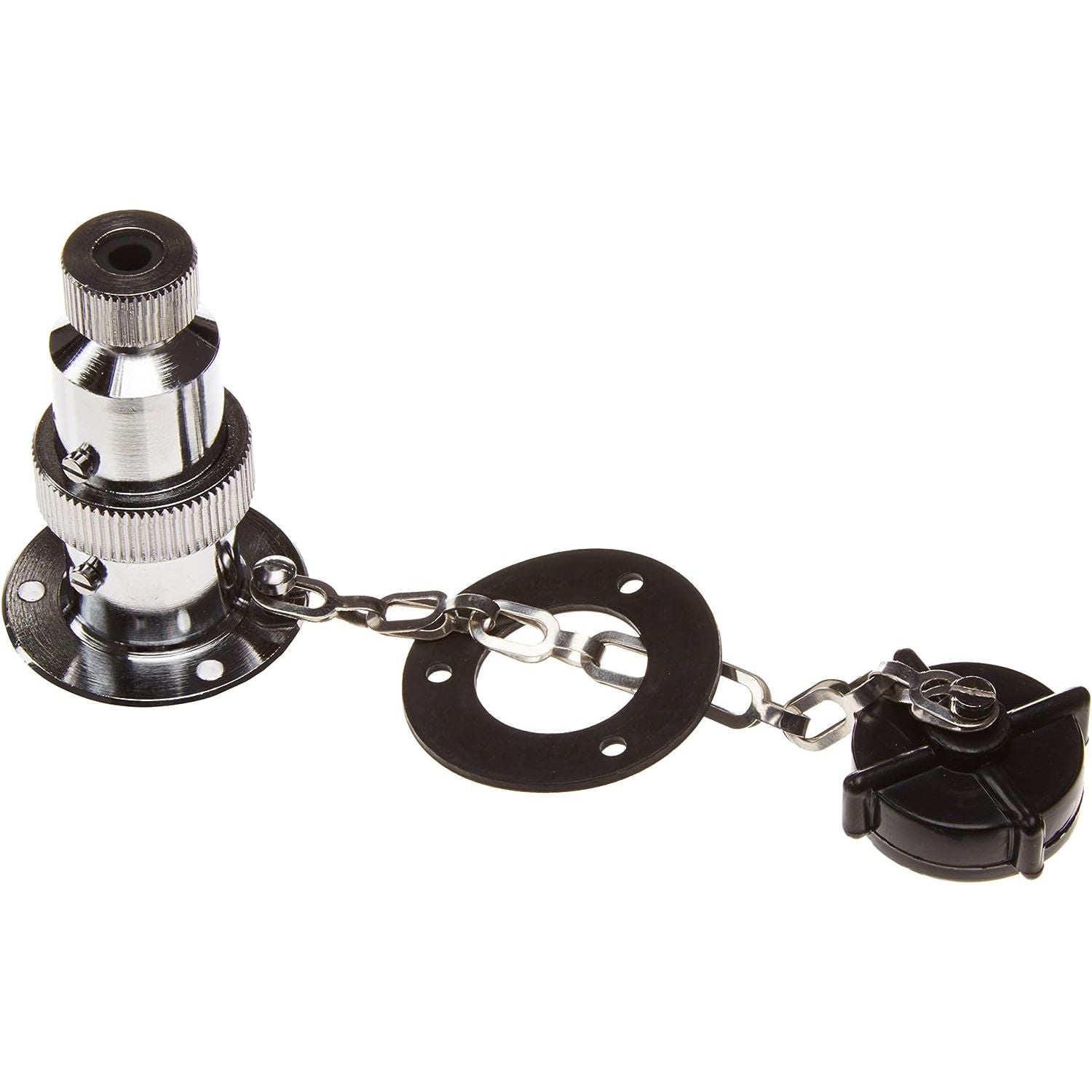

The Hella Marine 002957801 is a 4-pole plug and socket deck connector for bringing four conductors through a deck or bulkhead and disconnecting them cleanly for service or removal. It is rated for a maximum load of 10A at 12V and uses chrome-plated brass housings with brass contacts for a connection that stands up well in a damp marine environment.

The socket is supplied with a protective cover for when the plug is not in place, and the plug is sized for cables up to 6.5 mm outer diameter. Wiring is via screw terminals, so you can land your conductors without special crimp pins and re-terminate later if your rigging changes.

Key features

• 4-pole plug and socket set for four separate circuits through a deck or bulkhead pass-through
• Maximum load rating of 10A at 12V for typical onboard accessory circuits
• Chrome-plated brass housings with brass contacts
• Screw terminal connections for straightforward installation and servicing
• Protective cover on the socket to help keep spray out when disconnected
• Plug accepts cable jackets up to 6.5 mm outer diameter

Installation and setup

This connector is commonly mounted where you need a tidy disconnect point, such as a transom, hardtop, deck edge, or mast base. Bed the socket properly and route wiring with a drip loop on the interior side so water cannot track along the conductors into the boat.

Label the four conductors before termination, tighten the screw terminals firmly, and add strain relief so vibration and cable movement are not carried by the terminals.

Compatibility and electrical use

Use it on 12V DC circuits up to the 10A maximum load rating. It suits lighting circuits, low-current accessories, and control wiring, rather than high-draw loads with large inrush currents.

Before ordering, confirm you need four conductors and that your cable jacket fits the 6.5 mm maximum outer diameter at the plug.

Use cases on board

It is a solid fit for sailboats with a removable mast wiring harness, powerboats with detachable hardtops, and any installation where a light bar, deck wash, or accessory panel needs to unplug for service. It also works well for connections that are unplugged regularly, where keeping wiring organized matters.

Maintenance and care

Keep the cover closed when the connector is not in use and rinse away salt after heavy exposure. If the connection ever feels gritty or intermittent, disconnect and clean the contacts before reassembling.
