Furuno - DRS4DL+ Radar Dome, 4kw, 19" 36NM
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Unlock the Ocean's Secrets: DRS4DL+ Radar Dome
Peek into the Abyss: The Heart of DRS4DL+

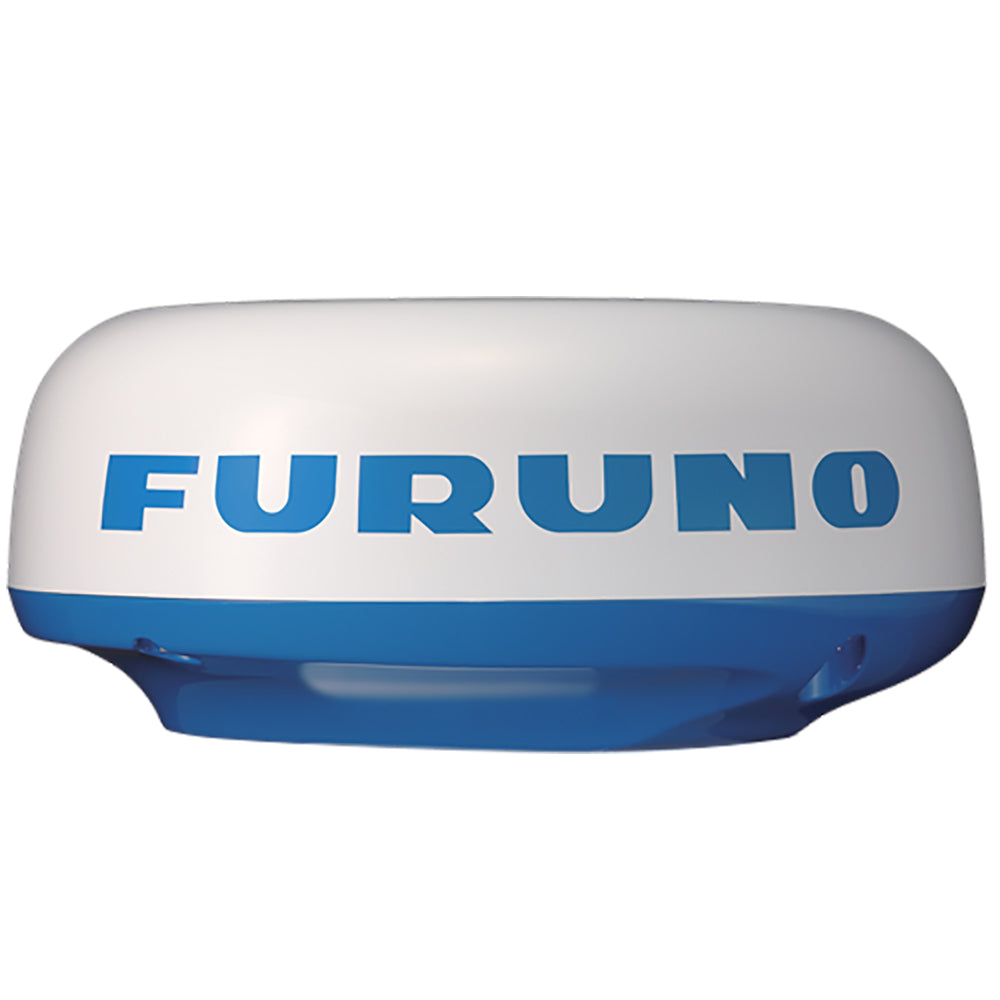

Introducing the DRS4DL+ Radar Dome, an impeccable 19" dome Radar Sensor tailored for NavNet TZtouch and NavNet TZtouch2. Our 4kW Radar, engineered in a sleek, rugged 19" design, uses Furuno's cutting-edge real-time digital signal processing. This guarantees sailors the most vivid and clear targets they could expect from a radar of this stature. Simplify your navigational endeavors as the DRS4DL+ beautifully integrates through a wired connection with NavNet TZtouch and TZtouch2. Experience simplicity like never before with the TZTL12F/15F single-wire solution.
Unveiling the Specs: Dive Deeper into DRS4DL+
Revolutionizing radar technology, the DRS4DL+ operates at a steady 24RPM and displays a range of scales from 1/8 nm to a whopping 36 nm. However, it's key to note that its expertise is dedicated to the NavNet TZtouch and TZtouch2 systems, excluding the NavNet 3D. Adding a cherry on top, the Fast Target Tracking (TT) / ARPA rapidly acquires and keeps a keen eye on 10 targets*. Once a target is chosen, a speed and course vector pops up in mere seconds. This precision provides a clear insight into another vessel's course and speed.
Size Matters: Sculpting the DRS4DL+
Our DRS4DL+ Radar Dome seamlessly blends into your ship's design, maintaining a lightweight structure at just 5.7kg/12.5lbs.
Shining Features: What Makes DRS4DL+ Stand Out
- A crystal-clear vision with the 19" 4kW / 24 RPM / 36NM UHD Radome.
- Exceptional clarity with 5.2° horizontal / 25° vertical beamwidth.
- Ultra-High Definition (UHD) Digital Radar for pristine targets.
- Masterful tracking with "Fast Target Tracking" TT / ARPA for up to 10 targets (*heading sensor required).
- Revolutionary auto-adjust settings for all maritime conditions.
- Efficient power dynamics with a 23 Watt TX / 10 Watt STBY consumption.
- Braving the elements with IPX6 waterproofing & a robust -25°C to 55°C environmental rating.
