SI-TEX - T941A 8.4" Color Radar - With 4Kw 25" Dome

Advanced Marine Radar with High-Precision Target Detection

The Si-Tex T941A 4kW 36nm Radar with a 25" dome is designed for marine professionals who demand high-performance navigation and target tracking capabilities. Equipped with true-color radar technology, this system enhances visibility by displaying echoes in different colors based on signal strength. The real-time presentation ensures smooth movement as your vessel changes bearing, while dual-speed antenna rotation enables efficient tracking of fast-moving, close-range targets.

With selectable range scales starting from 1/16 NM, the T941A provides excellent situational awareness. Its automatic tuning maintains maximum sensitivity, with manual override options for experienced users. The warning zone feature alerts you to incoming and departing targets, making navigation safer and more precise. Designed for durability, the waterproof (IPX5) case allows for versatile mounting options, ensuring reliability in harsh marine conditions.

Cutting-Edge Radar Technology for Enhanced Navigation

The T941A radar offers a range of advanced features to support safe and efficient marine operations. The system includes dual-range radar functionality, allowing users to simultaneously monitor both long-range and short-range targets on a split-screen display. The true trail function distinguishes moving objects from stationary ones, clearly identifying vessel movement patterns.

Additionally, the radar supports an optional Automatic Tracking Aid (ATA) to track up to 50 user-designated targets, providing critical data on distance, speed, bearing, and closest point of approach. The optional AIS interface enhances situational awareness by displaying information on up to 100 AIS-equipped vessels, including MMSI number, course, and speed.

Antenna Unit

• Peak Power Output: 4kW
• Output Frequency: 9410 +/- 30MHz
• Horizontal Beam Width: 6°
• Vertical Beam Width: 25°
• Rotation Speed: 24 or 48 RPM (48 RPM requires 24V DC)
• Pulse Width: 0.08, 0.15, 0.3, 0.5, 1µsec
• IF Frequency: 60 MHz
• Range Accuracy: Better than 8m
• Minimum Detecting Distance: Within 25m

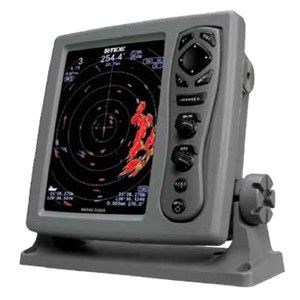

Display Unit

• Display Type: 8.4" TFT Color LCD (480 x 640 resolution)
• Off-Centering: Max 66%
• Display Modes: Heads Up, North Up*, Course Up*, Waypoint Up**, True Motion*
• Dimensions (H x W x D): 9.5 in x 9.5 in x 4.4 in

Product Dimensions

• Dome Size: 25"
• Display Size: 8.4"

Highlights

• True-color radar for superior target distinction
• Real-time movement tracking with smooth presentation
• Dual-speed antenna rotation for efficient target tracking
• Split-screen display for long-range and short-range monitoring
• True Trail function for easy identification of moving objects
• Optional AIS interface for tracking up to 100 vessels
• Waterproof (IPX5) design for durability in marine environments
• Easy installation with a built-in flush mounting system

What's in the Box

• MRD-103 Display Unit
• Display Cover
• 10m Signal Cable
• Power Cable
• CCD Camera Cable

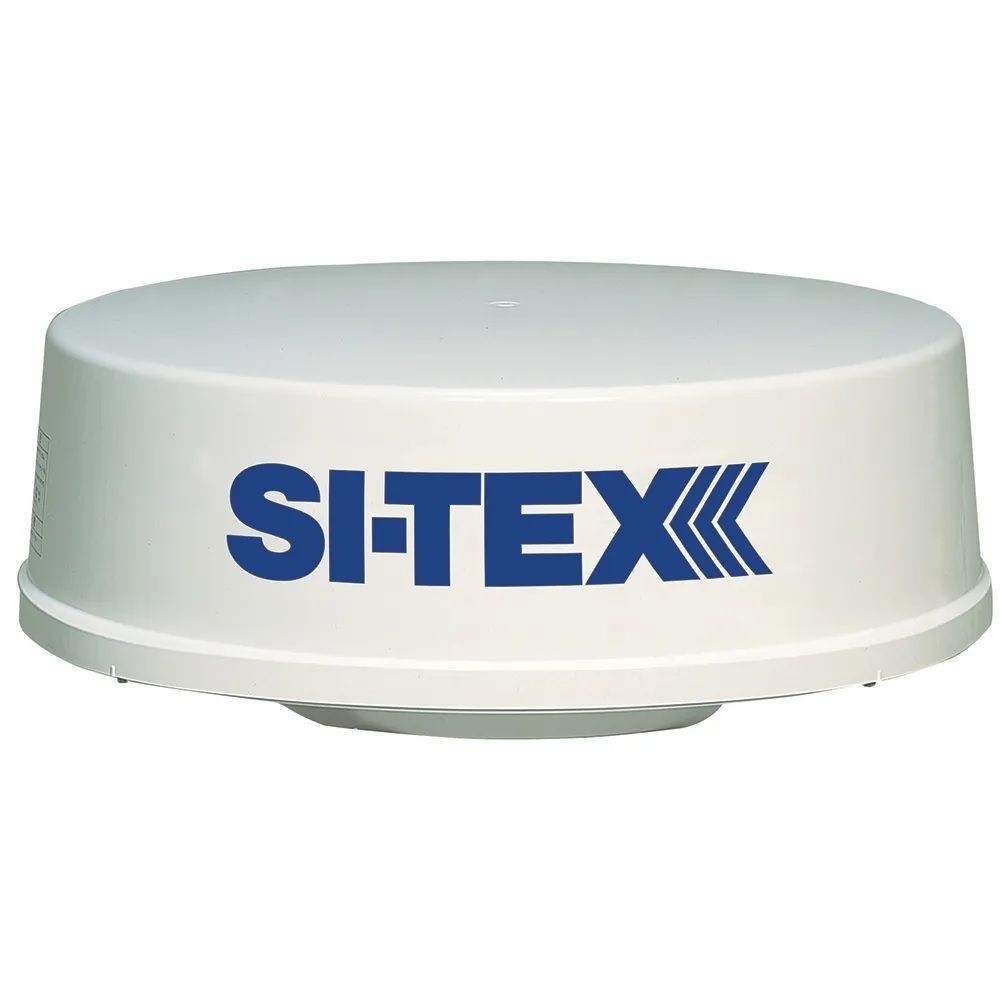

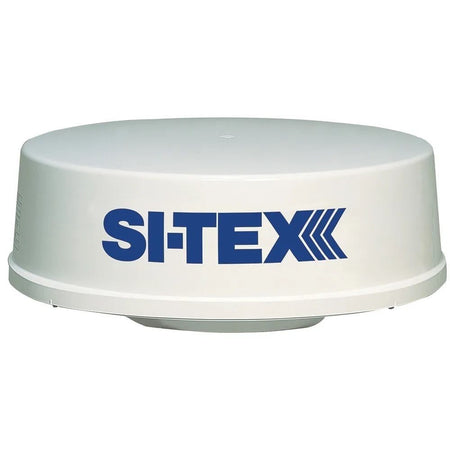

• RB805 4kW Dome

The Si-Tex T941A is an advanced radar system engineered to enhance marine navigation, providing reliable performance and high-precision tracking for both recreational and commercial vessels.
