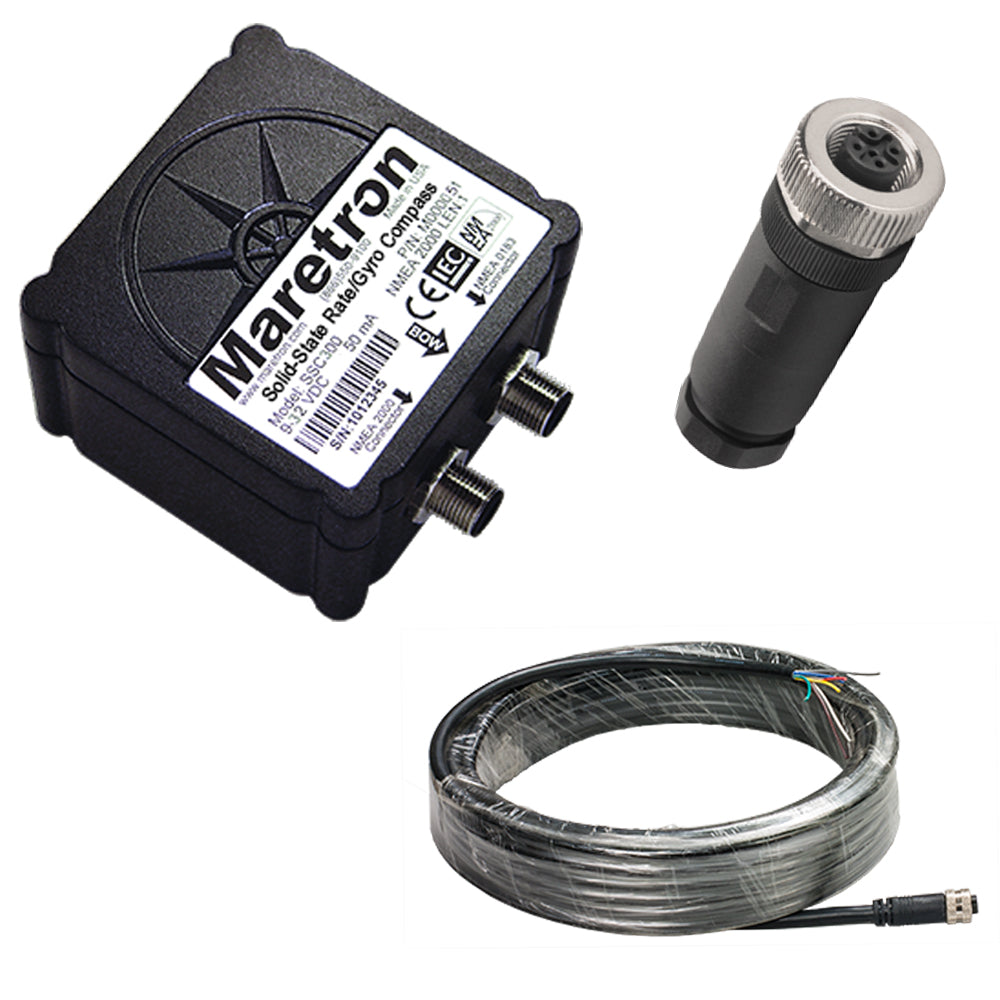

Maretron Solid-State Rate/Gyro Compass w/10m Cable & Connector SSC300-01-KIT

Solid-State Rate/Gyro Compass w/10m Cable & Connector

Maretron's SSC300, implementing the second generation of Maretron's award-wining compass technology, is a solid state, rate gyro electronic compass that provides better than 0.7x heading accuracy through q45x of roll and pitch angle, and better than 1x roll and pitch accuracy in static conditions. Each SSC300 is factory calibrated for maximum accuracy. It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined 3-axis rate gyro is used, in conjunction with a 3-axis accelerometer, by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot or radar overlay applications.

Maretron's SSC300 is certified to the NMEA 2000 network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000 network and with the optional NMEA 0183 cable accessory, with NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron's N2KView vessel monitoring system, or Maretron's DSM150 /DSM250 color graphics displays.

The SSC300 can be automatically calibrated for deviation. Its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer and rate gyro.

Features:

• Better than 0.7x heading accuracy in static conditions
• Better than 1.5x heading accuracy in dynamic conditions
• Better than 1x/second rate of turn in
• Better than 1x pitch/roll accuracy
• Three axis magnetometer, three axis rate gyro, and three axis accelerometer
• Outputs NMEA 0183 and NMEA 2000 data simultanously
• IP67 waterproof enclosure

Applications:

• Navigation
• Autopilot
• Radar stabilization
• Satellite antenna stabilization
• Swing meter
