Raymarine Trunnion Bracket Kit, For es9 and Axiom Pro 9

Overview

The Raymarine R70384 is a trunnion bracket kit for mounting compatible Raymarine eS9 and Axiom Pro 9 displays on a boat console, dash, helm pod, or other suitable flat surface.

This kit is used when a bracket-style installation is preferred over a flush or surface-mount cutout. A trunnion mount lets the display sit proud of the mounting surface, which is useful at helm stations where access, viewing angle, and serviceability matter.

The kit includes the main mounting hardware for securing the display to the bracket, including the bracket, knobs, and back plate. Mounting screws for the boat structure should be matched to the material and thickness of the chosen location.

Key features

• Fits Raymarine eS9 and Axiom Pro 9 displays for bracket-mounted installations.
• Supports upright helm mounting where the display needs to remain accessible for cable routing and service.
• Trunnion-style setup allows the display angle to be adjusted after installation.
• Useful replacement kit when the original bracket hardware is missing, damaged, or being moved to a new helm location.

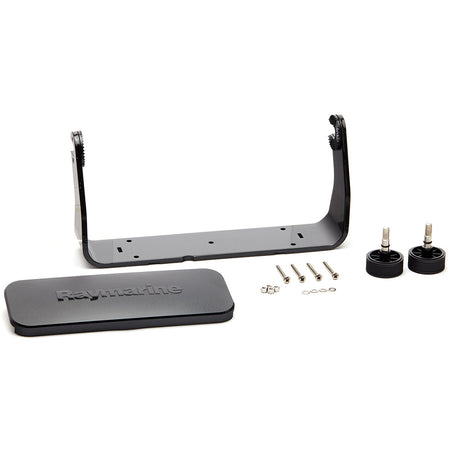

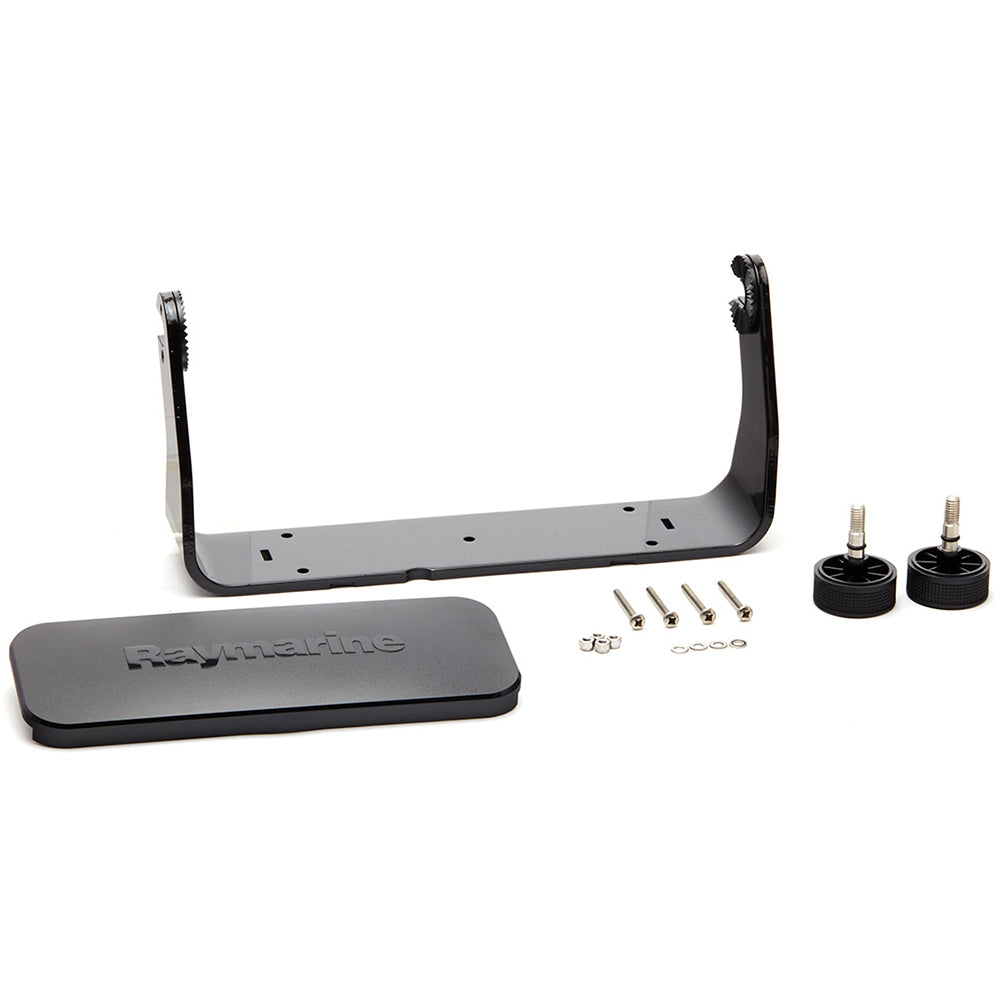

• Includes the bracket, knobs, and back plate needed to secure the display to the trunnion assembly.
• Suited for marine dash, console, and electronics pod installations where vibration and vessel motion make secure mounting important.

Installation and fit

Before drilling, confirm the display model and check that the mounting surface has enough strength and clearance for the display, bracket, cables, and the full range of angle adjustment. The area behind the mounting surface should also be checked so fasteners do not interfere with wiring, structure, or other equipment.

The bracket can be used as a drilling template once the final position is confirmed. For best results, use fasteners suited to the mounting surface, and tighten the trunnion knobs by hand until the display is secure enough to stay in position while the vessel is underway.

Use cases on board

This kit is a practical match for helm refits, electronics upgrades, or replacement installations where an eS9 or Axiom Pro 9 display needs a clean bracket mount without cutting a flush-mount opening. It is especially useful on center consoles, pilothouse helms, flybridges, and secondary stations where the display position may need to be adjusted for visibility.

What’s included

• Trunnion bracket
• Trunnion knobs
• Back plate
