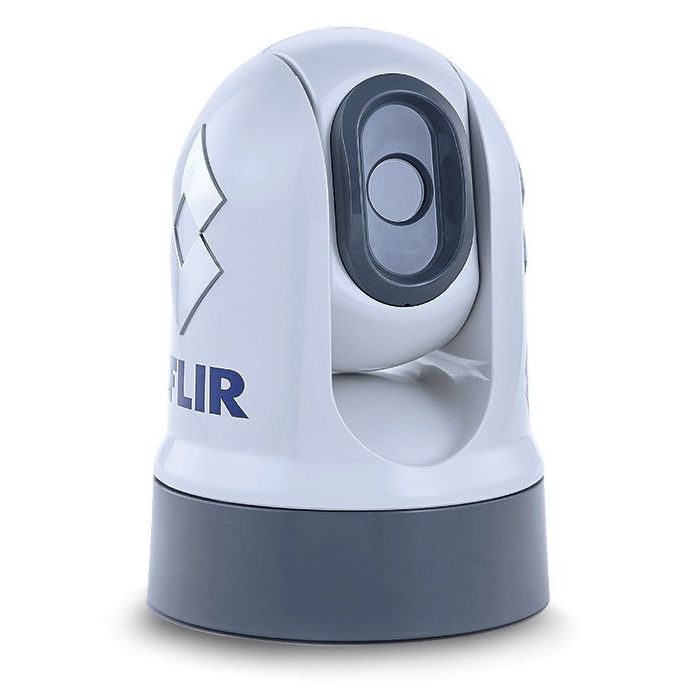

FLIR Systems - M232 Thermal IP Camera 320x240 9Hz No JCU
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Marine Thermal Imaging for Enhanced Navigation and Safety
The FLIR Systems M232 Thermal IP Camera is an innovative marine thermal imaging solution designed to enhance situational awareness and safety on the water. Equipped with a high-resolution 320 x 240 thermal sensor and advanced pan-and-tilt functionality, this compact and affordable thermal camera delivers clear and detailed imaging for nighttime navigation and object detection.
With FLIR’s cutting-edge Boson™ thermal core, the M232 provides real-time visibility of obstacles, bridges, docks, buoys, and other vessels, allowing boaters to navigate safely in low-light and foggy conditions. When integrated with Raymarine Axiom MFDs, the M232 takes advantage of ClearCruise™ intelligent thermal analytics, offering audible and visual alerts for non-water objects, such as other boats or navigational hazards.
The M232’s lightweight design and IP video connectivity make installation seamless, reducing the need for extra video signal cables while ensuring smooth integration with marine electronics. Its 2x digital zoom and wide field of view enhance long-range visibility, making it an essential addition to any vessel’s navigation system.
High-Performance Thermal Imaging Technology
- Thermal Resolution: 320 x 240 VOx Microbolometer for high-quality thermal imaging
- Video Refresh Rate: 9 Hz for real-time thermal feedback
- Field of View: 24° x 18° for comprehensive situational awareness
- E-Zoom: 2x digital zoom for extended range performance
- Image Processing: FLIR’s proprietary Digital Detail Enhancement for optimized thermal imagery
Durable and Reliable Marine System
- Pan/Tilt Range: Continuous 360° pan and tilt from +110° to -90° for full coverage
- Video Output: H264 IP video stream for seamless integration with onboard systems
- Power Requirements: Operates on 12V or 24V DC power sources
- Power Consumption: Typical 15W, maximum 18W
Built for Harsh Marine Environments
- Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
- Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
- Relative Humidity: Supports up to 93% humidity
- Vibration Resistance: Compliant with IEC 60945 and MIL-STD-810E
- Salt Mist Protection: Meets ASTM B117 standards
- Wind Resistance: Can withstand speeds up to 100 mph (161 kph)
- Waterproof Rating: IP67-rated for excellent water resistance
- Drop Test Rating: 1m drop-tested (in packaging) for durability
Compact and Lightweight Design
- Weight: 6.0 lb (2.7 kg) without riser, 6.6 lb (3.0 kg) with riser
- Size: 6.34" diameter at base x 9.03" height (161.1 mm x 229.3 mm)
Long-Range Performance for Marine Safety
- Person in Water Detection: Detects individuals in the water up to 1,500 ft (457 m)
- Small Vessel Detection: Detects small boats up to 0.67 nautical miles (1.3 km)
Included Accessories
- Thermal camera unit
- Thermal camera base seal
- Fasteners (x3)
- Two self-adhesive decals (for ball-down mounting)
- RayNet-to-RJ45 adapter cable (100 mm)
- Right-angled RayNet-to-RayNet cable (10 m)
- Right-angled 3-pin power cable (10 m)
- Top-down riser kit (riser, riser base seal, mounting template)
- Documentation pack
Note: The supplied right-angled RayNet and power cables support mounting surfaces up to 25.4 mm (1.0 inch) thick. For thicker surfaces, additional cables with straight connectors may be required (sold separately).
