Raymarine Axiom Pro 16 Trim Kit, For Axiom Pro 16/eS16

Overview

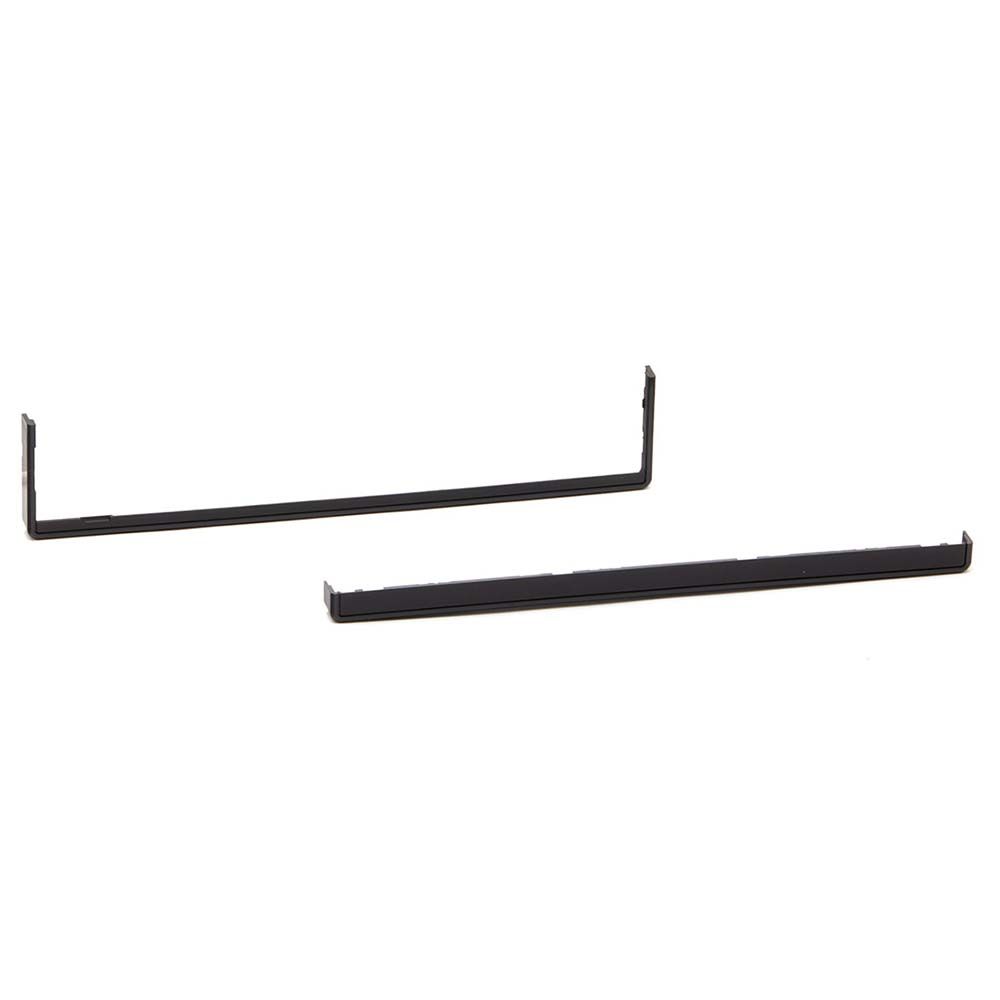

The Raymarine R70598 is a trim kit for the Raymarine Axiom Pro 16 multifunction display, used to finish the visible edge of the display installation at the helm or electronics console.

This accessory is meant for Axiom Pro 16 installations where the trim surround needs to be replaced, refreshed, or matched cleanly after service work. It helps keep the front of the display installation tidy without changing the electronics, network connections, power wiring, or chartplotter functions.

The kit is listed as a mounting bracket accessory, with packaged dimensions of 4 in H x 7 in W x 10 in L and a package weight of 0.4 lb, which makes it a small replacement part that can be kept on hand for refits, helm upgrades, or maintenance work around a Raymarine display installation.

Key features

• Fits Raymarine Axiom Pro 16 multifunction display installations.
• Trim accessory for finishing the visible display surround at the helm or console.
• Useful for service work, refits, or replacing worn trim around an existing Axiom Pro 16 display.
• Does not affect 12V or 24V power wiring, marine network connections, transducer wiring, or software setup because it is a physical installation accessory.
• Small packaged part with 4 in H x 7 in W x 10 in L box dimensions and 0.4 lb package weight.

Installation and fit

Check that the display being serviced is an Axiom Pro 16 before installation, since trim parts are size-specific and the surround must match the face of the unit. This part is most relevant for fixed helm installations where the display sits in or against a console panel and the front edge needs a clean finished appearance.

Before fitting the trim kit, inspect the surrounding dash surface, any old adhesive or fasteners, and the display edge for damage. A clean seating area helps the trim sit properly and avoids gaps that can collect salt, dust, or cleaning residue around the display.

Use cases on board

This trim kit makes sense for boats with an Axiom Pro 16 at the main helm, flybridge, pilothouse, or electronics station where the display surround is visible every time the boat is used. It is also a practical part for installers handling panel work during a chartplotter upgrade or a helm refresh.

For owners maintaining a Raymarine electronics package, this is the type of part that matters when the system already works but the installation needs to look clean again after removal, service, or console repairs.
