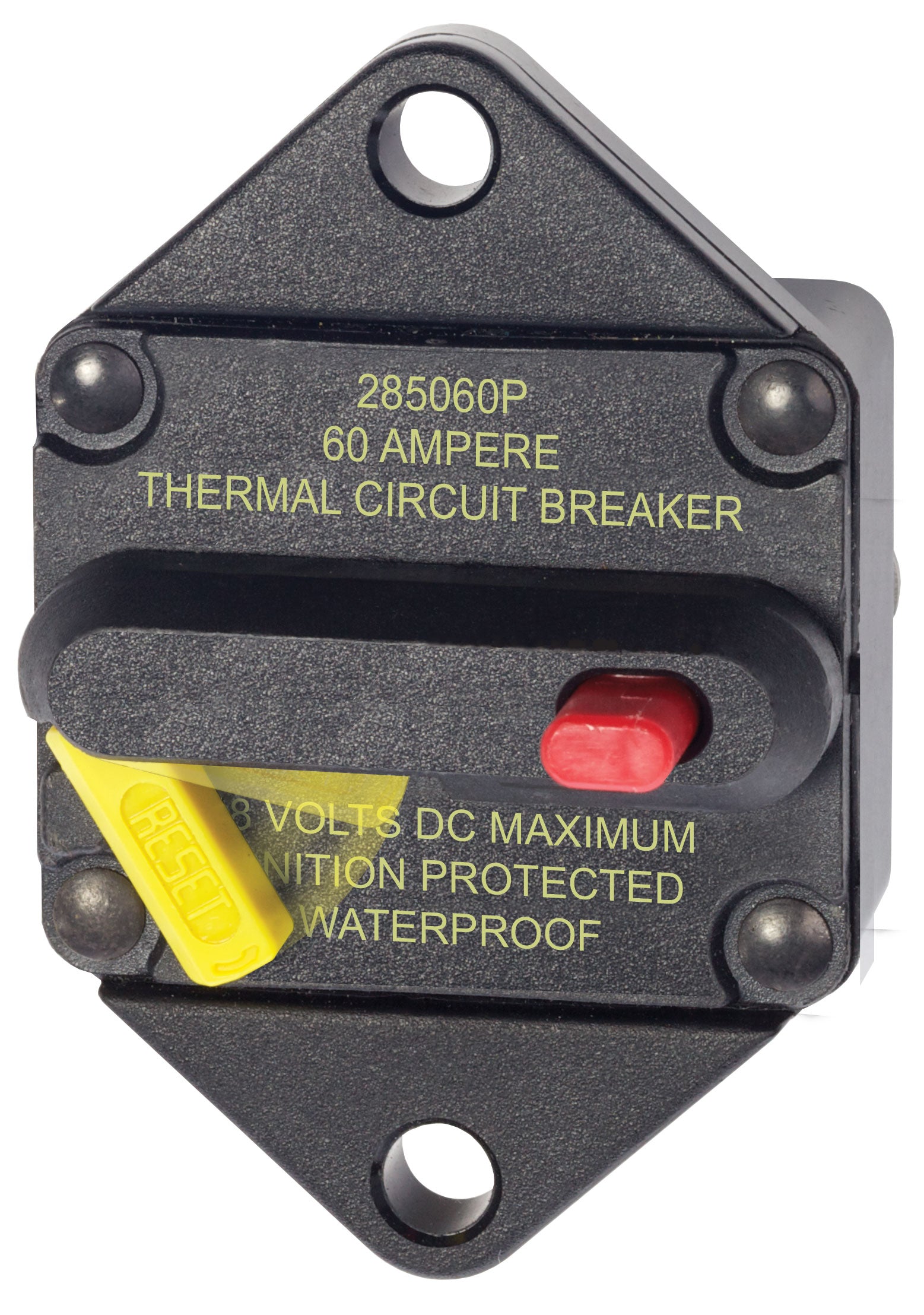

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 60A
Model: 7084-BSS- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected
Specifications| Amperage | 60A |
| Maximum Voltage | 48V DC |
| Mounting | Surface Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Terminal Stud | M6 (accepts 1/4" Ring Terminal) |
