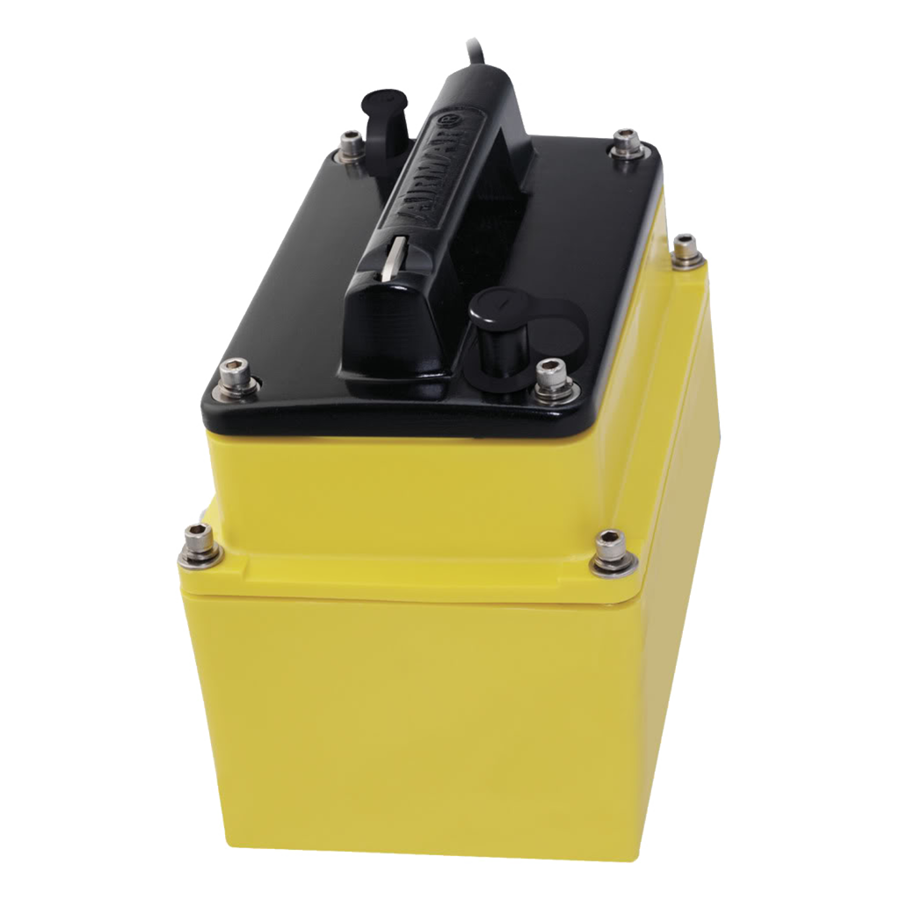

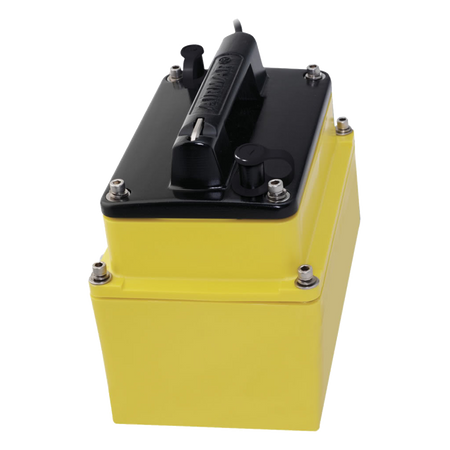

Airmar - M260 1KW IN-HULL 50/200KHZ Transducer - With 8-Pin Garmin Connector

Advanced In-Hull Sonar Performance for Marine Enthusiasts

The Airmar M260 In-Hull Transducer is a premium 1 kW broadband transducer designed to deliver exceptional depth performance without the need for external hull modifications. Engineered for solid fiberglass hulls, this transducer ensures high-resolution imaging while maintaining a clean, undisturbed hull exterior. Its innovative in-hull mounting system allows for flexible positioning within the vessel, enhancing sonar accuracy and reducing interference. With a combination of Airmar’s exclusive Broadband Ceramic Technology and a seven-element 50 kHz array, the M260 excels in deep-water detection, making it an excellent choice for serious anglers and marine professionals.

Precision Sonar Technology with High-Resolution Imaging

The M260 is designed to deliver superior sonar clarity with narrow beam widths at both 50 kHz and 200 kHz frequencies. The 200 kHz broadband element enhances resolution without compromising sensitivity, while the 50 kHz array ensures outstanding deep-water penetration. This allows for precise target separation, making it easier to distinguish between fish and seabed structures.

Reliable and Easy In-Hull Installation

Forget about drilling through your hull—this in-hull transducer transmits and receives signals through solid fiberglass, eliminating the need for external mounting. Its non-toxic propylene glycol-filled tank ensures consistent acoustic performance and allows for bow-stern or port-starboard installation, offering maximum flexibility. Capable of tracking the bottom at speeds exceeding 30 knots (34 MPH), this transducer provides reliable sonar data even in demanding conditions.

Technical Specifications

• Power Output: 1 kW RMS
• Frequency: 50/200 kHz
• Beam Width: 19° at 50 kHz | 6° at 200 kHz

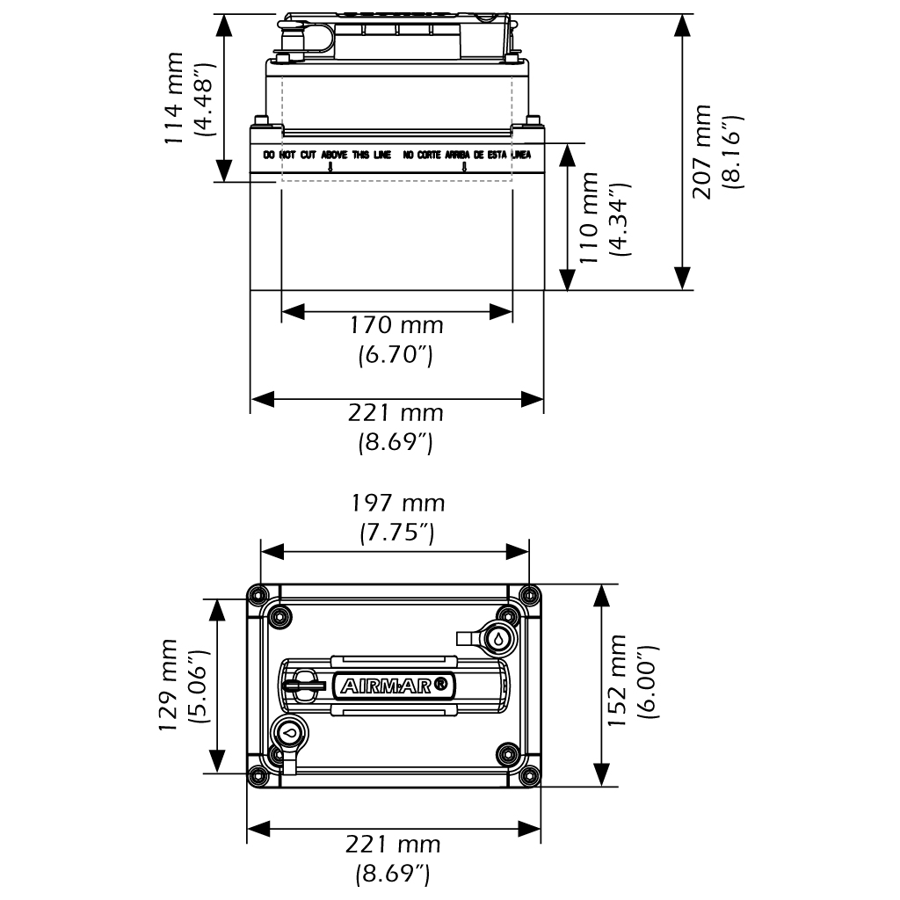

Product Dimensions

• Height: 8.16 inches
• Width: 8.69 inches
• Depth: 6 inches

Highlights

• High-performance 1 kW broadband transducer
• Designed for solid fiberglass hulls
• No hull penetration required, ensuring a smooth, undisturbed exterior
• Narrow beam widths for precise target separation and deep-water detection
• Can track the bottom at speeds over 30 knots (34 MPH)
• Innovative tank design allows for flexible installation options
• Uses non-toxic propylene glycol for safe and effective operation

The Airmar M260 In-Hull Transducer is the ultimate choice for marine enthusiasts seeking high-powered, professional-grade sonar performance without the need for complex hull modifications. Whether navigating deep waters or tracking fish with precision, this transducer delivers unmatched accuracy and reliability.
