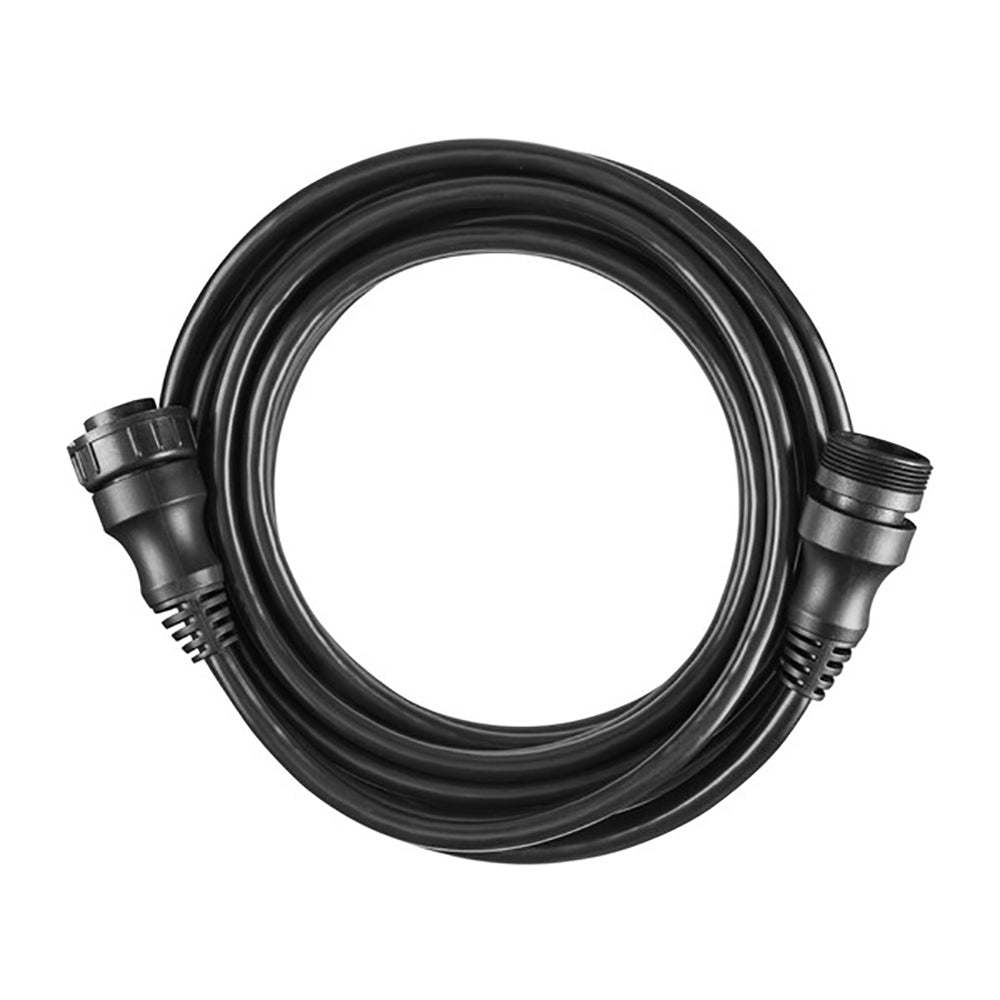

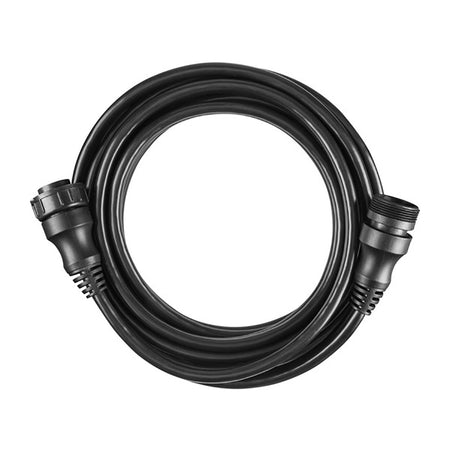

Garmin LiveScope Transducer Extension Cable, For LVS32/LVS34/LVS62, 21-Pin

Overview

The Garmin Panoptix LiveScope Transducer Extension Cable (21-pin) is an in-line extension that adds length between a compatible LiveScope transducer cable and a GLS 10 sonar module. It is offered in 3 ft (1 m), 10 ft (3 m), and 30 ft (9 m) lengths to help when your module is mounted in a console or electronics compartment and the transducer is up on the bow.

It installs without changing your existing transducer lead, so you can route the system cleanly through rigging tubes and storage compartments. Because this is a 21-pin extension, it only fits LiveScope setups that already use the 21-pin transducer connection.

Key features

• 21-pin extension cable for LiveScope transducer wiring
• Adds length between the GLS 10 sonar module and a compatible LiveScope transducer
• Available lengths: 3 ft (1 m), 10 ft (3 m), or 30 ft (9 m)
• Works with common 21-pin LiveScope transducers such as LVS32, LiveScope Plus LVS34, and LiveScope XR LVS62
• Helps keep the main transducer lead unmodified while you route through tight rigging paths

Variants

This cable is offered in multiple lengths to match different rigging layouts on board.

The only difference between variants is length. Each version is a 21-pin extension intended for LiveScope transducer cable runs to a GLS 10 sonar module.

• 010-12855-00: Length 10 ft (3 m). A practical mid-length option when the sonar module is mounted in the console area and the transducer is on a trolling motor or forward pole mount.
• 010-13350-01: Length 3 ft (1 m). A short add-on for creating a service loop, easing strain at the connection point, or adding a little extra reach inside a compartment.
• 010-13350-02: Length 30 ft (9 m). Suits longer cable paths on larger boats or installs where the sonar module is mounted farther from the transducer location.

Compatibility and fit

This extension is for LiveScope systems that use a 21-pin transducer connector. If your transducer lead uses a different connector style, this cable will not mate with it.

Before ordering, confirm your existing LiveScope transducer and the GLS 10 connection are the 21-pin style, and plan your routing so you have enough slack for steering movement and access to the module.

Installation and setup

Power down the sonar module before connecting. Plug the extension inline between the existing LiveScope transducer cable and the GLS 10, making sure the connectors are fully seated and secured so they cannot work loose with vibration.

Route the run away from pinch points, sharp edges, and high-current wiring where possible. Support the cable along the path, and keep the connection points in a location that stays out of standing water.

Maintenance and care

Periodically check the cable for chafe where it passes through rigging tubes, grommets, and hatches. After saltwater use, wipe down the cable and connectors with fresh water and let everything dry before closing up the compartment.
