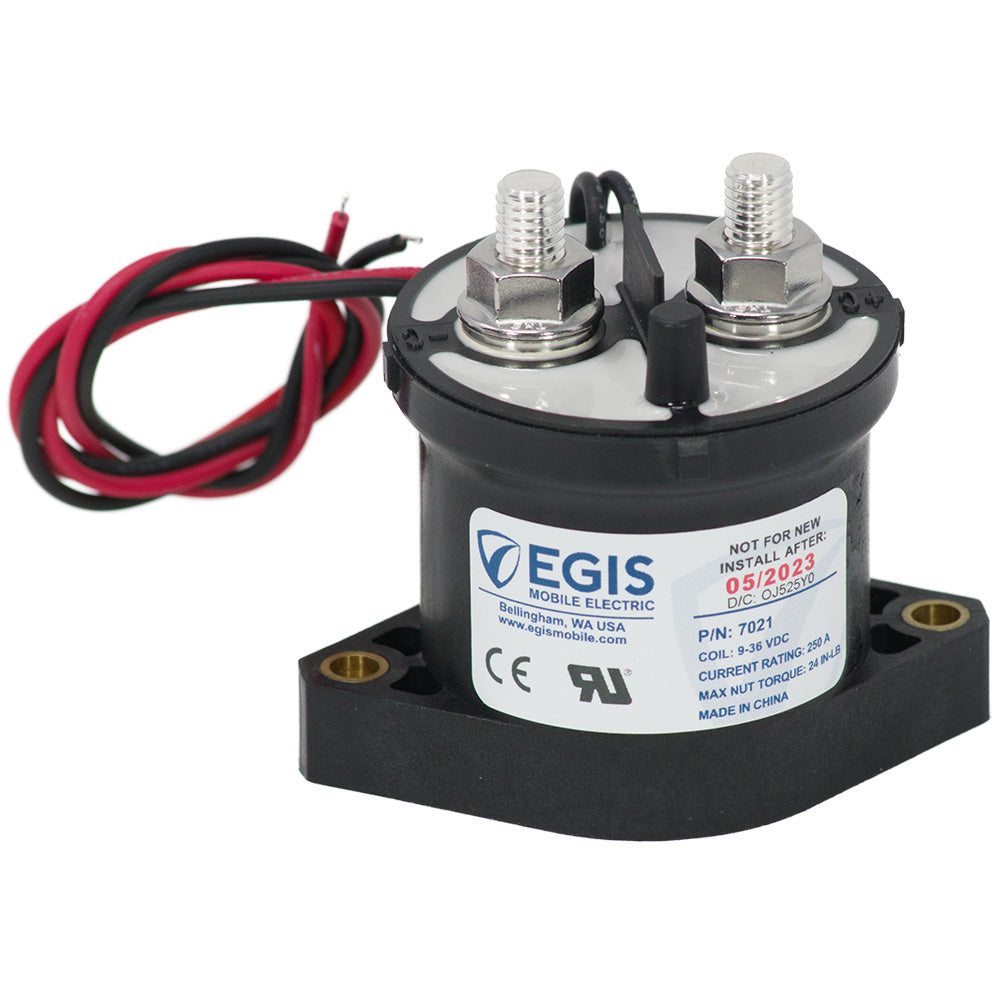

Egis Mobile Electric - Contactor - 250A, 12/24V
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Reliable and Efficient High-Amperage Switching
The Egis Contactor 250A, 12/24V is a top-tier solution for reducing installation costs and weight by eliminating large cable runs to manual switches. It offers robust remote switching of high-ampere engines and auxiliary loads, making it ideal for both marine and automotive applications.
General Description
This 250A contactor is designed to ensure flawless operation throughout its installation life. Hermetically sealed against dust and moisture, it provides reliable performance even in the most challenging environments. With a high contact voltage rating, it supports 12 or 24 Vdc control voltage applications and higher switching voltage applications up to 48 V and beyond. This makes it a versatile choice for various high-amperage switching needs.
Key Features and Advantages
- Ignition Protection: Safe for installation in closed compartments with potential explosive gases.
- High Electrical Switching Endurance: Capable of delivering 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V.
- High Interrupt Current Capability: Can safely open in a locked starter situation (up to 1,500 A @ 14 Vdc).
- Bullet-Proof Construction: Sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
- Industry Leading Warranty: 4-year warranty ensures long-term reliability and performance.
Bullet Points Summary
- Sealed Enclosure: Hermetically sealed against dust and moisture penetration.
- High Contact Voltage Rating: Supports 12 or 24 Vdc control voltage applications, up to 48 V and beyond.
- High Electrical Switching Endurance: Delivers 6,000 cycles at 250A/450V and 100,000 cycles at 250A/14V.
- High Interrupt Current Capability: Safely opens in locked starter situations up to 1,500 A @ 14 Vdc.
- Stainless Self-Locking Hardware: Resists corrosion and ensures long-term connection reliability.
- Easy Mounting: Reinforced mounting holes for secure and easy installation.
Specifications
- Continuous Current (Amps): 250/500
- Operation Control Voltage: 9-36 VDC
- Ingress Protection: IP67/IP69K
- Ignition Protection: ISO-8846 / UL 1500
- Electrical Endurance Rating (Cycles): 1,000,000
- Minimum Operate Temp. (Deg C): -40°C
- Max Operate Temp. (Deg C): 85°C
Focal Features
Sealed Enclosure Hermetically sealed against dust and moisture penetration, ensuring reliable operation in all installation locations.
18-8 Stainless Steel Self-Locking Hardware Resists corrosion and ensures long-term connection reliability with premium hardware.
High Interrupt Capability Safely able to open in a locked starter situation up to 1,500 A @14 Vdc, providing exceptional safety and performance.
Easy Mounting Reinforced mounting holes provide secure installation and easy attachment for the installer, making the installation process straightforward and efficient.
The Egis Contactor 250A, 12/24V is engineered for excellence, offering robust, reliable performance for high-amperage switching in marine and automotive applications.
