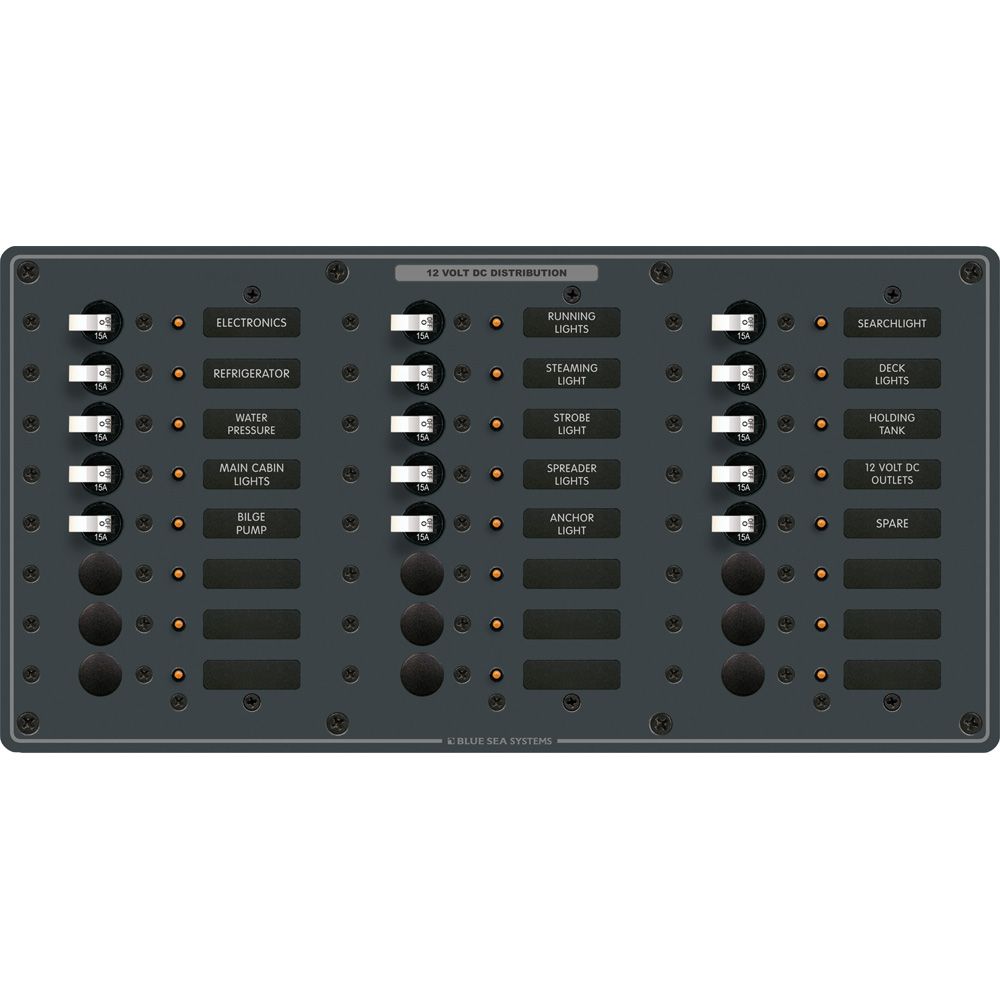

Blue Sea Systems Traditional Metal DC Panel, 24 Positions, 12V/24V DC, 100A per Bus
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Blue Sea Systems 8264 is a 24-position traditional metal DC circuit breaker panel for 12V and 24V systems. It comes pre-wired with positive, negative, and grounding buses already in place, and each bus is rated for up to 100A. The panel face measures 7.50 in x 14.75 in, which gives you room for a larger branch circuit layout without stepping into a custom panel build.
This panel makes sense on boats that carry a long list of DC loads such as lighting, electronics, pumps, refrigeration, fans, and accessories that need their own switched and protected circuits. Backlit label positions help when the panel is mounted below deck or in a helm area with low light, and each circuit position has an ON indicator LED so it is easy to see which circuits are energized.
Because the buses are already installed and the panel is pre-wired, it cuts down on layout time during a refit or new install. It also works well as an extension to an existing panel or as a full replacement when an older system no longer has enough breaker positions.
Key features
- 24 branch circuit positions for boats that need a larger DC distribution panel
- Rated for 12V DC and 24V DC systems with 100A capacity per bus
- Positive, negative, and grounding buses are installed and pre-wired
- Backlit circuit label positions with ON indicator LEDs at every circuit position
- 0.125 in 5052-H32 aluminum panel with a graphite textured polyurethane finish
- Overall size is 7.50 in x 14.75 in, with a cutout of 13-29/32 in x 6-11/16 in
- Supplied with 15 white toggle single-pole 15A branch breakers and a 30-label set
Installation and fit
Check both the front opening and the cutout before replacing an older distribution panel. This model is a better fit where you have enough dash, bulkhead, or cabin panel space for a wider layout and want room for future branch circuits without moving to a custom electrical board.
The panel should be mounted where the front and back stay protected from water, or covered with a waterproof shield if either side may be exposed. It should not be installed in spaces where gasoline, propane, or battery vapors can collect, because the breakers are not ignition protected.
For the main feed and return, wire size should match the total current that will pass through the panel. On this 24-position layout, the jumpers between the positive buses and between the negative buses should be the same size as the main feed and return conductors.
Use on board
This panel is a strong match for cruising boats, larger center consoles, sailboats, and workboats that have grown beyond a small accessory panel. It is especially useful in refits where you want one clean location for breaker switching, branch protection, and labeled DC circuits that are easy to trace later.
What’s included
- 15 A-Series white toggle single-pole 15A branch circuit breakers
- 1 basic DC panel label set with 30 labels
