Garmin GPSMAP 1223xsv Chartplotter/Sonar Combo, 12in IPS, UHD SideVü/ClearVü

Overview

The Garmin 010-02367-02 is a 12-inch chartplotter and fishfinder combo with built-in SideVü, ClearVü, and traditional CHIRP sonar plus a worldwide basemap.

It runs on 10 to 32 Vdc (works on 12V and 24V systems), has a 1280 x 800 WXGA touchscreen display, and carries an IPX7 water rating for open-helm spray and routine washdowns.

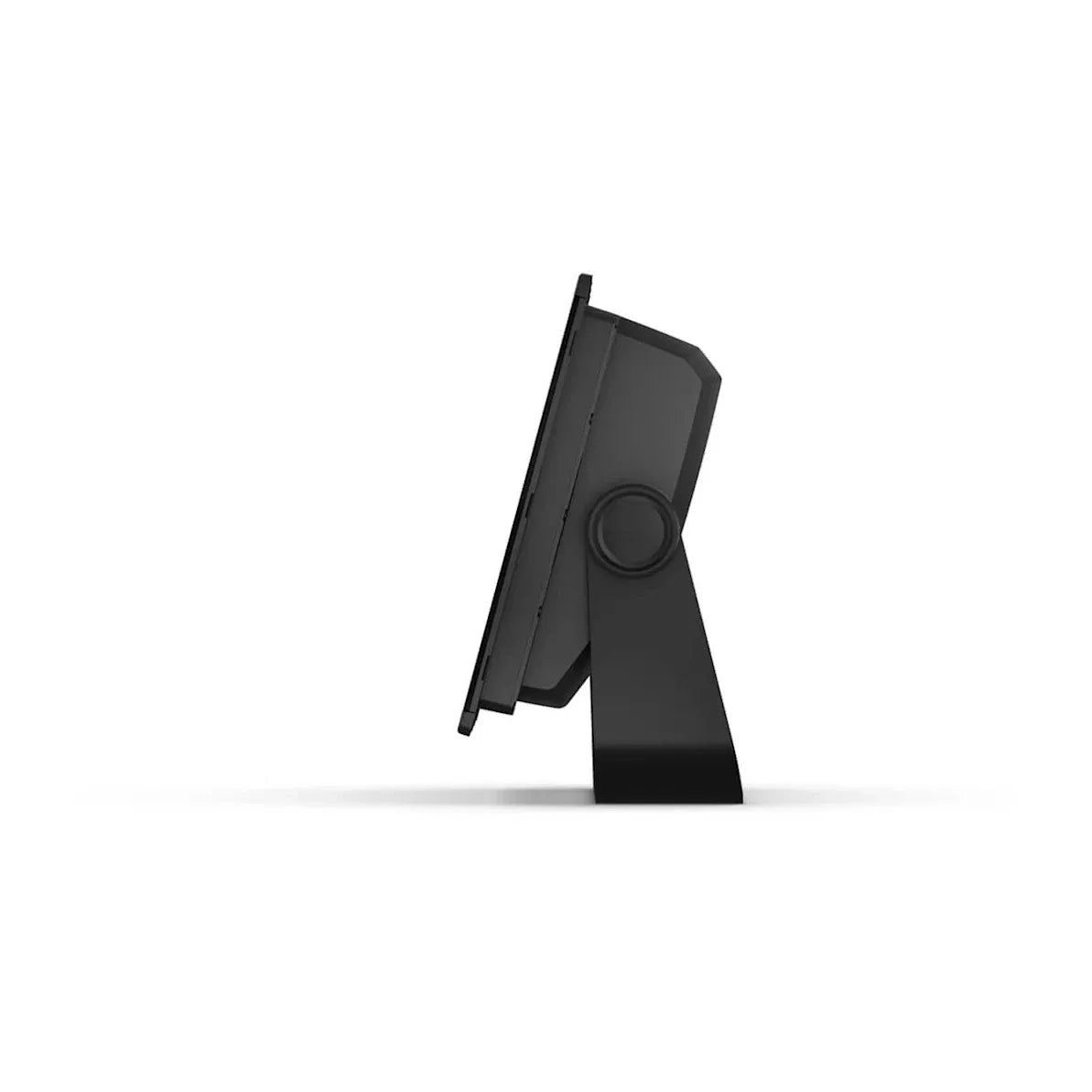

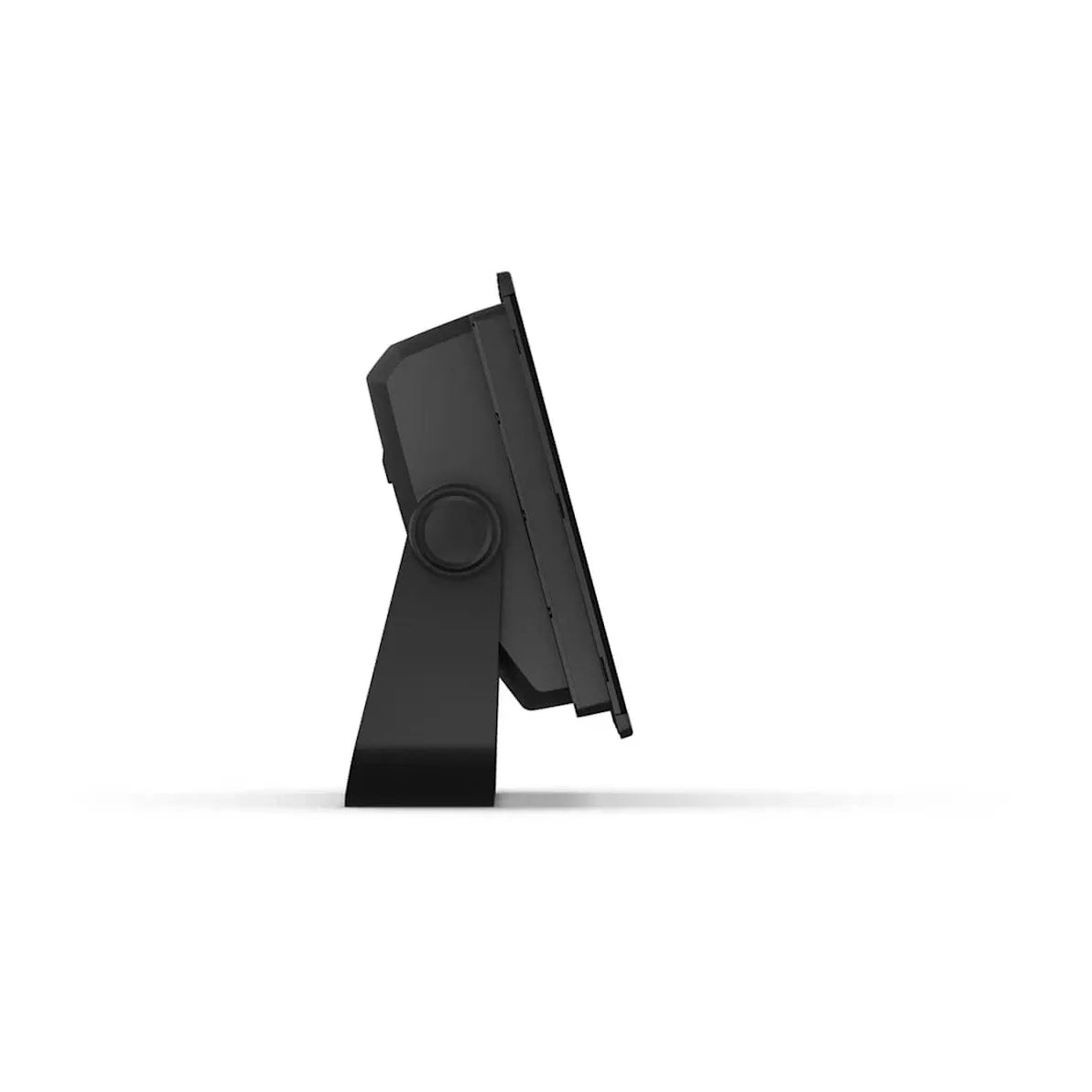

The housing measures 12.1 x 8.9 x 3.2 inches, and the back of the unit holds two microSD card slots for chart cards, software updates, and saving user data.

Key features

• 12-inch WXGA touchscreen display at 1280 x 800 resolution, with polarized sunglasses support.
• 10 to 32 Vdc power input for 12V or 24V boats; typical draw is 1.68 A at 12 Vdc.
• IPX7 water rating for cockpit, center console, and flybridge installs where spray and washdowns are normal.

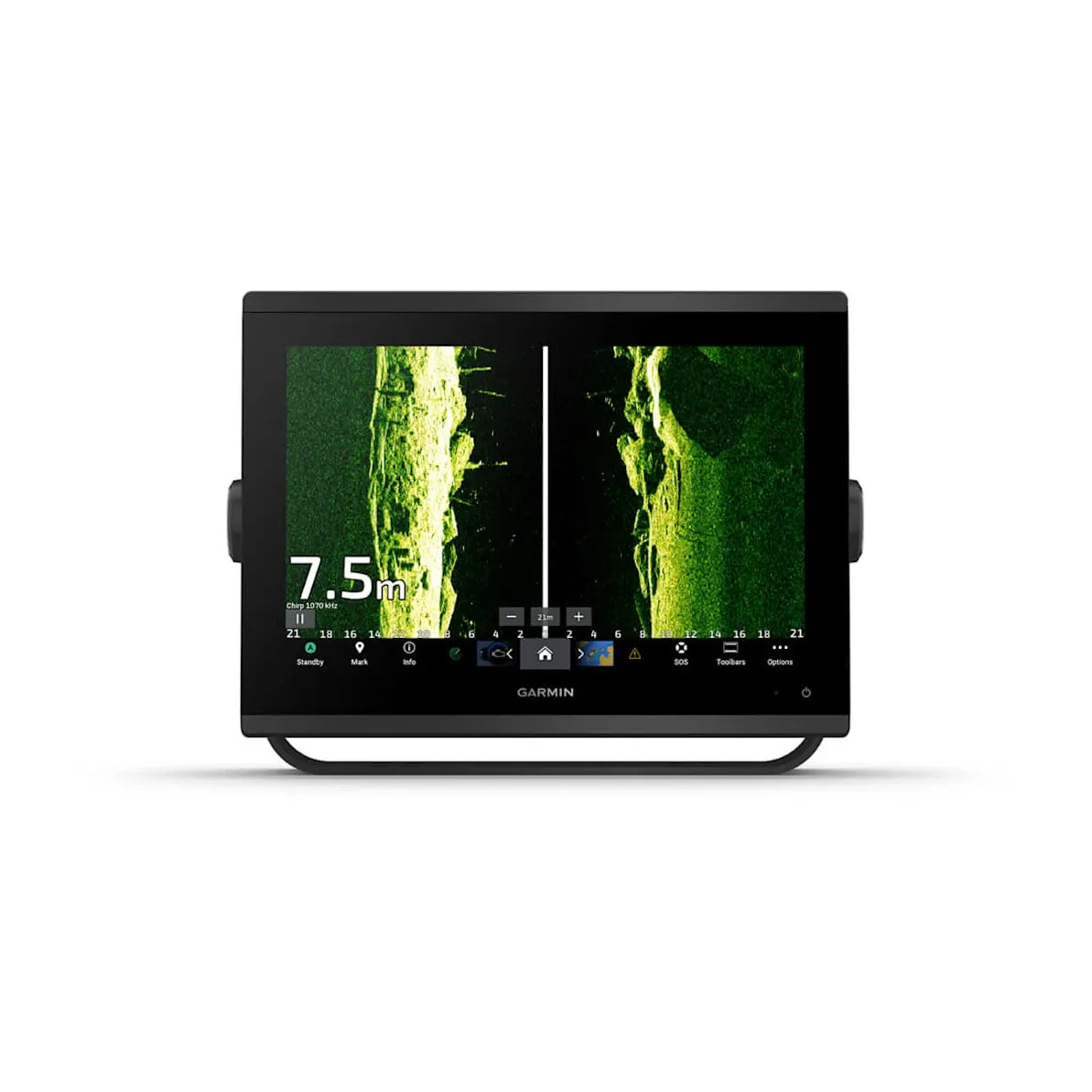

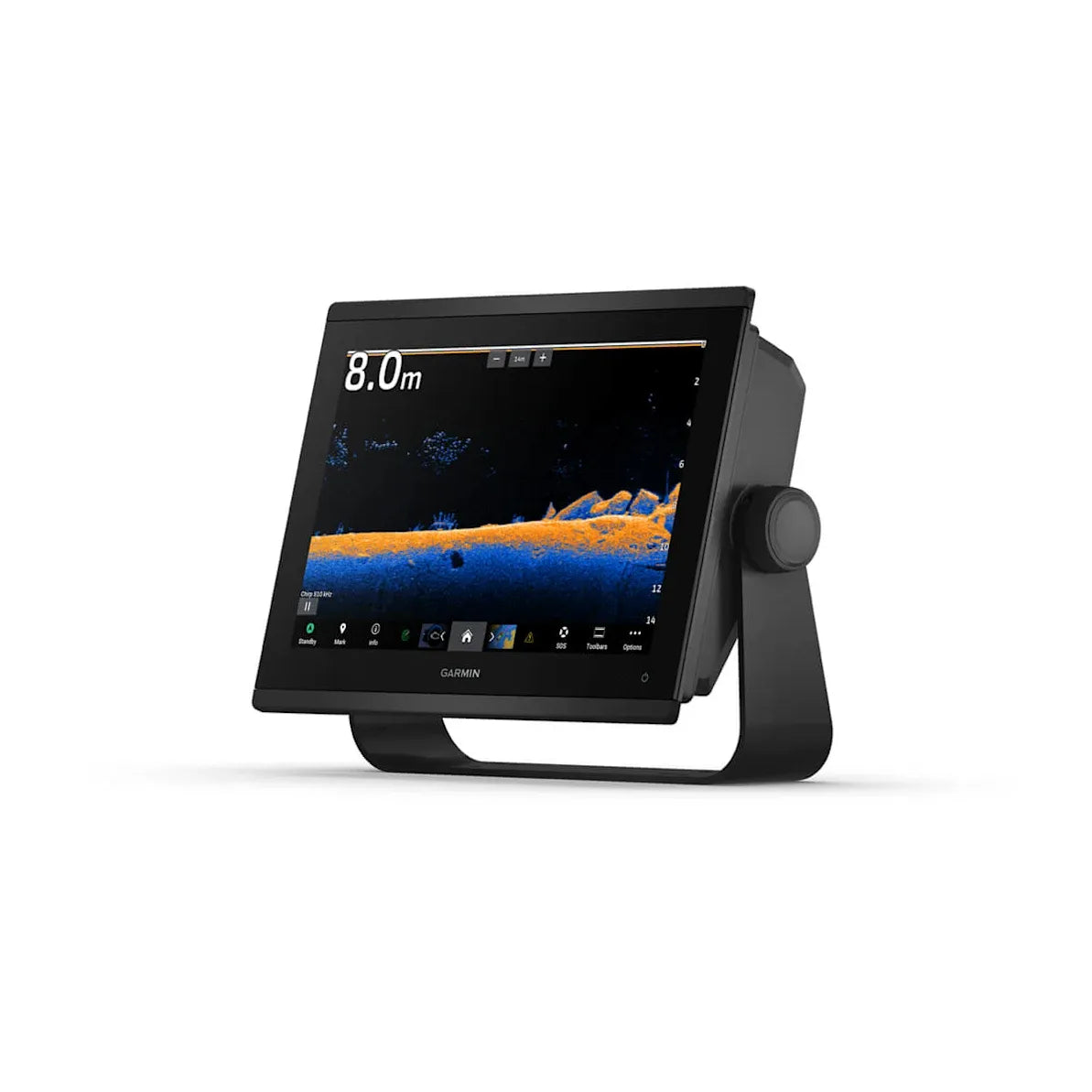

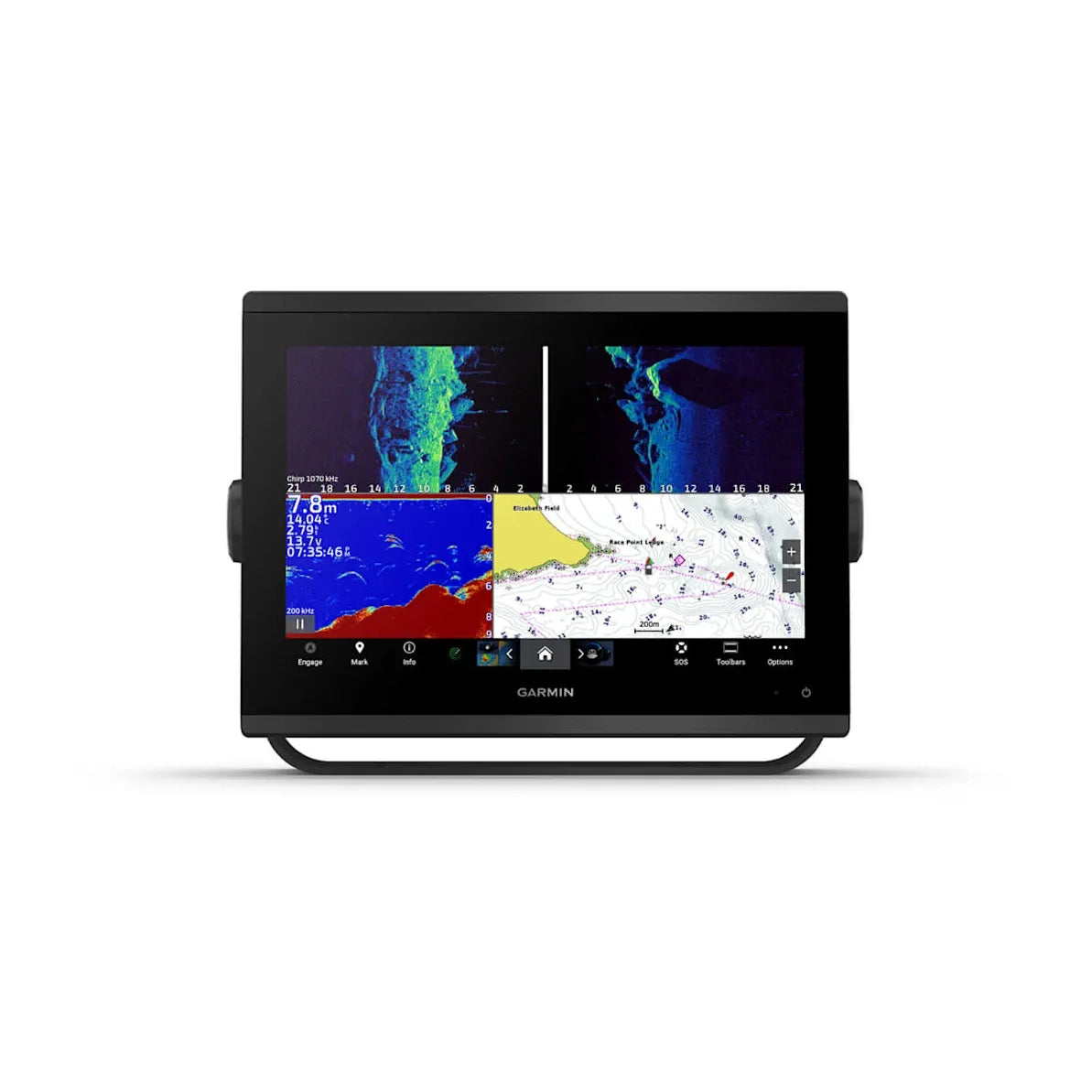

• Built-in sonar: 1 kW single-channel CHIRP traditional plus ClearVü and SideVü scanning (UHD-capable).
• Network-ready helm with NMEA 2000, NMEA 0183, and a J1939 port for compatible engine networks.

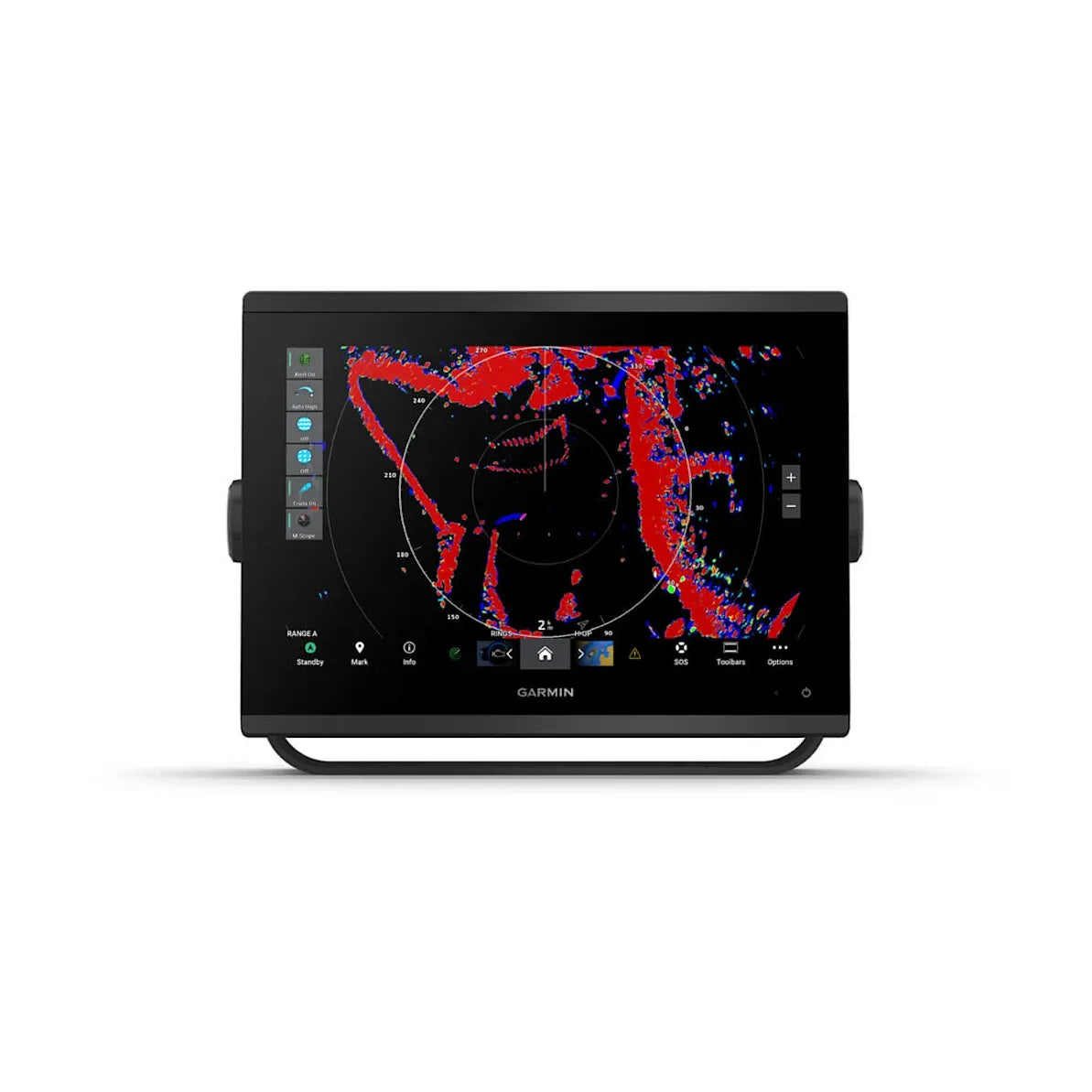

• Two Garmin Marine Network ports for sharing sonar sources, radar, charts, and other compatible network gear.
• Video input and output support: composite (BNC) input and HDMI output.
• Built-in Wi-Fi and Bluetooth support for ActiveCaptain connectivity and wireless features.

Sonar and transducer notes

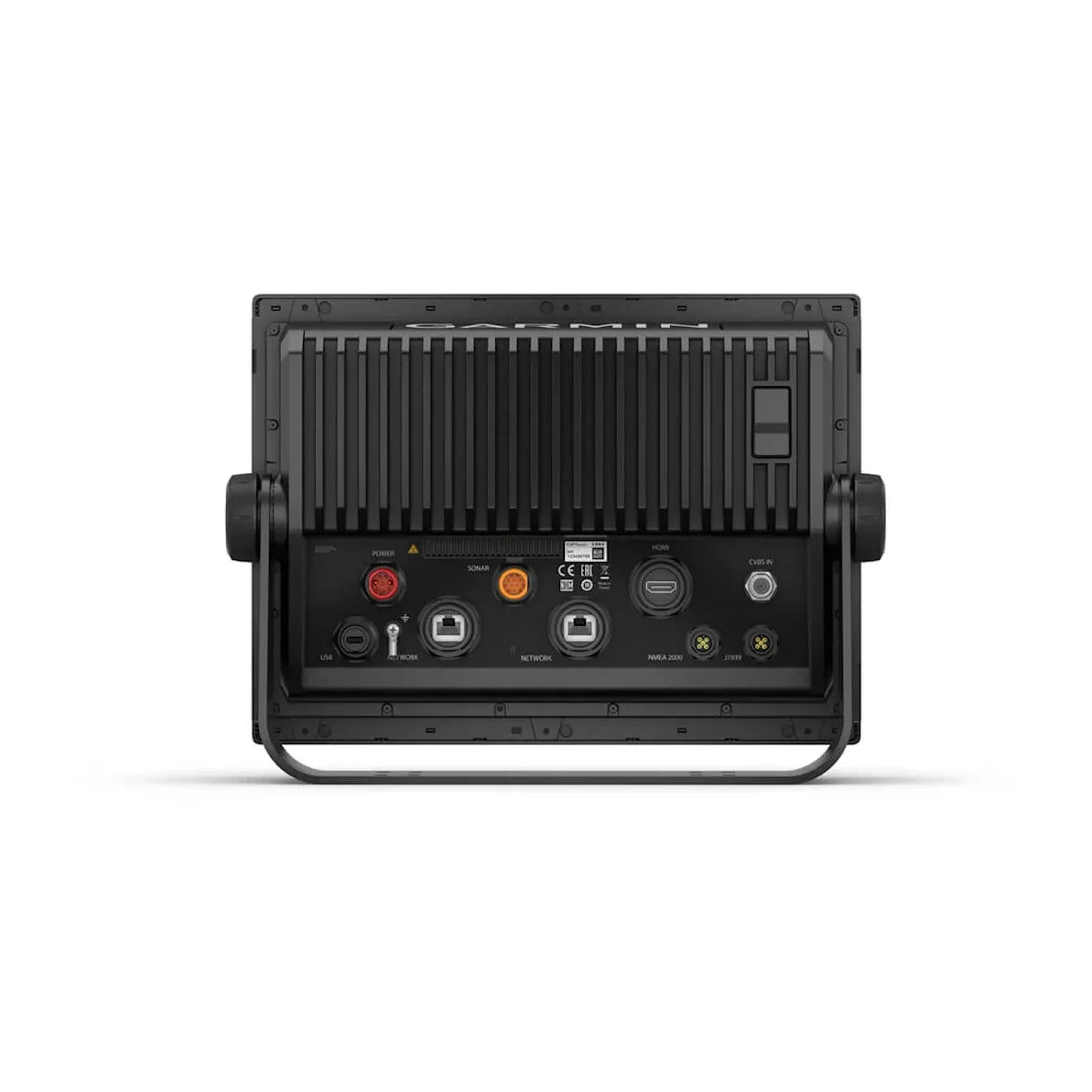

This unit has built-in sonar processing, but it still needs a compatible transducer to actually transmit and receive. The back panel includes a 12-pin transducer port, and an 8-pin transducer to 12-pin sounder adapter cable is included for common Garmin transducer setups.

It also supports Panoptix and LiveScope sonar when paired with the required transducer hardware, which is sold separately.

Networking and helm integration

For boat data and control, it supports NMEA 2000 and NMEA 0183, and it can also tie into a J1939 engine network when your engines and cabling support it. When you want a multi-screen system, the two Garmin Marine Network ports make it straightforward to share accessories and data across compatible displays.

Wireless connectivity helps with day-to-day upkeep and convenience at the dock, including app-based management and updates through ActiveCaptain.

Installation and fit

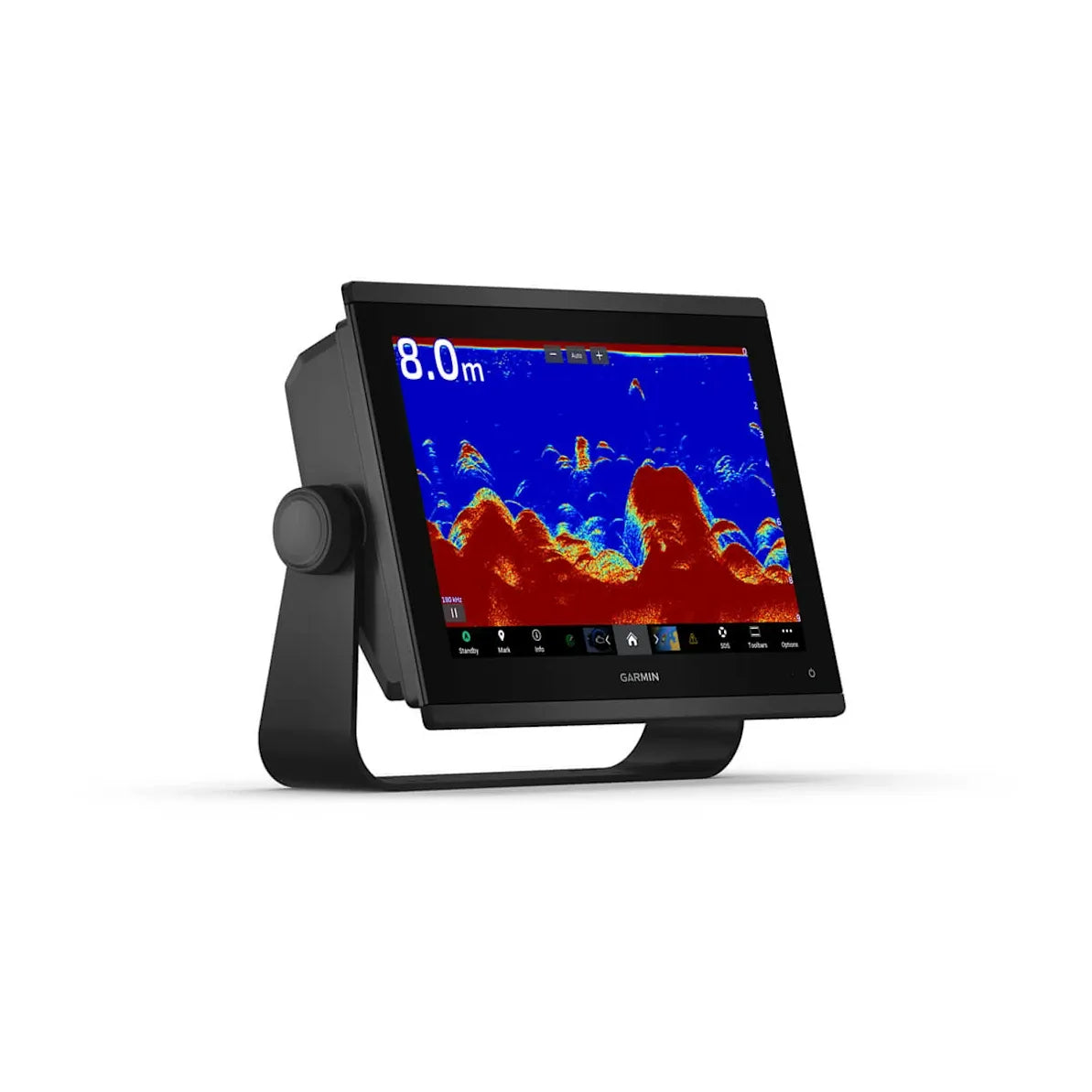

Mounting options include bail mount and flush mount, with hardware for both included in the box. Flat mounting is supported as an installation style, but it requires your own fabrication and hardware, so it is typically handled during custom dash work.

Plan cable clearance behind the panel for power, network connections, and the transducer lead, and leave access to the two rear microSD slots if you expect to swap chart cards or move data on and off the unit.

Charts and navigation

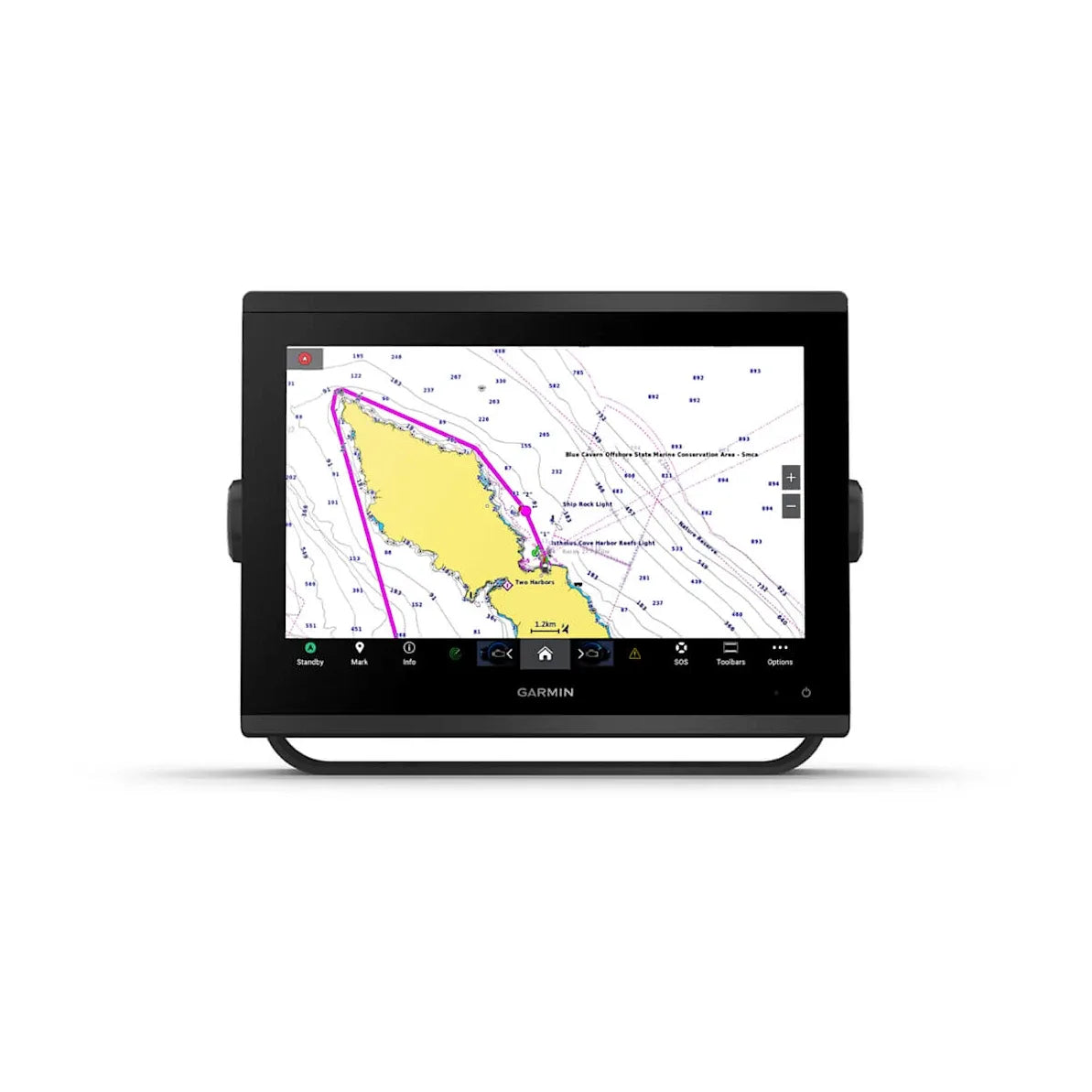

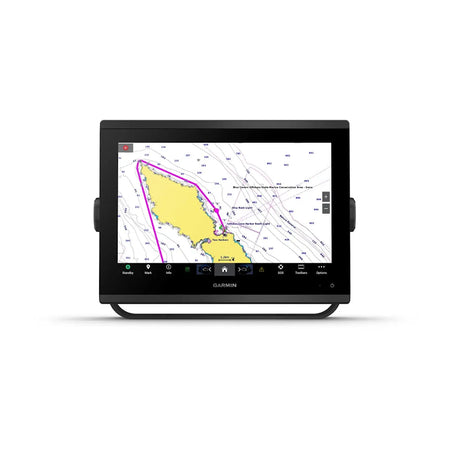

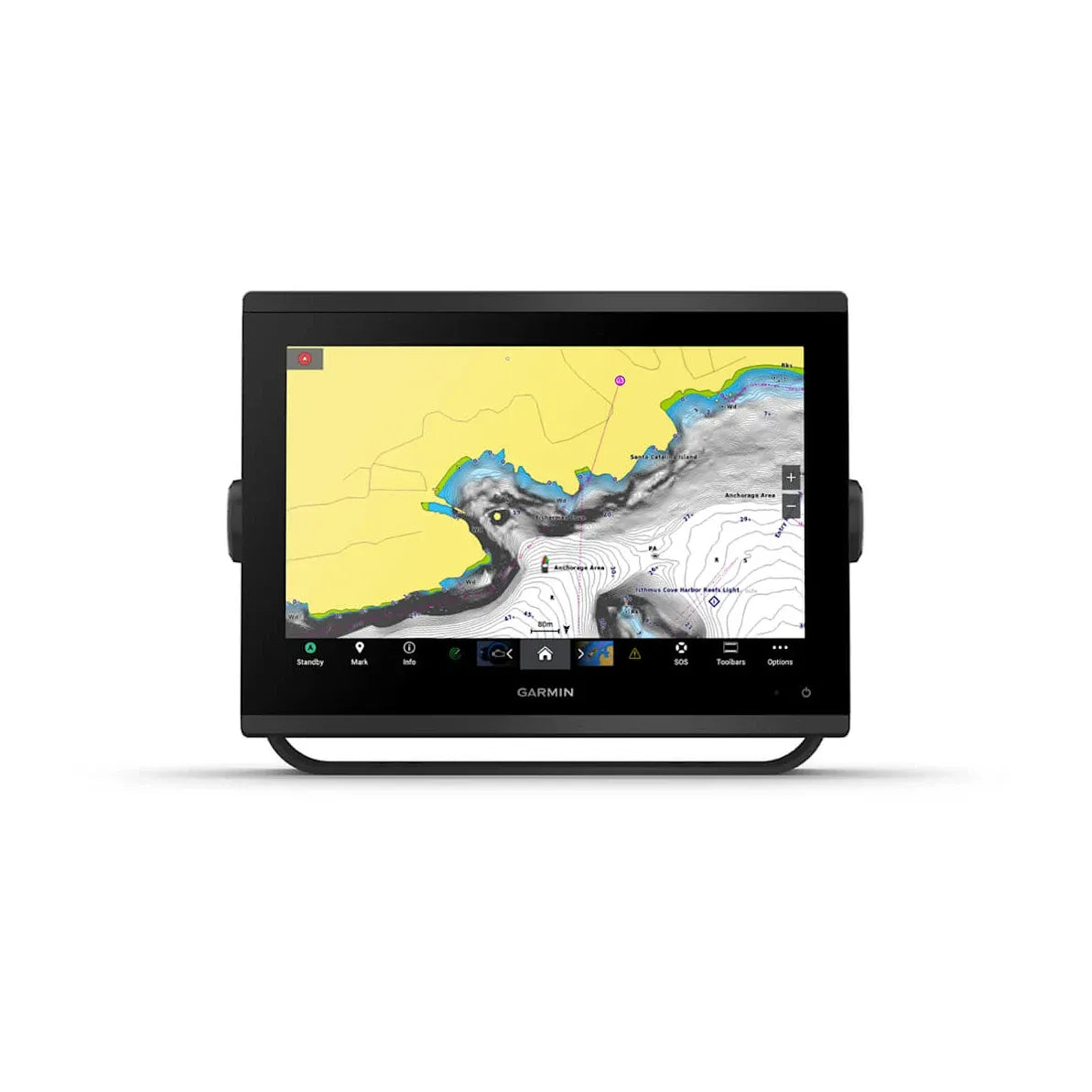

Along with the built-in worldwide basemap, it supports a wide range of optional chart products, including Garmin Navionics+, Garmin Navionics Vision+, BlueChart g3, BlueChart g3 Vision, and LakeVü mapping. It also supports Garmin Quickdraw Contours for creating and saving your own maps.

Use on board

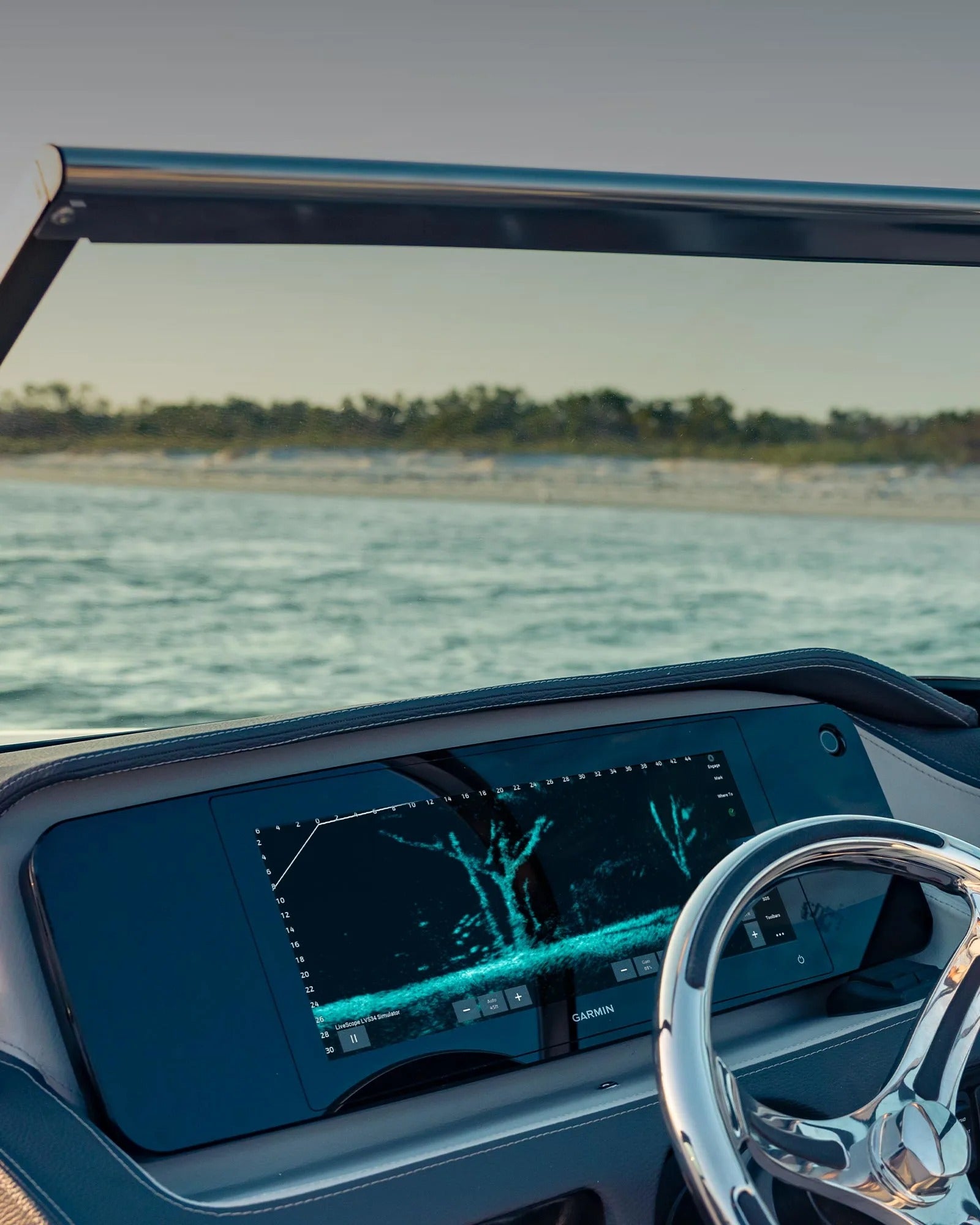

This is a good match for anglers who want scanning sonar and traditional CHIRP in one display, and for cruisers who want a chartplotter that can sit at the center of a connected helm with engine data, audio control, and networked accessories.

What’s included

• GPSMAP 1223xsv chartplotter
• microSD card preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 meters)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
