Airmar - B75C-0-HW 0d Tilt High Wide CHIRP Transducer - With Mix-n-Match Plug

High-Performance CHIRP Transducer for Exceptional Marine Clarity

The Airmar B75C-0-HW is a cutting-edge CHIRP transducer designed to deliver superior shallow-water performance and precise fish-target returns. Engineered with a 0° tilt and a high-wide frequency range of 150 to 250 kHz, this transducer provides outstanding target separation, making it an excellent choice for anglers and marine professionals.

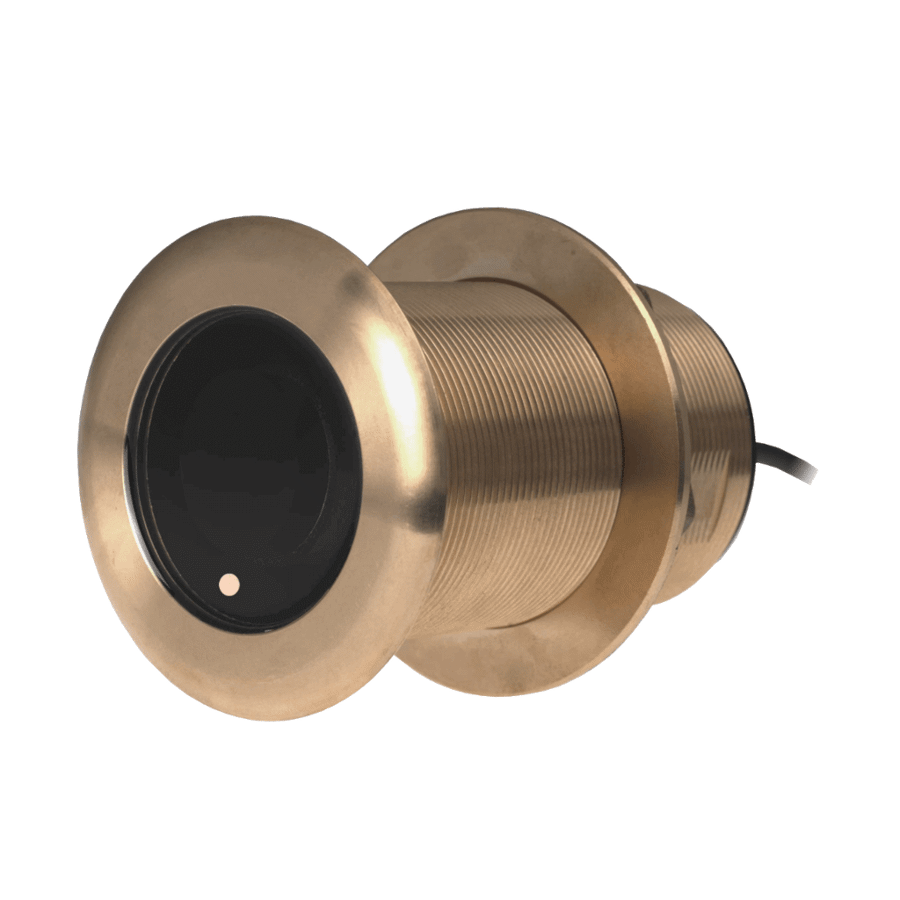

With a powerful 600W output, the B75C-0-HW ensures high-resolution sonar imaging, even at speeds, when installed correctly. The wide 30° beamwidth maximizes underwater coverage, giving users a detailed and comprehensive view beneath their vessel. Its bronze low-profile, thru-hull housing is built for durability and optimal hydrodynamics, making it suitable for stepped, planing, or displacement hulls.

Airmar’s exclusive Xducer ID® technology enhances performance by automatically recognizing the transducer and optimizing sonar settings for better accuracy. This model also features a depth and fast-response water temperature sensor, ensuring reliable real-time data for improved navigation and fishing success.

Advanced Sonar Capabilities with CHIRP Technology

This high-wide CHIRP transducer delivers up to 100 kHz of total bandwidth in a single installation, significantly improving depth readings and target clarity. The high frequency provides exceptional bottom detail and accurate identification of baitfish and gamefish schools.

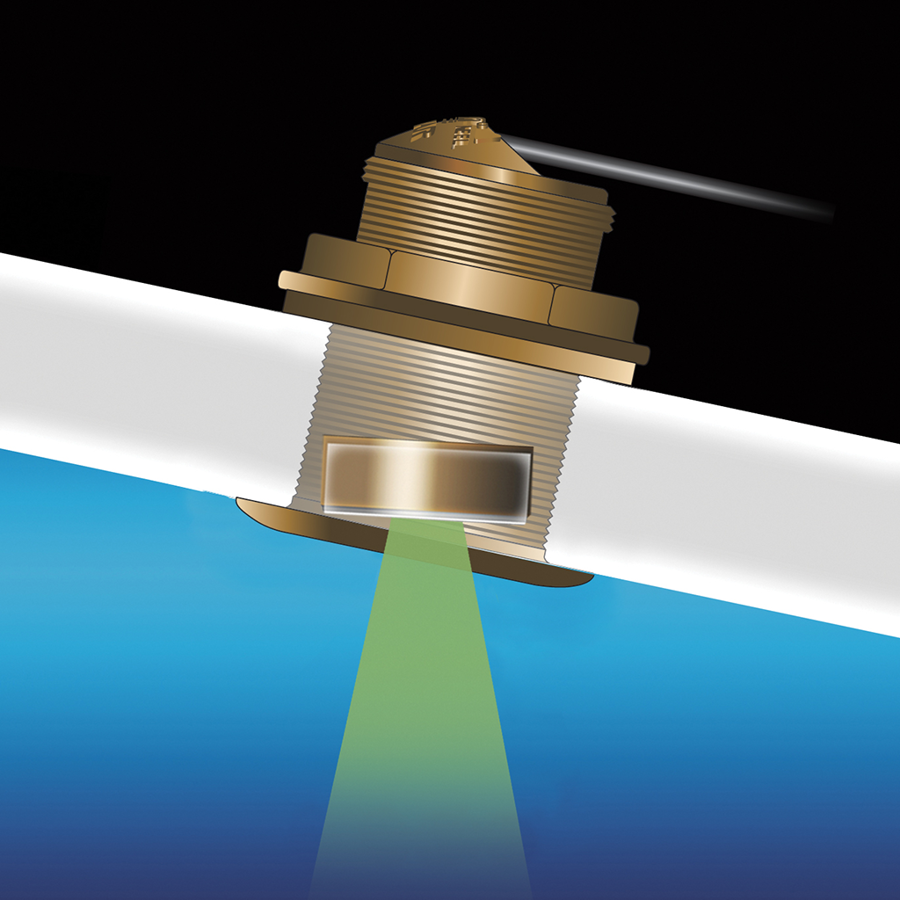

Tilted Element™ technology ensures the transducer is installed nearly flush with the hull, while the internal ceramic element is fixed at a 0° angle. This setup corrects for hull deadrise, orienting the beam directly downward for the most precise echo returns, improving depth measurement reliability.

Technical Specifications

• Power Output: 600W
• Frequency Range: 150-250 kHz (High Wide)
• Beamwidth: 30°
• Maximum Depth Performance: 106 m (350')
• Functions: Depth and Temperature
• Housing Material: Bronze, suitable for various hull types
• Acoustic Window: Urethane
• Cable Length: 9 m (30')
• Connector Type: Airmar 12-Pin (MMC)
• Hole Size Requirement: 70 mm (2-13/16")
• Deadrise Compatibility: 0° to 7°

Key Features

• Wide 30° beamwidth for increased sonar coverage
• High-frequency CHIRP for superior shallow-water target resolution
• Depth and fast-response temperature sensor for real-time readings
• Low-profile, thru-hull design minimizes drag and enhances durability
• Bronze housing for reliable use on various hull types
• Exclusive Xducer ID® technology for automatic transducer recognition
• 600W power ensures clear imaging and strong signal returns

This advanced transducer is the perfect addition for boaters looking for precision and clarity in their sonar readings. With its high-wide frequency capabilities and innovative technology, the Airmar B75C-0-HW enhances navigation, fishing efficiency, and overall marine performance.
