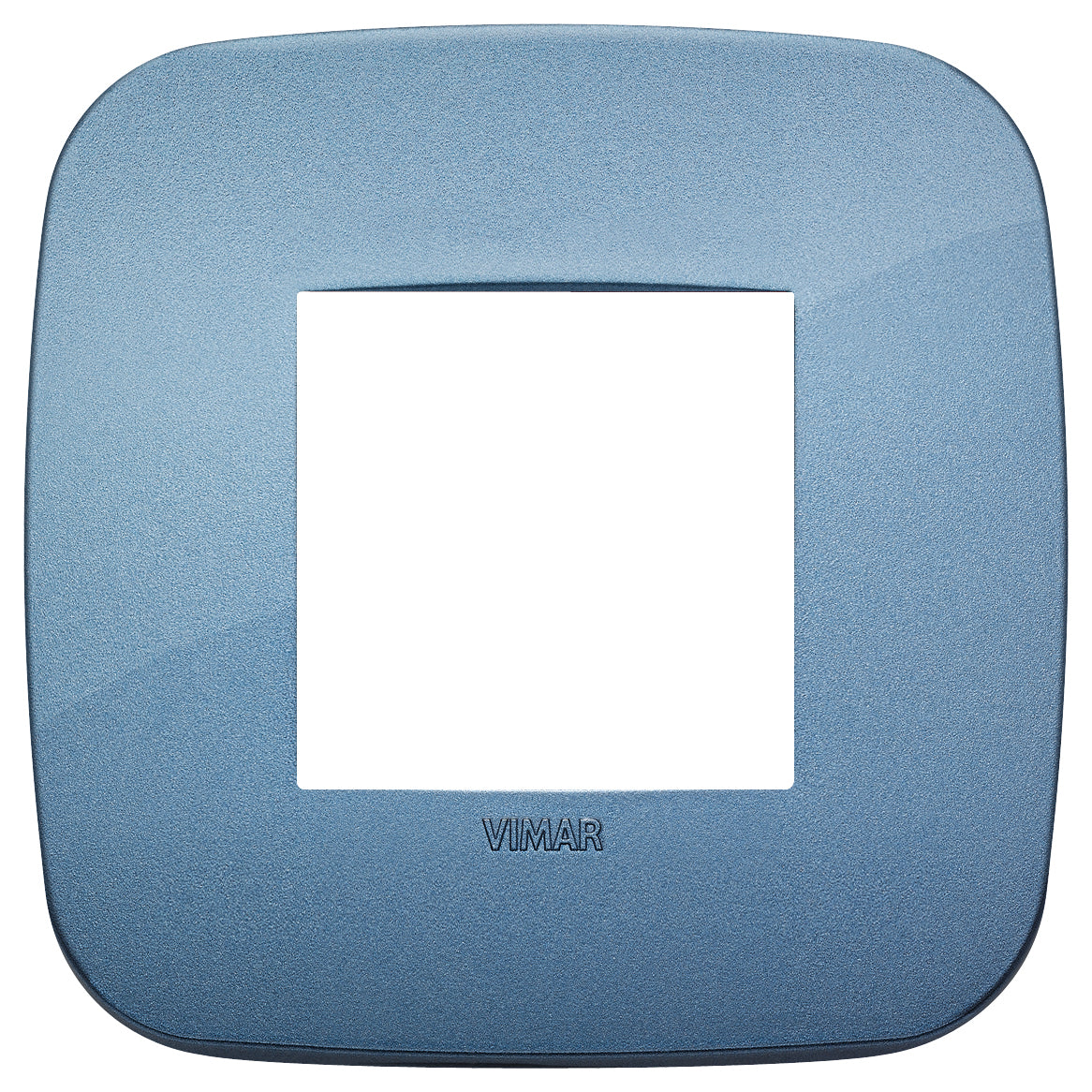

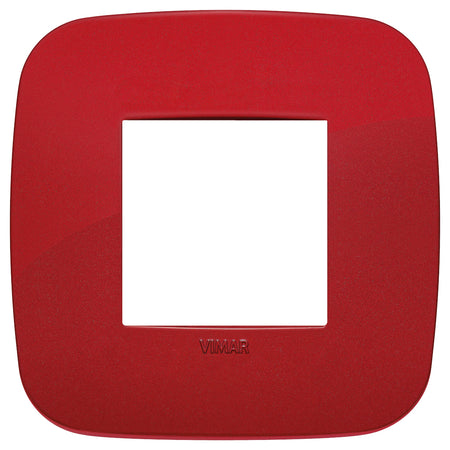

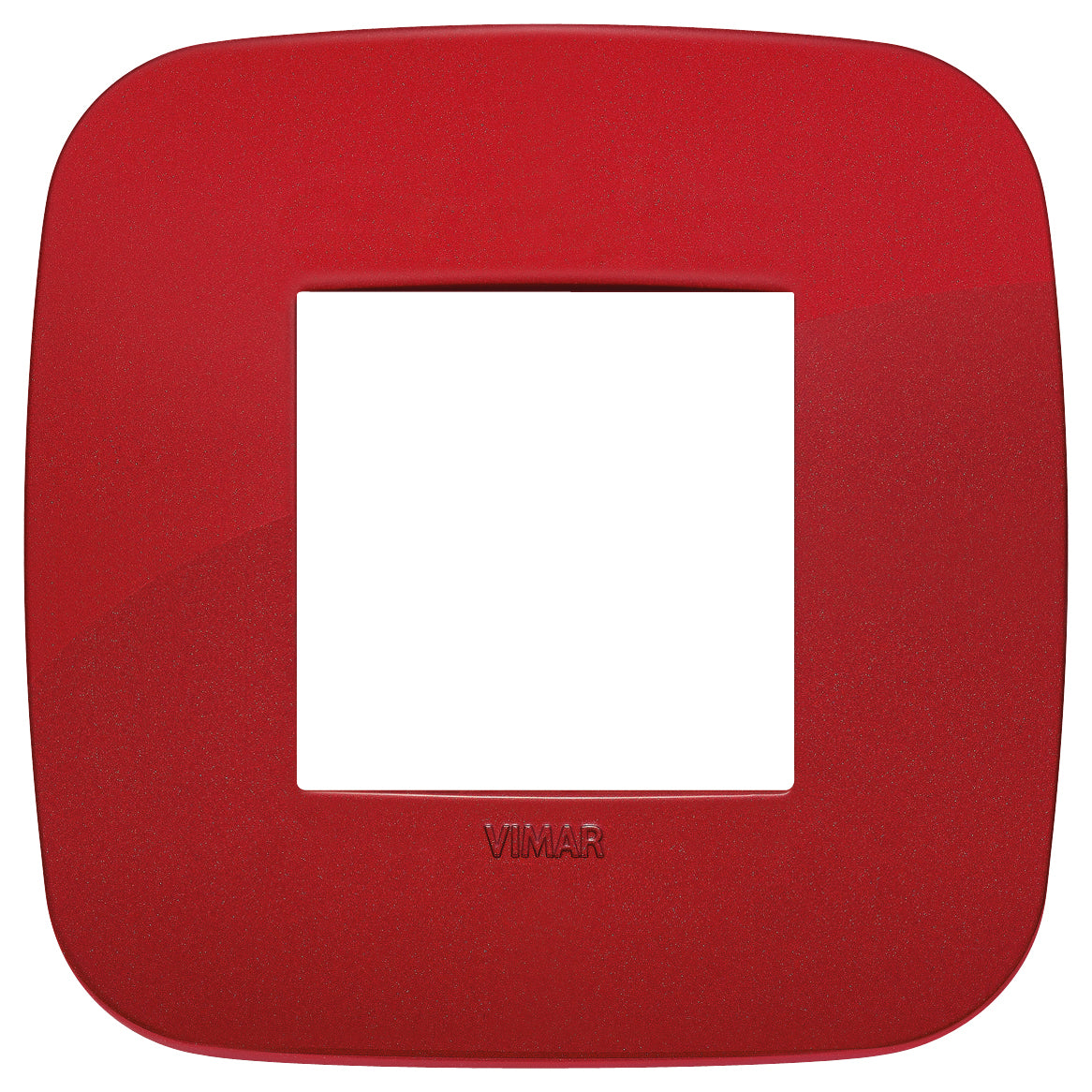

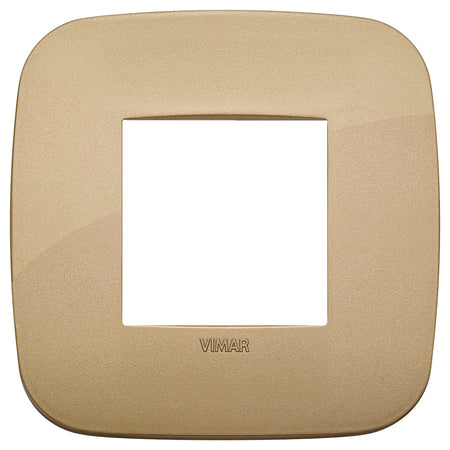

Vimar Arké 19672 2-Module Round Cover Plate

Overview

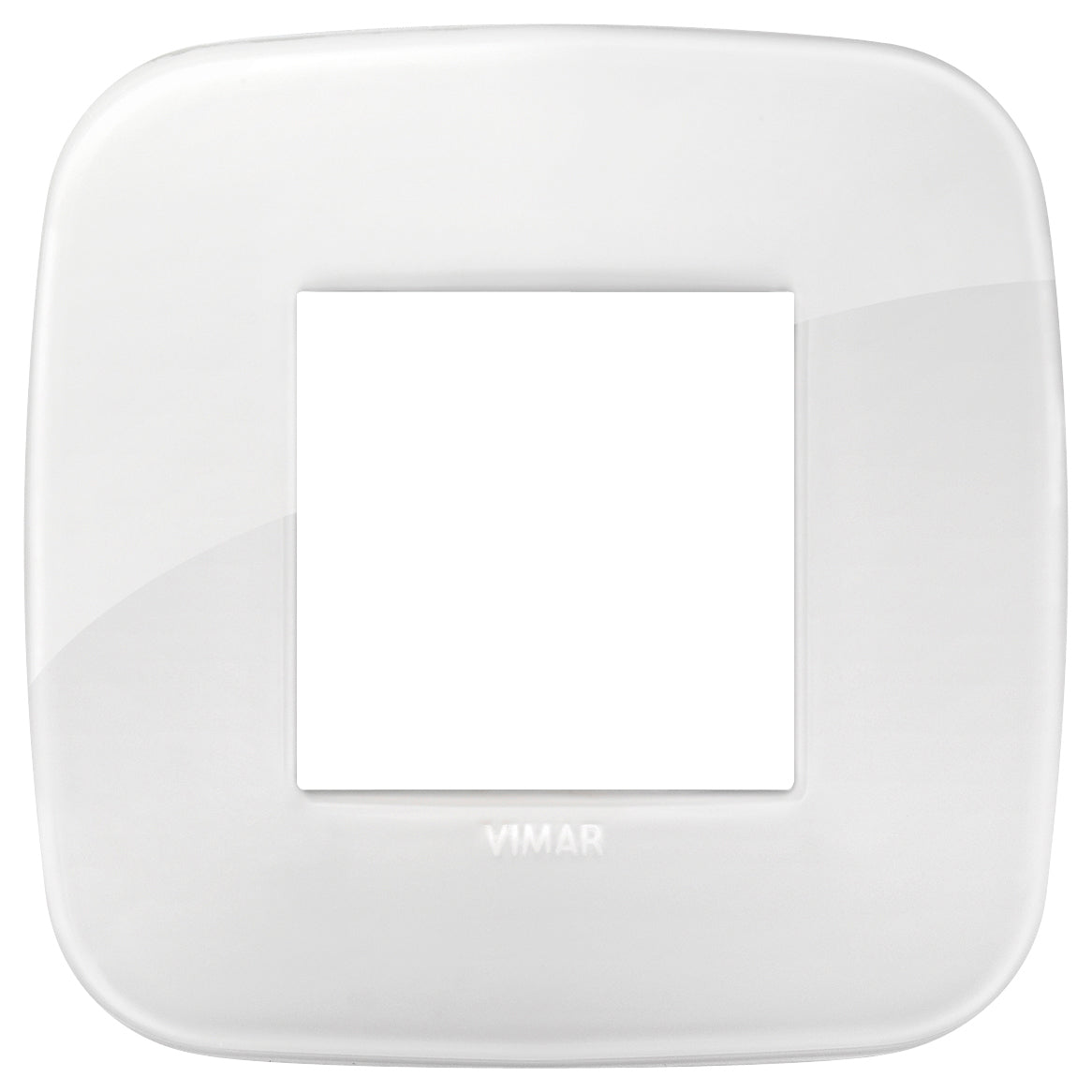

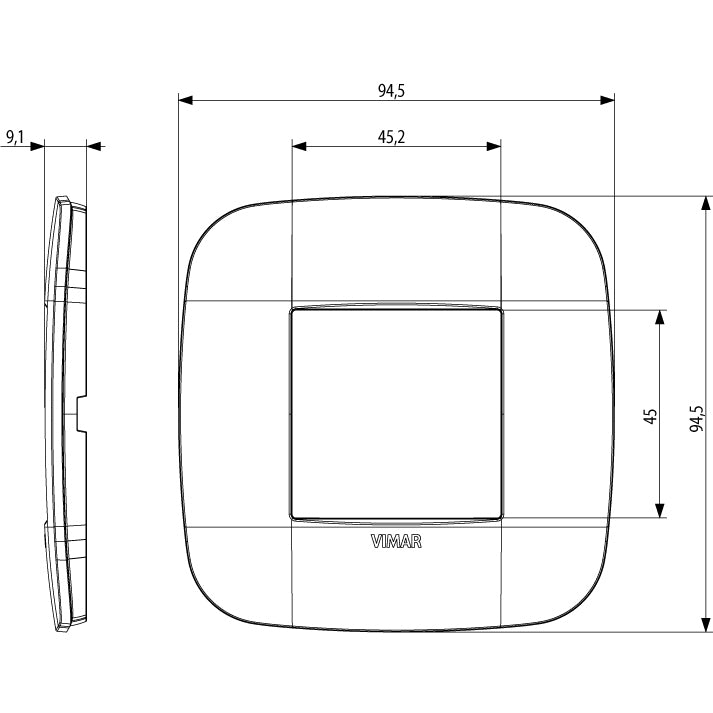

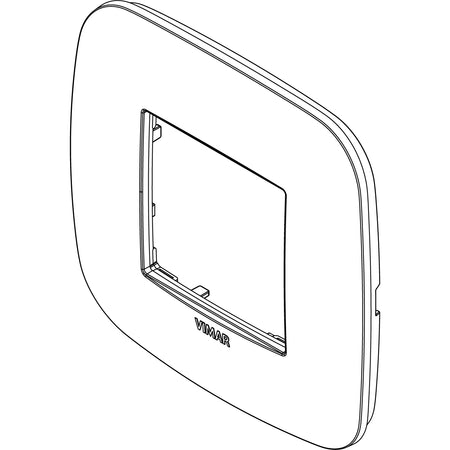

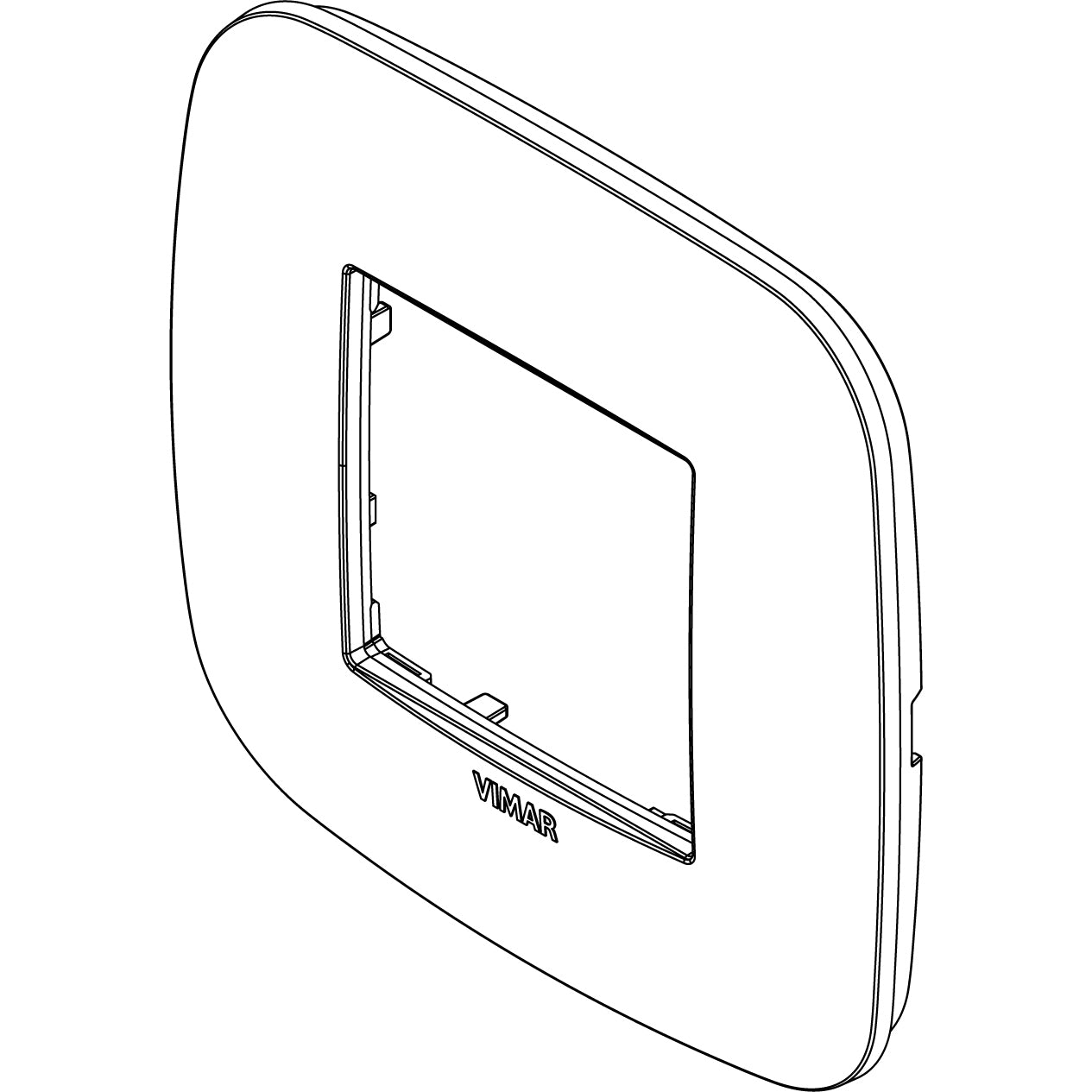

The Vimar Arké 19672 is a round 2-module cover plate used to finish an Arké device installation on a panel or bulkhead. The plate is 94.5 mm x 94.5 mm with an 8.5 mm profile and it clips onto a compatible Arké 2-module frame with 71 mm fixing centres such as 19602 or 19603.

It can be installed horizontally or vertically and the range is offered in technopolymer colors and metal finishes. The plate is rated IP00, so it does not add water sealing and it belongs in dry interiors or behind a properly protected enclosure when it will see spray or washdowns.

Key features

• 2-module Arké Round plate format, mountable in horizontal or vertical orientation.
• Clamp-on fastening to Arké 2-module frames with 71 mm centres (for example, frames 19602 or 19603).

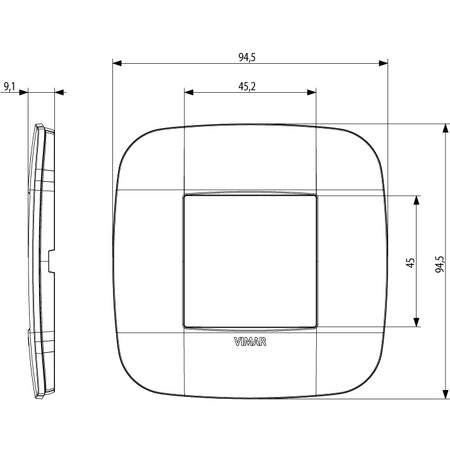

• Overall size 94.5 mm x 94.5 mm; depth 8.5 mm.
• IP00 cover plate with no hinged lid, for installations where the device or enclosure provides the required protection.
• Halogen-free construction across technopolymer and metal variants.

Variants

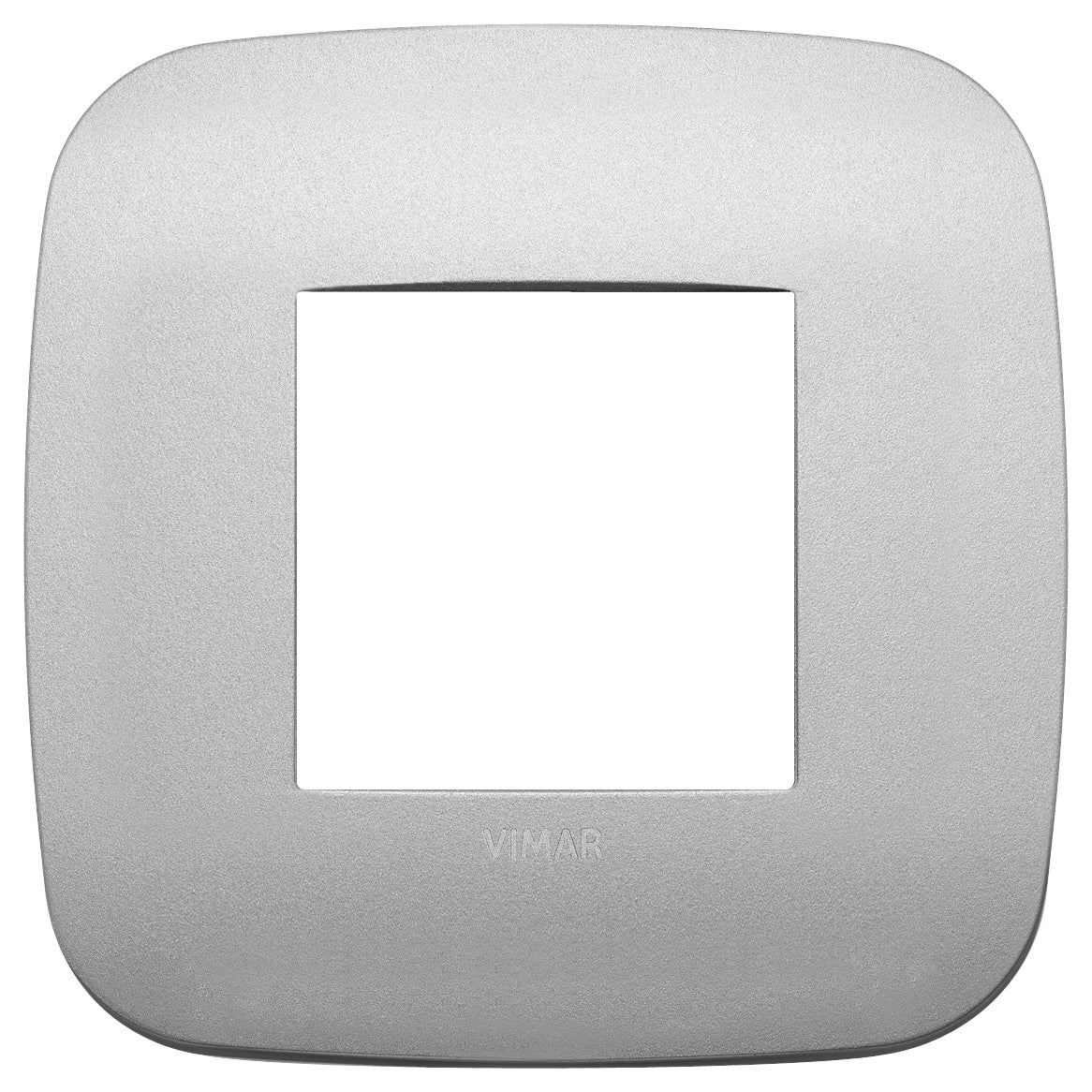

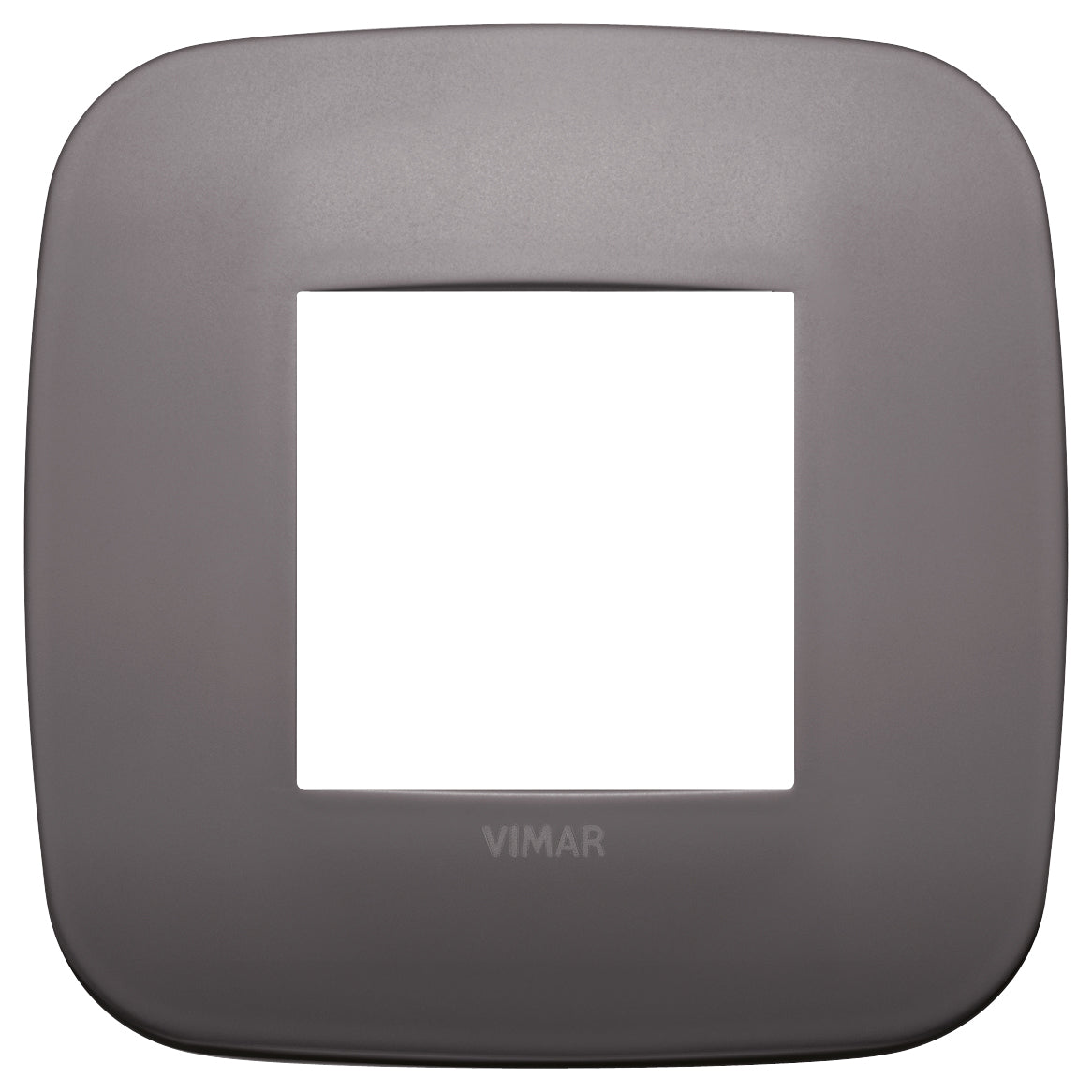

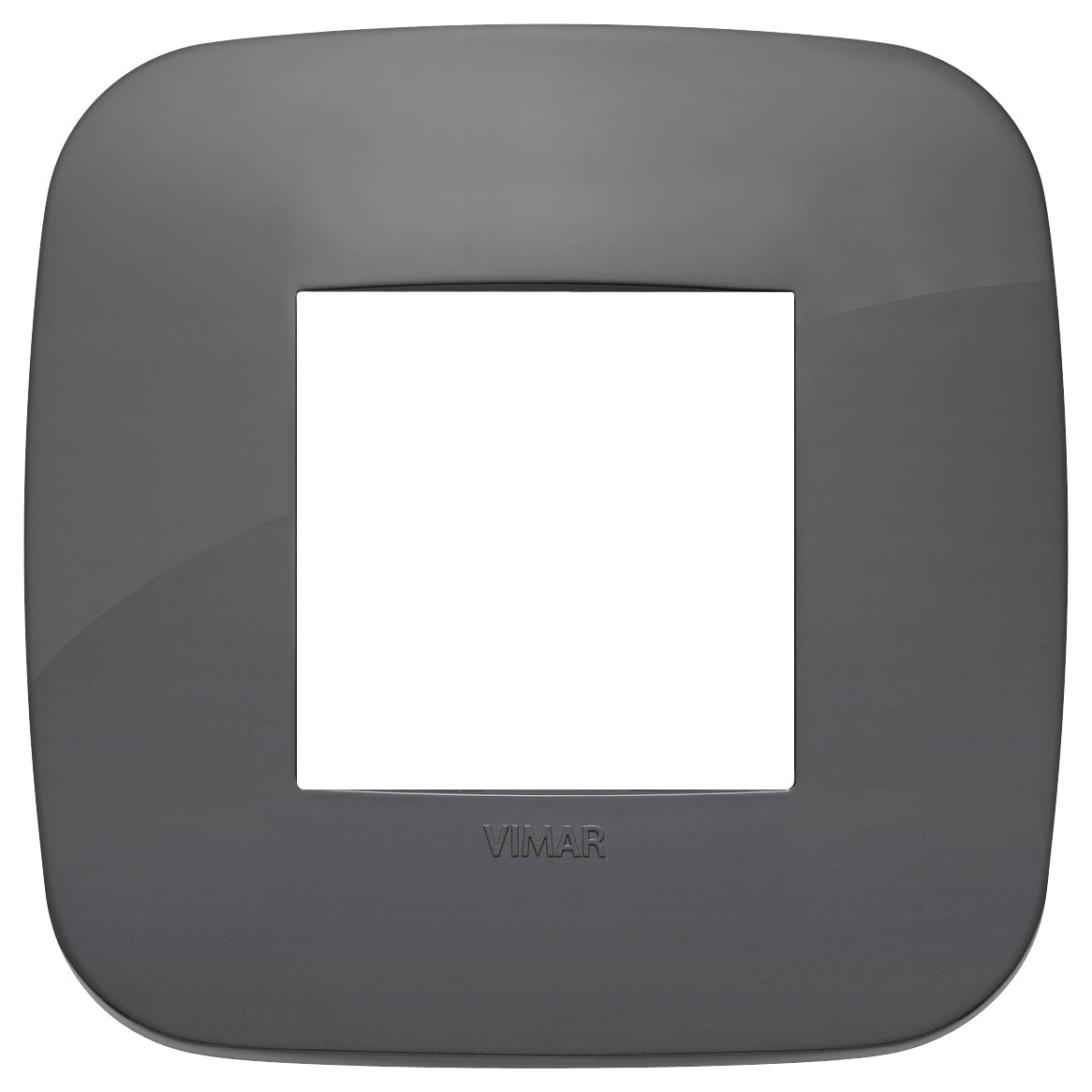

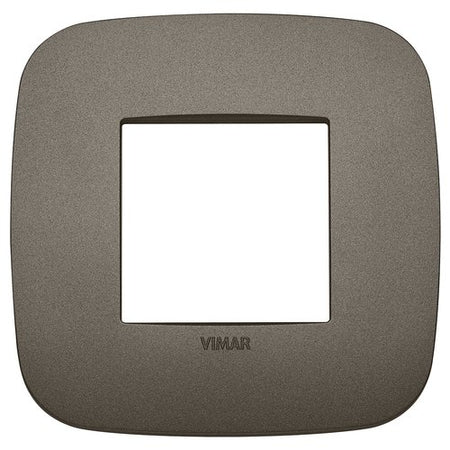

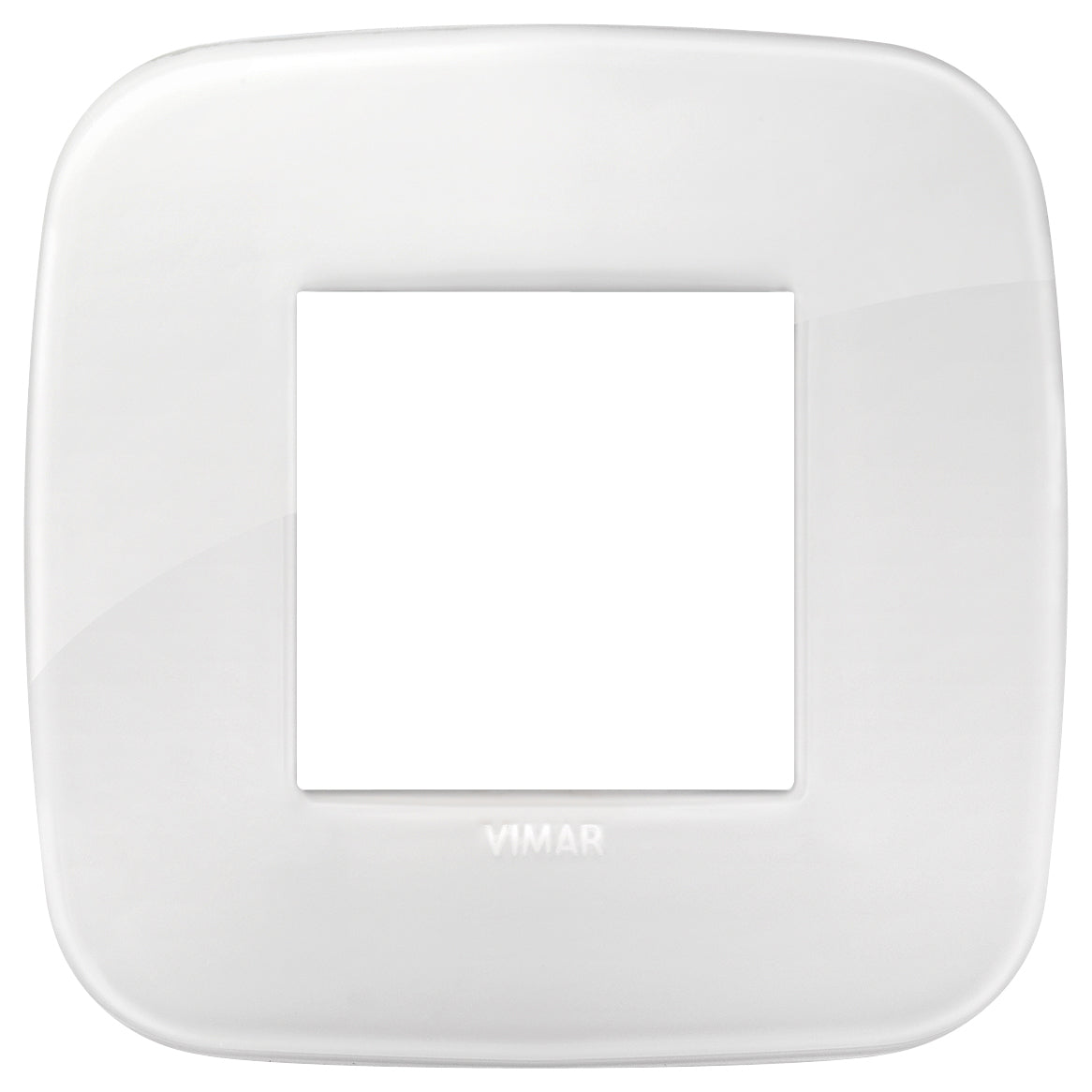

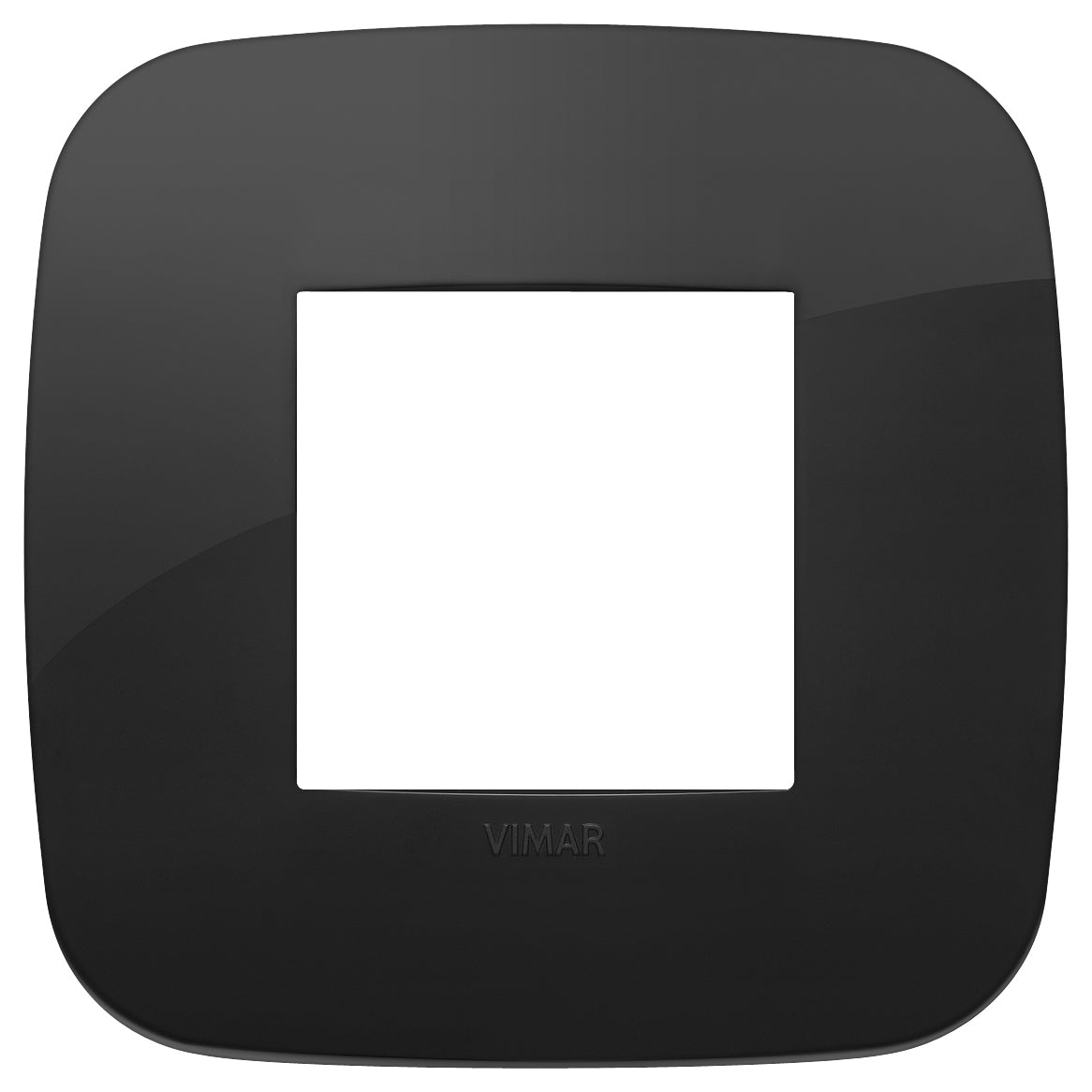

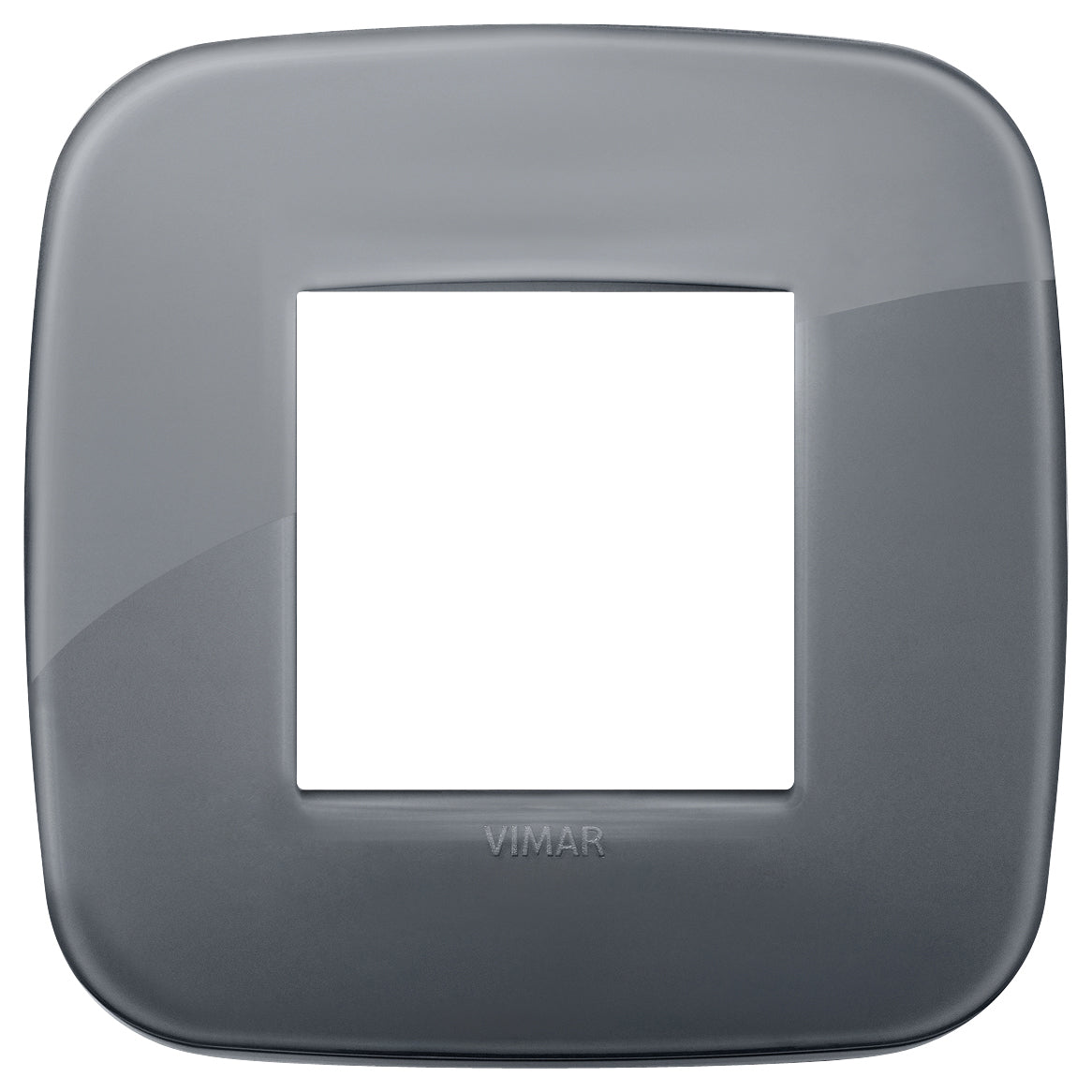

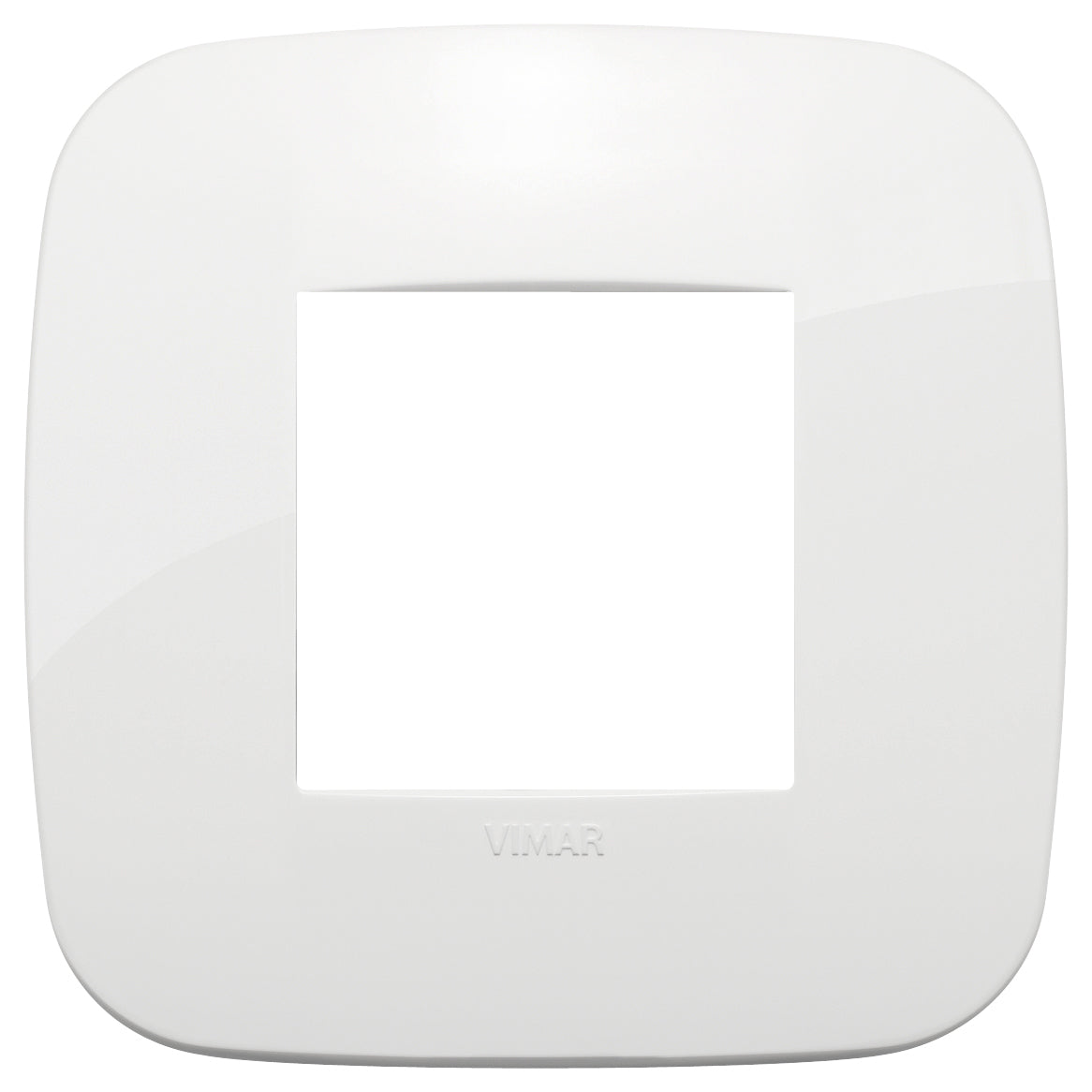

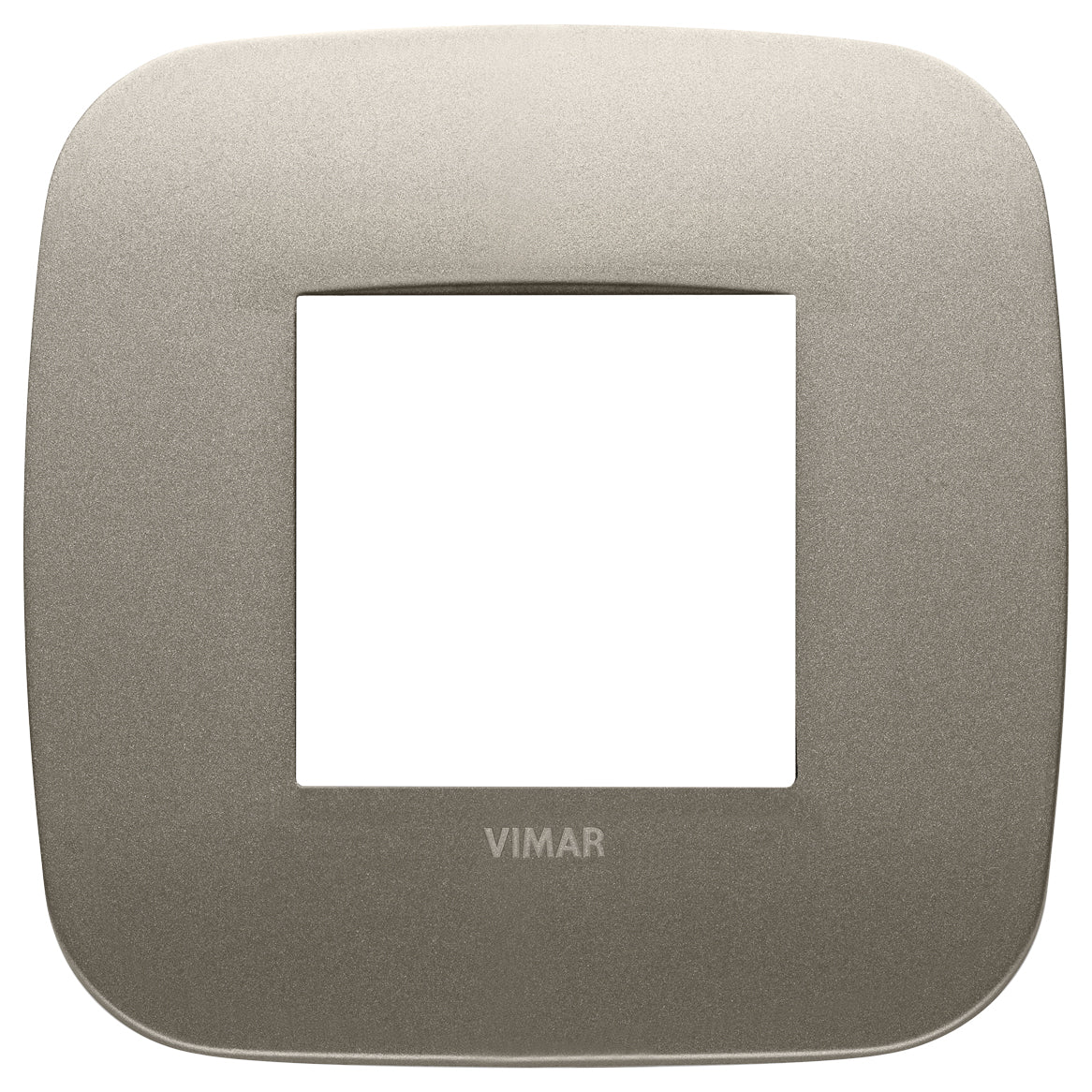

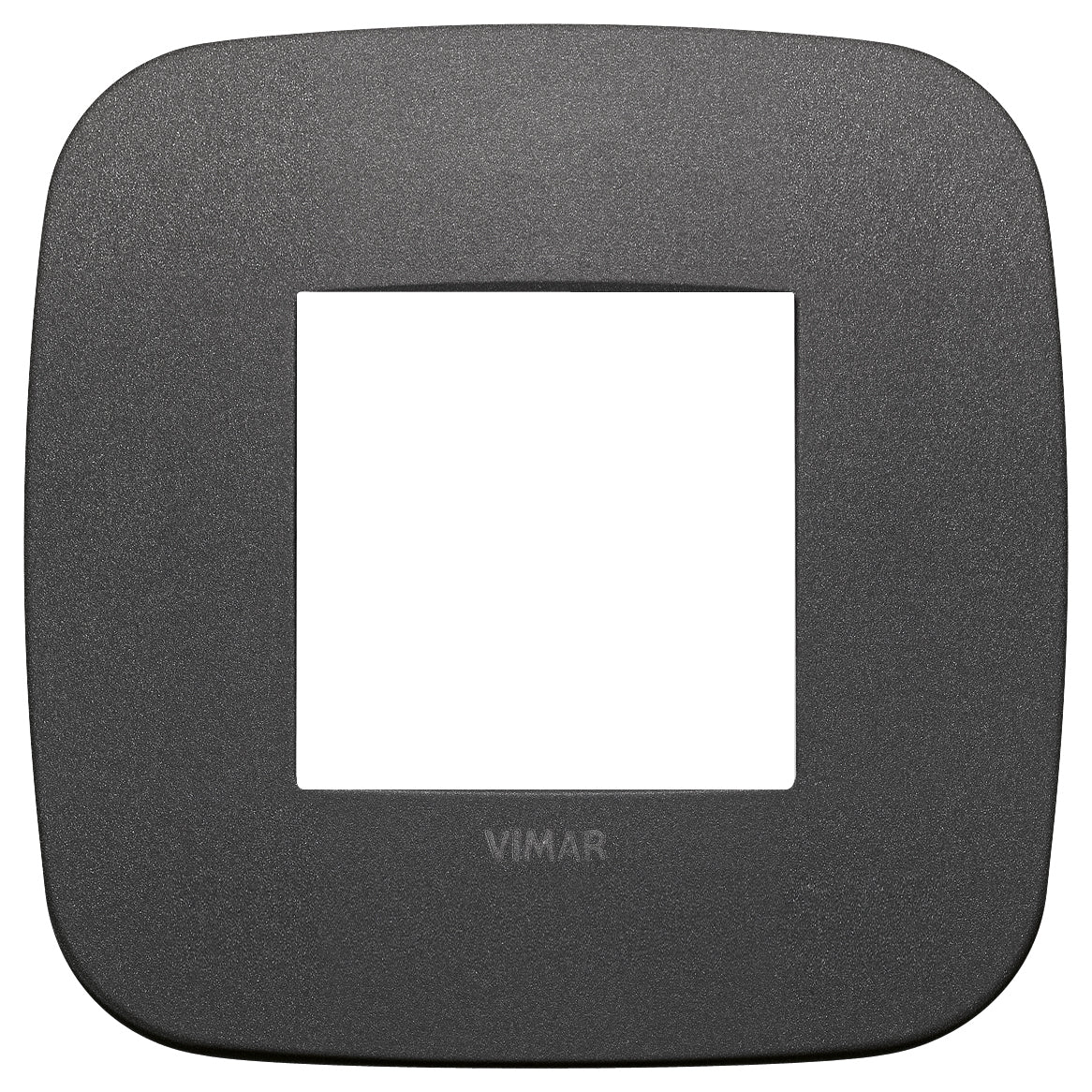

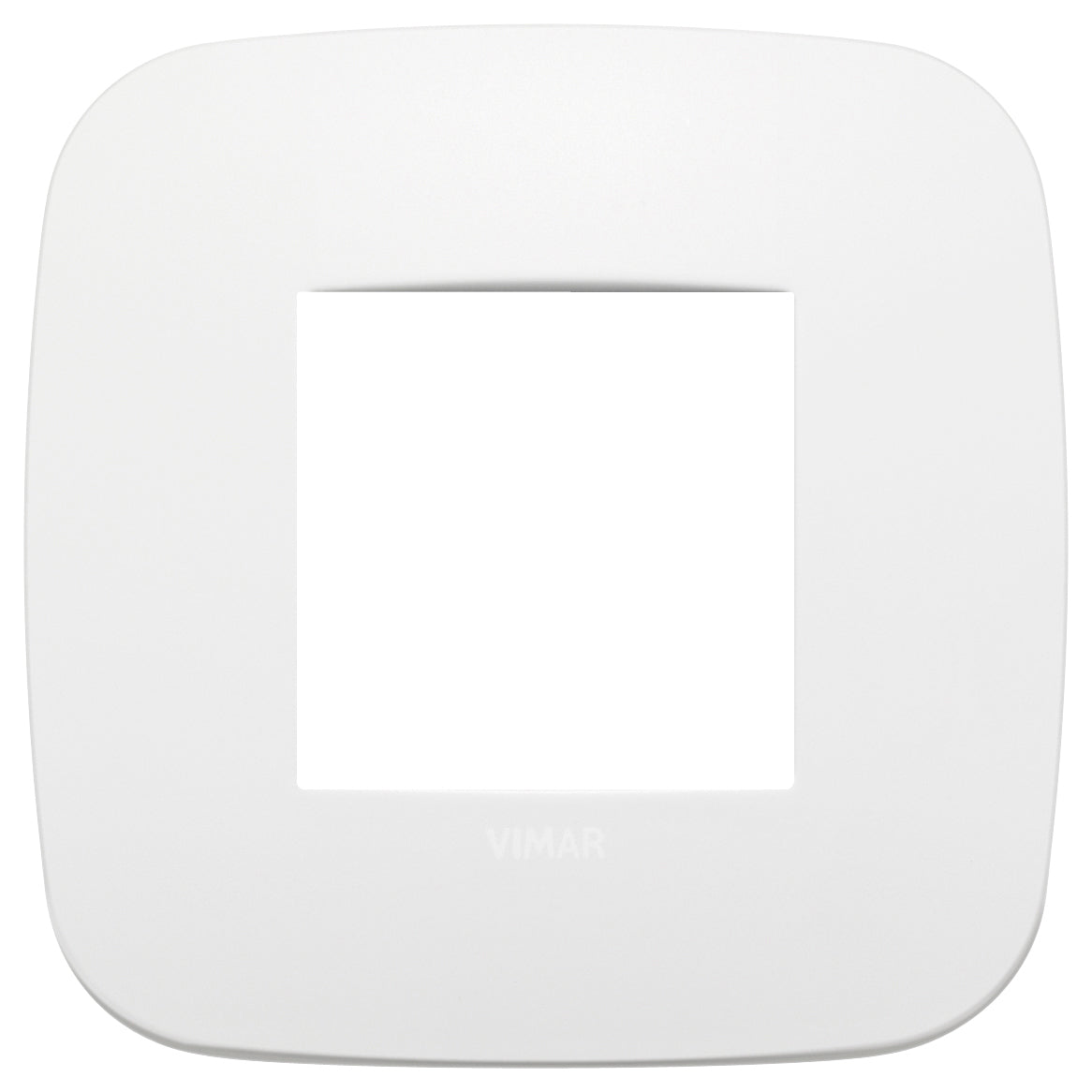

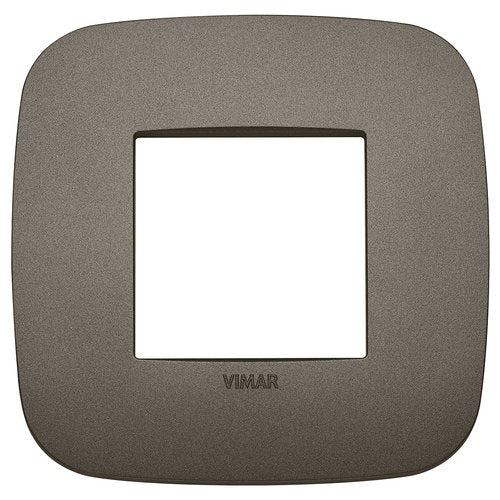

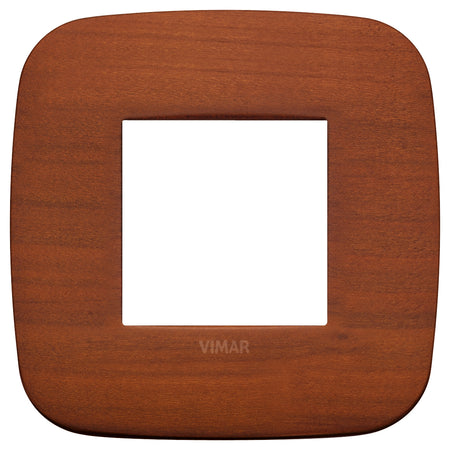

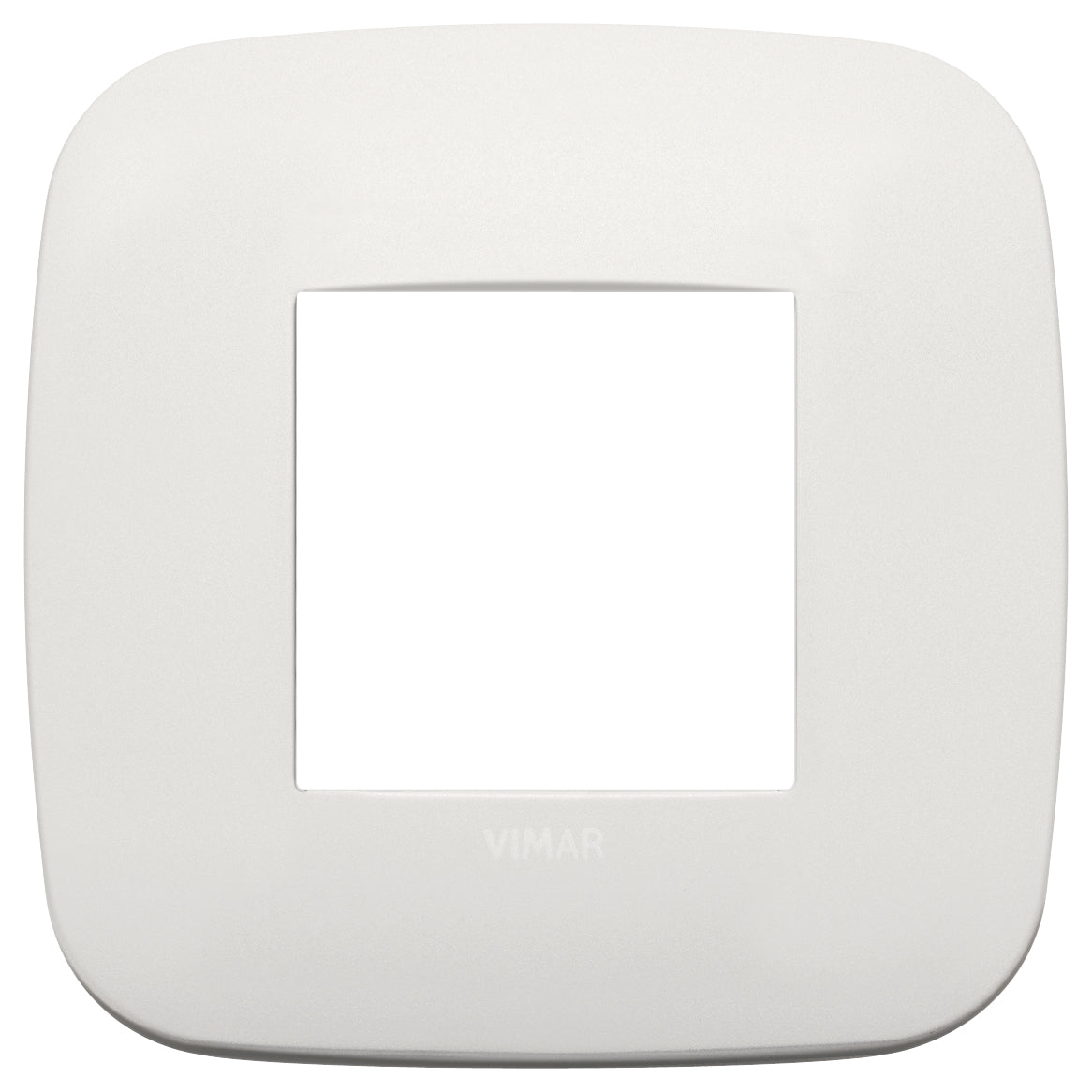

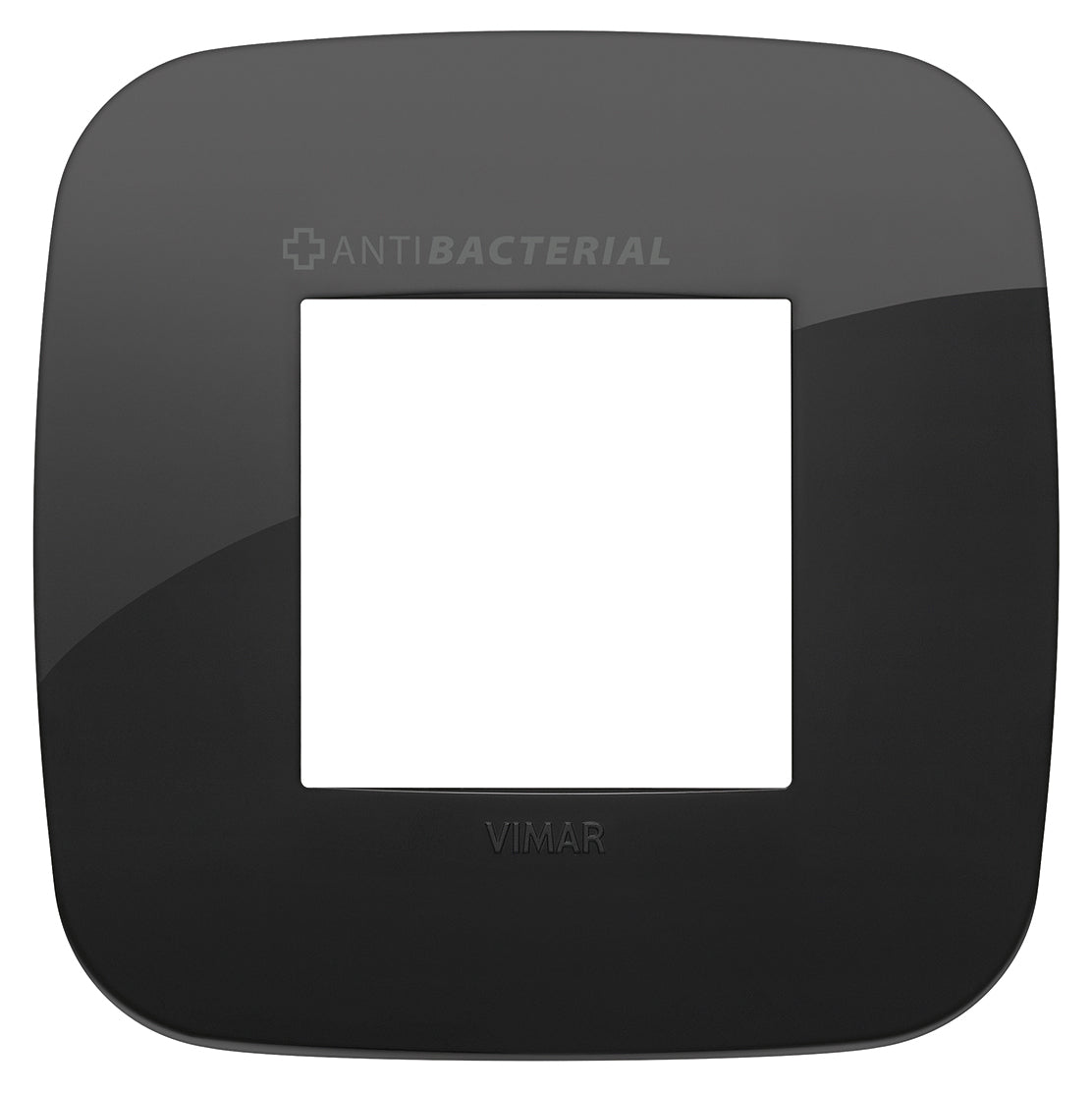

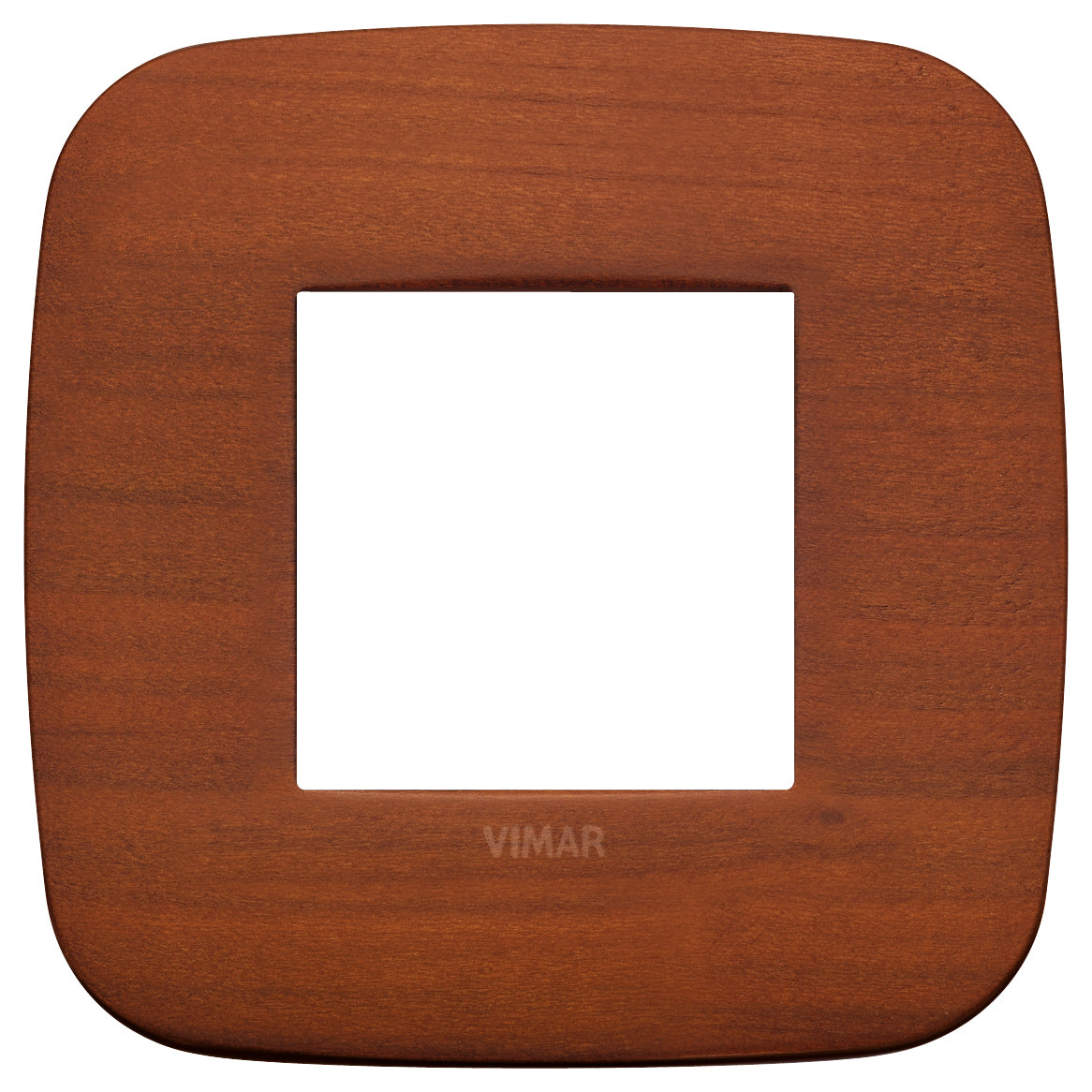

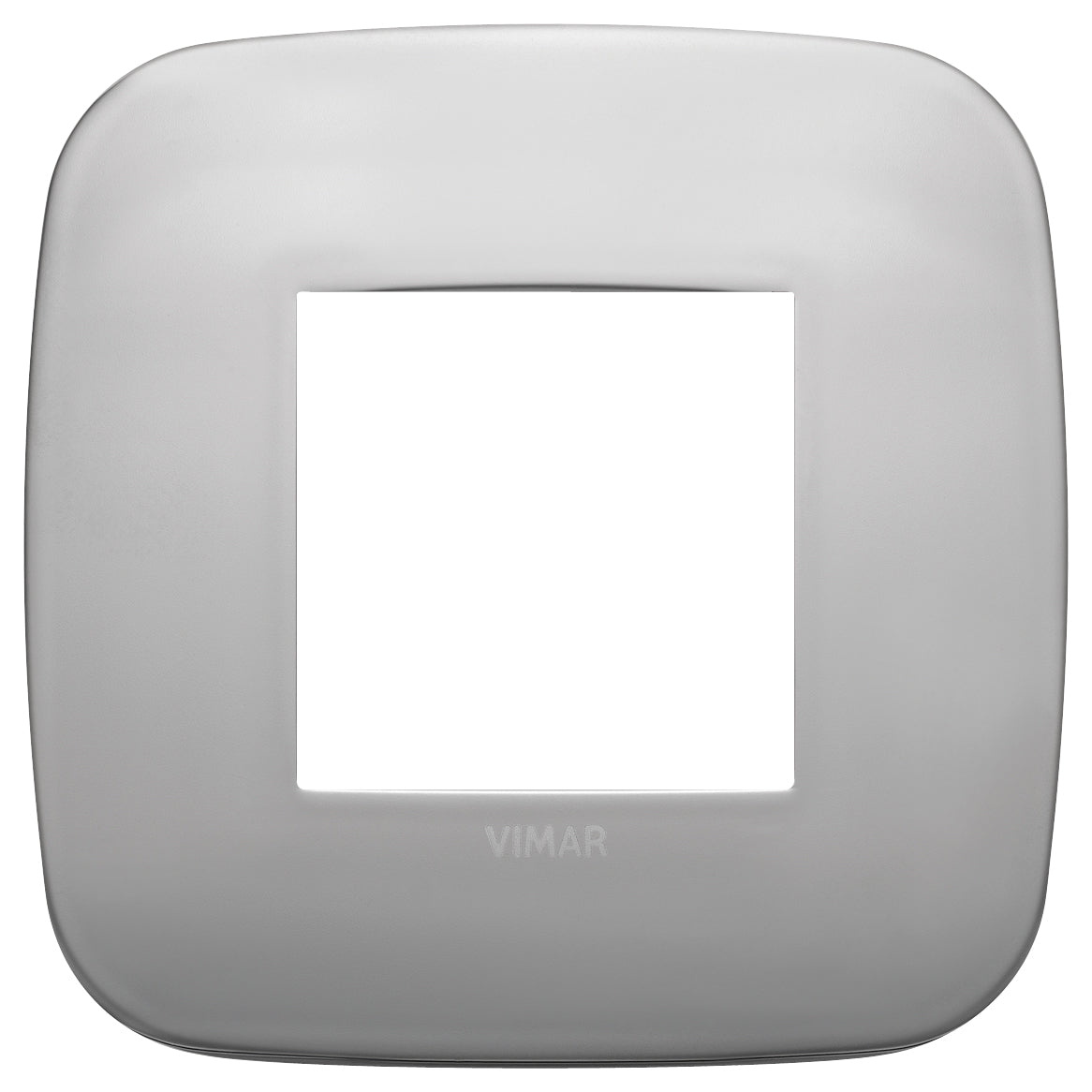

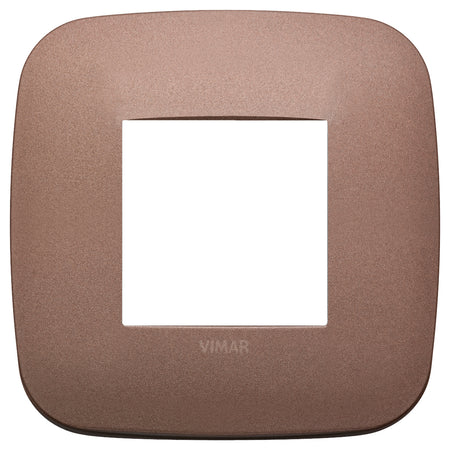

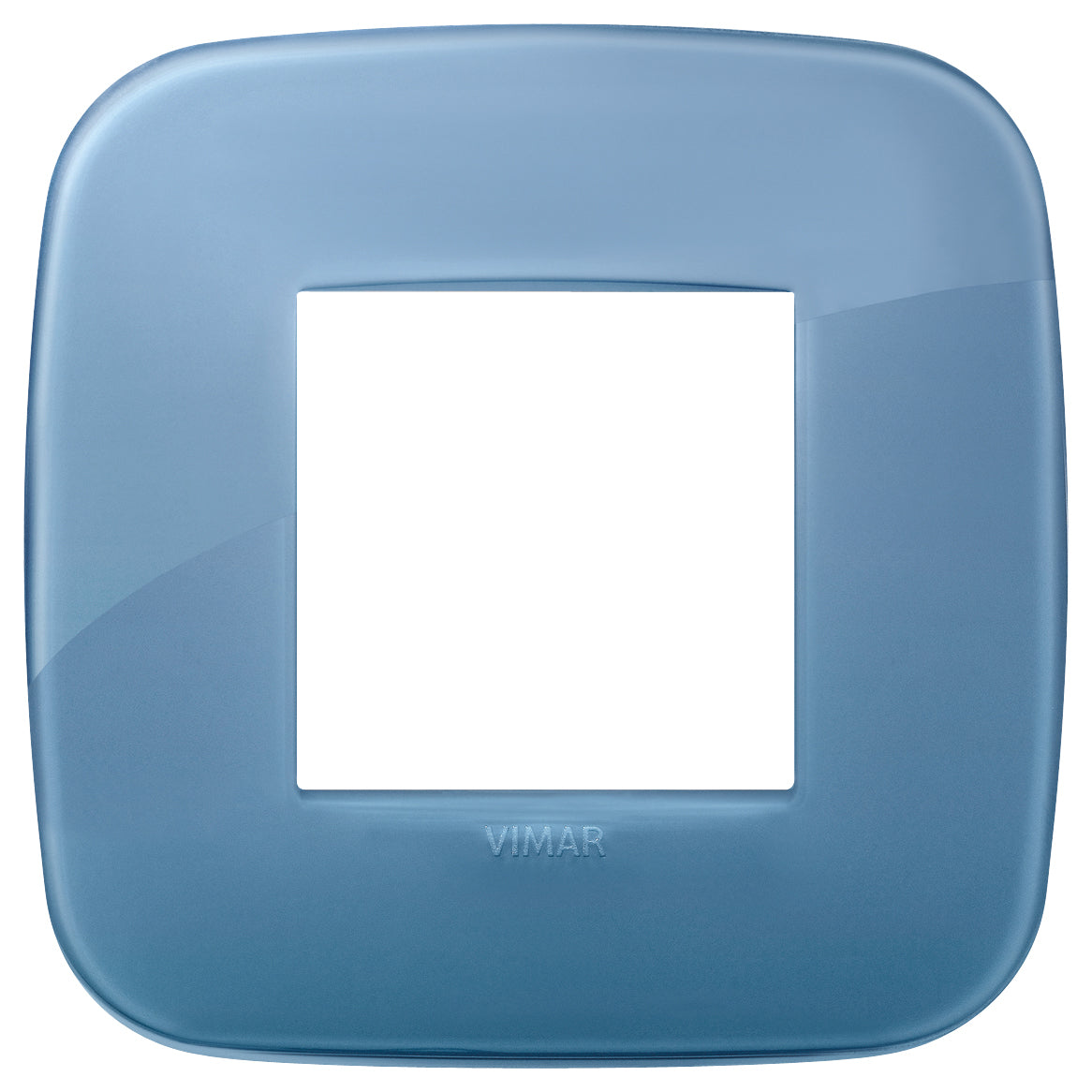

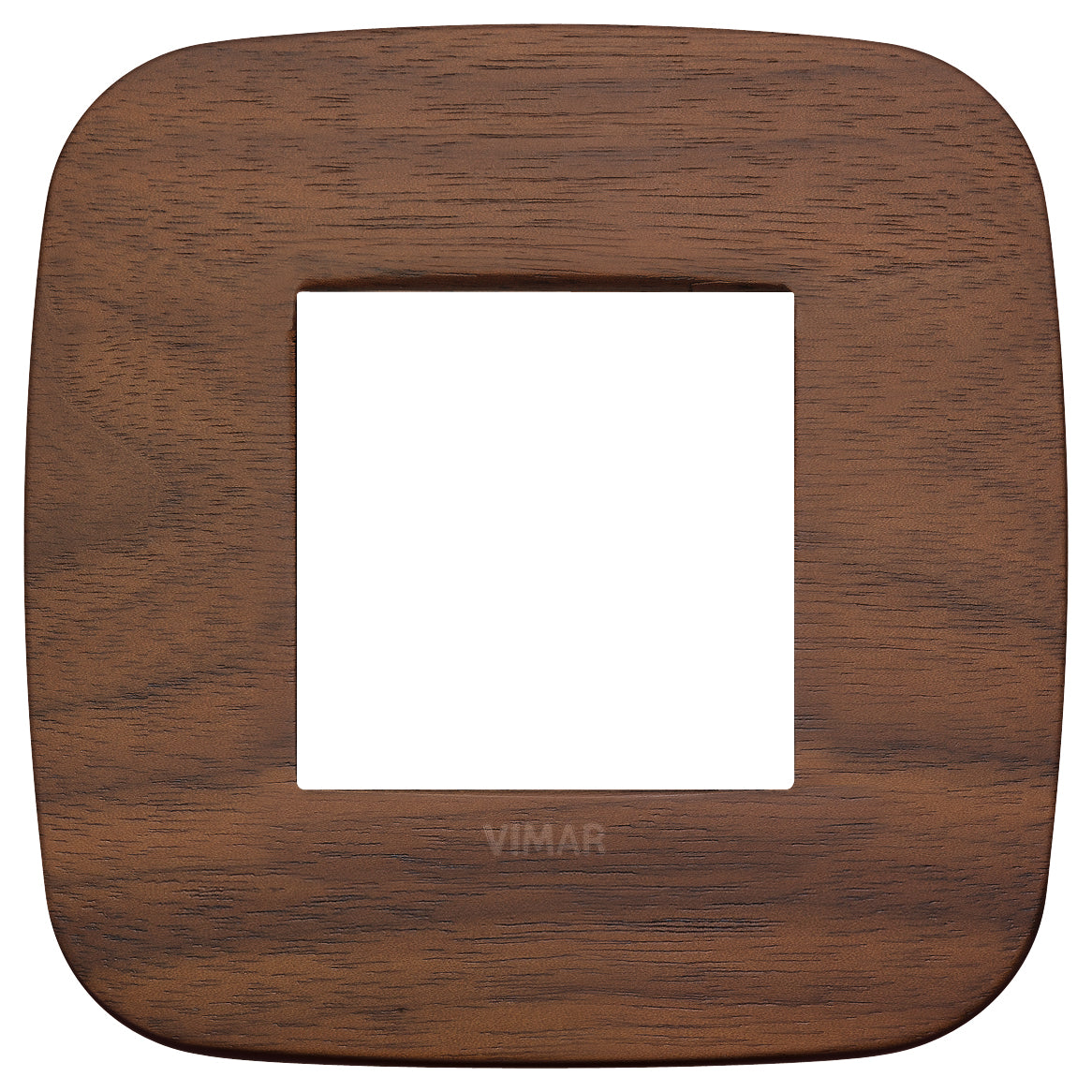

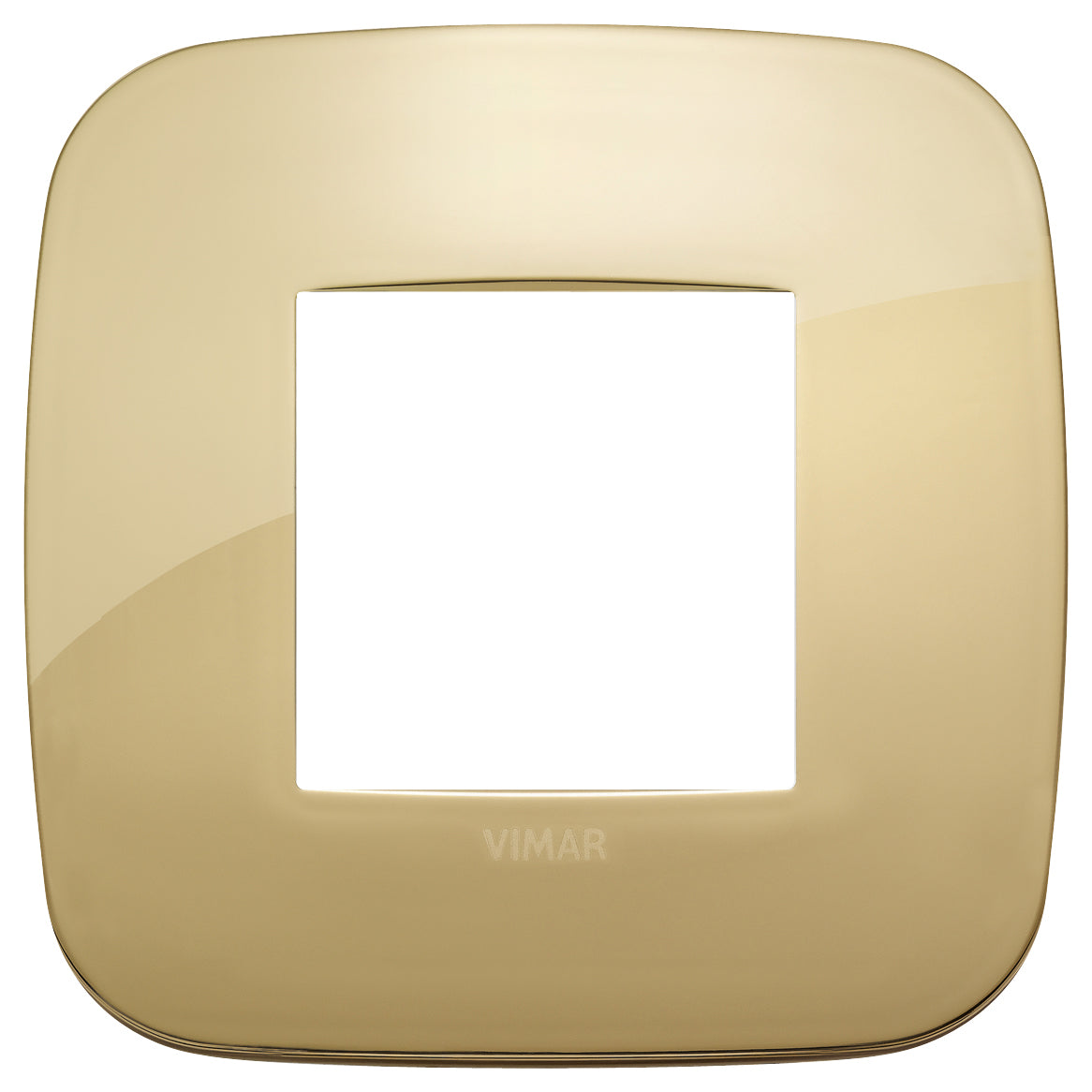

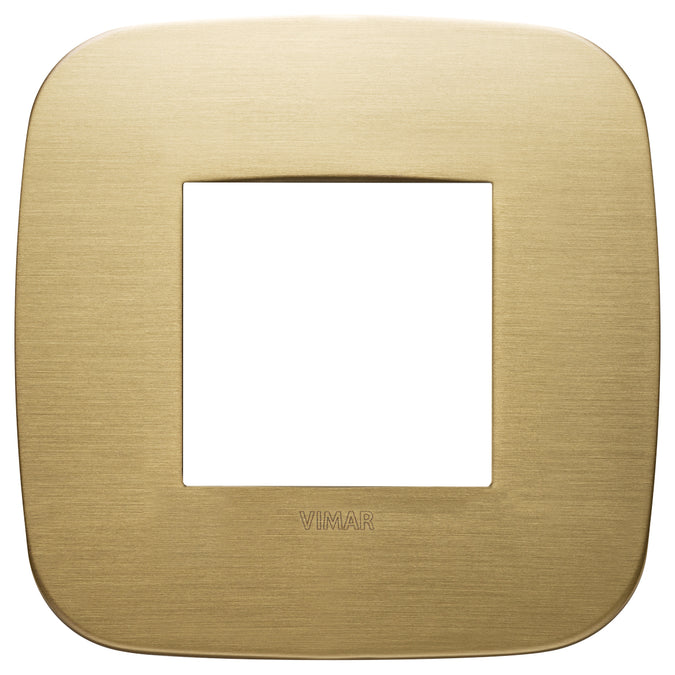

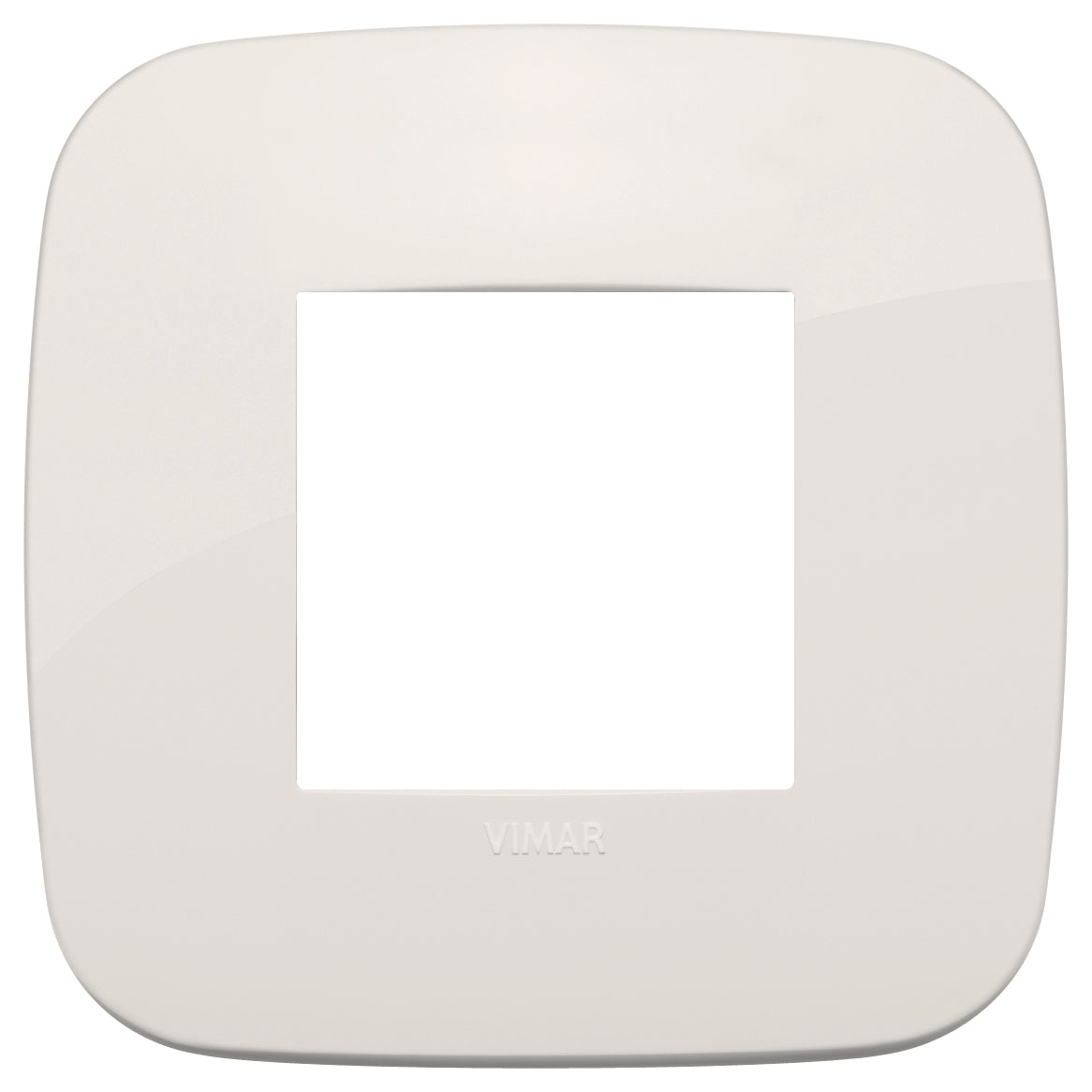

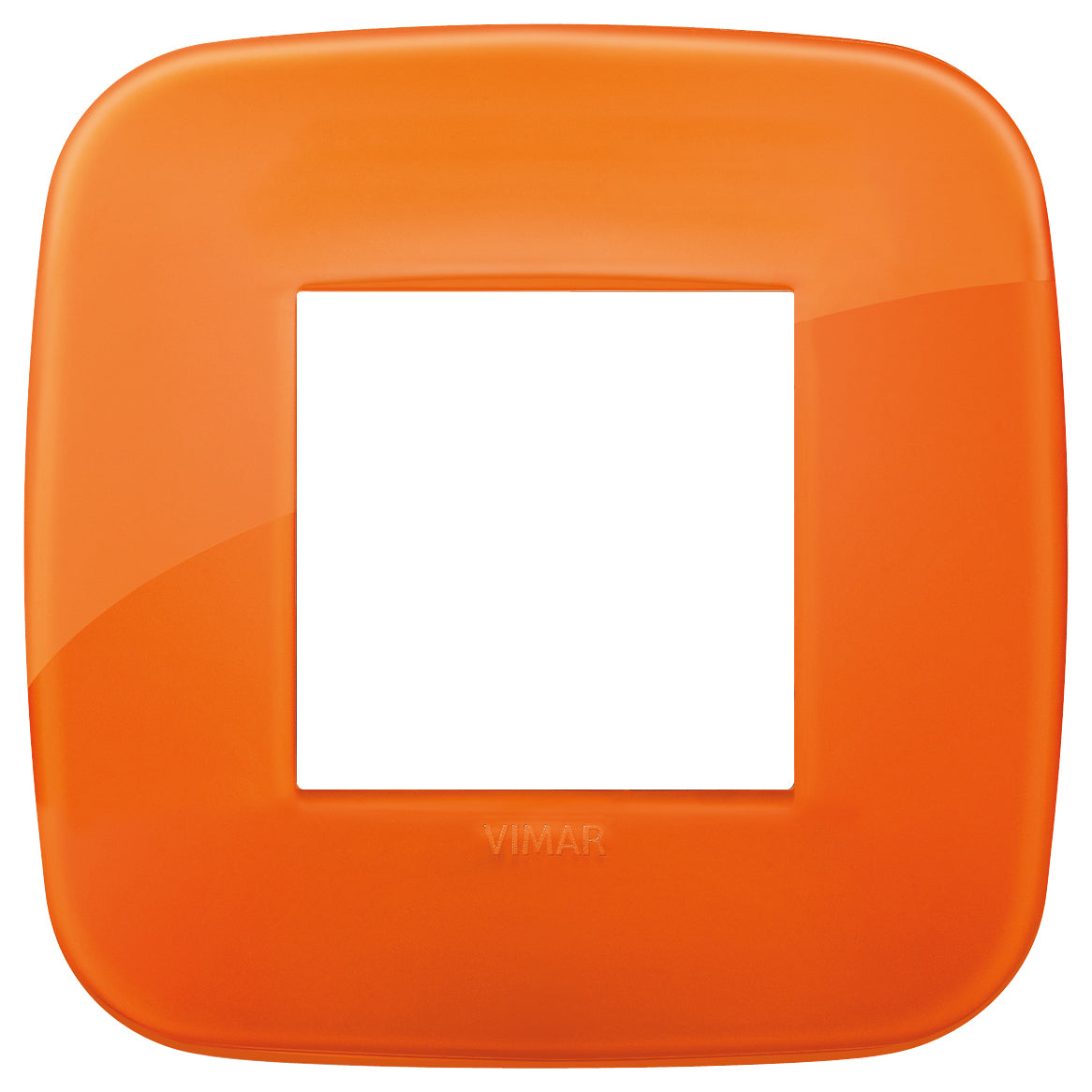

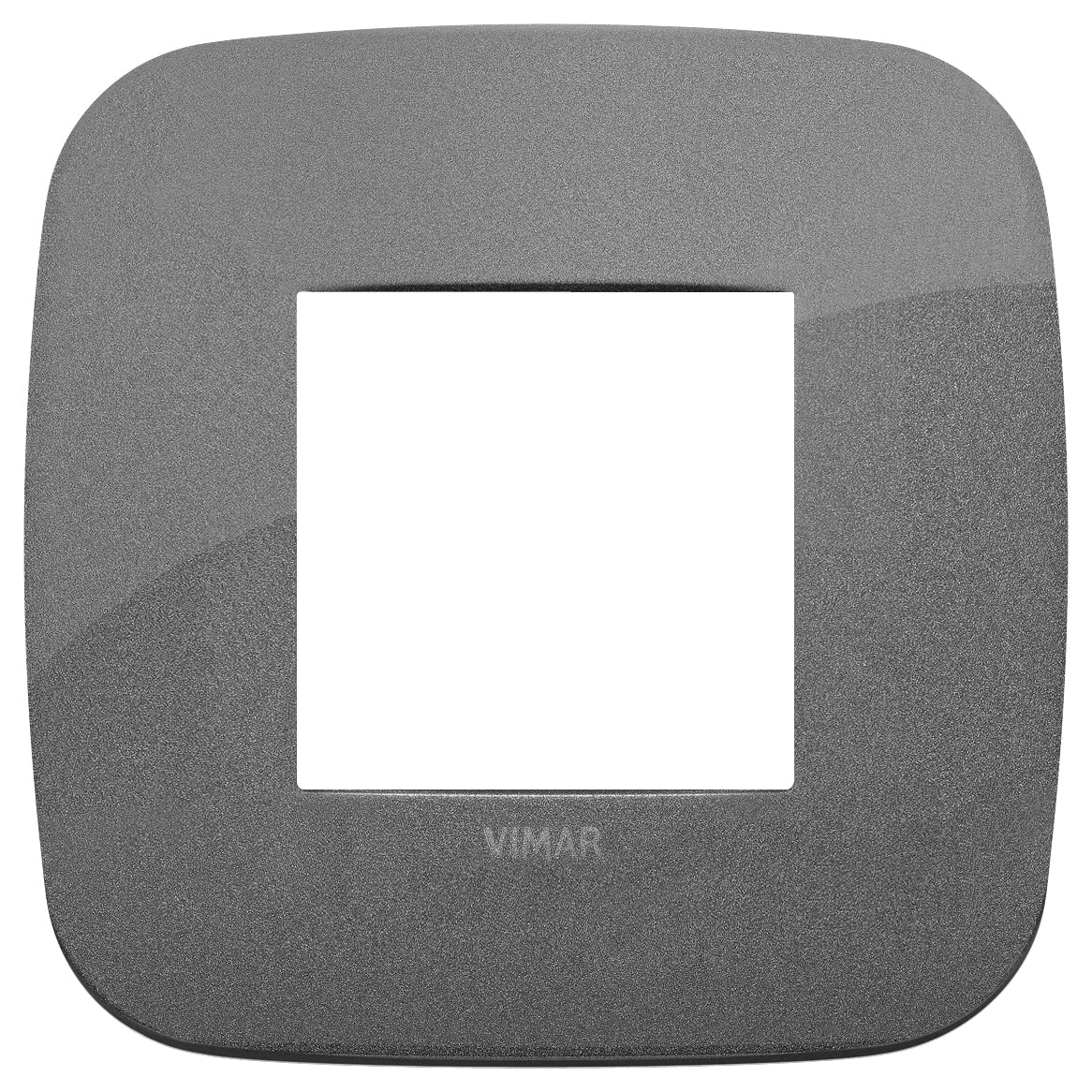

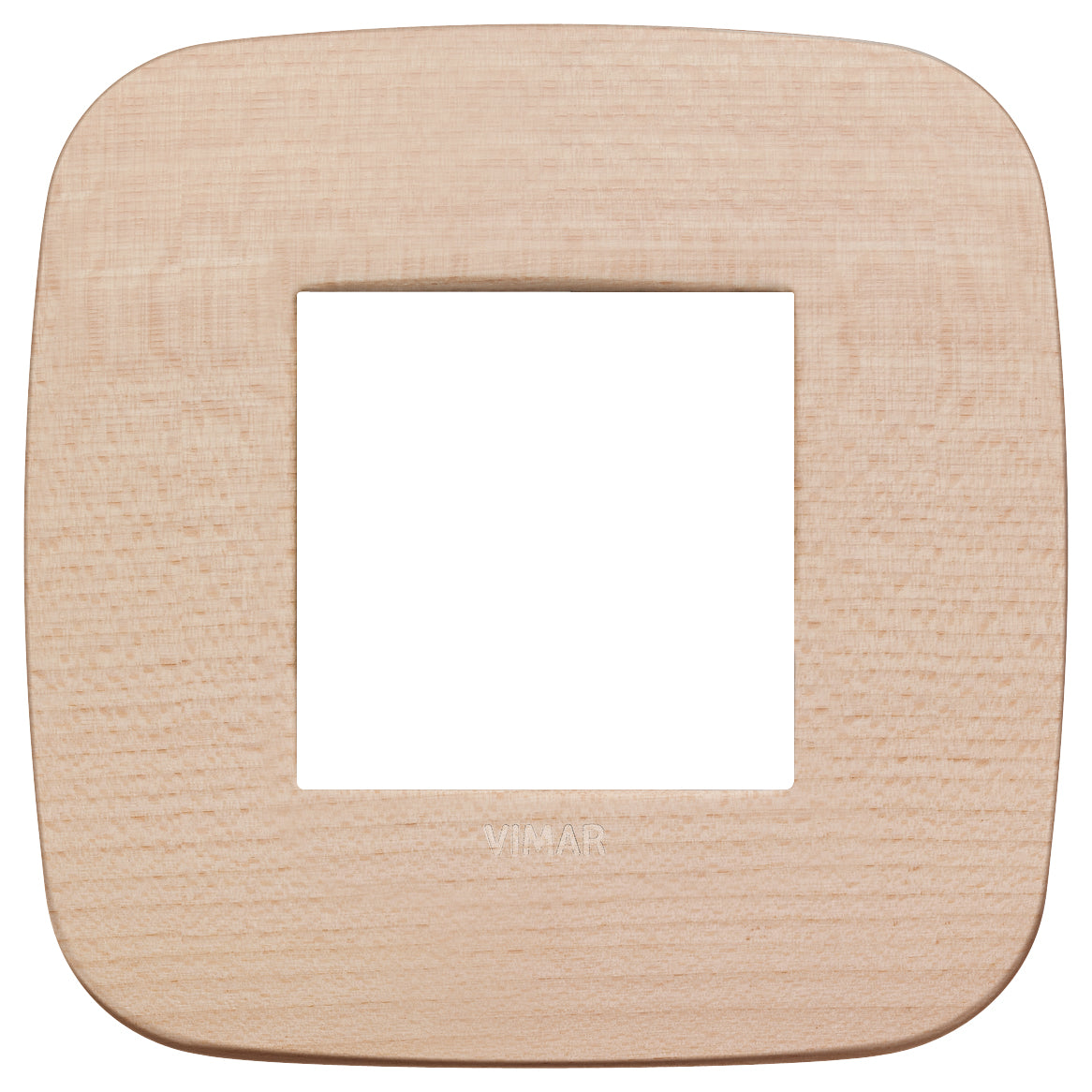

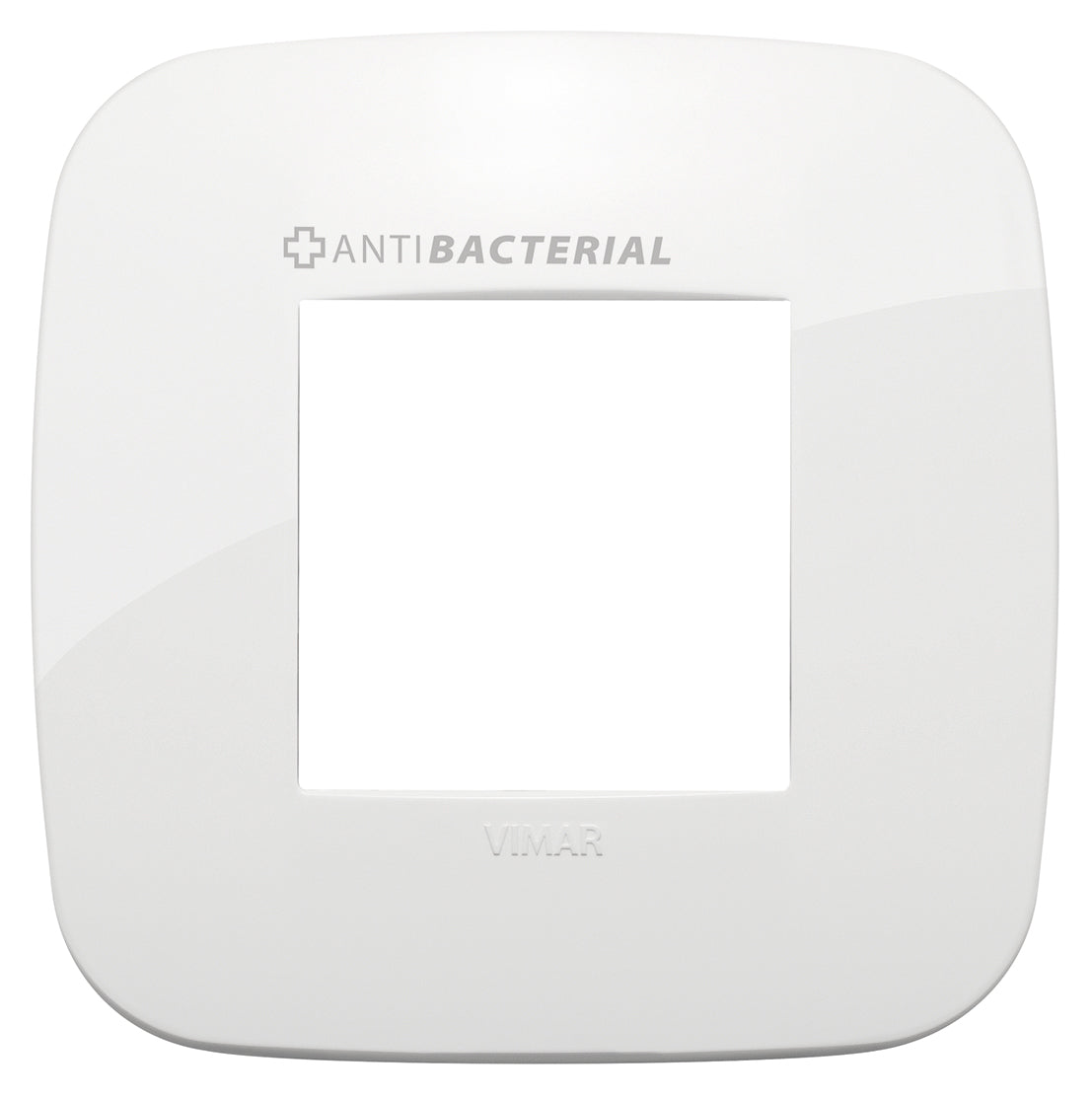

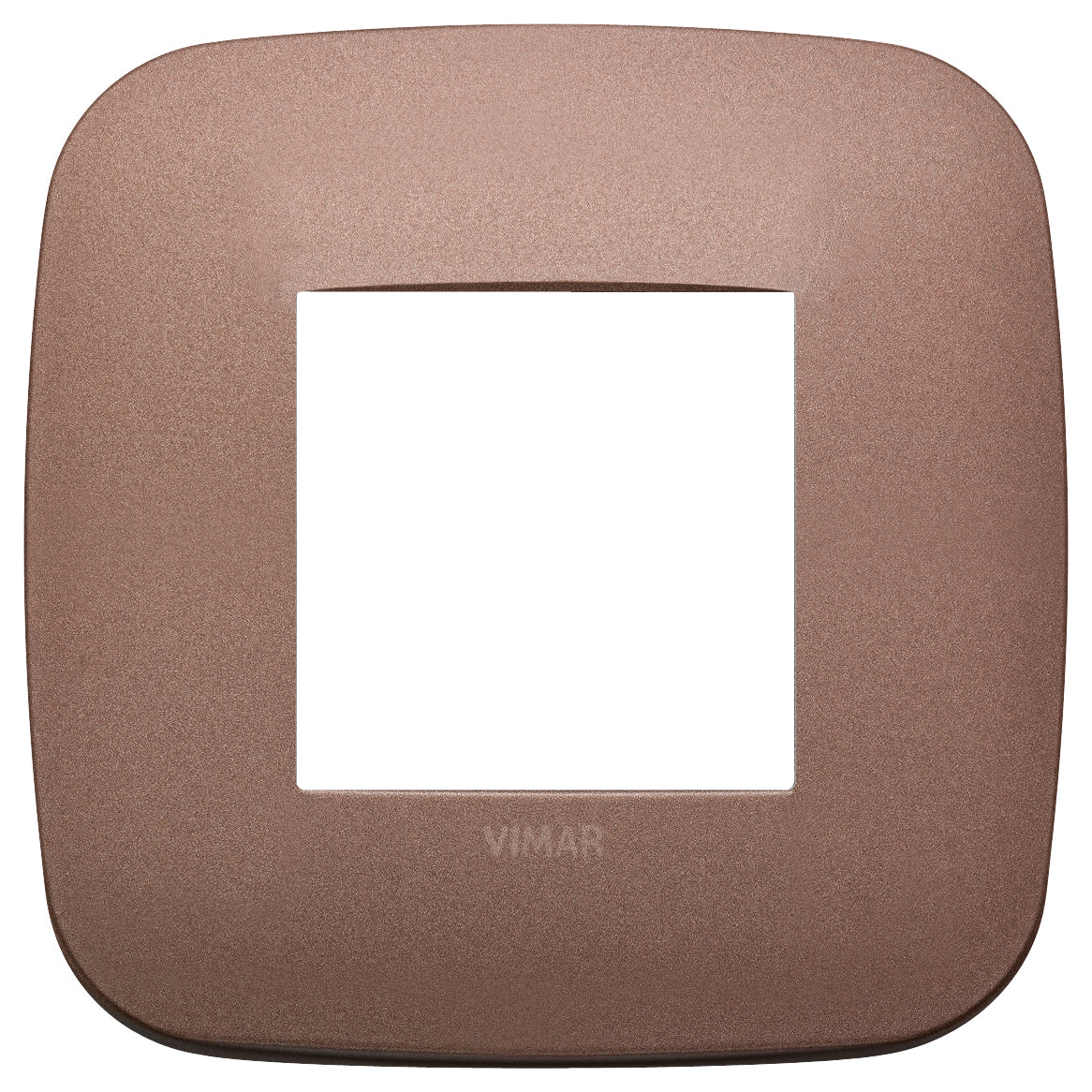

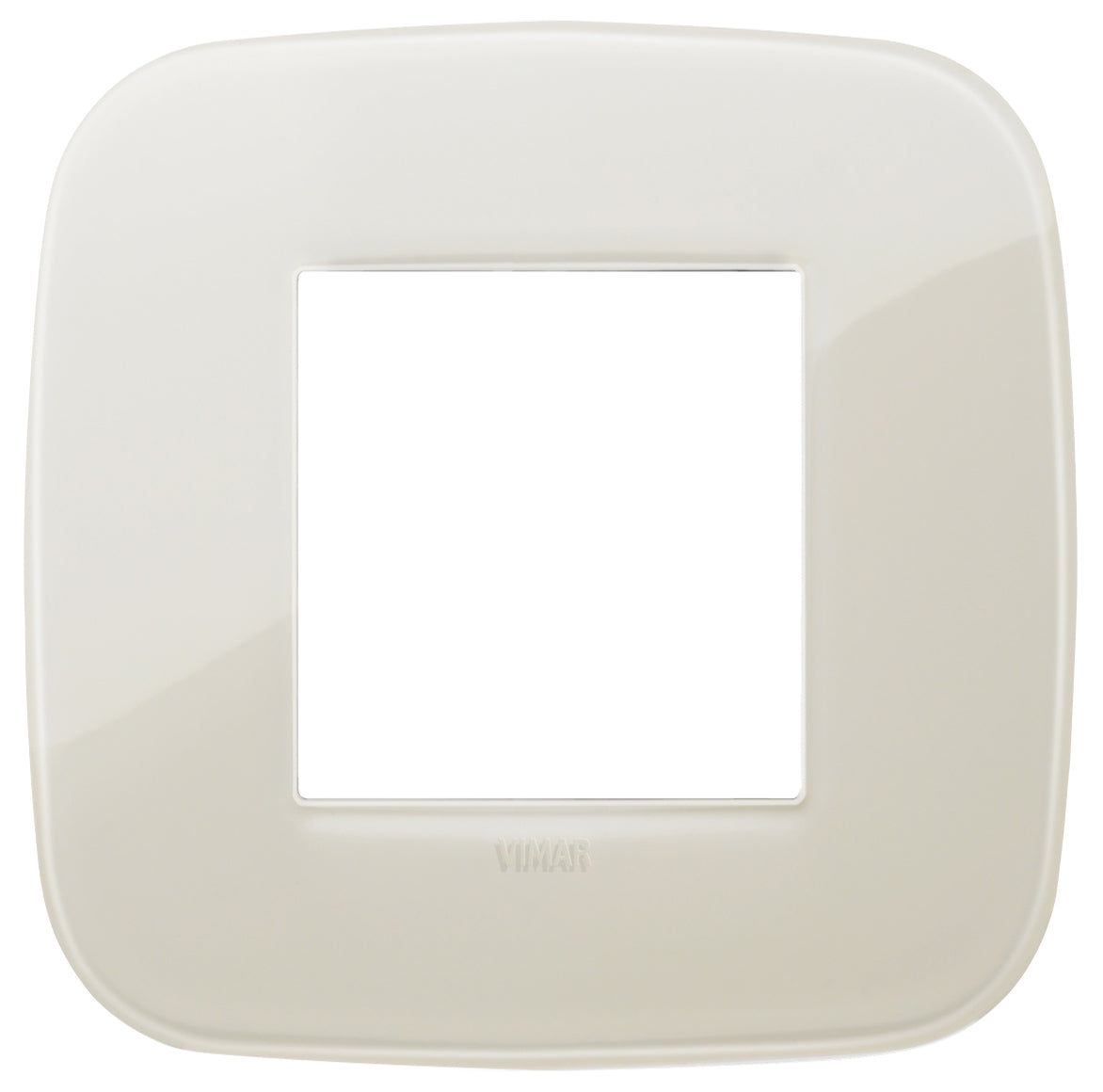

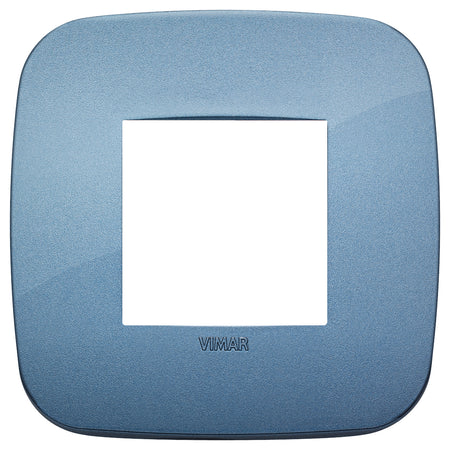

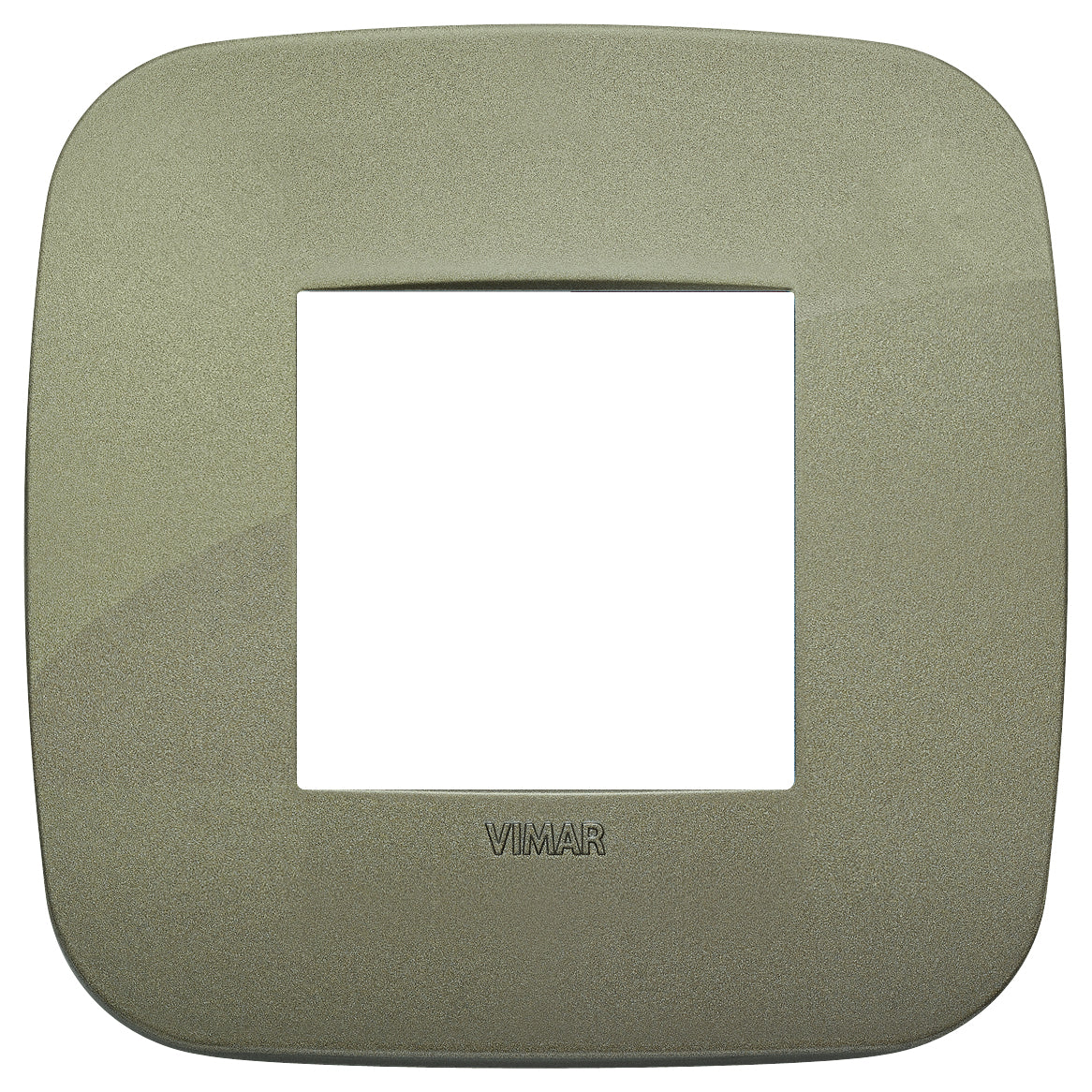

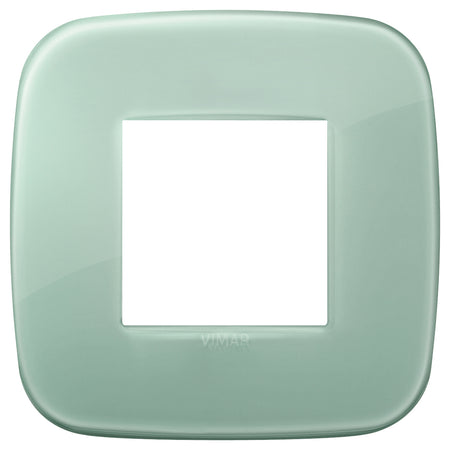

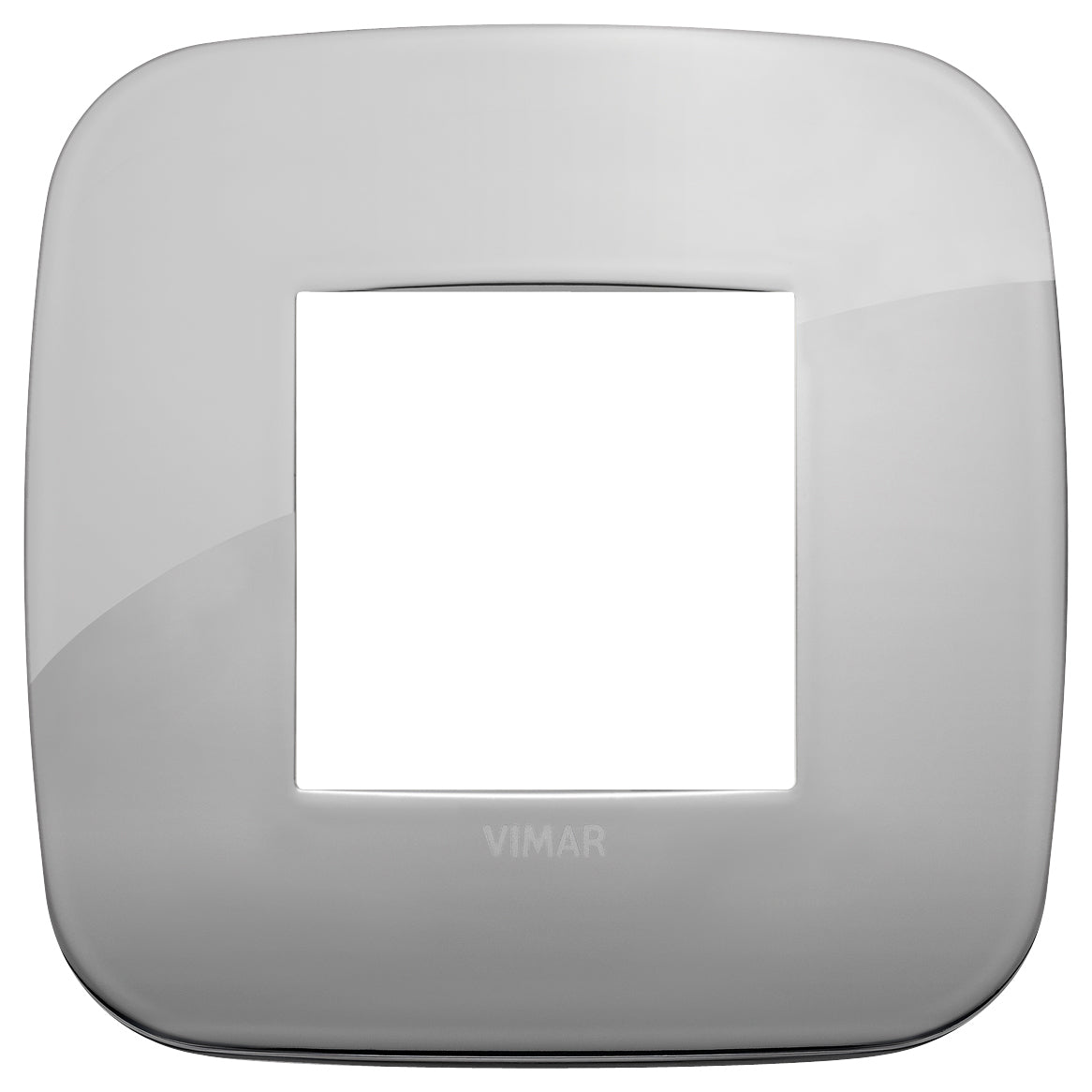

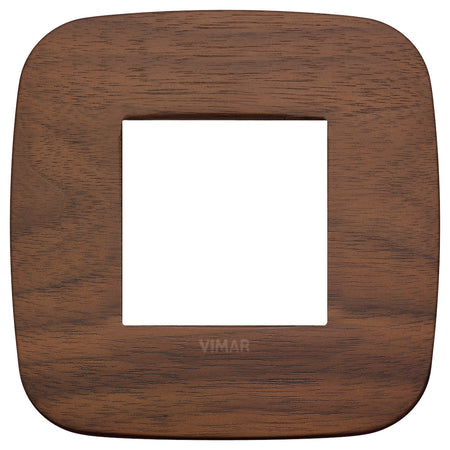

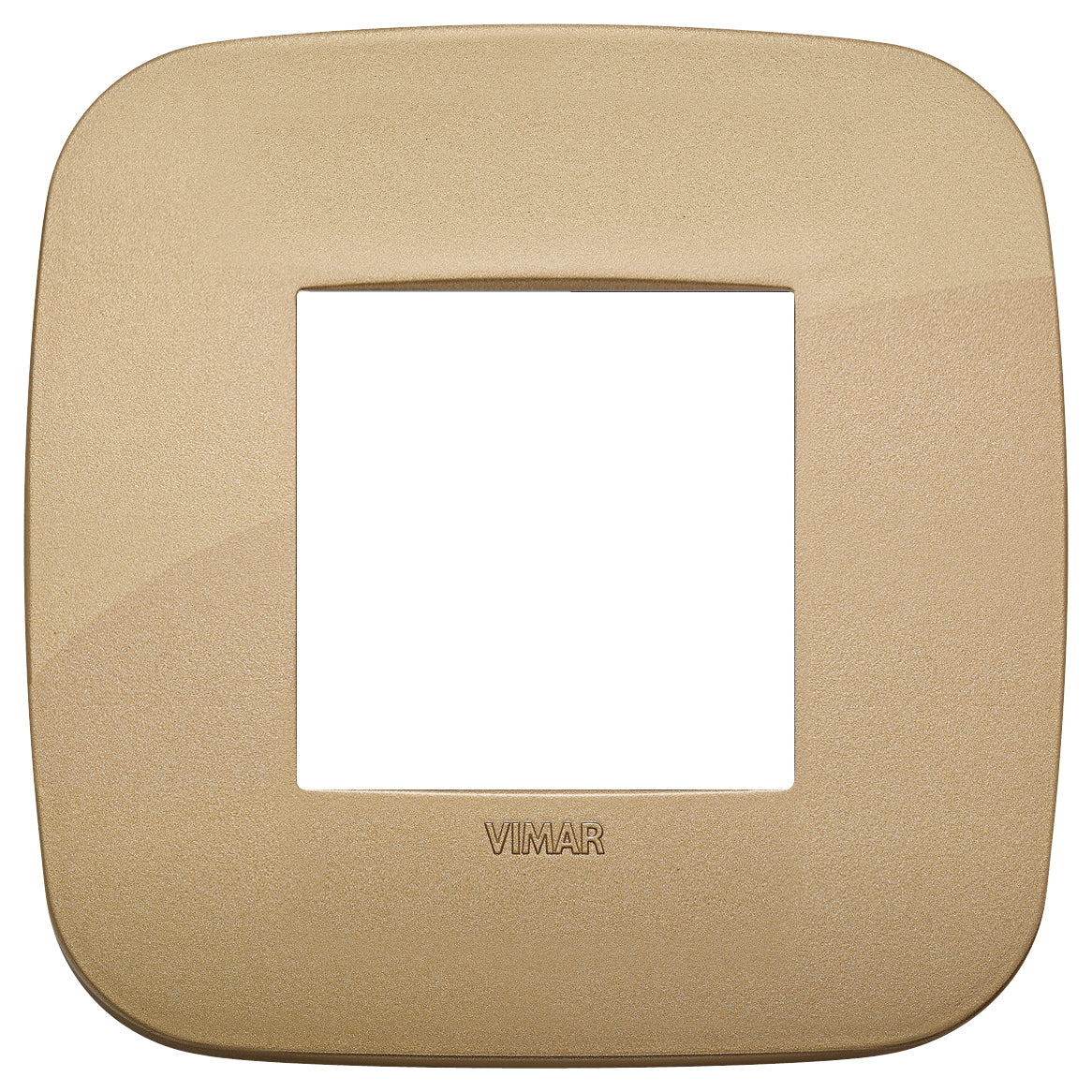

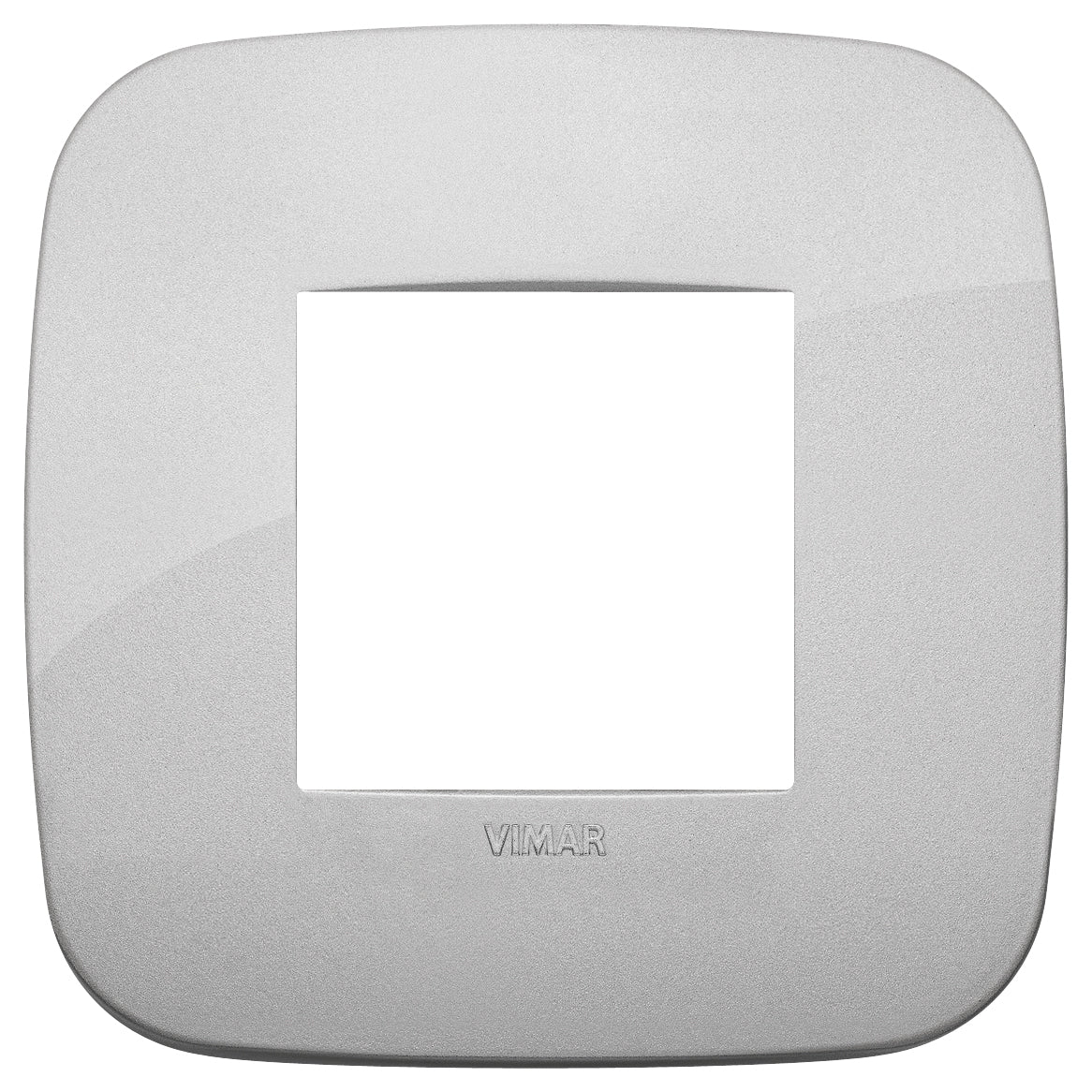

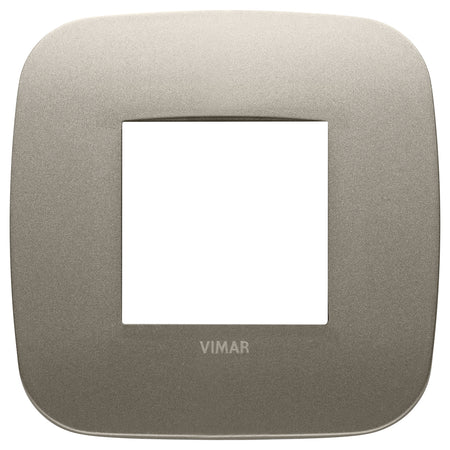

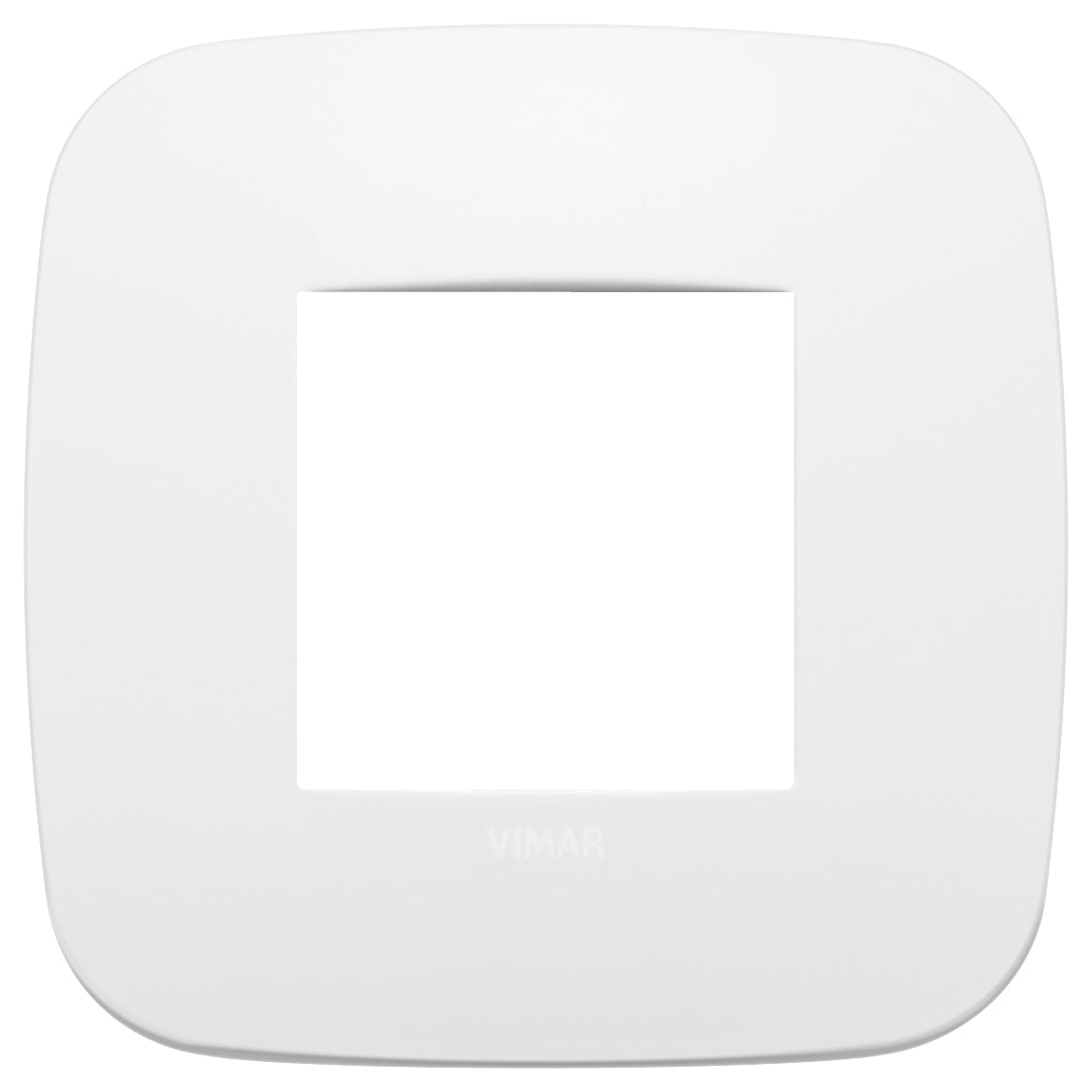

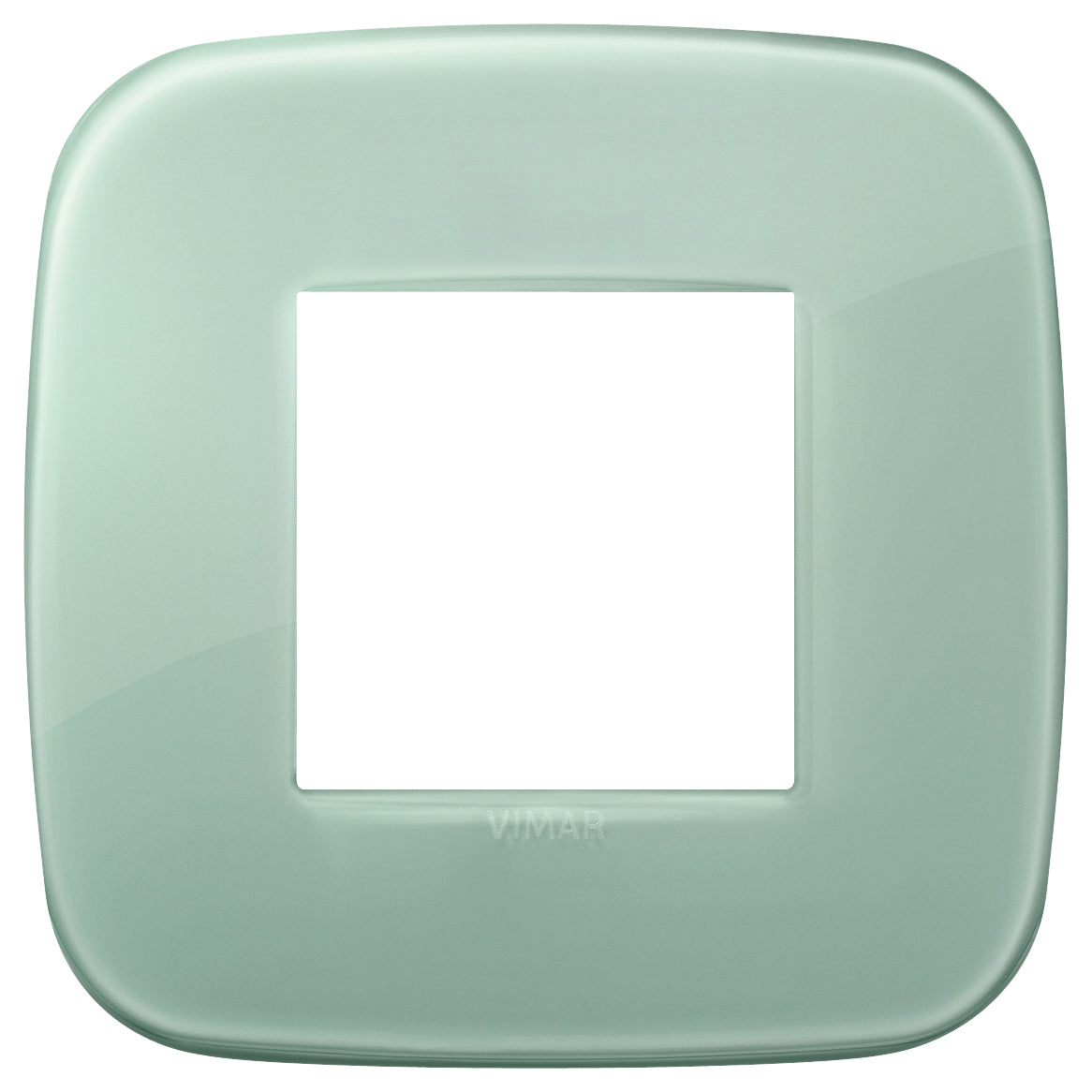

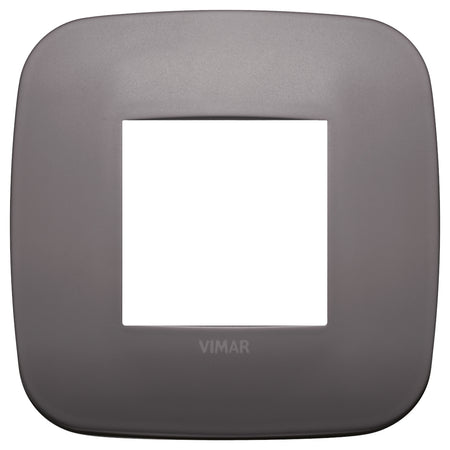

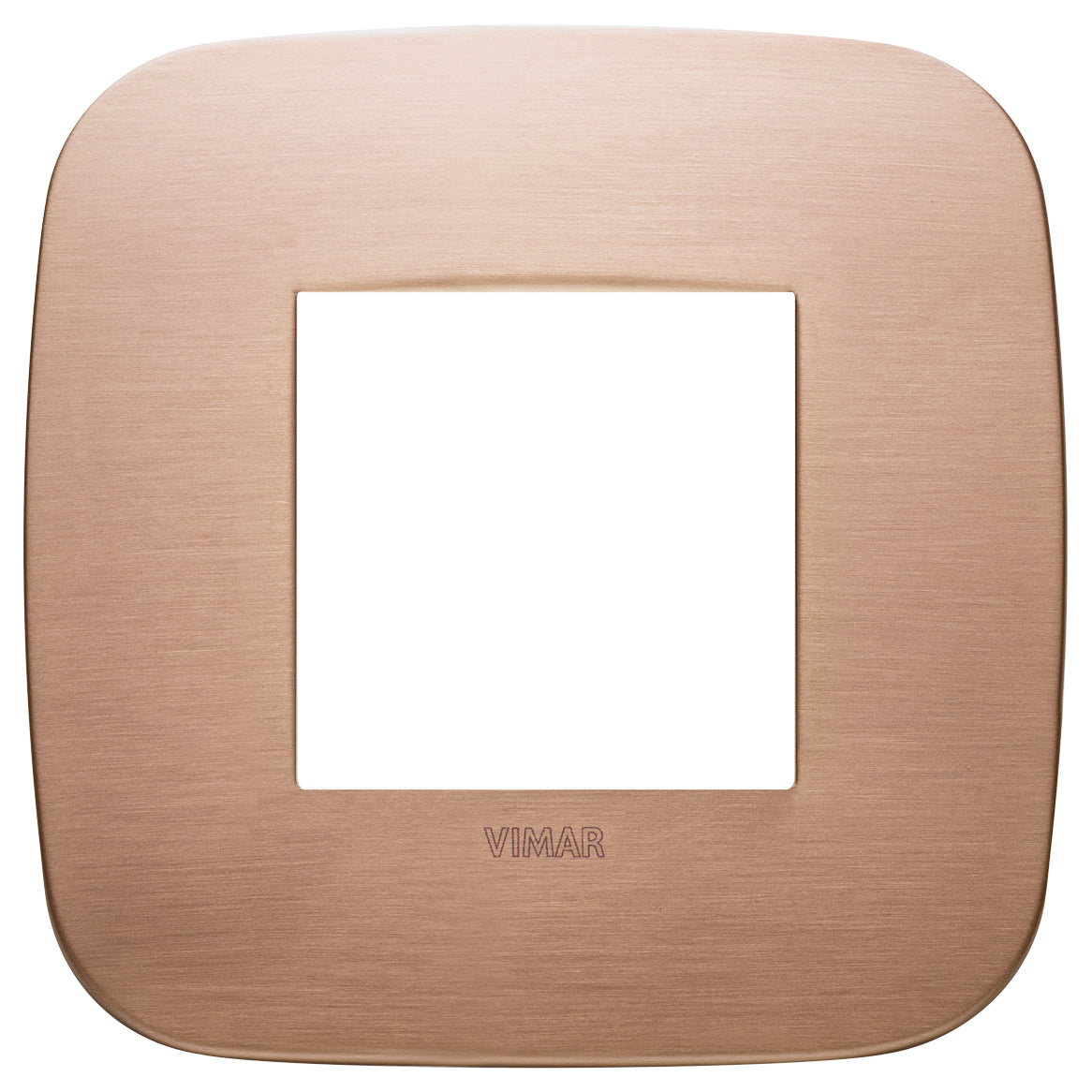

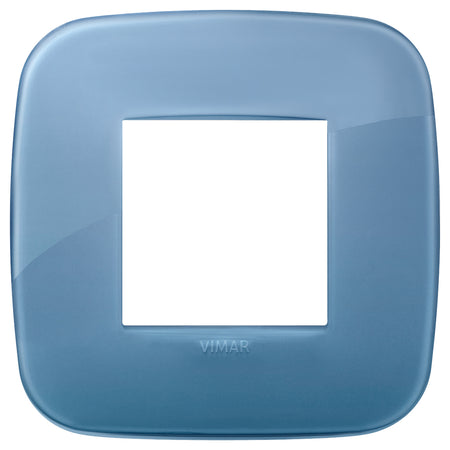

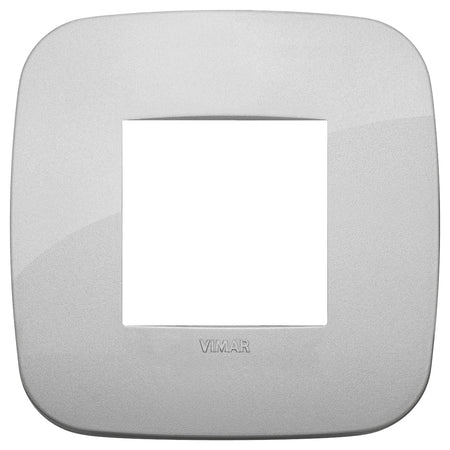

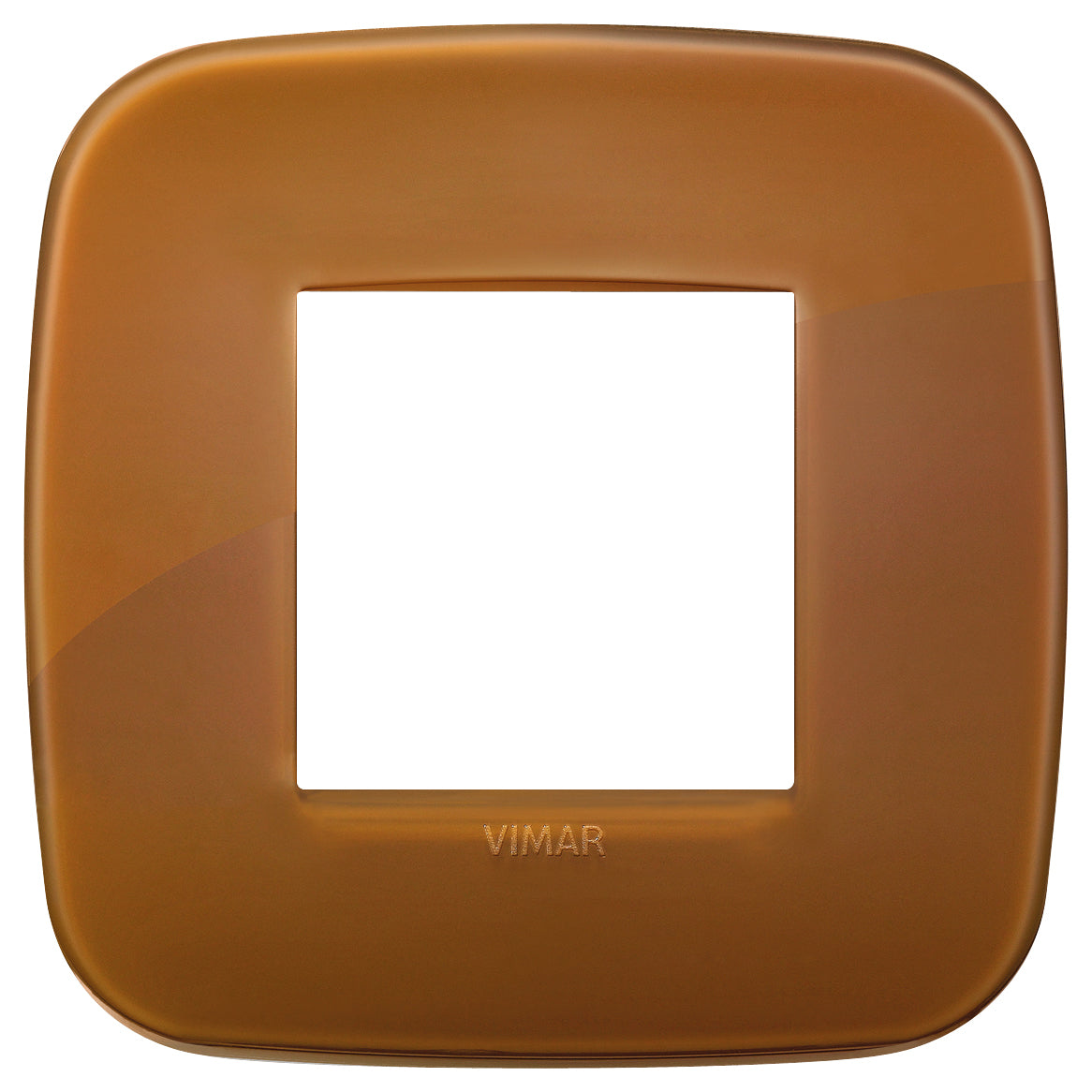

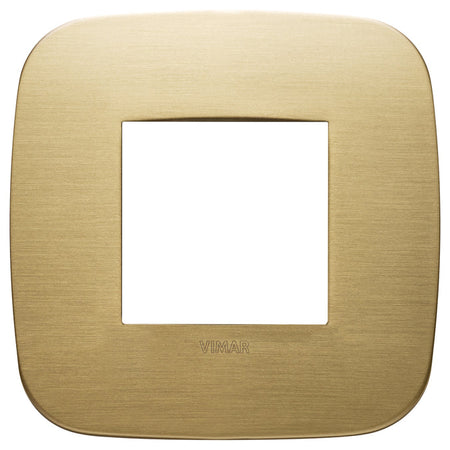

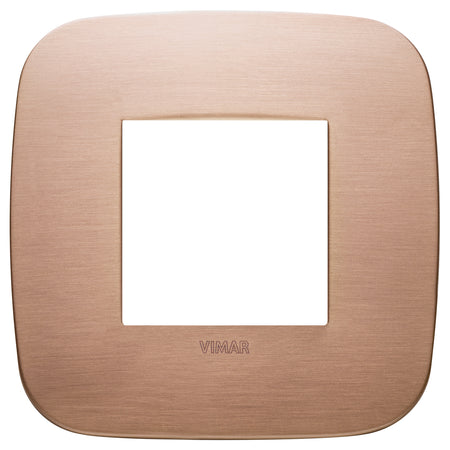

This product is offered in a wide set of finishes, ranging from solid-color technopolymer plates to metal-faced options such as chrome and brushed brass.

Across the range the change is the finish and, in some cases, the base material, while the plate keeps the Arké 2-module Round layout. Finish choice mainly affects how the plate looks under cabin lighting, including how matt and metallic surfaces handle glare and fingerprints.

Compatibility and fit

Use with Vimar Arké 2-module wiring devices and a matching 2-module mounting frame. The 2-module opening is commonly used for two 1-module inserts or one 2-module device, so it helps to confirm your insert layout before ordering.

Installation and setup

Install the Arké frame in the mounting box or cutout, fit the inserts, then clip the plate onto the frame until it seats evenly all around. Once fitted, confirm the plate sits flat and does not bind on the device fronts or pinch wiring behind the panel.

Any AC or DC wiring behind the panel should follow your vessel standards and be handled by a qualified installer.

Use on board

Because the plate is IP00, it suits cabins, pilothouses, and other protected spaces more than open cockpits. For exposed positions, pair it with a suitably rated box or cover so the finished assembly matches the washdown and spray conditions you expect.

This range is a good match for refits where you want consistent module spacing across multiple stations, while still being able to coordinate finishes from one space to the next.

Maintenance and care

Wipe with a soft cloth and mild soap solution. Avoid abrasive pads and strong solvents, especially on matt and metallic finishes, and rinse off salt residue if the area sees occasional spray.
