Simrad RS40 Fixed-Mount VHF Radio, Class D DSC, AIS Receiver, Built-In GPS, NMEA 2000, IPX7
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

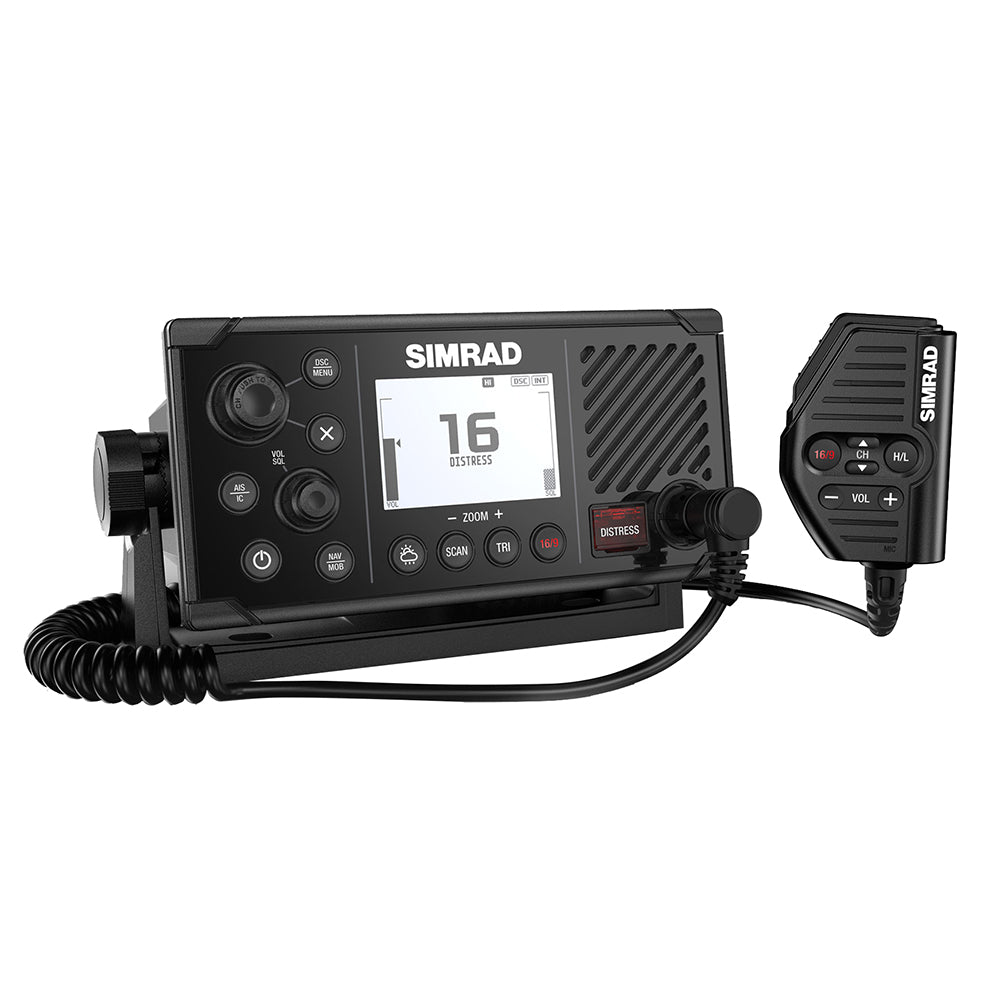

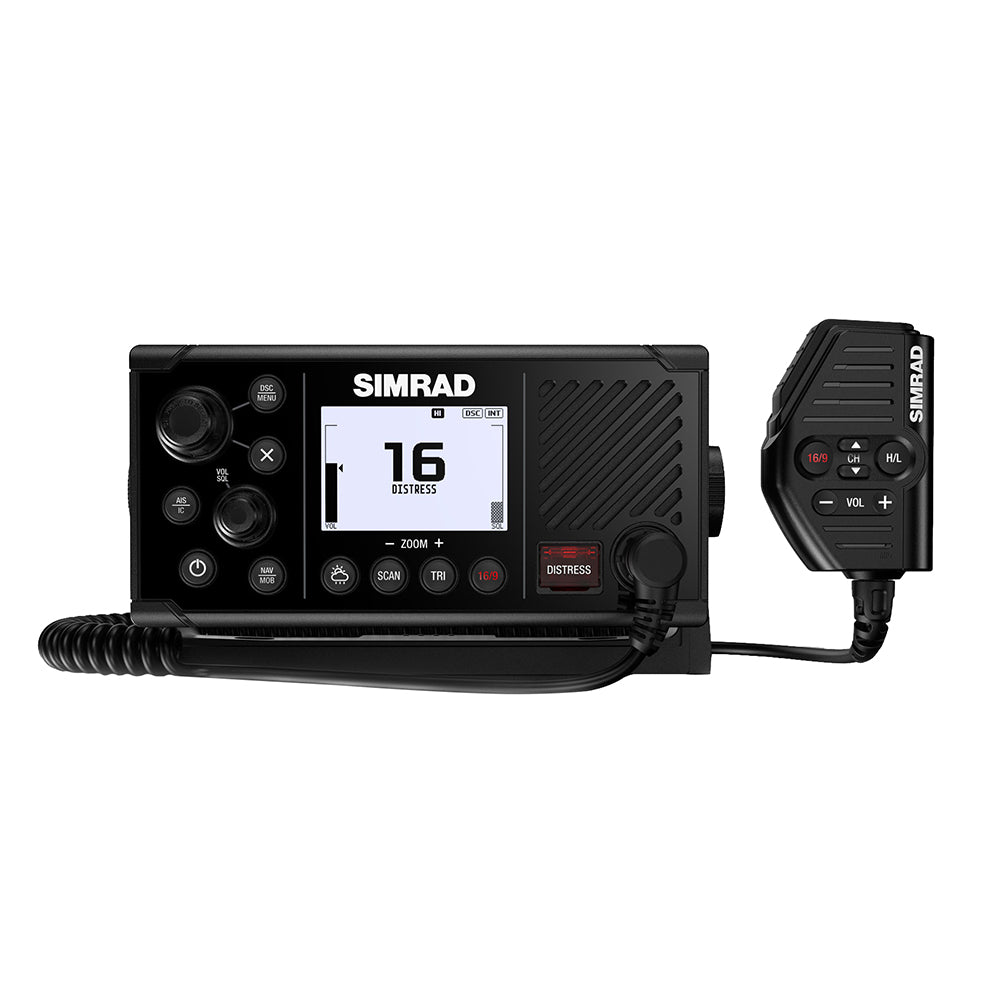

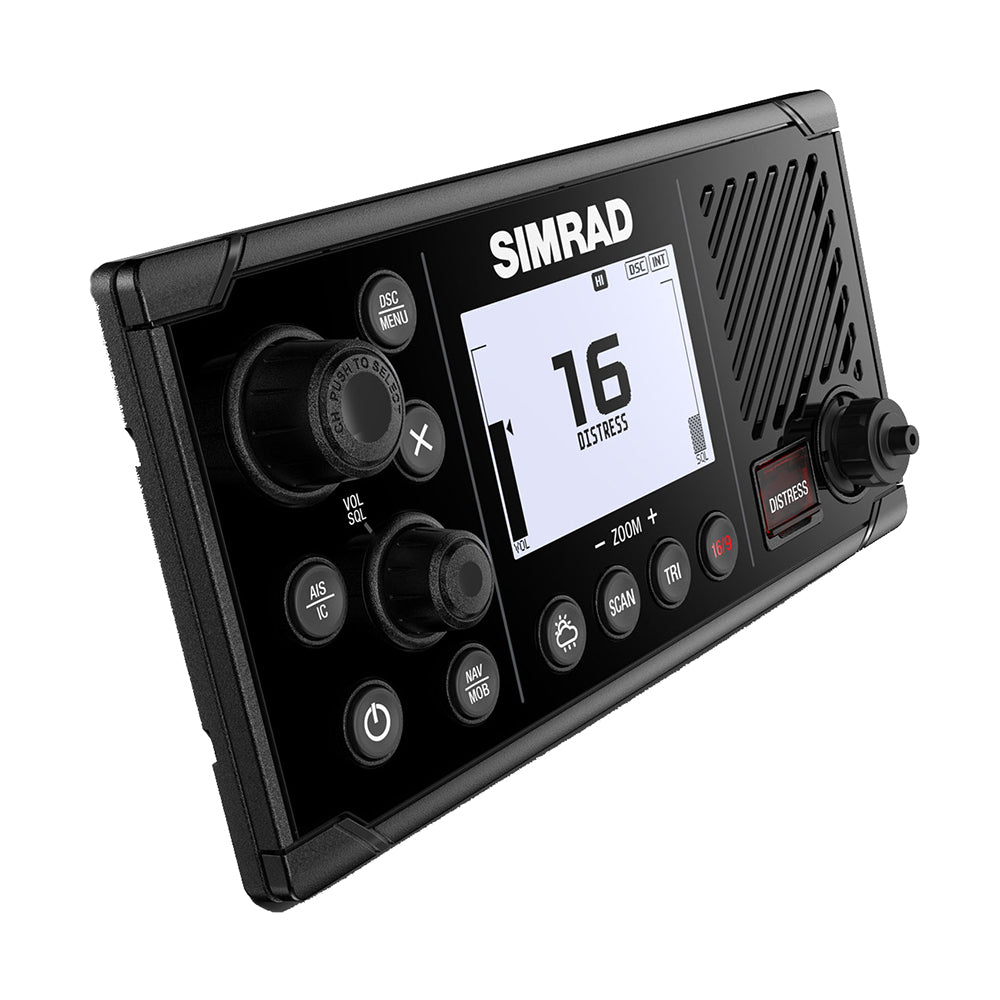

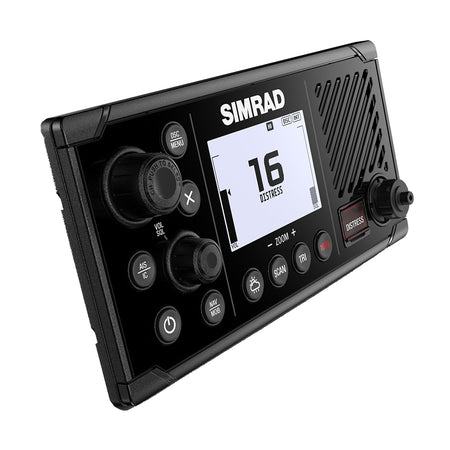

The Simrad 000-14470-001 is a fixed-mount VHF marine radio with Class D DSC and an integrated dual-channel AIS receiver, so you can make calls, send distress alerts, and view AIS targets from one unit.
It runs on a 12 V DC battery system (13.6 V nominal) and transmits at up to 25 W with a 1 W low-power option. The housing is rated IPx7, and the radio measures 201.2 mm wide x 97.8 mm high x 163.3 mm deep (without bracket).
Position for DSC and AIS can come from the built-in GPS system using the internal antenna, an optional external GPS antenna via the SMA port, or a shared GPS source over NMEA 2000 or NMEA 0183.
Key features
- Class D DSC with an internal GPS receiver so distress calls can include your position
- Dual-channel AIS receive with target data shown on the radio screen and available to a compatible multifunction display
- NMEA 2000 and NMEA 0183 connectivity for GPS sharing, DSC/AIS data, and backlight syncing over NMEA 2000
- 12 V DC power supply with an 8 A fuse and selectable 25 W or 1 W transmit power
- IPx7 waterproof rating for wet helm and washdown-prone mounting locations
- Removable fist mic that can plug into the front or rear, with support for extension cabling when the radio and mic need to be separated
- Supports up to two wireless handsets and intercom operation when multiple handsets are paired
- Connections for an optional loudhailer or an external speaker
Installation and setup

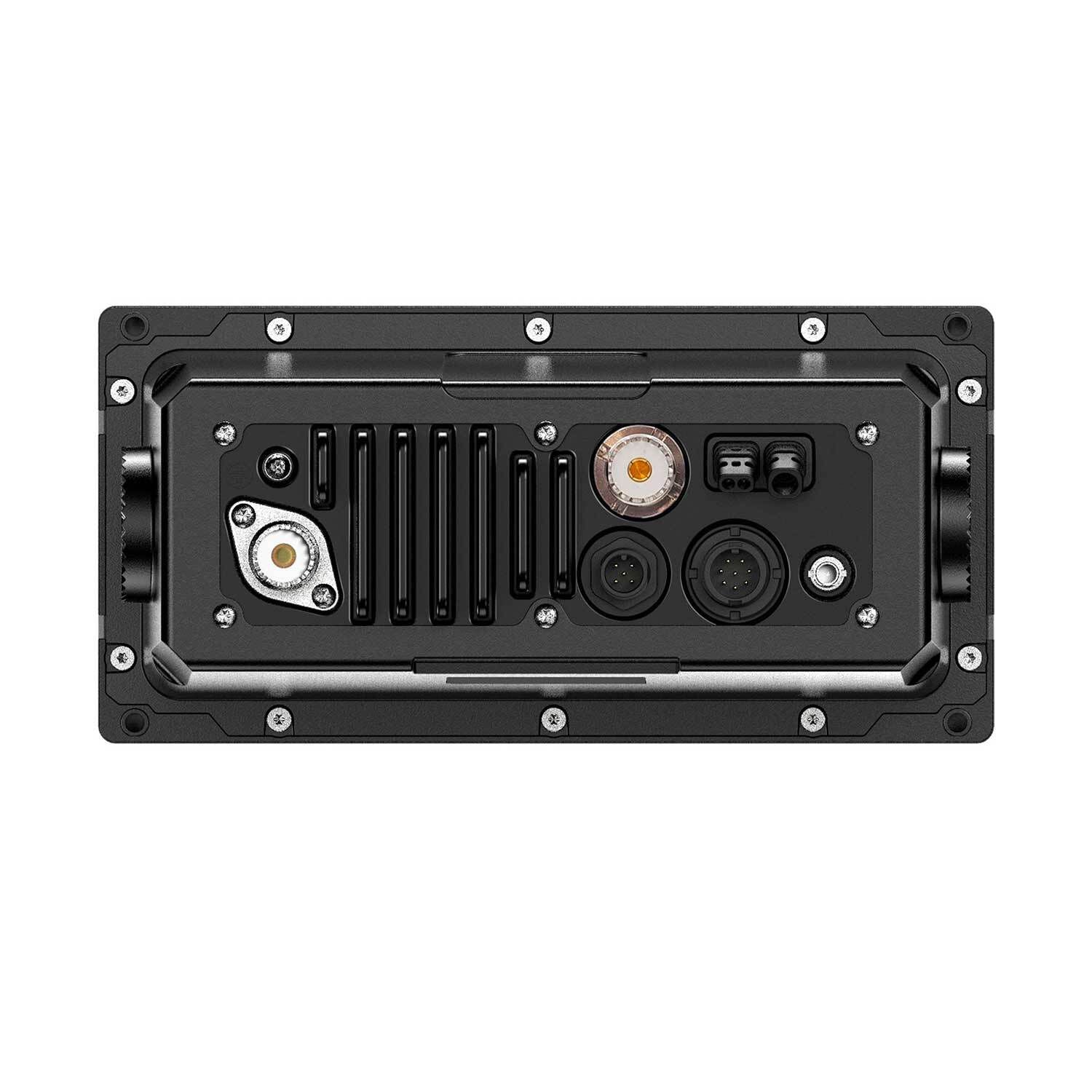

Plan for a VHF antenna connection at the radio using the SO-239 connector. Power is a 12 V DC feed; allow for up to 6 A draw at 25 W transmit and protect the circuit with the specified 8 A fuse.
The fist mic can be positioned where it is easy to reach, with the radio body mounted separately if that suits your helm layout. For the built-in GPS, the internal antenna works best when the mounting location has a clear view; the SMA port supports an external GPS antenna when the radio is installed under a hardtop or inside an enclosed console.
Network and system integration
NMEA 2000 is a clean way to share position and distribute DSC-related information to other devices on the boat. NMEA 0183 is also available for serial GPS input and output, with higher baud settings commonly used when AIS sentences are carried on the line.
On-board use
With AIS receive built in, the RS40 helps you keep track of AIS-equipped vessels when running in shipping lanes, busy inlets, or crowded harbors. The 1 W transmit option is useful for close-range calls when you do not need full output power.
This model is a good match for skippers who want DSC safety calling and AIS receive without adding a separate AIS receiver, and for boats that already use NMEA 2000 or NMEA 0183 to share GPS data across onboard electronics.
Maintenance and care
The radio is rated IPx7, but it still helps to mount it where the front panel is not taking constant spray. Rinse salt residue with fresh water, keep the mic connection seated, and check the antenna connector periodically for corrosion and looseness.
