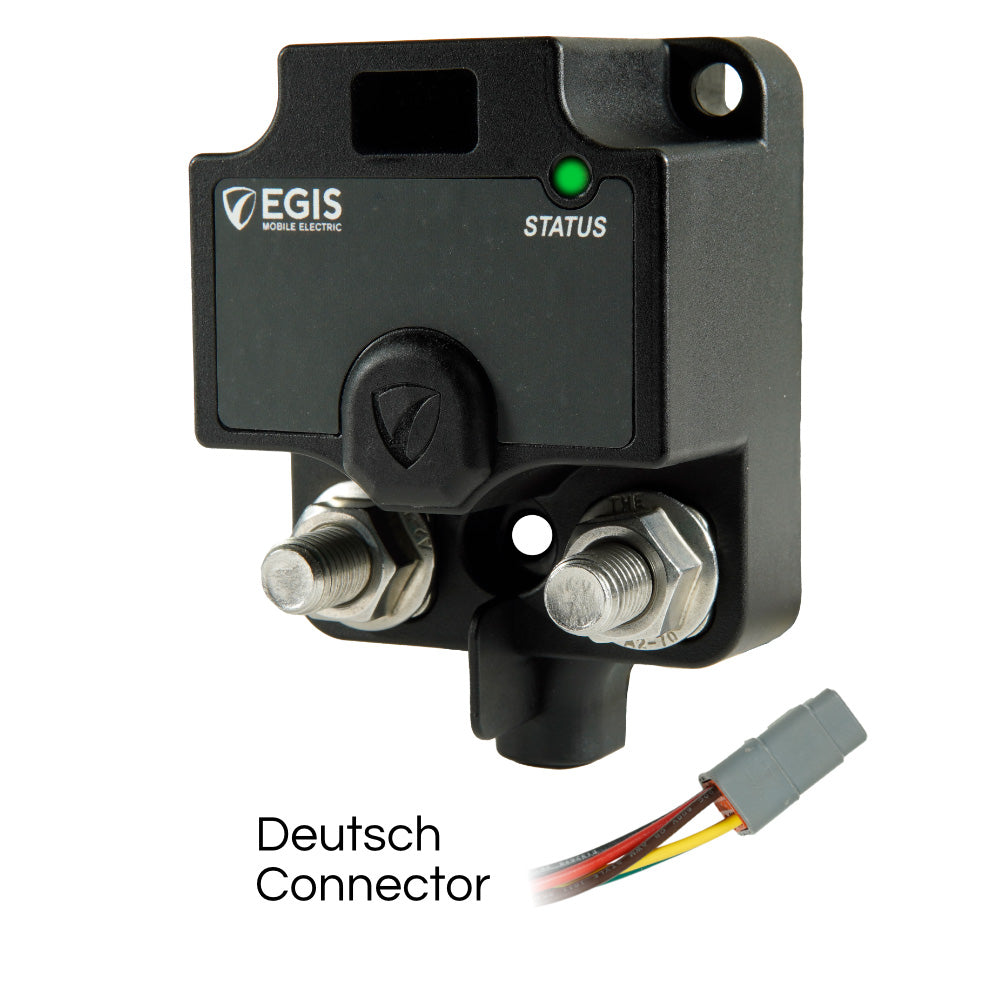

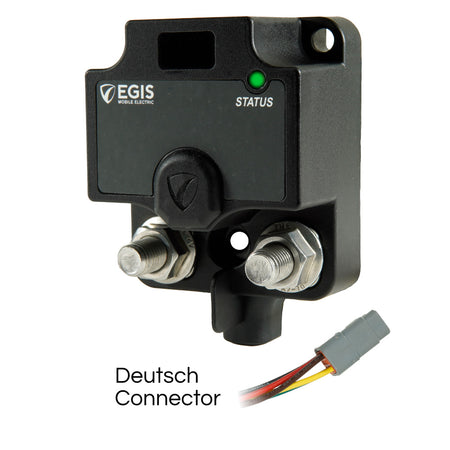

Egis Mobile Electric - XD Series Single Flex 2 Relay-ACR - DTM Connector

Robust, Compact, and Reliable Relay for Marine Applications

The Egis XD Series Single Flex 2 Relay-ACR with DTM Connector offers an advanced solution for managing marine electrical systems. This innovative relay provides a significant reduction in mounting space and product weight, thanks to its bi-stable solenoid design and multiple solenoid assemblies. With expandability options using link and cross-link busbars, it supports dual or triple battery systems, making it a versatile choice for any marine setup.

General Description

Designed for durability and high performance, the Egis XD Series Single Flex 2 Relay-ACR is an essential component for modern marine electrical systems. This relay is an excellent replacement for legacy solenoids and remote battery switches, offering wire-for-wire compatibility with existing systems. Its robust construction ensures reliable performance in harsh marine environments, while its user-friendly features simplify operation and installation.

Key Features and Benefits

• Space and Weight Efficiency: Provides a 35-75% reduction in mounting space and product weight compared to traditional systems.
• Durable Construction: Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel hardware for reliable performance in harsh conditions.
• Easy Programmability: Simple dip switches allow flexible relay function customization for various applications.
• Energy Efficient: Reduces off-state current draw by 90-95% compared to competitive products, ensuring efficient power usage.
• Plug-and-Play Compatibility: Compatible with legacy competitor products for seamless integration.
• User-Friendly Design: Features like the front-facing LED status display and intuitive manual controls enhance ease of use.

Bullet Points Summary

• Significant reduction in mounting space and weight
• Robust construction with IP67/IP6K9K sealing
• Simple dip switch programmability
• Low off-state current draw
• Compatible with legacy competitor products
• Expandable with link and cross-link busbars
• Easy-to-see front-facing LED status display
• Intuitive manual controls for easy operation

Technical Specifications

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

The front-facing LED indicator provides clear visual status of the device, with a remote LED replicating the on-device LED for easy monitoring.

3-Position Manual Override

Allows for forcing each relay open or closed, with the option to lock the relay in either condition for added control and safety.

40 Circuit Label Sheet Included

Includes weatherproof labels for easy circuit and relay identification, with blank labels available for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from accidental shorts, ensuring safe operation.

Integrated Vent

High-quality Gortex vents regulate internal device pressure, preventing moisture entry and ensuring long product life in harsh environments.

Stainless Hardware

Quality stainless steel studs and self-locking flanged nuts resist corrosion, ensuring long-term reliability.

Programmable

Dip switches located under the protective cover allow for easy customization of settings, making it suitable for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a compact package, reducing installation space requirements to a minimum.

The Egis XD Series Single Flex 2 Relay-ACR with DTM Connector is the ideal solution for efficient and reliable battery management in marine applications. Its advanced design, robust construction, and user-friendly features make it the perfect choice for modern marine electrical systems.
