Hella Marine 9073 Series LED Recess Strip Lamp, 265 x 33mm, 238mm Hole Centers, IP6K9K

Overview

The Hella Marine 9073 is a recessed LED strip lamp with a wide rim for flush mounting as a courtesy or utility light on boats. It is offered in 12V DC and 24V DC versions, with power consumption under 2.0W and current draw under 0.16A at 12V or under 0.08A at 24V.

The housing is UV and impact resistant plastic and the lamp comes pre-wired with 2.5 m of twin core marine cable for routing to a switch, dimmer, or an existing lighting circuit. Overall size is 265 mm long and 33 mm wide, with 238 mm mounting hole centres, so you can confirm fit before cutting or drilling.

Key features

• Recessed, wide-rim strip lamp layout for a clean, low-profile install in steps, toe-kicks, coamings, and liners
• Available for 12V DC and 24V DC systems
• Power consumption under 2.0W (under 0.16A at 12V, under 0.08A at 24V)
• Overall dimensions: 265 mm length and 33 mm width, with 238 mm mounting hole centres
• 2.5 m twin core marine cable already attached for easier cable routing on board
• UV and impact resistant plastic housing, with weight around 125 g including cable

Variants

This lamp is offered in multiple configurations based on system voltage and light colour.

Voltage varies between 12V DC and 24V DC, and light colour varies between red and white.

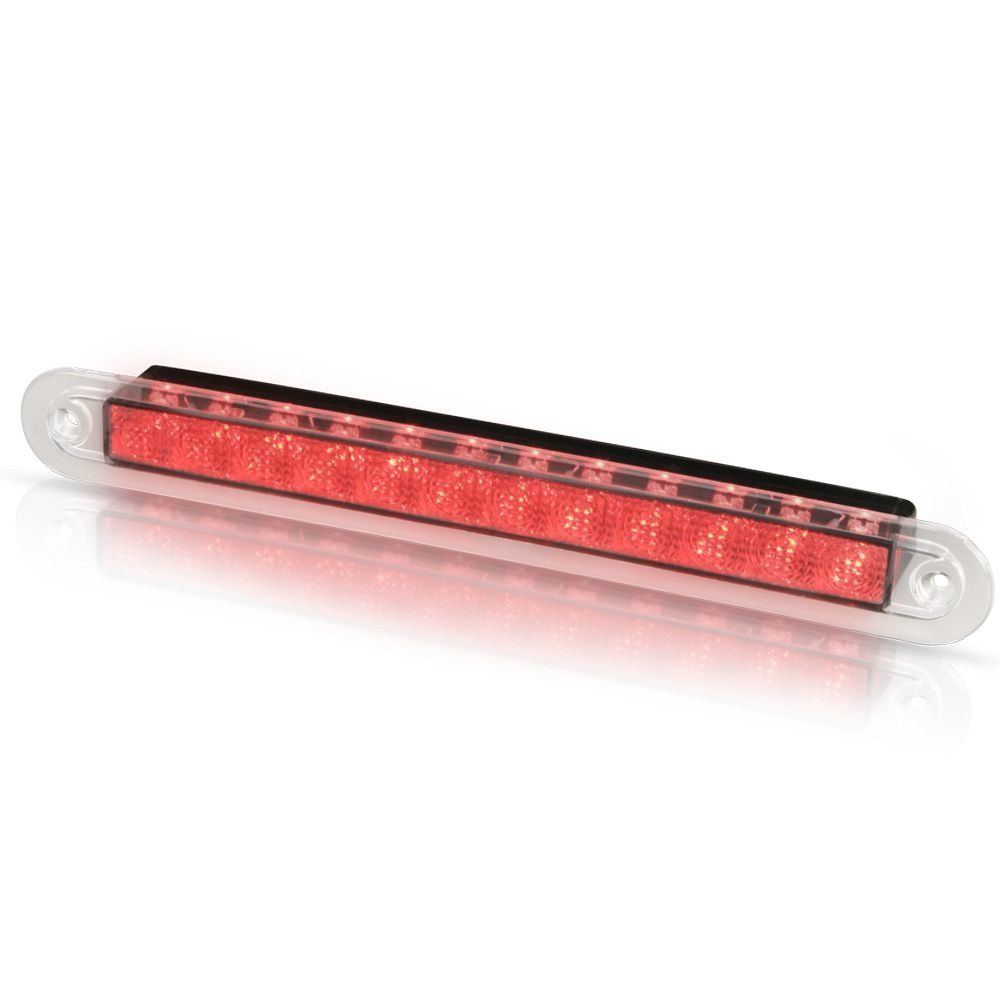

• 959073701: Voltage 12V, light colour Red. Red light helps reduce glare in dark conditions when moving around the cockpit or cabin at night.
• 959073751: Voltage 24V, light colour Red. Suited to boats running a 24V DC system where low-glare lighting is preferred after dark.

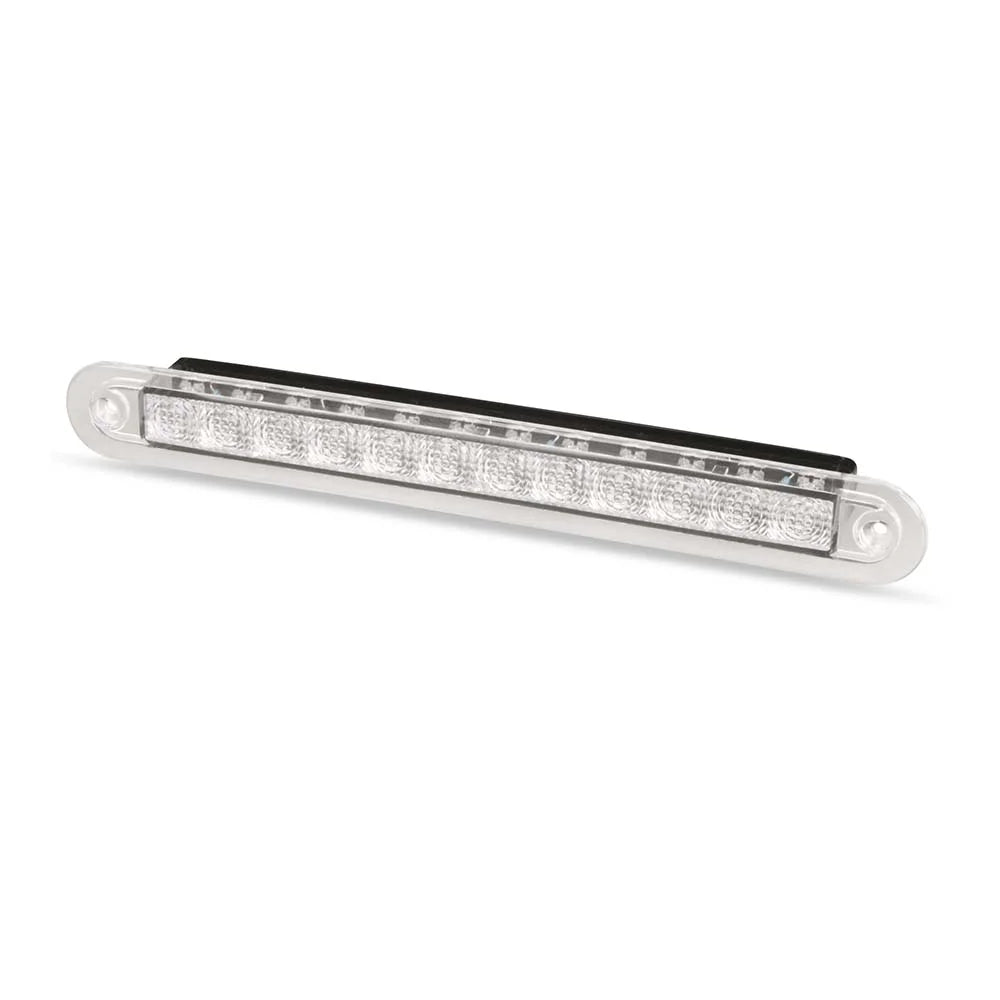

• 959073011: Voltage 12V, light colour White. White light works well for general step illumination, lockers, and chart or companionway areas.
• 959073211: Voltage 24V, light colour White. Useful for general courtesy lighting on vessels wired for 24V DC distribution.

Installation and setup

This is a recess mount lamp with a wide rim that covers the edges of the mounting opening. Confirm you have clearance behind the mounting surface for the lamp body and cable bend radius, then mark and drill the mounting holes based on the 238 mm hole centres. Tighten fasteners evenly so the rim sits flat against the surface, and avoid over-tightening so the lens area is not stressed.

On exposed exterior surfaces, keeping the bedding surface clean and flat helps prevent water from tracking behind the panel. Route the cable away from sharp edges and moving gear, and support it along the run to reduce vibration wear.

Electrical and system integration

Wire the lamp with correct polarity so it illuminates as intended. Protect the circuit with an inline fuse rated at 2 A maximum. For 12V versions, avoid sustained voltage above 16V; for 24V versions, avoid sustained voltage above 30V.

If you are tying into an existing lighting circuit, check voltage drop on longer runs and confirm your switch or dimmer is rated for DC LED loads. The low current draw is helpful for courtesy and night lighting circuits that stay on for long periods.

Use cases on board

This style of recessed strip light is commonly used along steps, under gunwales, under cabinetry, and in companionways where a fixture that sits proud could get kicked or snagged. It is a solid match for boats that need a small amount of light in traffic areas without turning the whole cabin or cockpit into full-bright mode.

Maintenance and care

Rinse off salt and grime during routine washdowns and check that the rim stays seated flat against the mounting surface. Use mild soap and water on the lens and housing, and avoid harsh solvents that can haze plastics over time.
