Blue Sea Systems MAXI Fuse, 32V DC, 1000A Interrupt Capacity, Tin-Plated Connector Blades, Visible Blown Indicator

Overview

The Blue Sea Systems MAXI Fuse is a blade-style DC fuse for economical branch circuit protection on boats, with amperage options from 30A to 80A. It is rated for a maximum of 32V DC and has a 1000A interrupt capacity, making it a practical fit for many 12V and 24V marine electrical systems when used within the correct circuit design.

This fuse is commonly used in DC distribution panels, fuse blocks, and dedicated fuse holders where a protected branch circuit needs a replaceable fuse rather than a resettable breaker. The visible blown-condition indicator helps speed up checks during troubleshooting, which matters when access is tight inside a console, lazarette, engine room, or battery compartment.

The connector blades are plated for corrosion resistance, helping maintain electrical contact in damp marine spaces where salt air and condensation are part of normal service life.

Key features

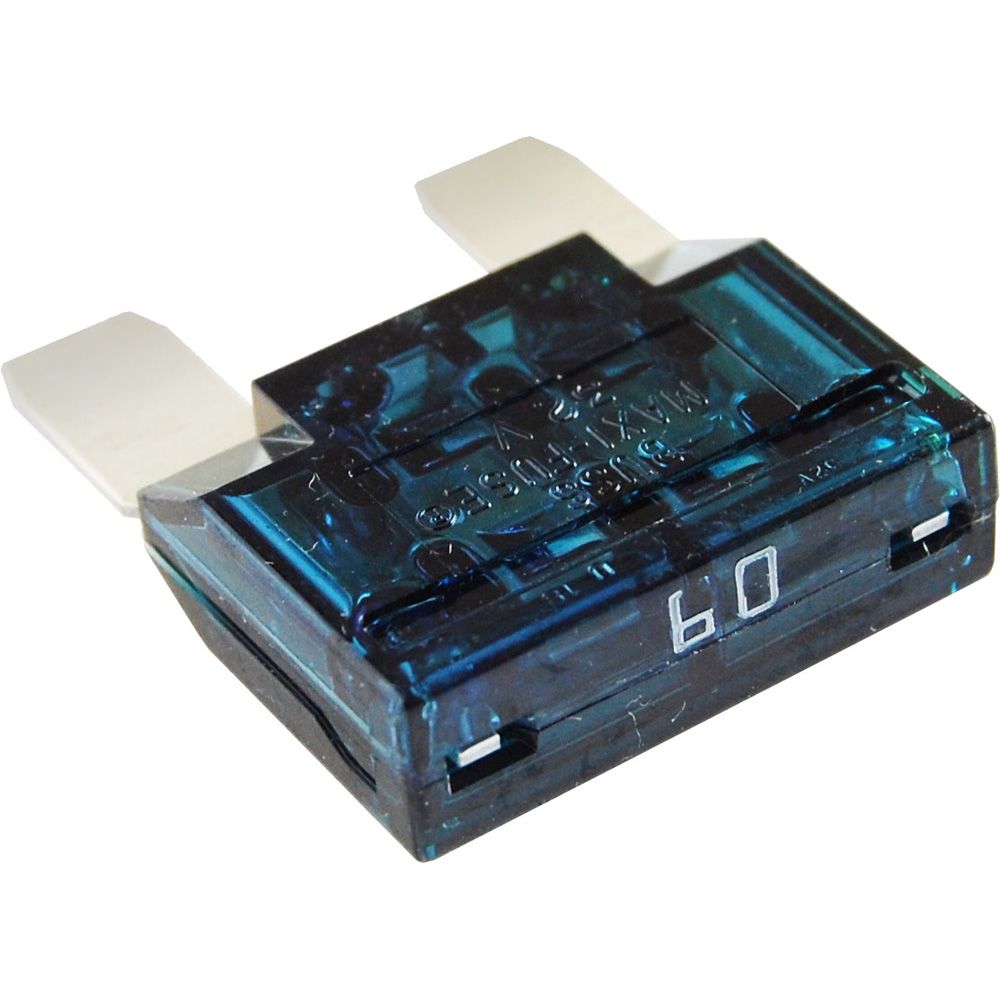

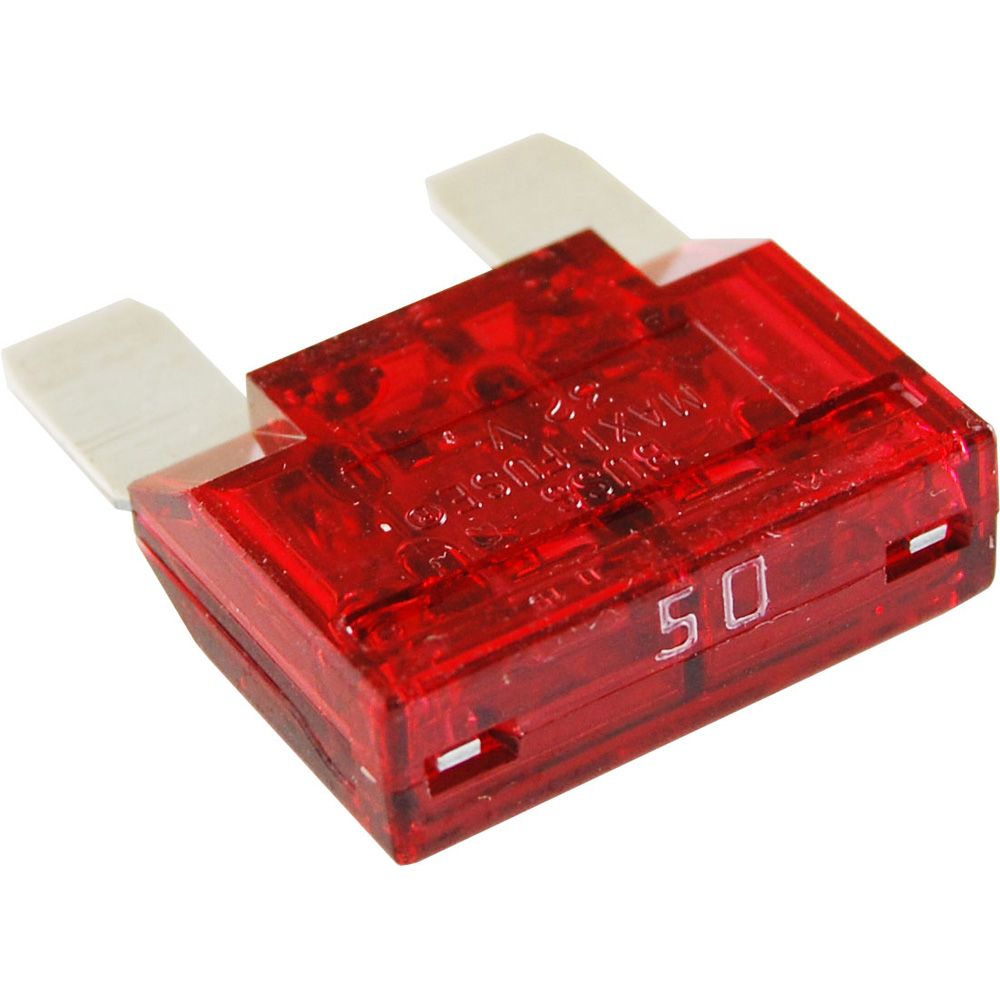

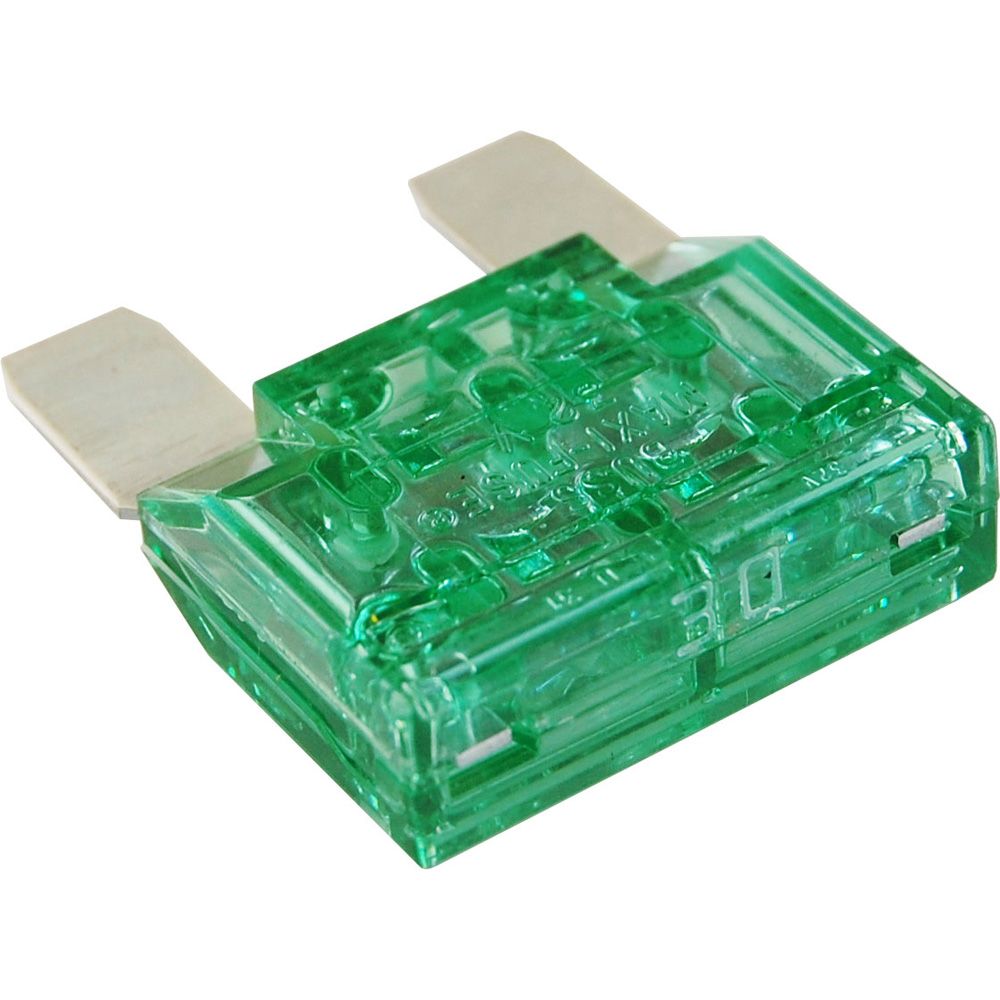

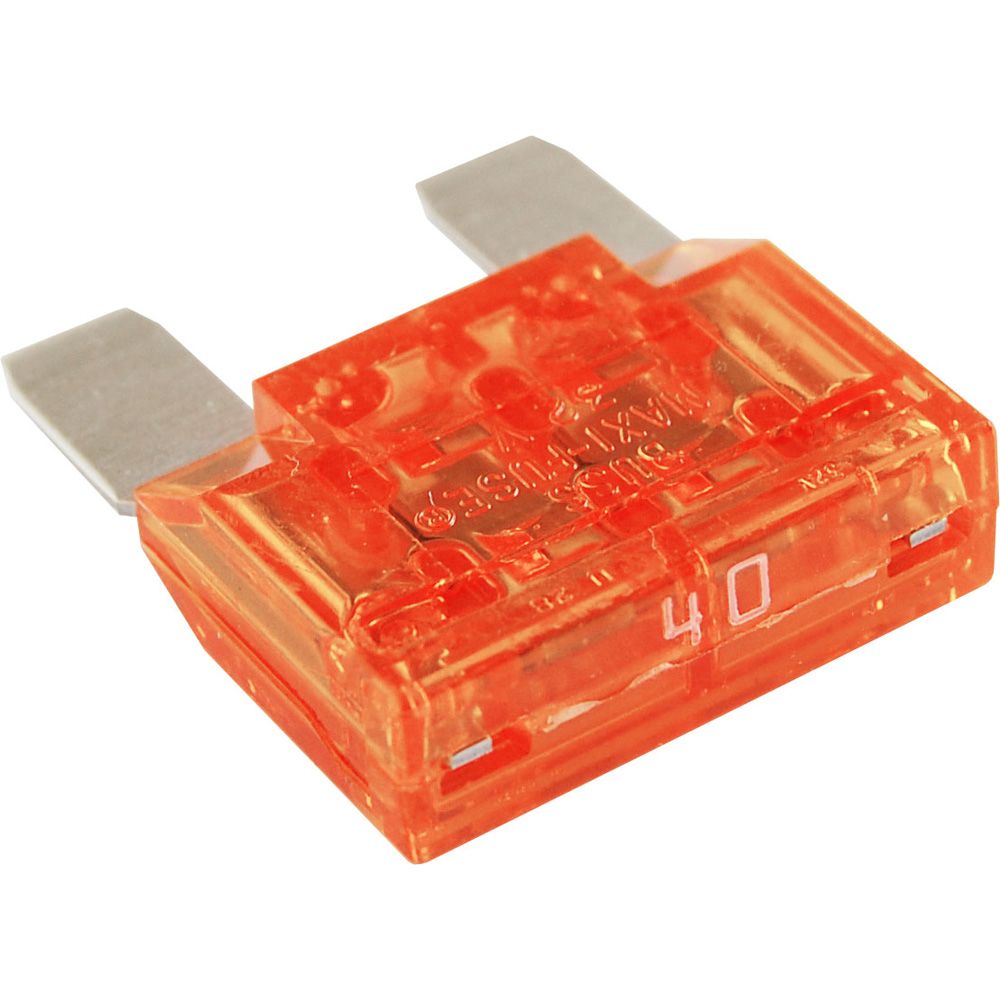

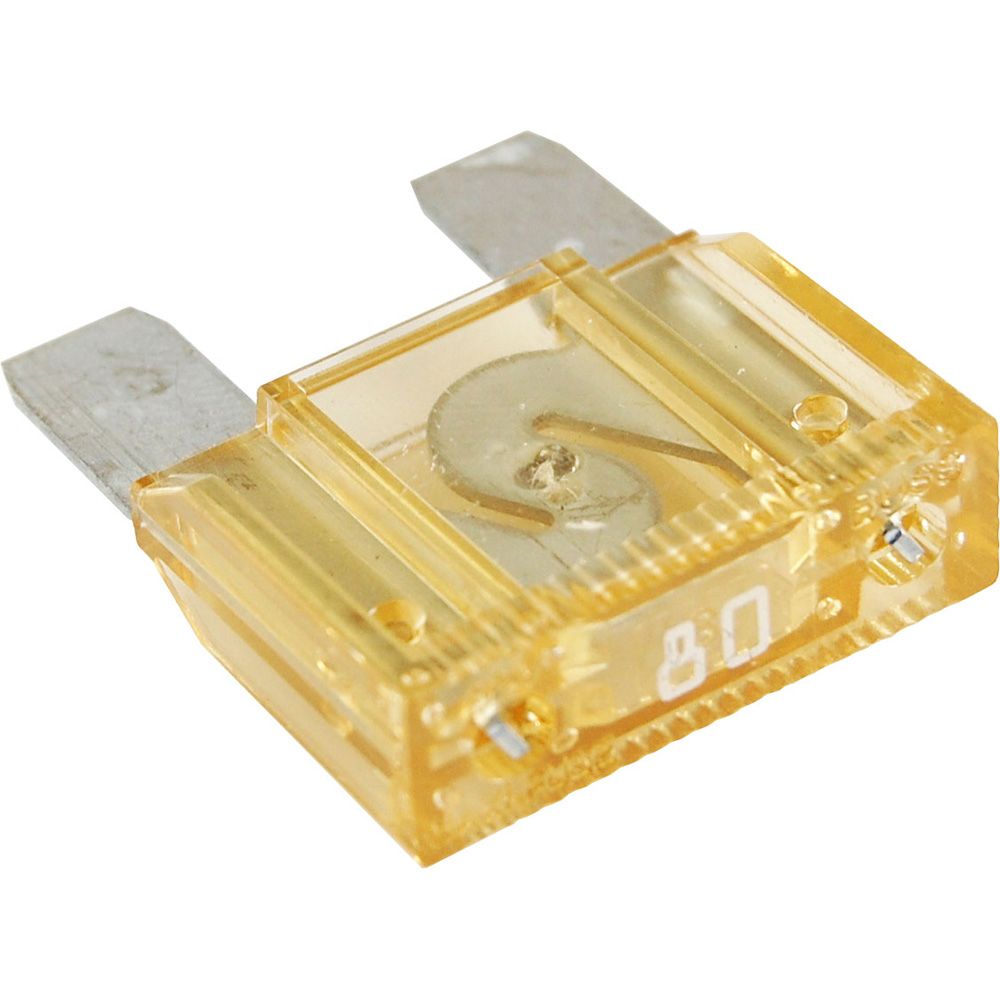

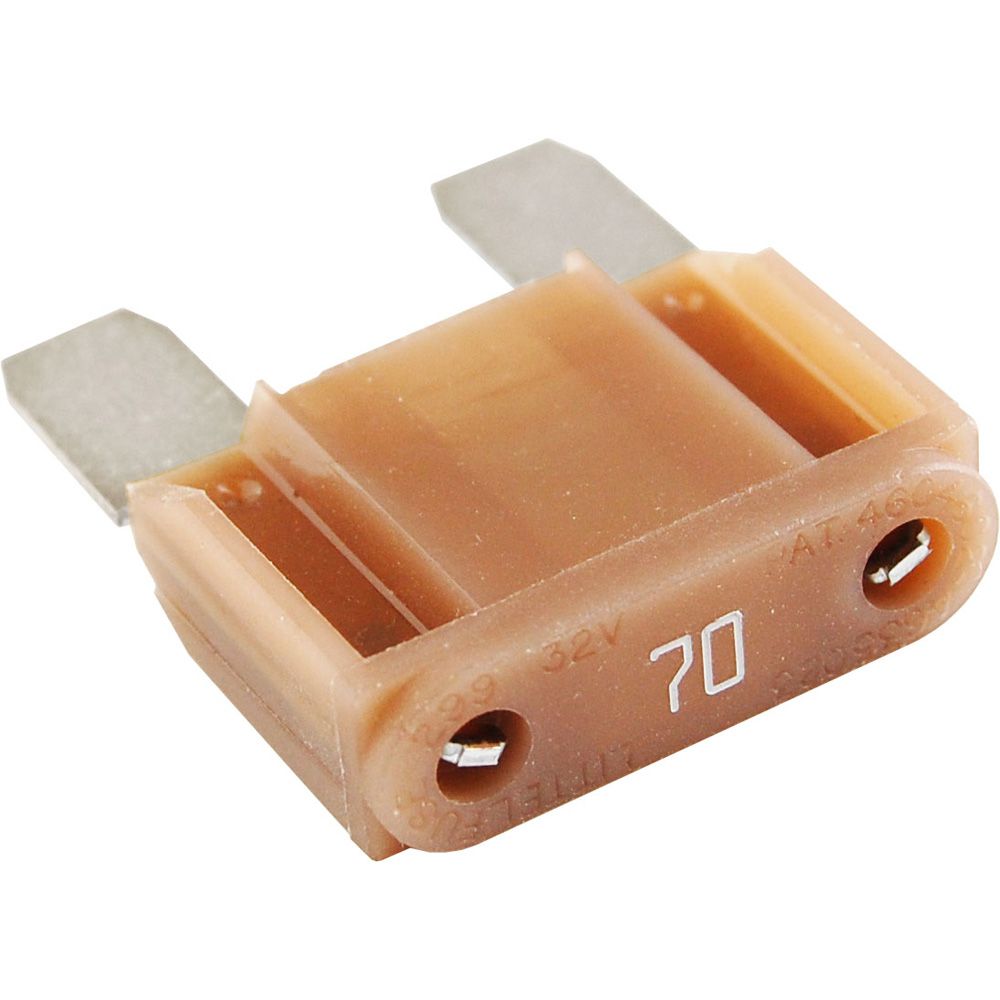

• Available in 30A, 40A, 50A, 60A, 70A, and 80A ratings for matching the fuse to the protected circuit.
• Maximum voltage rating of 32V DC for use in many low-voltage marine DC systems.
• 1000A interrupt capacity for branch circuit protection within properly sized DC installations.
• Visible blown-condition indicator makes a failed fuse easier to identify during onboard troubleshooting.
• Plated connector blades help resist corrosion at the contact points.
• Works with Blue Sea Systems MAXI fuse holders and MAXI fuse blocks.

Variants

This MAXI Fuse range varies by amperage rating, with options covering 30A, 40A, 50A, 60A, 70A, and 80A circuits. The amperage selection should match the wire size, load, and protection requirements of the specific DC branch circuit.

Across the range, the confirmed common specifications include a 32V DC maximum voltage rating, 1000A interrupt capacity, visible blown-condition indication, plated connector blades, and compatibility with MAXI fuse holders and fuse blocks.

Compatibility and fit

This fuse is intended for MAXI fuse holders and fuse blocks, so it should not be substituted into ATO, ATC, ANL, MRBF, MEGA, or terminal-style fuse locations. Before replacing an existing fuse, match the physical fuse type and confirm that the amperage rating is correct for the circuit.

For new installations, the fuse rating should be selected as part of the overall circuit design. On a boat, that means looking at the wire gauge, expected load, run length, equipment manual, and applicable marine electrical practices rather than simply matching the largest rating available.

Use cases on board

This fuse is a good match for boat owners and installers building or servicing DC branch circuits where a compact blade-style fuse is already specified. It can be used in protected electrical areas such as helm wiring, accessory distribution, battery-adjacent fuse blocks, and service panels, provided the installation uses the correct MAXI fuse holder or block.

The visible indicator is especially useful for spare-fuse kits and service work, since it lets a technician or owner spot a blown fuse quickly before moving deeper into circuit testing.

Installation and care

Install the fuse only with power off and only in a holder or block that accepts MAXI fuses. The fuse should seat fully in the contacts without looseness, heat damage, or signs of arcing. Any holder showing corrosion, melted plastic, or weak contact tension should be corrected before the circuit is put back in service.

Keep spare fuses in the correct amperage ratings for the circuits on board. After a fuse opens, replace it with the same type and rating only after checking the cause of the fault, since repeated fuse failures usually point to an overload, short, damaged wiring, or a connected device that needs attention.
