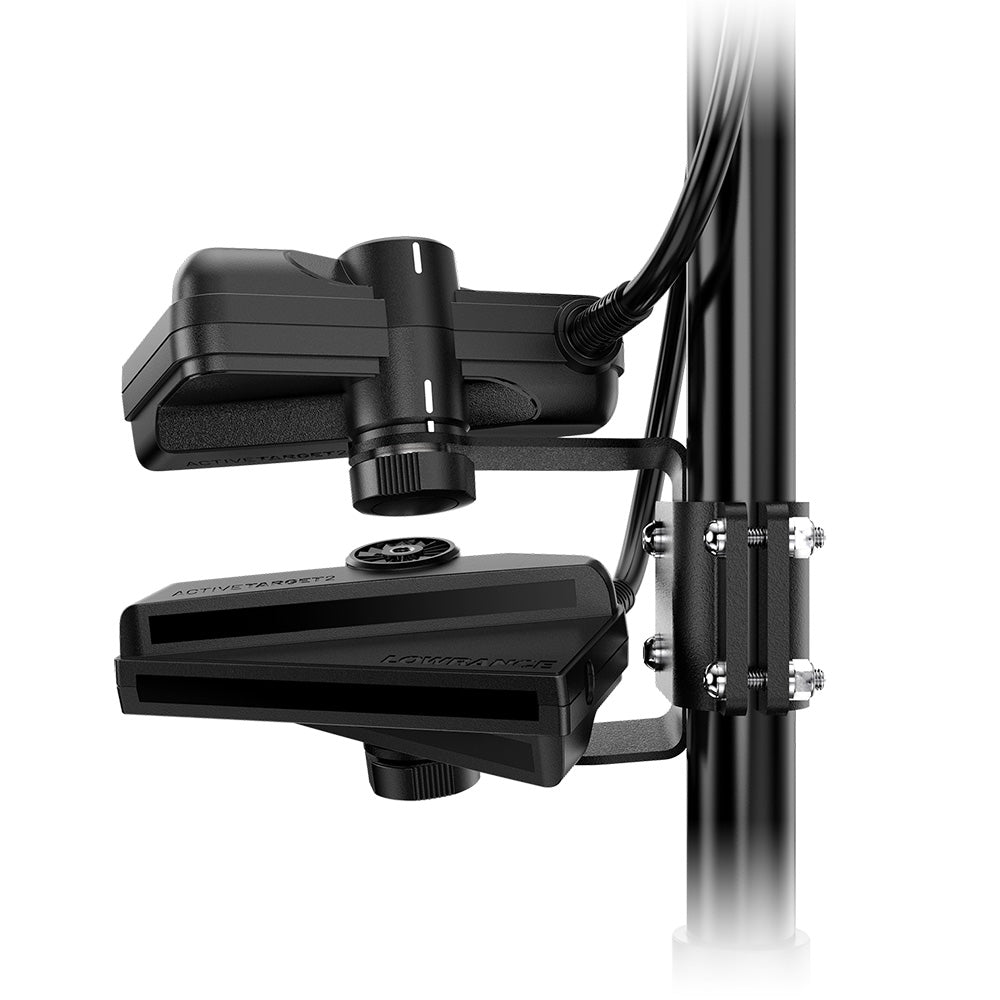

Lowrance - Scout + Scout Wide Bracket f/ActiveTarget 2

Unveil the Underwater World with ActiveTarget® 2

Dive into the ocean's depths and witness real-time, crystal clear views of aquatic life and structures with Lowrance® high-resolution ActiveTarget® 2 Live Sonar. By observing the fish's interaction with your lure, you can adapt swiftly, ensuring a fruitful fishing experience every time.

Dive Deeper: Technical Specifications

Connectivity:

• Ethernet Ports: Yes 1 - 100 Mbit Ethernet Port

Electrical:

• Power Consumption max: 1.5A @ 13.8VDC
• Power Consumption typical: 1.5A @ 13.8VDC
• Recommended Fuse Rating: 3A
• Supply Voltage: 10.8 VDC - 31.2 VDC

Environment:

• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Shock Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
• Waterproof rating: IP67

Dimensions at a Glance: Know Your Product

Understand the exact size of both the module and the transducer for proper setup and optimal utility.

• Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)
• Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
• Mounting Type: Module - Surface Mount, Transducer - Bracket Mount
• Weight: Module - 4.12 lbs (1.86 kg), Transducer - 2.67 lbs (1.21 kg)

Lustrous Features to Reel You In

With the ActiveTarget® 2, every fishing trip is elevated. From high-resolution imagery to simultaneous multiple views, here's what makes this device exceptional.

• Live-action, high-resolution underwater imagery
• See fish and structures with unmatched clarity
• Wide field of view for quick interpretation
• Multidirectional views: Forward, Down, and Scout
• Optional ActiveTarget 2 transducer for enhanced viewing angles
• Compatible with HDS LIVE, HDS Carbon, and Elite FS

Additional Intel: Dive Even Deeper

• Connects via Ethernet to HDS Pro, HDS Live, HDS Carbon, and Elite FS
• Warranty: 1 Year, with an option to upgrade for a total of 5 years
