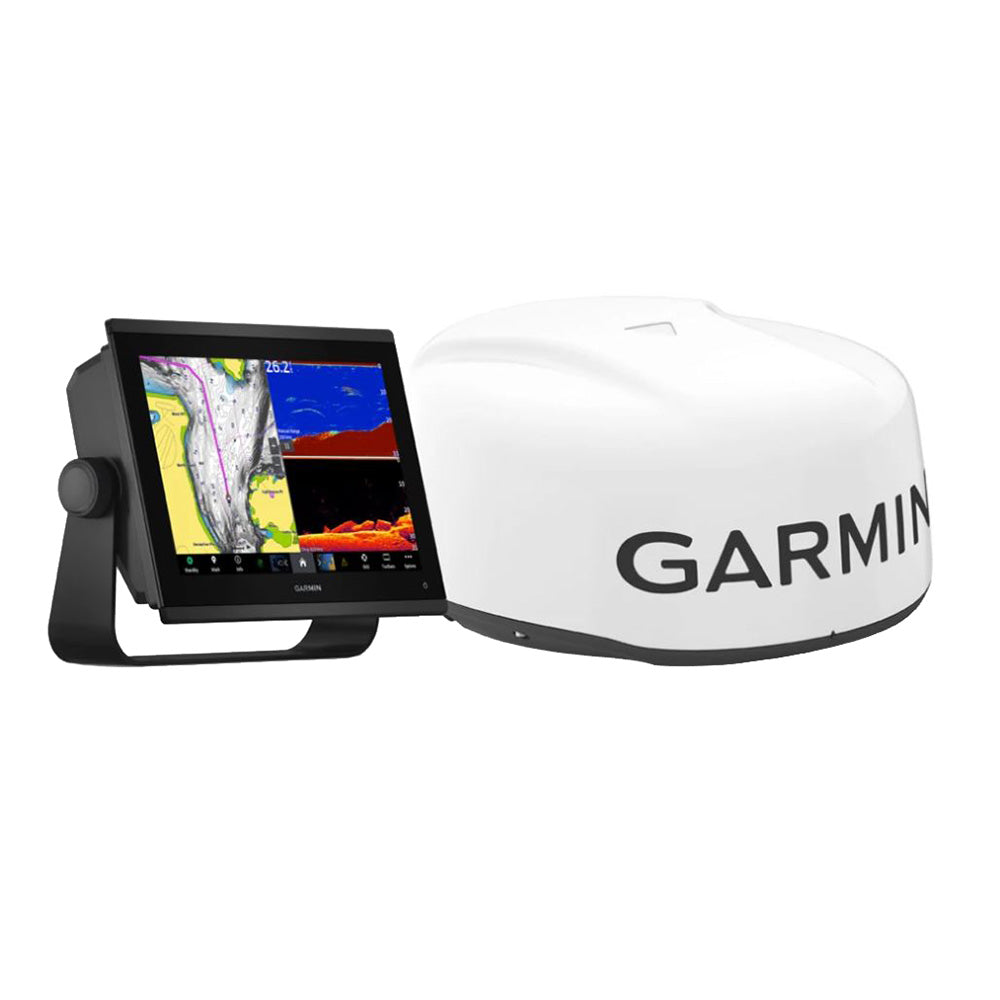

Garmin GPSMAP 1243xsv Chartplotter/Fishfinder and Radar Bundle, 12.1 in IPS Touchscreen, Navionics+ Charts, UHD SideVü/ClearVü Sonar, NMEA 2000, GMR 18 HD3 4 kW 18 in Radar Dome

Overview

The Garmin 010-02367-53 is a 12.1-inch touchscreen chartplotter and fishfinder combo bundled with a GMR 18 HD3 4 kW dome radar for a clean, integrated helm setup. The display uses a 1280 x 800 WXGA screen and carries an IPX7 water rating, so it holds up to spray, rain, and routine washdowns.

This package comes ready to tie into common boat systems with built-in networking for NMEA 2000 and NMEA 0183, plus two Garmin Marine Network ports for radar and other Garmin network devices. Mapping is onboard with Garmin Navionics+ preloaded, and the unit includes built-in sonar support for traditional CHIRP plus SideVü and ClearVü scanning (a compatible transducer is still required).

Key features

• 12.1-inch WXGA touchscreen display (1280 x 800) that gives you room to view charts, radar, and sonar data without crowding the helm.
• Runs on 10 to 32 V DC, which matches typical 12 V and 24 V boat electrical systems.
• IPX7 water rating on the display for wet helms and open-cockpit installations.
• Built-in sonar support for traditional CHIRP, SideVü, and ClearVü scanning; Panoptix and LiveScope are supported with compatible transducers.
• NMEA 2000 and NMEA 0183 connectivity for integrating engine data, sensors, VHF, AIS, and other onboard electronics.
• Two Garmin Marine Network ports for networked radar and high-speed Garmin device integration.
• Included GMR 18 HD3 dome radar with 4 kW transmit power, 36 nm max range, and 20 m minimum range for close-in target detail.
• Radar scanner rotates at a fixed 24 rpm and connects by Garmin Marine Network; 15 m (49.21 ft) radar power and network cables are included for longer cable runs.

Installation and setup

At the helm, the chartplotter can be bail-mounted or flush-mounted. Flush mounting is a common choice for a clean dash, while bail mounting makes sense if you want quick access behind the unit or you are working around limited cutout depth. The included NMEA 2000 T-connector and 2 m drop cable help you get onto an existing backbone without hunting for basic network parts.

The radar scanner mounts on a hardtop, radar arch, or a stable platform with a clear view around the boat. Plan your cable routing before drilling: the bundle includes a 15 m power cable and a 15 m Garmin Marine Network cable, which usually covers typical center console and express installs when routed cleanly through a T-top leg or chase.

Compatibility and fit

This display is built to sit in the middle of a Garmin networked helm. It supports NMEA 2000 and NMEA 0183, and it has two Garmin Marine Network ports for devices like radar. Sonar is built into the unit, but a compatible transducer is not included in this bundle, so match your transducer choice to your hull type, target species, and fishing depths.

Use cases on board

This bundle makes sense for boats that want charting, sonar, and radar on one screen without piecing together separate components. It is a solid fit for coastal cruising where radar is used for running in haze, rain, or darkness, and for fishing boats that want scanning sonar on the same display used for navigation.

What’s included

• GPSMAP 1243xsv chartplotter with microSD card preinstalled
• Chartplotter power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim-piece snap covers
• Documentation
• GMR 18 HD3 dome radar
• Radar power cable (15 m / 49.21 ft)
• Garmin Marine Network cable (15 m / 49.21 ft)
• Radar mounting hardware kit and template
• Radar installation instructions
