Furuno - DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000

Dive Deep with DST-810MSF: A New Dimension in Marine Sensing

An Ocean of Features in a Single Sensor

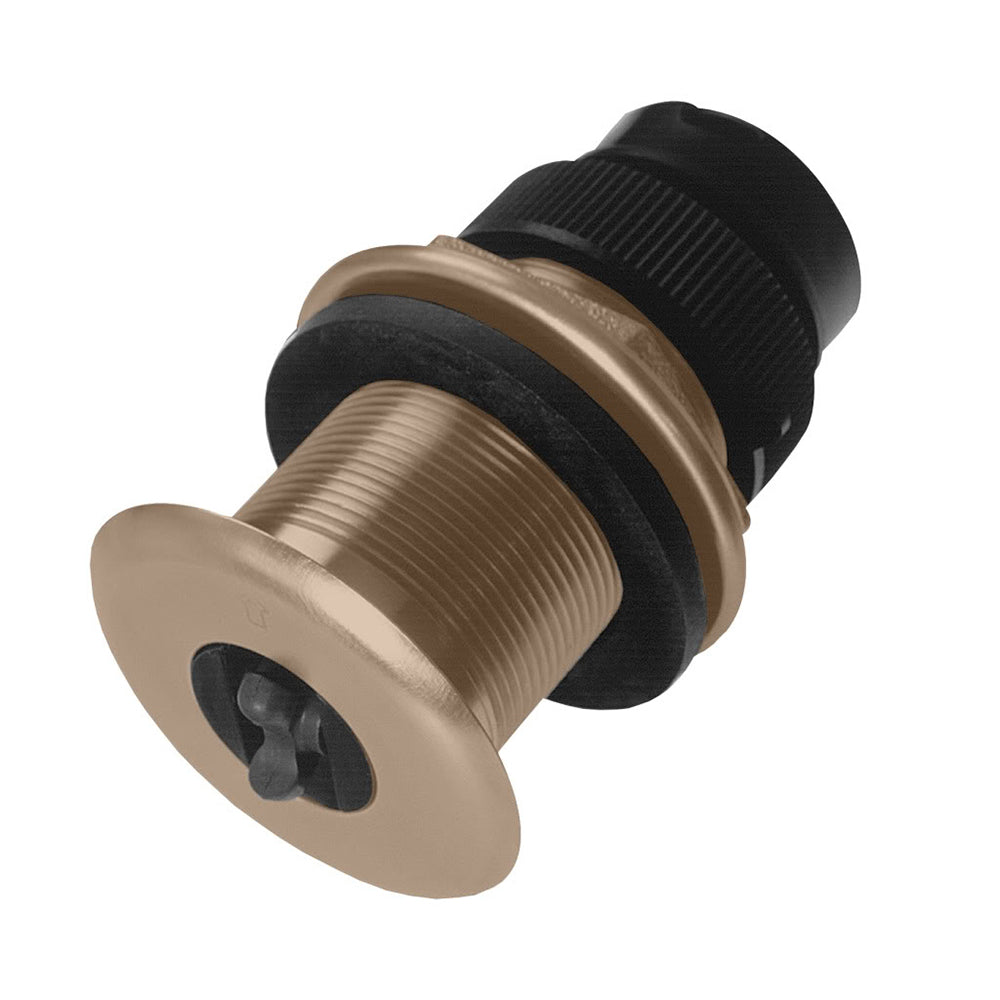

Introducing the DST-810MSF Bronze Thru-Hull - your comprehensive solution to measure digital depth, speed, and temperature. With the elegance of Airmar's B617V Housing Style Transducer, this state-of-the-art tool requires just a single 51mm (2”) fitting. Boasting a patented speed-signal-processing mechanism, the DST-810MSF ensures smooth linear output across all vessel speeds. Not to mention, its wide, fan-shaped beam ensures optimal performance, even on steep deadrise hulls or tilting sailboats.

Under the Hood: What Powers DST-810MSF

Experience seamless wireless connectivity to Airmar's CAST App, giving you the power to fine-tune your sensor, add depth offsets, and more. The DST-810MSF isn't just any transducer; it's your gateway to the depths of the ocean.

Compact Design, Monumental Capabilities

Weight: 1.6 kg (3.5 lb)

Key Takeaways: Why DST-810MSF Stands Out

• Triple function: Depth, speed, and temperature in one bronze housing.
• Fast-response temperature sensor ensuring ±0.2°C (±0.1°F) accuracy.
• Optimized for boats: Single hole installation, suitable for steep deadrise hulls or heeling sailboats.
• Wireless control: Enhanced connectivity with Airmar's CAST App.

Deep Dive into DST-810MSF's Specifications

• Acoustic Window: Urethane Hull
• Deadrise: Up to 22°
• Data Update Rate: 1 per second
• Sound Depths: Minimum - 0.5 m (1.6’) | Maximum - 70 m (230’)
• Pressure Rating: 3 m (10’)
• Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
• Supply: Voltage - 11.5 VDC to 25 VDC | Current - 40 mA
• Cable Length: Standard 6m
• NMEA 2000® Load Equivalency Number (LEN): 4
