Blue Sea Systems Terminal Block, 20A, 300V AC/DC, Closed-Back, Independent Circuits

Overview

The Blue Sea Systems Terminal Block 20A is a closed-back independent circuit terminal block for organizing boat wiring in AC or DC systems. Each screw pair forms one isolated circuit, so it works well for tidy point-to-point wiring, circuit separation, and serviceable junctions behind a helm, inside a console, in an electronics compartment, or on a protected electrical panel.

The range is rated for 20A continuous service and up to 300V AC/DC, with a UL 94 V0 polycarbonate base, nickel-plated brass bus material, and stainless steel screws. The closed back helps insulate the energized conductors from the mounting surface, which is useful when the block is mounted to panels, bulkheads, or other surfaces where accidental contact with conductive material needs to be avoided.

Key features

• 20A continuous rating for small branch circuits, control wiring, accessories, and organized junction points on board.
• 300V AC/DC maximum voltage rating for use across a wide range of marine electrical layouts.
• Closed-back construction helps keep power insulated from the mounting surface.
• Each screw pair is isolated, so circuits can remain separated unless a jumper is added.
• Compatible with 20A terminal block jumpers for creating common circuits where the wiring plan requires it.
• Nickel-plated brass bus material and stainless steel screws suit protected marine electrical spaces where clean termination points matter.
• M3.5 terminal screws, #6 [M3] wire terminal size, and 7 in-lb terminal screw torque support consistent installation.
• CE and UKCA marked for regulatory compliance.

Variants

This terminal block is offered in five circuit counts, letting the installation match the number of isolated connections needed without taking up more panel space than necessary.

Across the range, the continuous rating, voltage rating, closed-back layout, bus material, screw material, terminal screw size, wire terminal size, and terminal screw torque remain consistent. The number of circuits and the overall length change by variant.

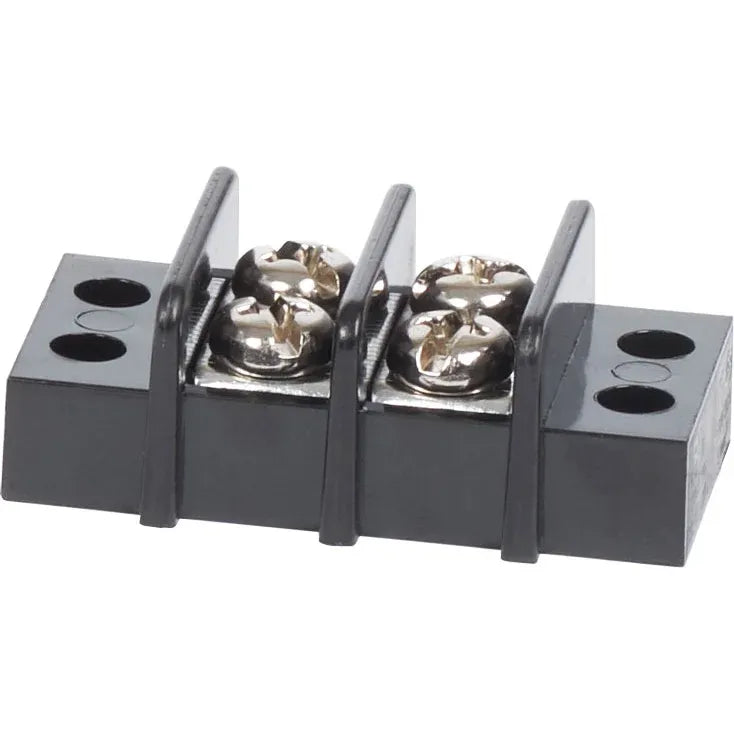

• 2402: 2 circuits, 1.43 in (36.32 mm) length. This size suits small junction tasks where only a pair of isolated circuit positions is needed.

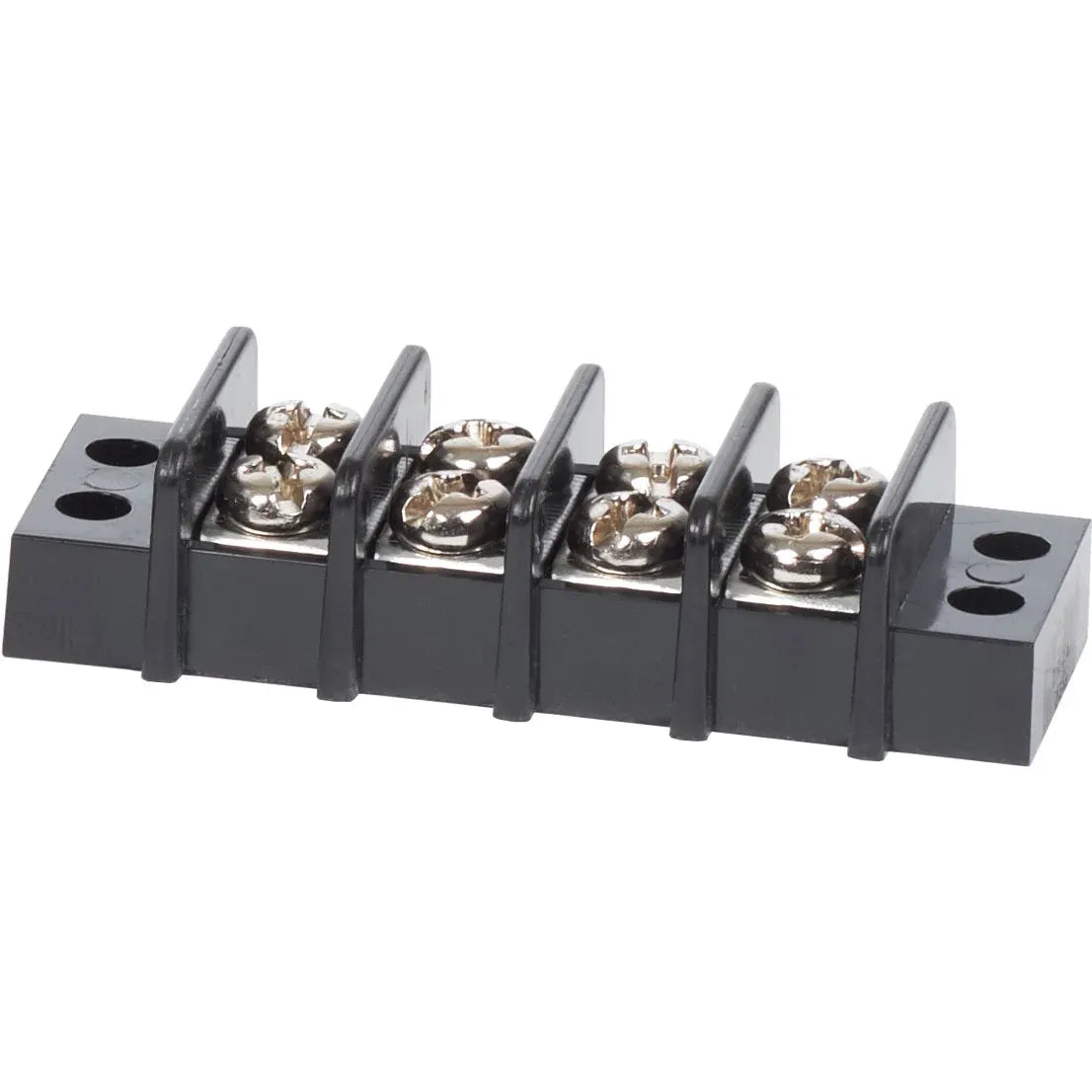

• 2404: 4 circuits, 2.17 in (55.12 mm) length. This version gives extra termination points while still fitting into compact electrical spaces.

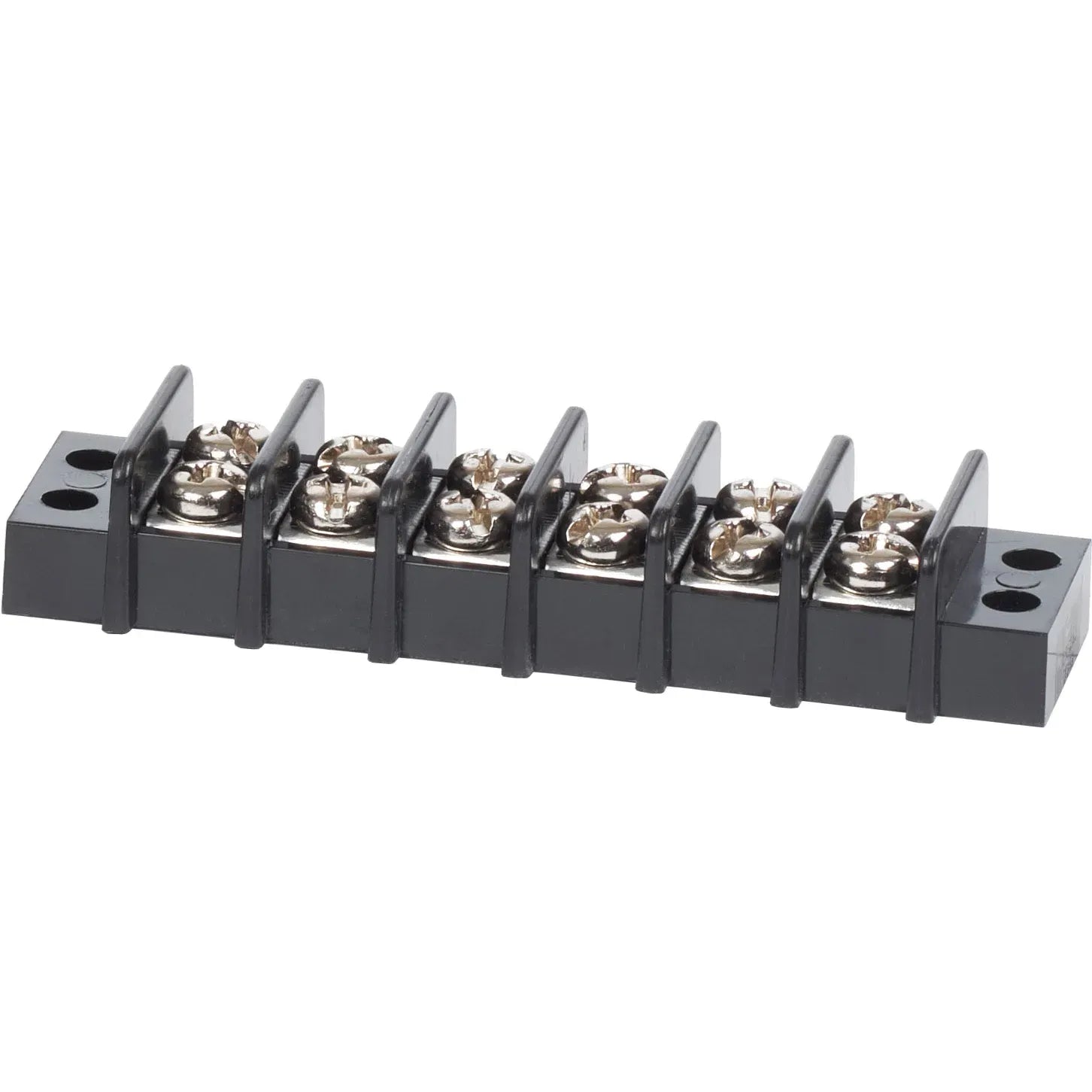

• 2406: 6 circuits, 2.91 in (73.91 mm) length. This layout works well when several accessory or control wires need a clean separation point in one block.

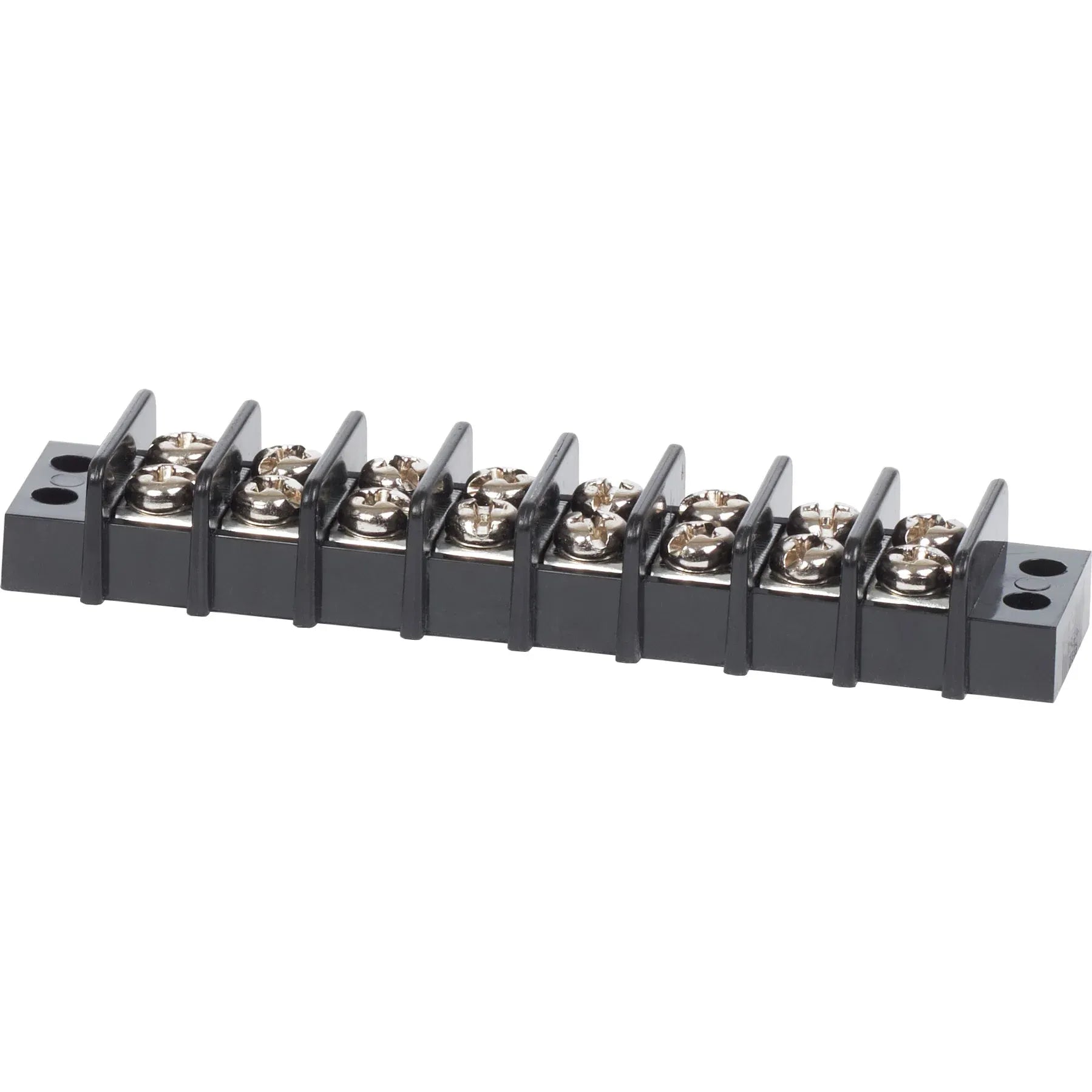

• 2408: 8 circuits, 3.66 in (92.96 mm) length. This option adds more circuit positions for busier helm, console, or electronics wiring areas.

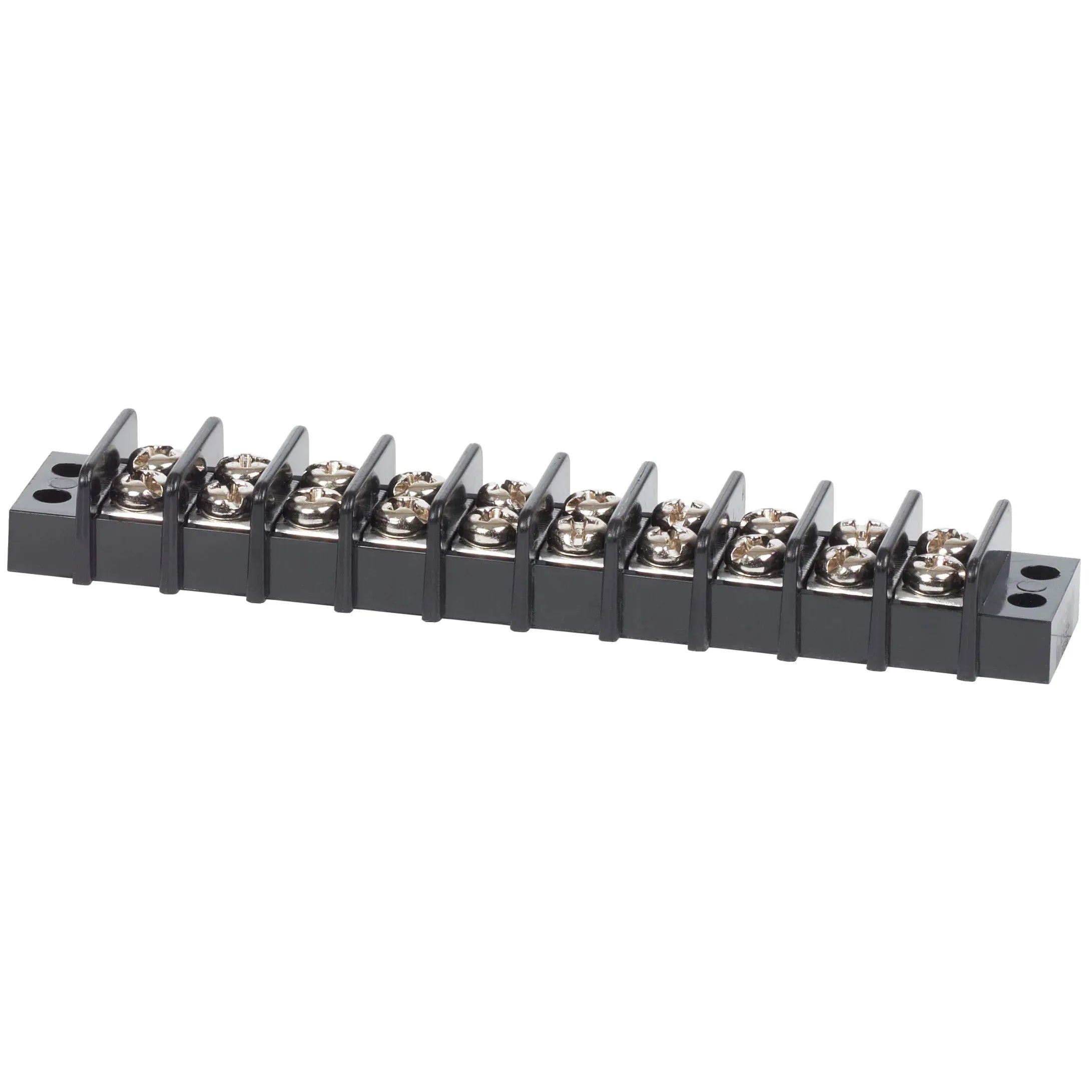

• 2410: 10 circuits, 4.41 in (112.01 mm) length. This is the largest version in the group and is useful where a higher number of isolated terminations need to stay organized together.

Installation and setup

Mount the block in a dry, protected electrical area with access for inspection and future service. It uses a #6 [M3.5] mounting screw, and the terminal screws should be tightened to 7 in-lb (0.79 Nm). The terminal layout is straightforward: each screw pair is its own isolated circuit, so wires can be landed in matched pairs without unintentionally joining adjacent circuits.

When commoning circuits is part of the wiring plan, use the compatible 20A terminal block jumper rather than improvised bridging. That keeps the installation neater and makes the circuit layout easier to understand during troubleshooting.

Use cases on board

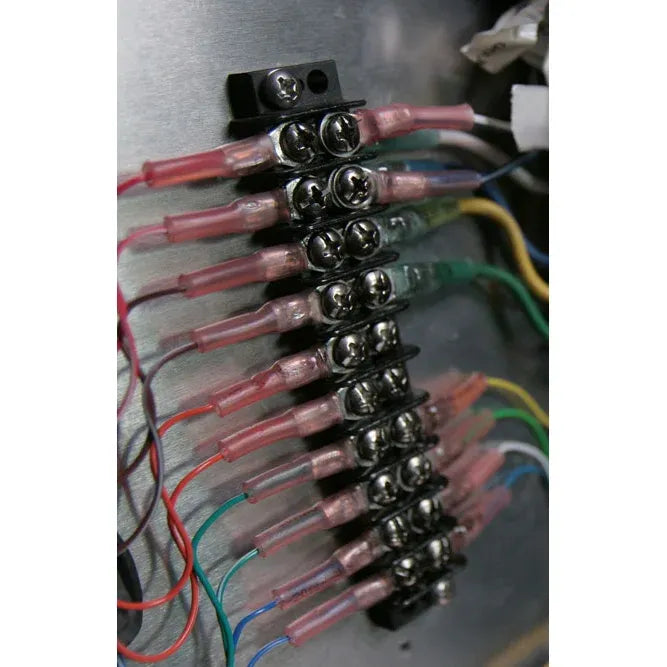

This terminal block family is a good match for boat owners, marine electricians, and refit projects that need clean termination points for smaller electrical circuits. It is especially useful behind dashboards, in distribution areas, and in protected wiring compartments where separated circuits need to be easy to trace.

For new accessory installs, electronics upgrades, or reworking older wiring, the independent-circuit format helps keep connections orderly without turning the block into a shared bus unless jumpers are intentionally added.
