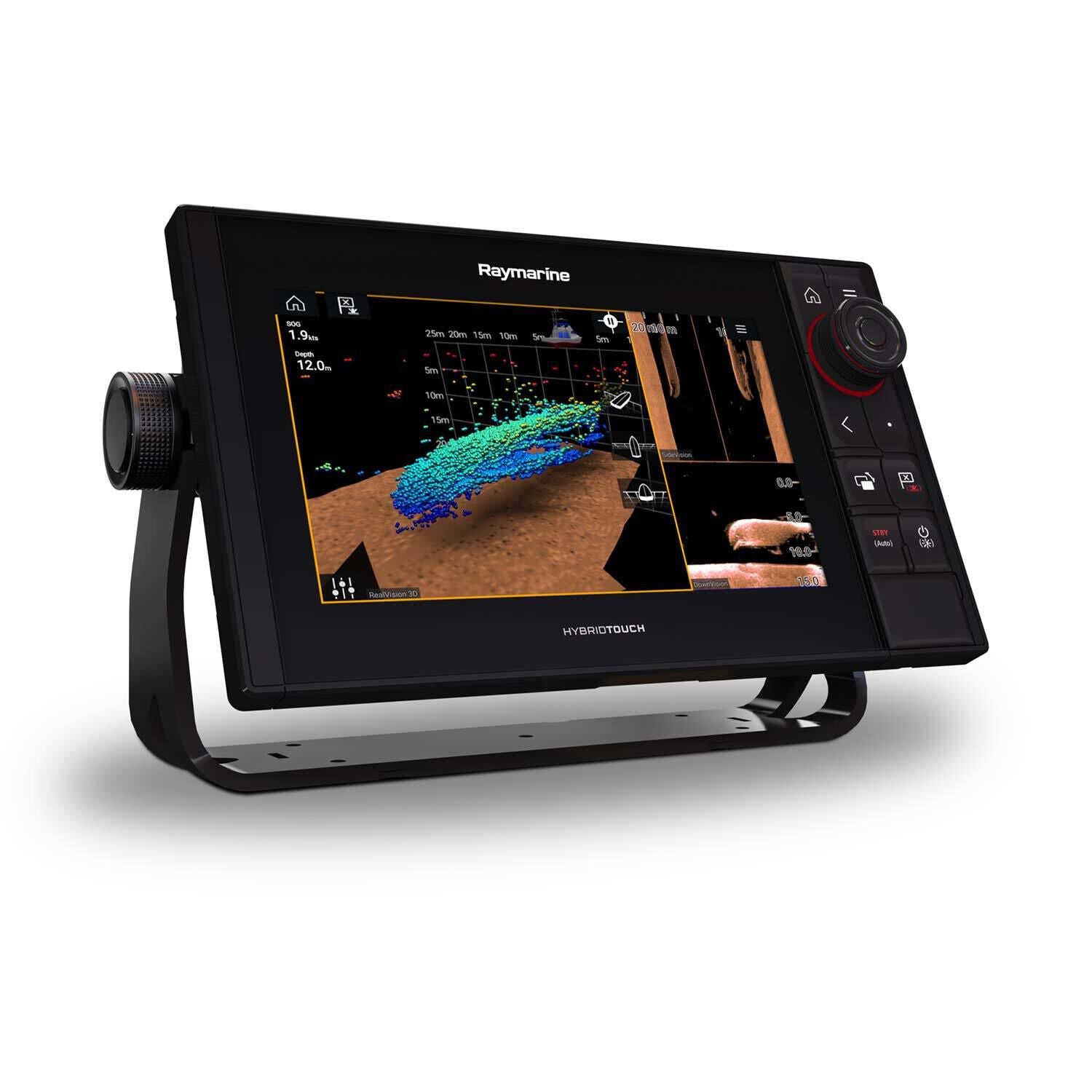

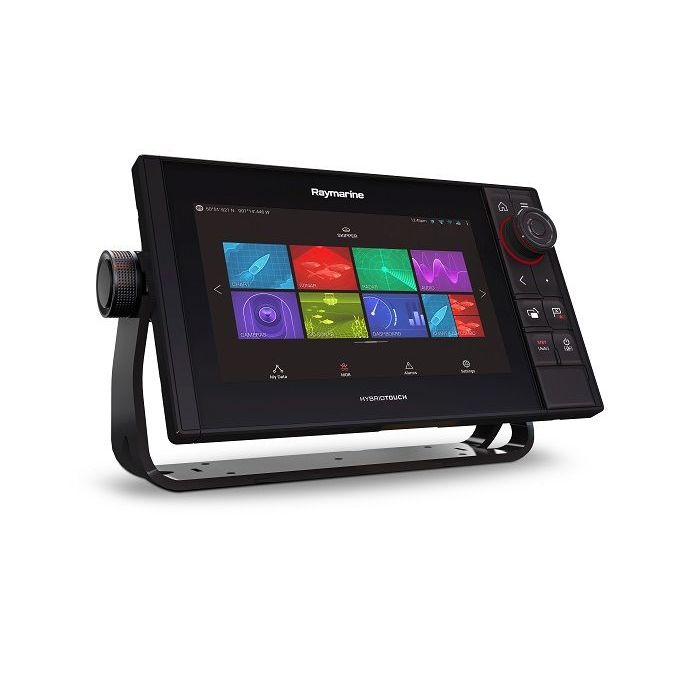

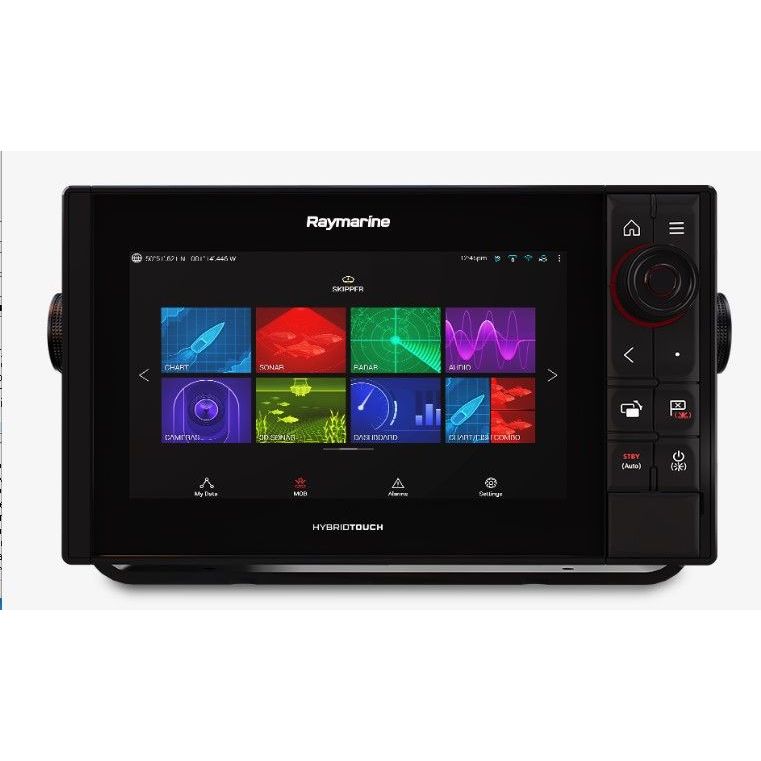

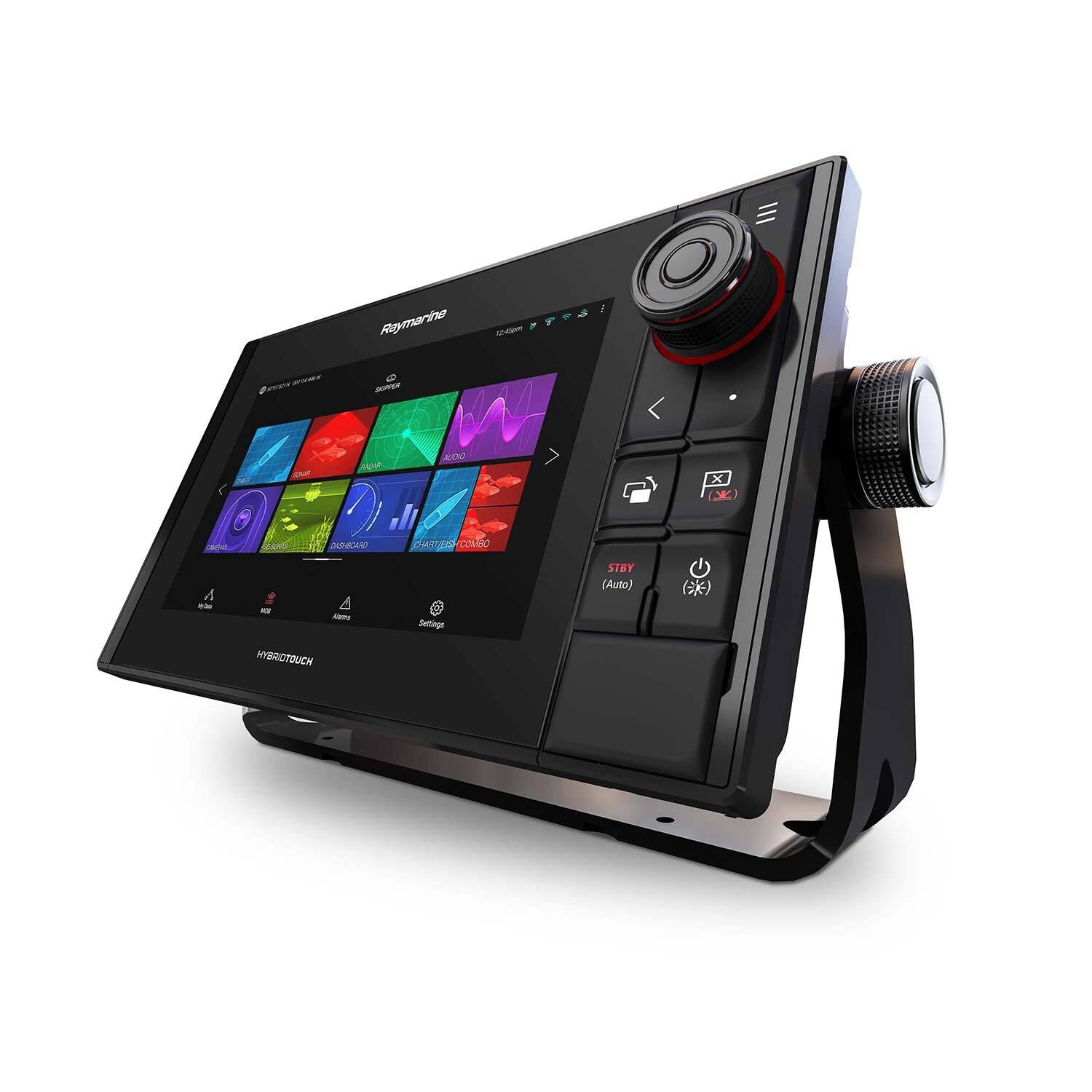

Raymarine Axiom Pro 9 RVX Chartplotter/Fishfinder, No Transducer, Navionics+ North America Chart, RealVision 3D, 1kW CHIRP Sonar
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Raymarine E70371-00-NAG is a 9 inch HybridTouch multifunction display with built in RealVision 3D sonar, true 1 kW CHIRP support, and Navionics Plus North America charts. It uses a 1280 x 720 IPS display and accepts 8 to 32 VDC, so it fits both 12V and 24V electrical systems. This version does not include a transducer, which is important if you are matching it to an existing sonar setup or choosing a new transducer for the way you fish and cruise.
At the helm, it gives you charting, fishfinding, and network control from one screen. The touchscreen and keypad combination is easier to work with when the boat is moving or the screen is wet, and the housing is rated IPX6 and IPX7 for exposed marine conditions. It also has built in GNSS with GPS, GLONASS, Galileo, and Beidou support, so it can serve as a standalone navigation display or as part of a larger Raymarine network.
Key features
- 9 inch IPS display with optical bonding and 1280 x 720 resolution
- HybridTouch control with touchscreen and physical keypad for rough-water use
- Built in RealVision 3D, DownVision, SideVision, and true 1 kW CHIRP sonar support with compatible transducers sold separately
- Navionics Plus North America charts included
- Dual RayNet Ethernet ports for adding radar, sonar modules, cameras, and extra displays
- NMEA 2000, NMEA 0183, Wi-Fi, and Bluetooth 4.0 connectivity for mixed onboard systems
- Two front microSDXC card slots and 16 GB internal solid-state storage
- IPX6 and IPX7 waterproof rating for open helms and washdown exposure
Compatibility and fit
This is the RVX version, so the display has built in sonar processing for RealVision 3D and offshore-rated 1 kW CHIRP. With a compatible RealVision transducer, the built in RealVision channel reaches up to 900 feet in CHIRP conical sonar, 600 feet in DownVision, and 300 feet in SideVision and RealVision 3D. With a compatible 1 kW transducer, the offshore CHIRP channel reaches up to 3000 feet in optimum conditions. Since no transducer is included, it is worth confirming transducer type, connector compatibility, and cable routing before ordering.
The 9 inch format makes sense on center consoles, pilot houses, and smaller dual-screen helms where space is limited but full networking is still needed. The flush-mount face measures about 11.78 x 6.84 inches, and the front card slots make chart updates and data access easy without reaching behind the dash. It can also be mounted on the included trunnion bracket when a surface install is the better fit.
Electrical and system integration
This unit runs on 12V or 24V boats within an 8 to 32 VDC operating range. Plan for up to 5 A current draw and a 15 A fuse in the power circuit. It also includes a DeviceNet connector for NMEA 2000 and NMEA 0183 input and output, which helps when the boat has newer networked gear along with older instruments, AIS, or autopilot components that still rely on 0183 sentences.
Two RayNet ports handle high-speed networking between displays and accessories, while Wi-Fi and Bluetooth help with mobile integration and onboard data sharing. That makes this model a practical match for boats that want one helm display to start with charting and sonar, then add radar, cameras, autopilot, or a second display later without replacing the main unit.
What’s included
- Axiom Pro multifunction display
- Front bezel pieces and upper keypad
- Panel mount gasket
- Suncover
- Trunnion bracket
- Two trunnion knobs
- Mounting fixings
- Grounding connection hardware
- Power, video, and NMEA 0183 cable, 1.5 m
- Documentation
- RayNet female to RayNet female network cable, 2 m
- DeviceNet to SeaTalkng adaptor cable, 120 mm
