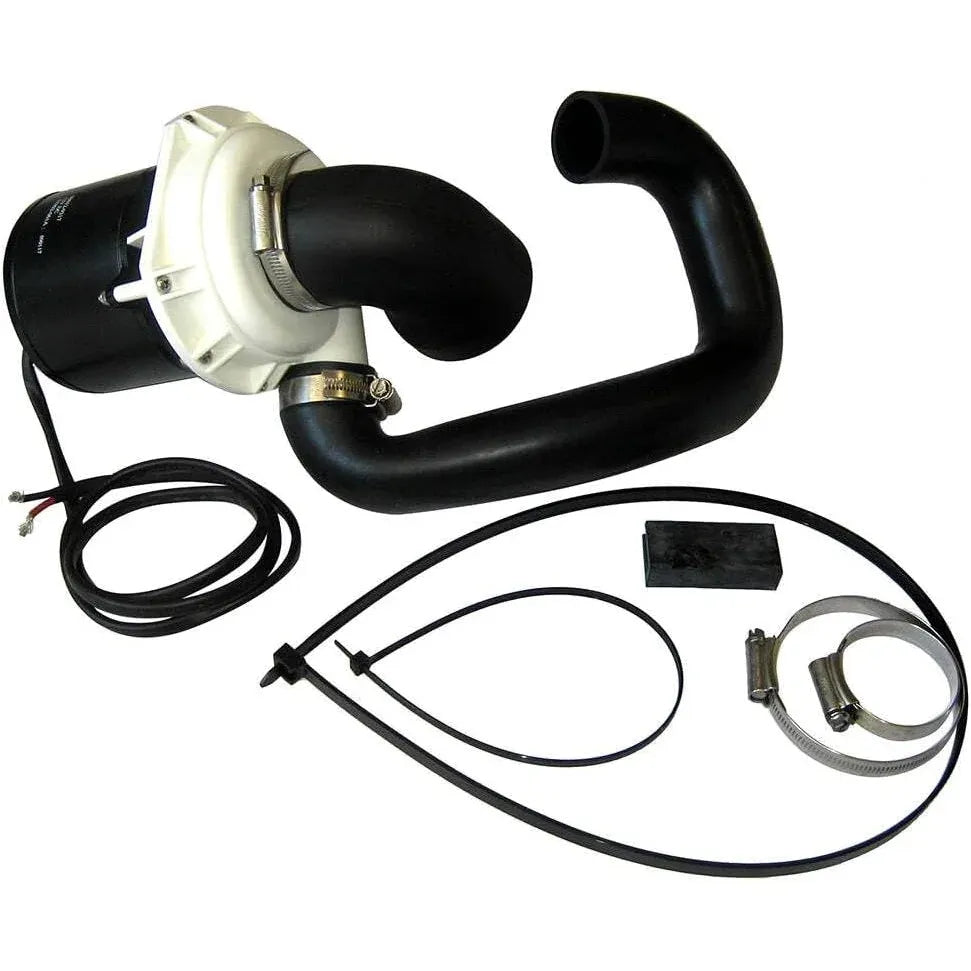

Jabsco Deluxe Flush Pump Assembly, For 58XX0 Toilets

Overview

The Jabsco Deluxe Flush is an electric toilet pump assembly for servicing the flush and waste pump section on Jabsco Deluxe Flush marine toilets. It is offered in 12V DC and 24V DC versions, so the voltage must match the boat's existing toilet circuit before ordering or installation.

This assembly is used when the toilet pump module needs replacement rather than replacing the complete toilet. It fits the Jabsco Deluxe Flush 58XX0 service family and includes the key pump components around the motor, pump body, impeller, seals, hoses, clips, and fasteners used in that section of the toilet.

For boats with electric heads, the right pump assembly helps keep the sanitation system operating as intended while preserving the existing bowl, control panel, rinse setup, and discharge plumbing where those components are still serviceable.

Key features

• Replacement pump assembly for Jabsco Deluxe Flush electric marine toilets in the 58XX0 service family.
• Available in 12V DC and 24V DC versions to match the vessel's toilet power supply.
• Services the pump section of the toilet rather than the complete toilet, which is useful when the bowl and controls are still in place.
• Includes the motor and main pump assembly components used around the flush pump, including pump body parts, impeller, seals, hoses, clips, and fasteners.
• Supports onboard sanitation use in marine heads where vibration, regular flushing cycles, and confined service access make correct-fit replacement parts important.

Variants

This product is offered in two voltage configurations for the same Jabsco Deluxe Flush pump assembly family.

The only variant difference is the DC motor voltage. The pump assembly layout and service application remain centered on Jabsco Deluxe Flush electric toilet installations, with the motor selected for either a 12V or 24V onboard system.

• 58103-1012: Voltage 12V. This version matches boats using a 12V DC toilet circuit and should be checked against the existing toilet wiring before installation.
• 58103-1024: Voltage 24V. This version matches 24V DC installations, often found on larger yachts and vessels with a 24V house or sanitation circuit.

Compatibility and fit

Before installation, confirm that the toilet is part of the Jabsco Deluxe Flush 58XX0 family and that the existing motor voltage matches the selected variant. This is not a universal transfer pump or a complete toilet; it is a toilet pump assembly for the Deluxe Flush system.

Also check the surrounding sanitation plumbing, hose condition, clamps, discharge routing, and electrical connections while the pump area is open. A pump replacement is often the right time to correct worn hose ends, tired clamps, or poor access issues in the head compartment.

Installation and setup

Power to the toilet should be isolated before service, and any related seacocks should be closed before hoses are disturbed. The pump assembly sits in the toilet's working pump section, so access space around the base and discharge plumbing matters on compact heads.

After fitting the new assembly, check all hose connections and clips, then run controlled flush cycles while watching for leaks. On installations connected to through-hull fittings, the wider toilet system must still follow proper marine sanitation practice for seacocks, hose loops, and siphon protection.

What's included

• Flush pump assembly with voltage-specific motor.
• Upper and lower pump body components.
• Impeller, ring seal, ceramic seal, nut, and washer.
• Inlet and outlet pump hoses.
• Support straps, support block, hose clips, screws, and nuts for the pump assembly.

Use on board

This pump assembly is a practical match for owners and yards maintaining an existing Jabsco Deluxe Flush electric head on cruising boats, fishing boats, and yachts. It is most relevant when the toilet structure is still usable but the pump section needs a like-for-like service replacement with the correct DC voltage.
