Blue Sea Systems AMI/MIDI Safety Fuse Block, 200A, 32V DC, Ignition Protected
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

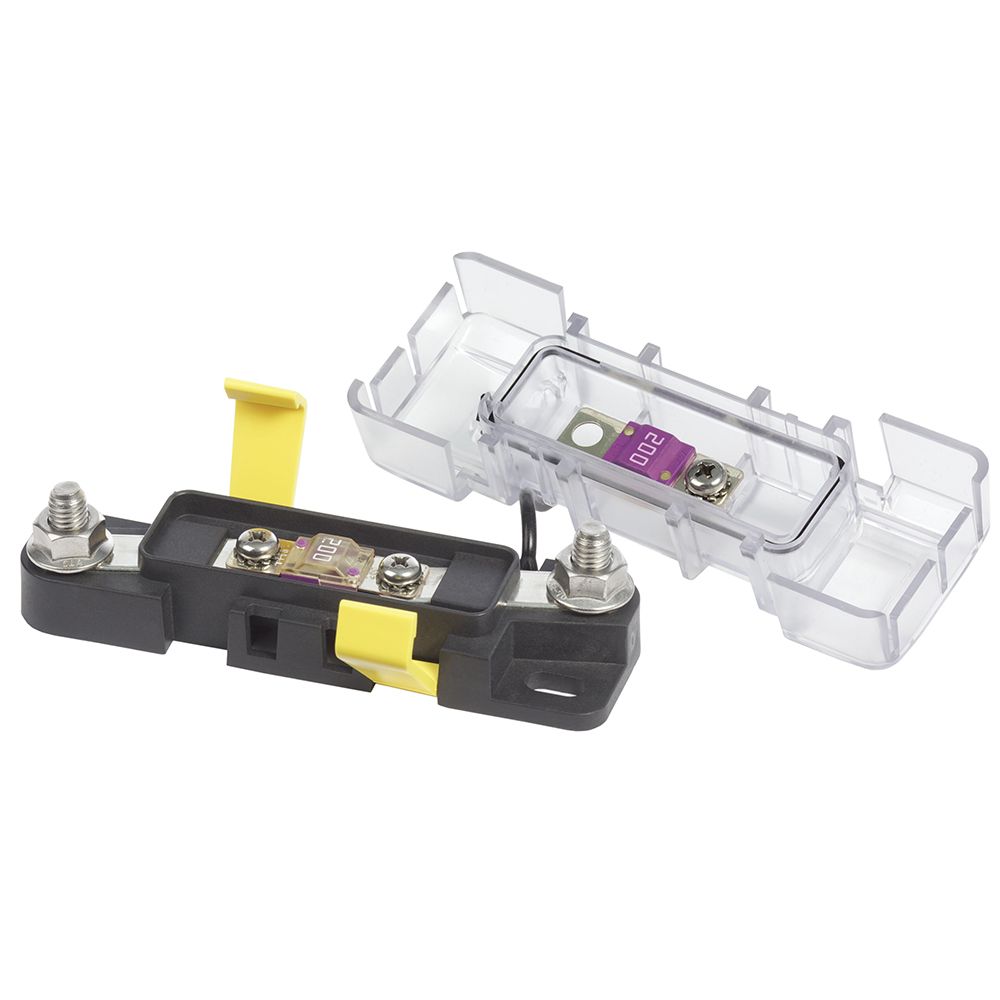

The Blue Sea Systems 7720 is an AMI/MIDI safety fuse block for DC circuits up to 32V and fuse protection up to 200A. It is used on boats that need covered protection on higher-amperage runs, with ignition protection for installation aboard gasoline or diesel powered boats.
The sealed cover shields the fuse area from the marine environment and also satisfies ABYC/USCG insulation requirements. Wire-entry breakouts in the cover let cables approach from different directions, which helps when space is tight around batteries, busbars, or distribution points. This block uses M8 x 1.25 studs, accepts Blue Sea Systems Square Format labels, and the required fuse is sold separately.
Key features
- Accepts AMI and MIDI fuse formats for single-circuit DC protection
- Rated for systems up to 32V DC and fuse protection up to 200A
- Ignition protected for installation aboard gasoline or diesel powered boats
- Sealed insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access from any direction
- M8 x 1.25 terminal studs fit 5/16 in ring terminals
- Accepts Blue Sea Systems Square Format labels for circuit identification
- Fuse sold separately
Installation and fit
Before ordering, check that your system uses the AMI or MIDI fuse pattern and that your cable terminals match the M8 stud size. Leave enough room around the block for the cover to open and for the cable bend radius, especially when it is mounted close to a battery switch or power distribution hardware.
This fuse block fits installs where one protected feed needs a covered holder rather than an exposed connection. It works for main or branch DC protection in refits, battery-bank upgrades, and new distribution layouts where service access and clear labeling matter.
Compatibility and use on board
This is a good fit for boat owners and installers who want a compact fuse block with a protected top in engine spaces, battery compartments, or other areas that see moisture, vibration, and regular maintenance access. It also makes sense when the rest of the electrical system is already built around AMI or MIDI fuses and a single protected circuit needs a cleaner mounting point.
