Ritchie - 820 Kit 24V System Resistor
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Seamless Compatibility for Enhanced Performance
The Ritchie SH-0126 820 Kit is the perfect solution for integrating standard Ritchie compasses with boats that have 24V or 32V electrical systems. This kit ensures that your compass lighting operates smoothly and reliably, adapting the standard 12V lighting to higher voltage systems without compromising performance or safety.
Comprehensive Kit for Easy Installation
Designed with convenience in mind, the Ritchie SH-0126 820 Kit includes everything you need for a straightforward installation. This allows you to focus on your maritime adventures without worrying about compatibility issues.
Kit Contents

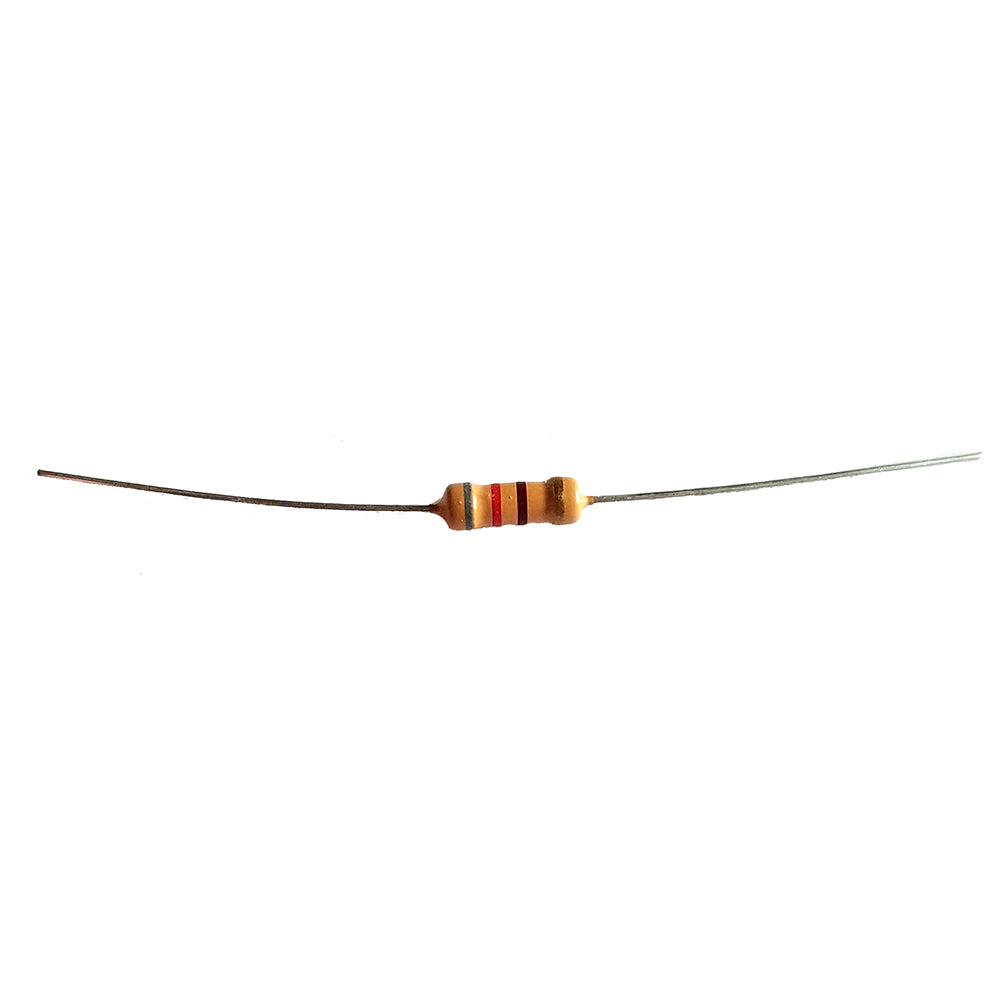

- Dropping Resistor: Adapts your 12V compass lighting to 24V or 32V systems.
- Detailed Instructions: Step-by-step guide to ensure easy and correct installation.
Key Features
- Compatibility: Adapts standard Ritchie compasses with 12V lighting to 24V or 32V systems.
- Comprehensive Instructions: Easy-to-follow guide for hassle-free installation.
- Reliable Performance: Ensures consistent and safe operation of your compass lighting.
Supported Models
The Ritchie SH-0126 820 Kit is compatible with a range of compass models, making it a versatile solution for various setups. The supported models include:
- B-80
- D-84
- F-82 & F-82W
- HB-70 & HB-740
- HB-85 & HB-845
- HD-74 & HD-744
- HF-72, HF-72W, HF-742, & HF-742W
- SS-1002 & SS-1002W
Ensuring Safety and Reliability
This kit is designed to maintain the integrity and reliability of your compass lighting system, ensuring that it operates effectively under higher voltage conditions. By installing the Ritchie SH-0126 820 Kit, you can rest assured that your compass will continue to perform accurately, providing you with dependable navigation.
Technical Specifications
- Voltage Adaptation: Converts 24V or 32V systems to 12V for compass lighting.
Compact and Efficient Design
The Ritchie SH-0126 820 Kit is designed to be compact, ensuring it integrates seamlessly into your boat’s electrical system without taking up unnecessary space.
Product Dimensions
- Resistor Length: 2 inches
- Resistor Width: 0.5 inches
- Instruction Manual: 5 pages
Durable and Reliable Construction
Built with high-quality materials, the Ritchie SH-0126 820 Kit ensures long-lasting performance, even in the challenging conditions of marine environments. Its durable construction guarantees that it can withstand the rigors of marine use, providing you with peace of mind.
Why Choose the Ritchie SH-0126 820 Kit?
- Versatility: Compatible with a wide range of Ritchie compass models.
- Ease of Installation: Comes with clear, detailed instructions for a smooth installation process.
- Reliable Adaptation: Ensures your compass lighting functions safely and reliably with 24V or 32V systems.
The Perfect Solution for Voltage Compatibility
Ensure your Ritchie compass lighting system operates seamlessly with the Ritchie SH-0126 820 Kit. This kit provides a reliable and easy solution to adapt your compass to higher voltage systems, making it an essential addition to your marine equipment.
