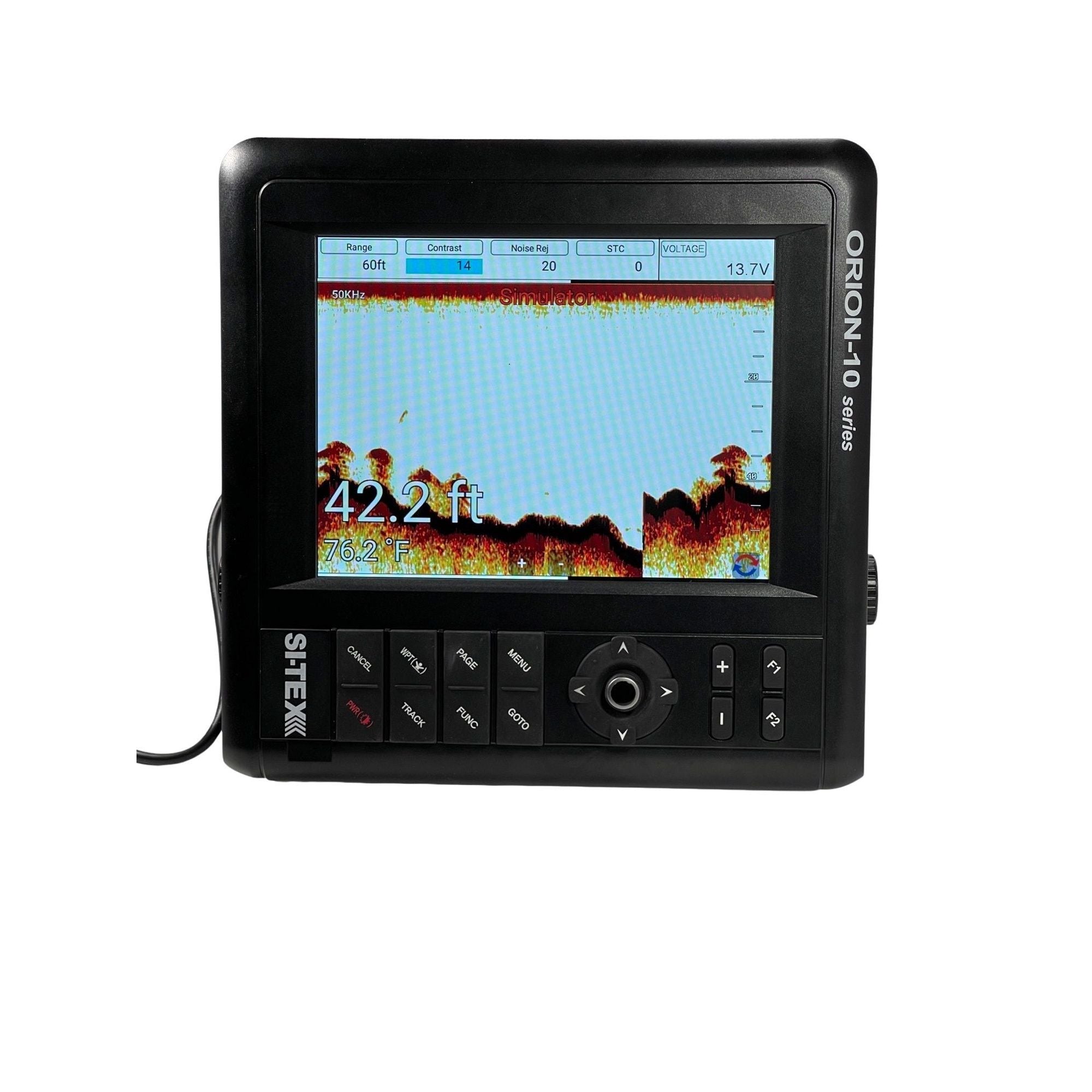

Sitex - Orion-C 10.4" MFD
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Hybrid Touch Screen Control for Maximum Usability
The Si-Tex Orion-C 10.4" Hybrid Touch Screen Chart Sounder combines cutting-edge navigation and fish-finding technology in a single, intuitive unit. Designed for seamless operation, it offers both a touch screen interface and a durable silicone keypad, allowing users to choose their preferred control method. Its user-friendly interface includes automatic day and night mode switching, ensuring optimal visibility at all times.
High-Precision GPS and Multi-Network Compatibility
Equipped with a powerful 52-channel GPS receiver, the Orion-C integrates with multiple global satellite networks, including U.S. GNSS, Russian GLONASS, and European GALILEO. This multi-network capability ensures precise and reliable positioning, essential for both recreational and professional marine navigation.
Versatile Mounting and Adjustable Screen Orientation
The Orion-C features an adjustable mounting bracket with dual attachment points, allowing users to easily switch between portrait and landscape orientations. Additionally, flush mounting is made simple with removable trim pieces, facilitating front screw installation for a streamlined, professional look.
Superior Cartography with C-Map 4D
Exclusively compatible with C-Map 4D cartography, the Orion-C delivers highly detailed and comprehensive marine mapping. This advanced charting system enhances situational awareness and route planning, making every journey safer and more efficient.
Extensive Waypoint and Track Storage
Maximize your navigation efficiency with an impressive storage capacity of 100,000 waypoints and marks. Customize each waypoint with up to 16 colors, unique icons, and an alphanumeric name tag. The system also allows for track storage of up to 50,000 points, providing detailed route tracking and analysis.
High-Performance Fish Finder Capabilities
The Orion-CF model comes equipped with a 50/200kHz fish finder, supporting switchable power outputs of 600W or 1.5kW, depending on the connected transducer. With an extensive depth range of up to 1500 meters, this unit delivers exceptional fish detection and underwater imaging. Additional features include adjustable gain control, interference rejection, depth shifting, image speed settings, and support for water temperature and speed sensors.
Seamless Connectivity with NMEA-2000 and NMEA-0183
The Orion-C is designed for easy integration with existing marine electronics, offering both NMEA-2000 and NMEA-0183 connectivity options. This ensures smooth data exchange with other onboard systems, enhancing overall vessel functionality.
Product Dimensions
- Screen Size: 10.4” Touch Screen
Highlights
- Hybrid control with touch screen and heavy-duty silicone keypad
- Adjustable screen orientation (portrait or landscape)
- C-Map 4D cartography for enhanced navigation
- 52-channel GPS supporting GNSS, GLONASS, and GALILEO networks
- 100,000 waypoint storage with customizable colors and icons
- 50/200kHz fish finder with up to 1.5kW power output
- Depth range up to 1500 meters
- NMEA-2000 and NMEA-0183 network compatibility
This state-of-the-art navigation and fish-finding system is built for performance, offering precision, versatility, and seamless integration into any marine setup.
