Garmin ECHOMAP UHD2 95sv Chartplotter/Fishfinder Combo, No Transducer, 9in Touchscreen, Canada Inland & Coastal Navionics+ Maps, Wi-Fi, NMEA 2000
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Garmin 010-02690-01 is a 9-inch ECHOMAP UHD2 95sv touchscreen chartplotter and fishfinder with Canada inland and coastal mapping, supplied without a transducer. The display runs at 1024 x 600 resolution and the unit carries an IPX7 water rating for real-world spray and washdown. Power input is 9 to 18 Vdc, with typical current draw around 1.72 A at 12 Vdc (3.5 A peak).

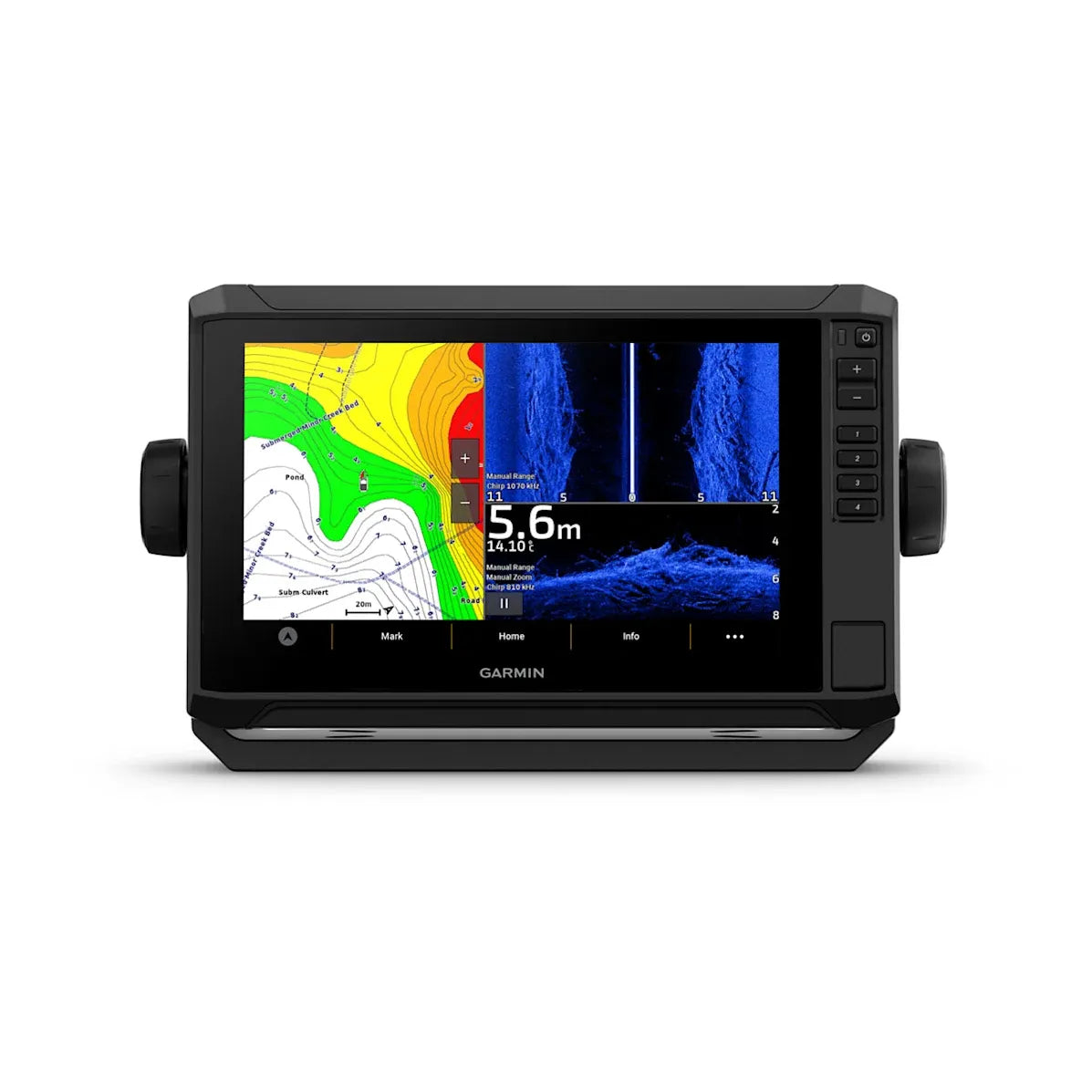

Built-in Garmin Navionics+ cartography comes loaded for Canada inland and coastal waters and includes a 1-year subscription to daily updates. Coverage includes more than 8,100 lakes with up to 1-foot contours, which is useful for dialing in structure, drop-offs, and routes in unfamiliar water.
On the sonar side, the 95sv has built-in single-channel CHIRP sonar plus ClearVü and SideVü scanning support (500 W RMS output), with LiveScope compatibility when paired with the appropriate gear. Built-in Wi-Fi handles ActiveCaptain connectivity and lets two compatible ECHOMAP UHD2 units share sonar, waypoints, and routes. It also supports NMEA 2000 networking and can connect wirelessly to a Garmin Force trolling motor for on-screen control and navigation.
Key features
- 9-inch touchscreen with keyed assist and 1024 x 600 display resolution
- IEC 60529 IPX7 water rating for incidental exposure (up to 1 m for up to 30 minutes)
- 9 to 18 Vdc input; typical draw 1.72 A at 12 Vdc with 3.5 A peak; 3 A fast-acting fuse included
- Built-in Garmin Navionics+ Canada inland and coastal charts, with a 1-year subscription to daily updates
- Built-in Wi-Fi for ActiveCaptain features and wireless sharing between compatible ECHOMAP UHD2 displays
- Built-in CHIRP sonar with ClearVü and SideVü scanning support (500 W RMS); LiveScope compatible
- NMEA 2000 compatible for connecting and viewing supported boat data on the display
- 1 microSD card slot for charts and data storage (supports up to 1 TB when formatted to exFAT with software version 35.00 or later)
Compatibility and fit
This unit works well at a helm where a 9-inch screen is easier to read at a glance, and it also fits bow installations where you want mapping and sonar in front of you. Device-only dimensions are 264 x 166 x 80 mm, and the bail-mount footprint with sun cover is 303 x 182 x 99 mm. For flush mounting, plan for 118 mm of clearance behind the display.
If you are placing it near a magnetic compass, allow a compass-safe distance of 22.5 cm (9 in.). Operating temperature range is -20 to 55 C, which covers typical spring-to-fall use and cold-weather storage scenarios.
Installation and setup
Power it from a clean 12 V or 24 V house system through your distribution panel or an appropriate breaker, keeping the included 3 A fast-acting fuse in the circuit. Use marine tinned wire sized for the run length and load, and route the power cable away from ignition wiring and high-current motor feeds where possible.

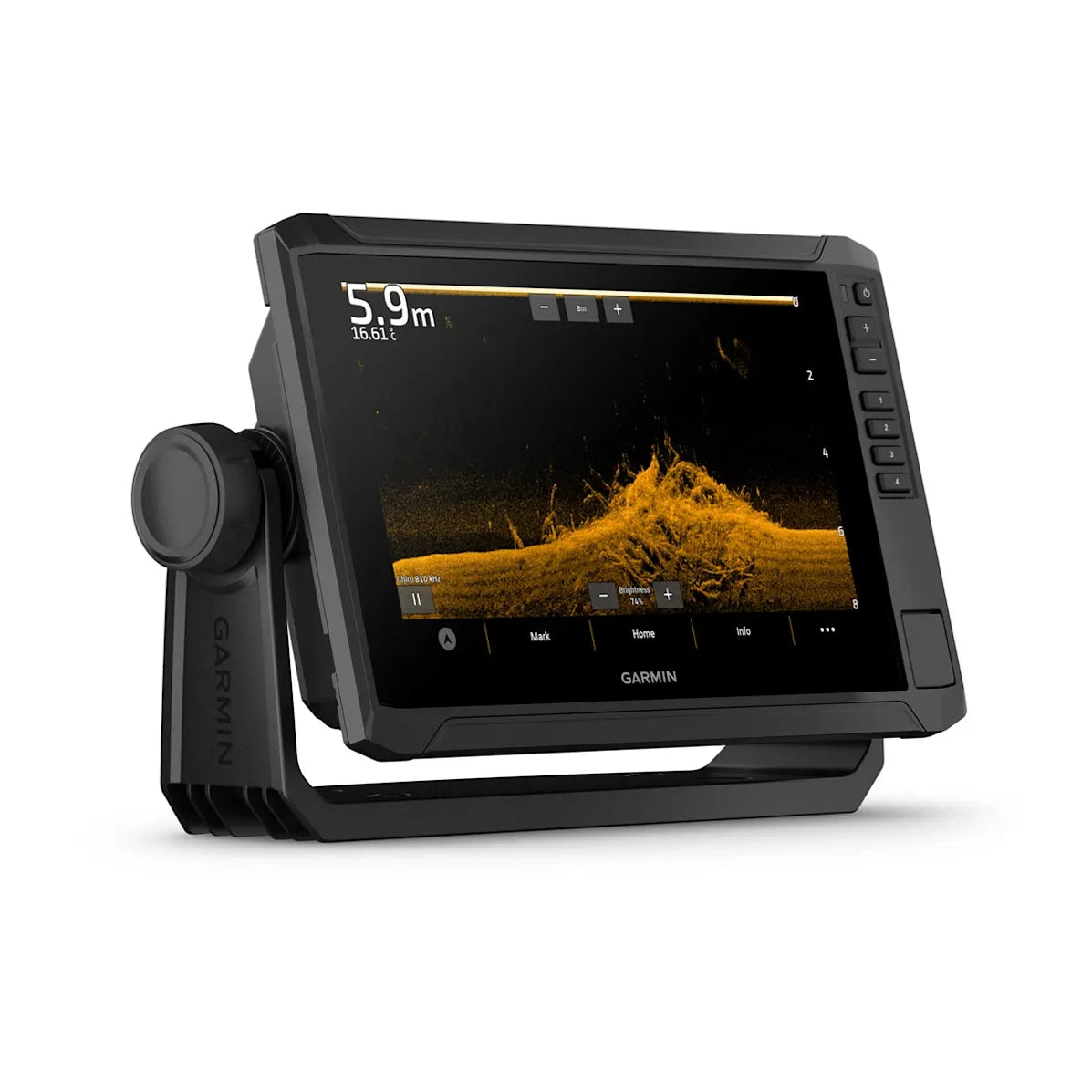

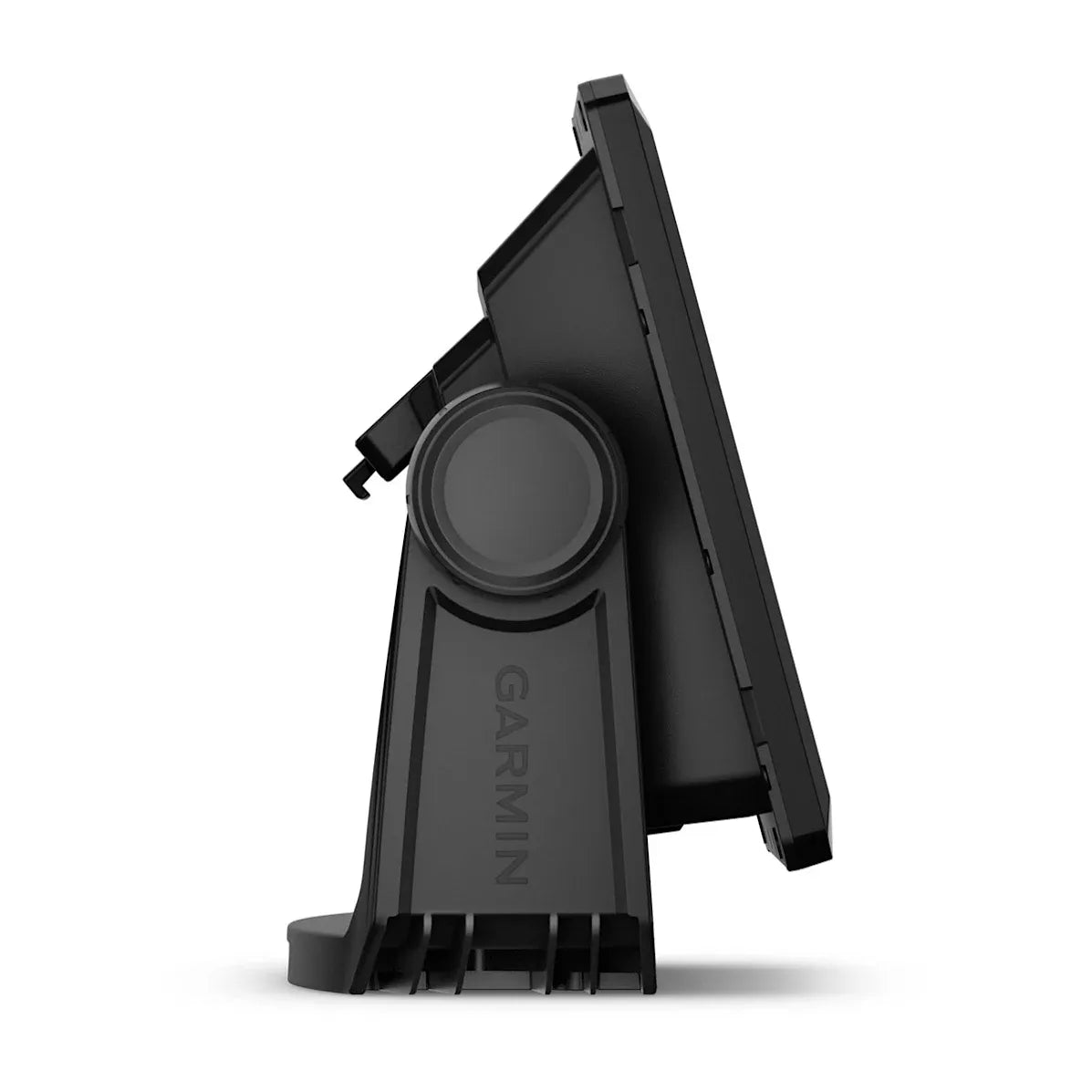

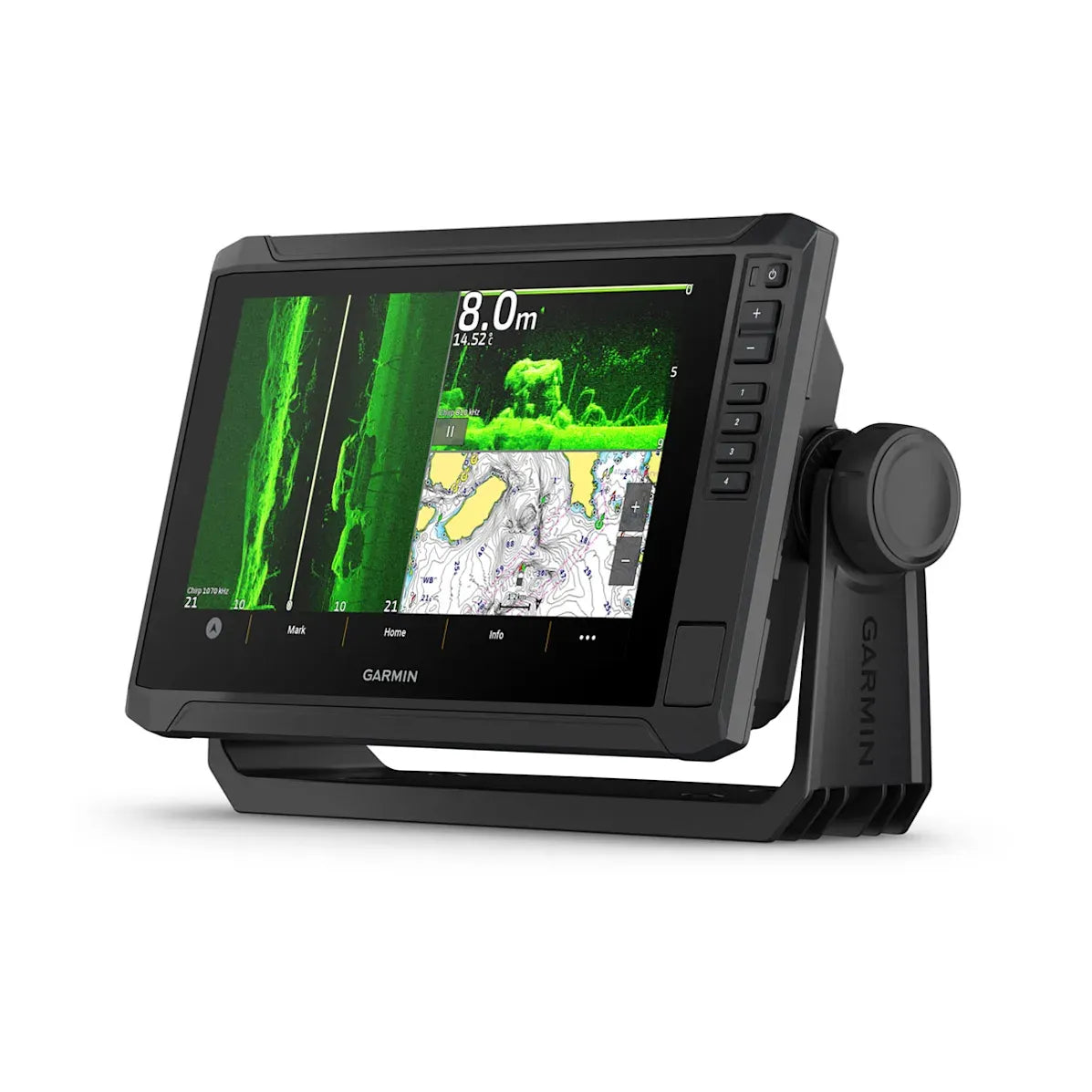

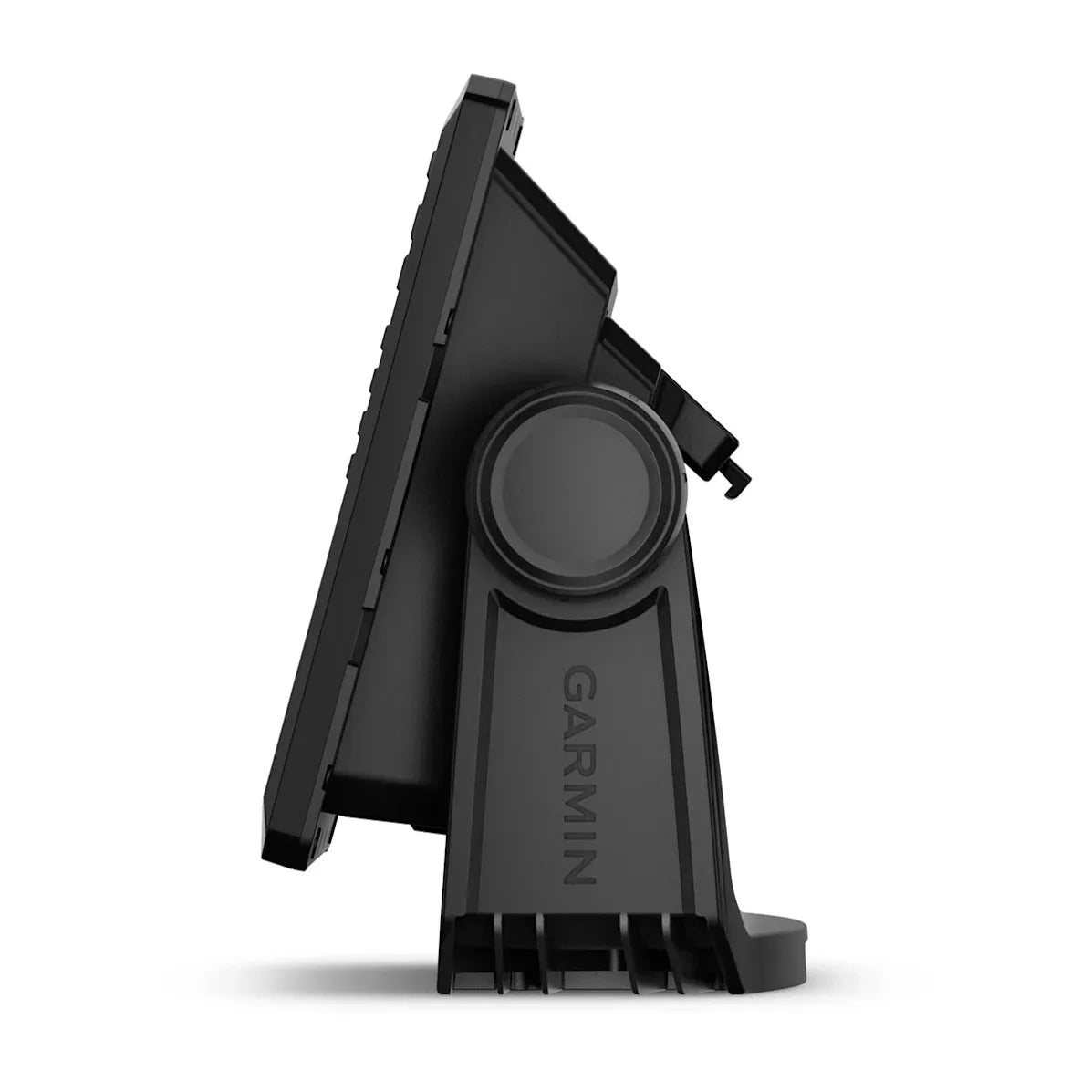

The included tilt mount makes it easy to set viewing angle and service the back of the unit. For a flush install, dry-fit first and confirm rear clearance so cables can bend without strain, then leave enough slack for service loops and vibration.
Sonar and transducer pairing

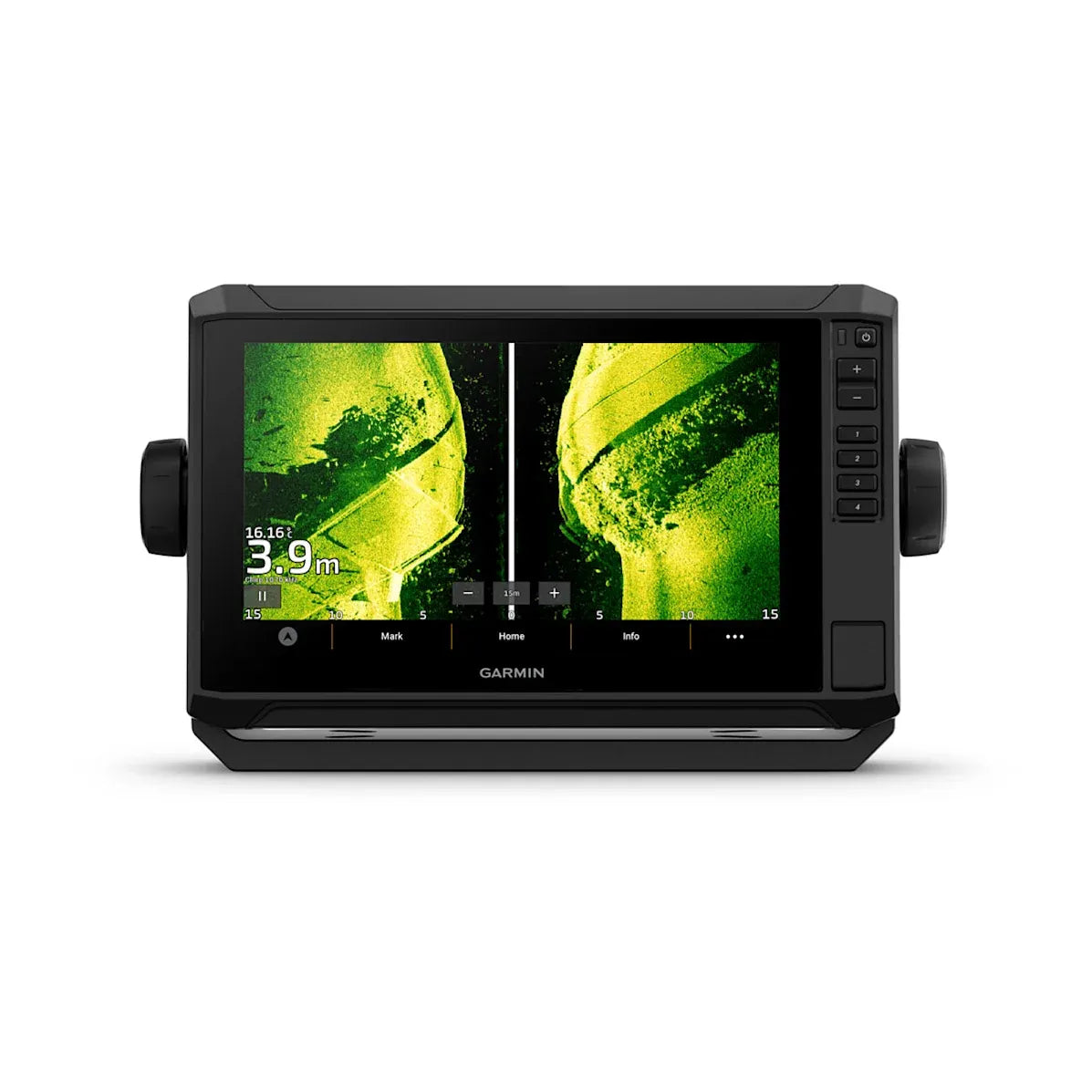

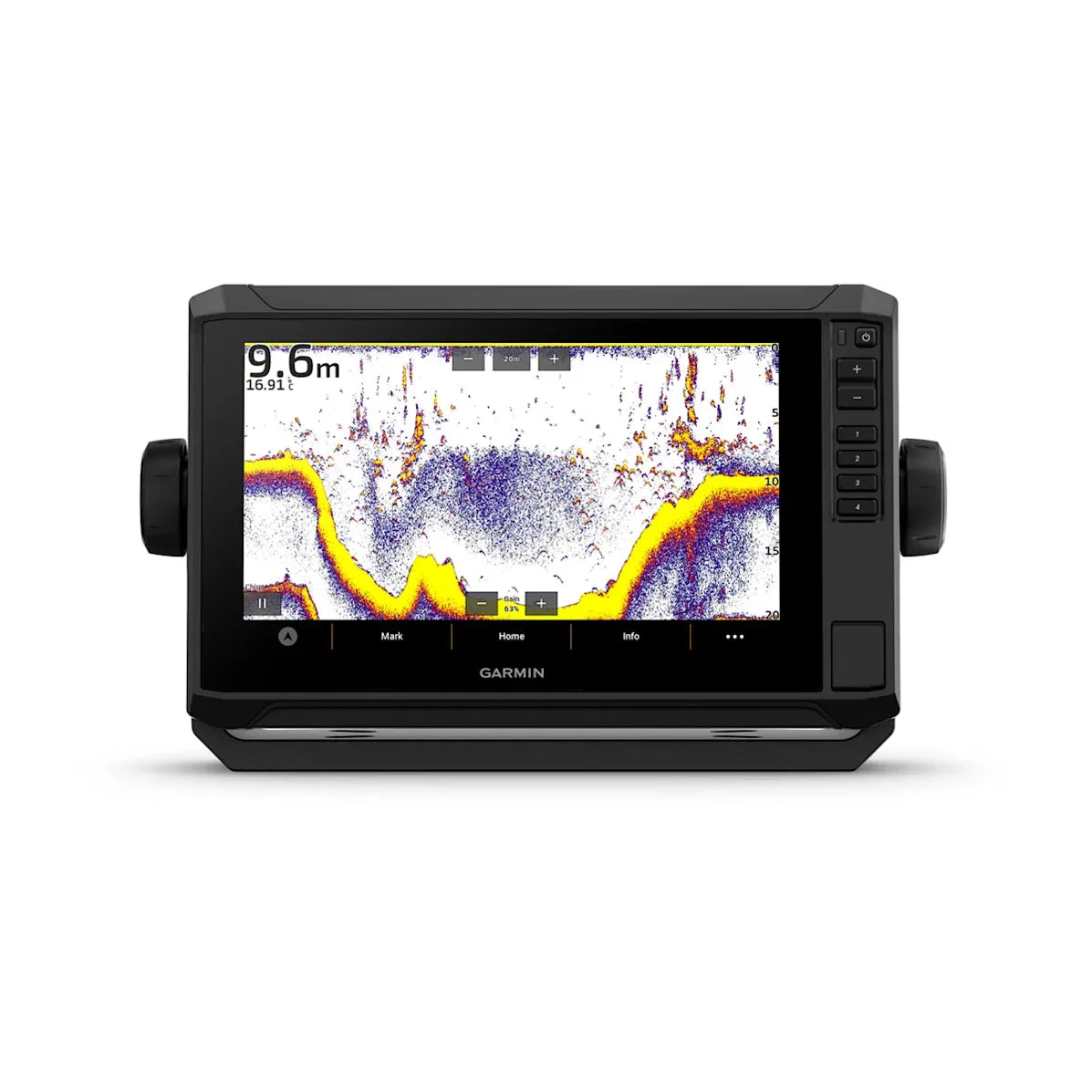

This package does not include a transducer, so the install hinges on matching the display to the transducer you already have or the sonar views you want. The unit supports traditional CHIRP, ClearVü, and SideVü scanning, with frequencies and performance depending on the transducer and conditions.

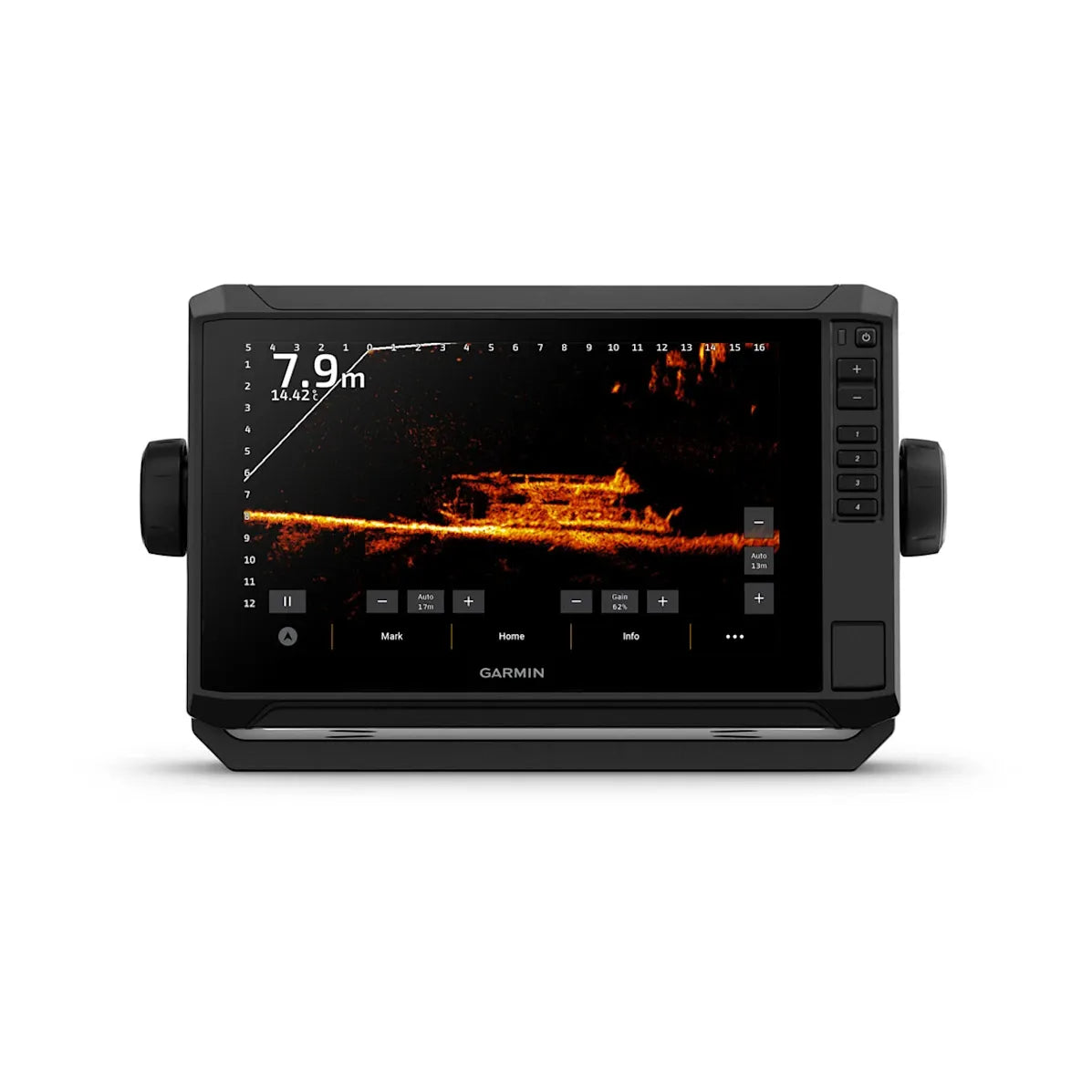

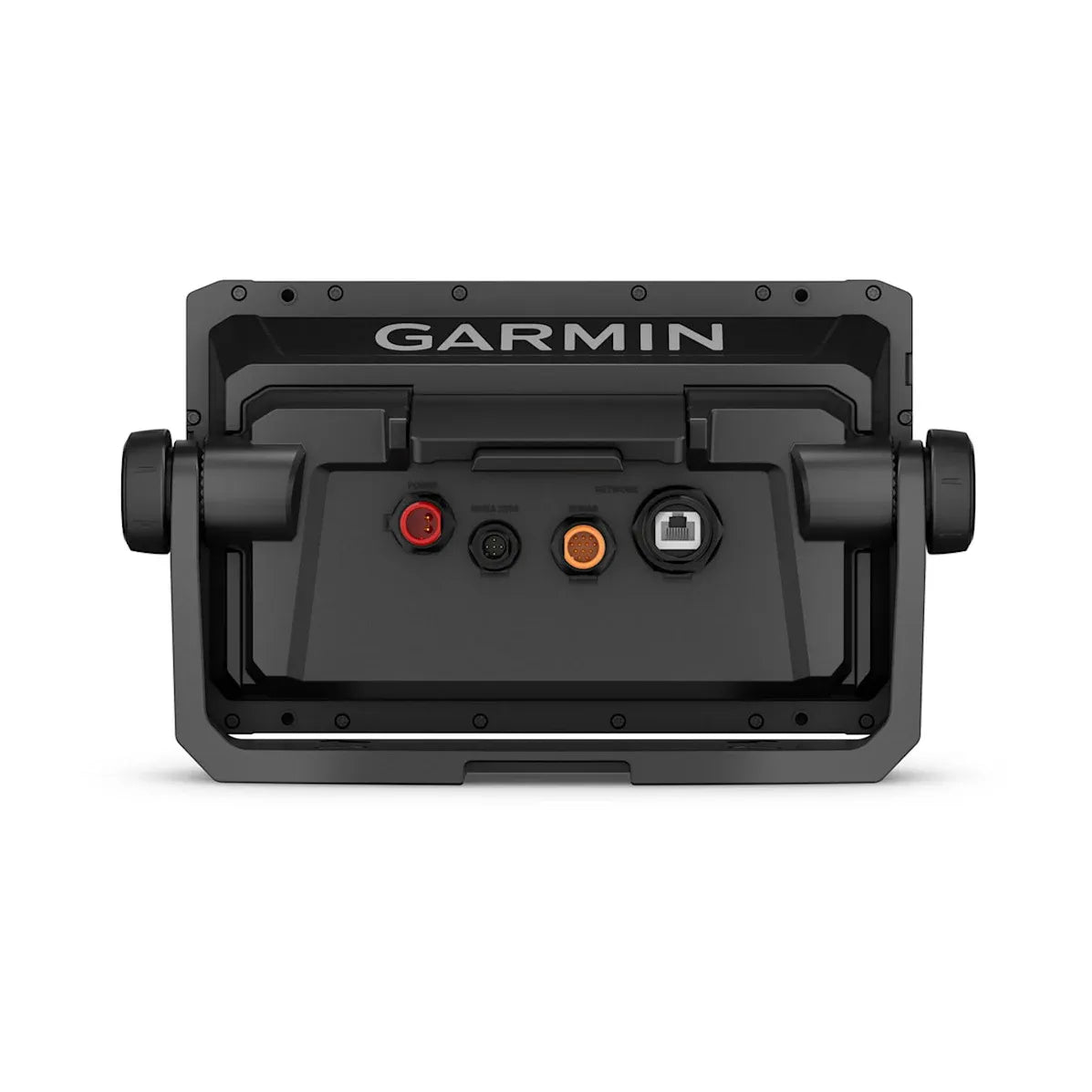

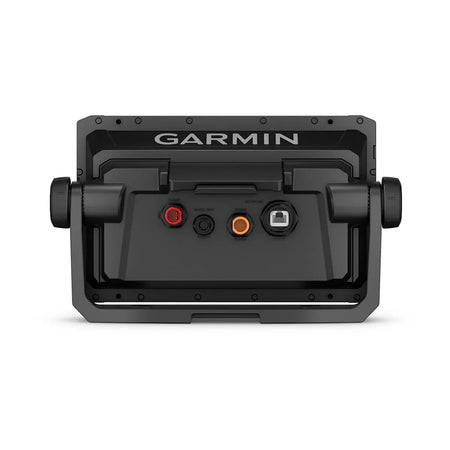

A 12-pin sounder port is used on the back of the display, and the included 12-pin sounder to 8-pin transducer cable helps mate the unit to many Garmin 8-pin transducers. If you plan to add LiveScope, account for the extra components, mounting location, and cable routing before you start cutting holes.
Electrical and system integration
NMEA 2000 support makes it straightforward to share compatible data across the boat network and view it on the screen in one place. Wi-Fi pairing with the ActiveCaptain app is also handy for keeping charts and software up to date when the boat is on the trailer or at the dock.
This unit is a good match for anglers running two stations who want wireless sharing between displays, and for boats using a Garmin Force trolling motor where control and navigation features can be managed from the chartplotter.
What's included
- ECHOMAP UHD2 95sv display
- 12-pin sounder to 8-pin transducer cable
- Power/data cable
- Tilt mount
- Flush mount
- Installation hardware
- Documentation
