Garmin Navionics+ NSAE024R Electronic Chart Card, microSD/SD, Central West Papua & East Sulawesi, 1-Year Subscription

Overview

The Garmin 010-C1222-20 is a Navionics+ electronic chart card (NSAE024R) for Central West Papua and East Sulawesi. It’s a practical way to add detailed mapping to a compatible Garmin chartplotter when you’re running these waters for cruising, fishing, or regular port-to-port navigation.

The chart comes preloaded on a microSD/SD card and includes a one-year subscription that unlocks daily chart updates plus additional downloadable chart content. On the water, you can use depth-based views like shallow water shading and up to 10 depth range shading bands to make hazards and target depths easier to spot at a glance.

Route suggestions from Auto Guidance+ are available when your plotter supports the feature and you’ve entered your boat settings, such as draft and overhead clearance. Treat any suggested path as a planning aid and still navigate by the conditions and your surroundings.

Key features

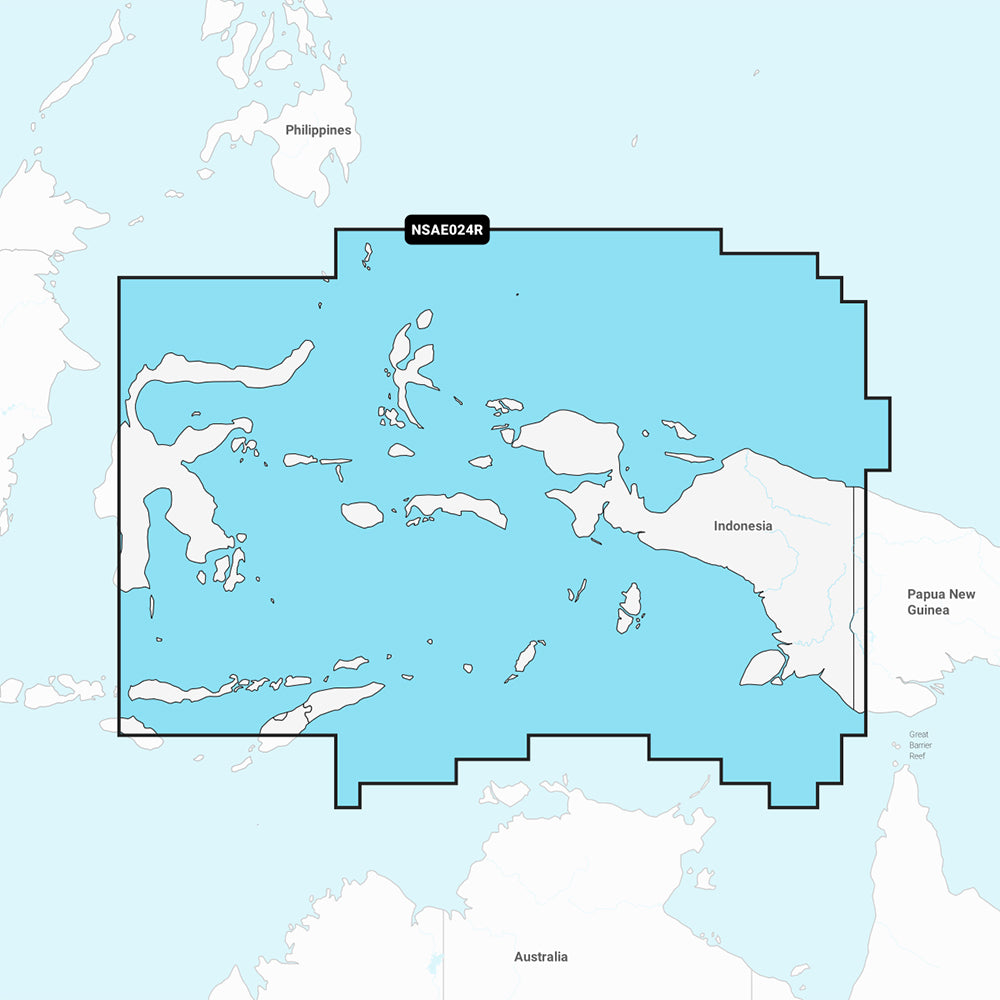

• Coverage region NSAE024R: Central West Papua and East Sulawesi
• Preloaded microSD/SD chart card for use in compatible Garmin chartplotters
• Includes a one-year subscription with access to daily chart updates
• Depth range shading with up to 10 selectable depth bands for quicker target-depth viewing
• Shallow water shading with a user-defined shallow depth highlight
• Auto Guidance+ route suggestions that use your entered draft and overhead clearance (when supported by the plotter)
• Integrated chart layers for coastal and inland content within the coverage area

Compatibility and fit

This chart is made for Garmin chartplotters that support Garmin Navionics+ mapping and accept a microSD or SD chart card. If your unit is older or limited to a different chart format, the card may not load or may not show the full feature set.

Mapping features can vary by chartplotter model and software version, so it’s worth checking that your unit supports Garmin Navionics+ and the specific functions you plan to use, such as Auto Guidance+ and advanced shading layers.

Installation and setup

Installation is straightforward: power down the chartplotter, insert the card into the chart slot, then power back up and select the chart layer if your unit gives multiple map choices. For most boats, the only real fit check is physical access to the card slot and confirming the slot type (microSD vs SD) before you leave the dock.

For best results, keep the card inserted while navigating and avoid moving the card between devices while the plotter is powered on.

Updates and subscription

To use daily updates and downloadable content, the subscription needs to be activated. Updates are managed through the ActiveCaptain app connection to a compatible chartplotter, letting you refresh charts and keep your local area current without replacing the card.

After the one-year term ends, the charts you already have on the card remain usable, but new updates and additional downloads require a subscription renewal.

What’s included

• Preloaded Garmin Navionics+ microSD/SD chart card for NSAE024R (Central West Papua and East Sulawesi)
• One-year chart update subscription (activation required)

Who this is a good match for

This chart card fits boaters running coastal passages, island hops, and fishing runs in Central West Papua and East Sulawesi who want current local cartography on a Garmin plotter. It also suits crews who plan routes ahead of time and rely on depth-based shading to stay aware around shoals and reefy areas.
