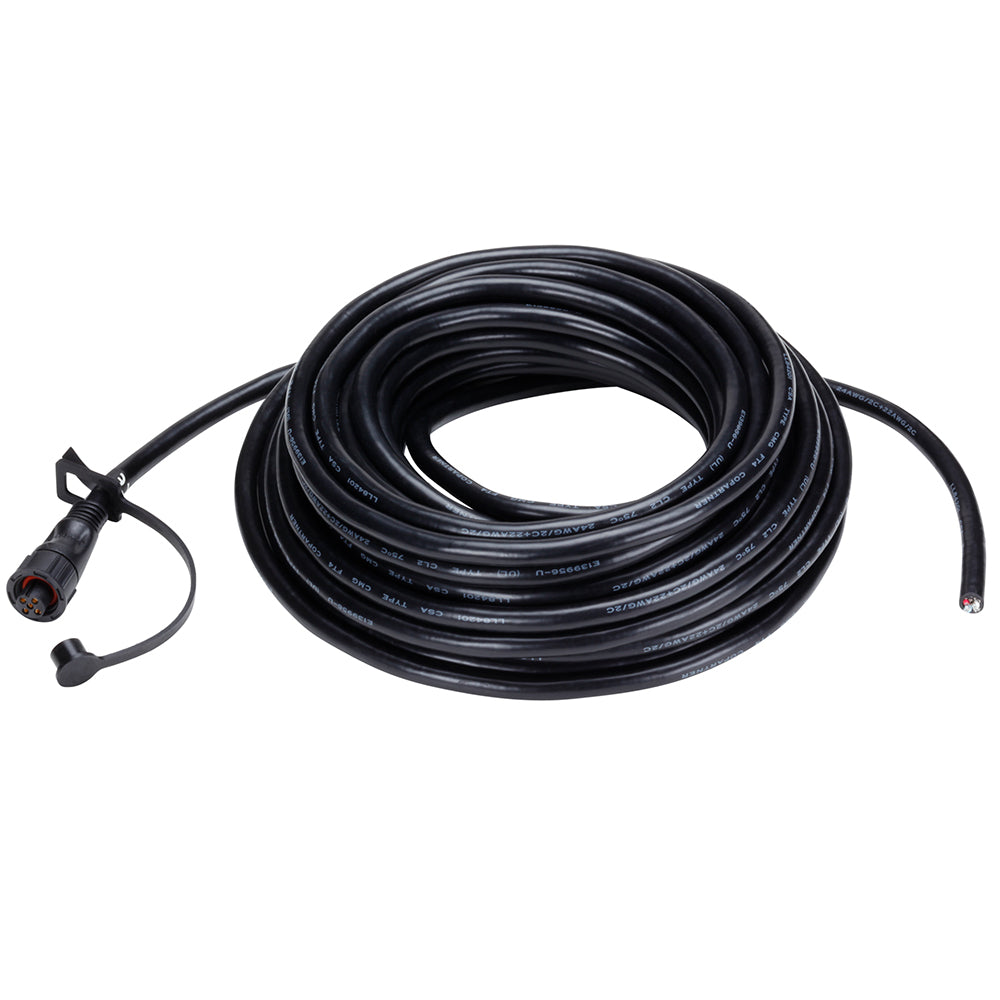

Garmin J1939 Cable, For GPSMAP 8400/8600 Series, 10 m

Overview

The Garmin 010-12390-30 is a 10 m J1939 network cable that links compatible GPSMAP 8400 or 8600 series chartplotters to an SAE J1939 backbone for engine or generator monitoring on the chartplotter screen.

Use it when your helm display needs to reach a J1939 network connection point in the engine room or near the generator without cobbling together shorter runs. It carries data for monitoring and integration, not power.

Key features

• Connects GPSMAP 8400 and 8600 series chartplotters to an SAE J1939 network for engine or generator monitoring
• 10 m (32.8 ft) length for helm to engine room routing on many installations
• Lets the chartplotter display the J1939 parameters your engine ECU or generator controller publishes
• Long run helps avoid mid-span extensions where moisture and vibration can work on extra connection points
• Supports clean cable management with proper strain relief and chafe protection through bulkheads

Compatibility and fit

This cable is intended for GPSMAP 8400 and 8600 series chartplotters that support a J1939 connection. Your vessel also needs an existing J1939 network from the engine or generator, set up with the correct backbone, termination, and network power for that system.

If your boat uses NMEA 2000 for instrument data, treat J1939 as a separate bus unless you have a dedicated gateway on board. The chartplotter can only display the data that is actually present on the J1939 network.

Installation and setup

Route the run with gentle bends and keep it clear of hot engine parts, exhaust components, and moving linkages. Support the cable regularly, add chafe protection where it passes through bulkheads, and leave service loops at the helm and network connection point so future troubleshooting is easier.

Once connected, configure the engine or generator monitoring pages on the chartplotter and verify values update with the engine running. If data does not appear, the cause is typically network configuration or the parameters available on the J1939 side.

On-board use

This setup fits boats that want engine or generator information on the main navigation display without adding another dedicated gauge at the helm. It also suits refits where a J1939 backbone is already in place and you need a straightforward 10 m run to the chartplotter.
