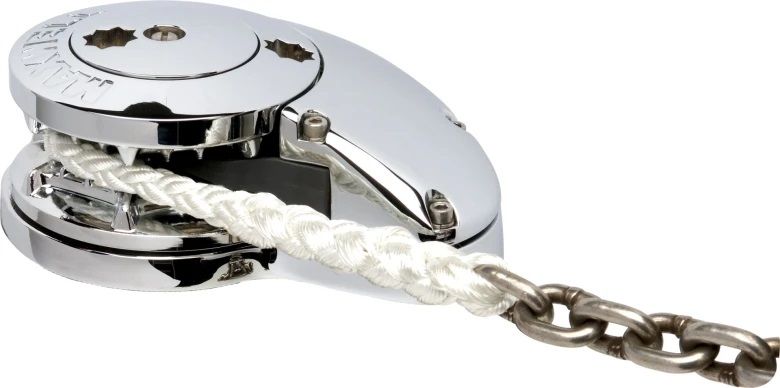

Maxwell - RC10-8 Vertical 12V Windlass - For 5/16" Chain & 5/8" Line

Powerful and Efficient Rope/Chain Windlass for Marine Use

The Maxwell RC10-8 Vertical 12V Windlass is a fully automatic rope and chain windlass designed to provide superior performance for marine applications. Built with an innovative Wave Design™ chainwheel, this windlass accommodates a wide range of chain pitch differences within the specified chain size, ensuring smooth and reliable operation.

Its two-piece installation simplifies setup, allowing for easy retrofitting without disassembling the windlass. The unique spacer tube design enables installation through virtually any deck thickness, while multiple mounting positions and a self-aligning gearbox ensure optimal placement.

Crafted from marine-grade hard-anodized alloy and heavy-duty stainless steel (AISI 316), the RC10-8 guarantees durability in harsh marine environments. The sealed oil bath and precision worm and worm wheel mechanism maximize efficiency and longevity. Additionally, this windlass offers full disassembly capability using just the provided handle and an Allen key, ensuring hassle-free maintenance.

Technical Specifications

• Rope/Chain Compatibility: Yes
• Drum: No
• Motor Power: 100W
• Maximum Pull/Lift Capacity: 700 kg
• Chain Short Link: 8mm (5/16")
• Chain Compatibility: 8mm (5/16")
• Rope Compatibility: 14-16mm (9/16"-5/8")
• Weight: 19 kg
• Installation Orientation: Vertical
• Voltage: 12V DC

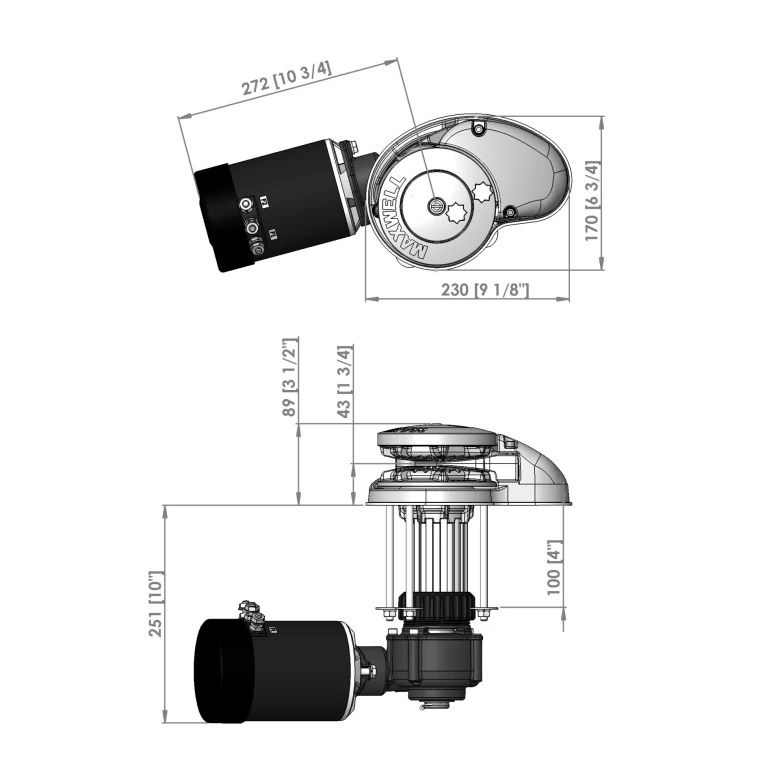

Product Dimensions

• Weight: 19 kg

Highlights

• Fully automatic windlass for seamless rope and chain handling
• Wave Design™ chainwheel for enhanced grip and adaptability
• Two-piece installation simplifies mounting and retrofitting
• Heavy-duty stainless steel (AISI 316) pressure arm for maximum control
• Sealed oil bath gearbox for durability and high performance
• Manual override and ‘Free Fall’ function with an emergency crank/clutch handle
• Through-deck hawse pipe throat for smooth rope/chain entry and exit
• Designed for marine-grade reliability in all conditions

Important Usage Note

For optimal performance and safety, the Maxwell RC10-8 Windlass must be used with a chain stopper and/or snubbing device to relieve the load while at anchor. Additionally, these securing systems should be used to keep the anchor in place while underway.

This windlass is also available in a version with extra deck clearance—contact your dealer for more information.
