Blue Sea Systems Label Backlight System, For Circuit Breaker Panels, 12V/24V, 8/5/3 Position
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

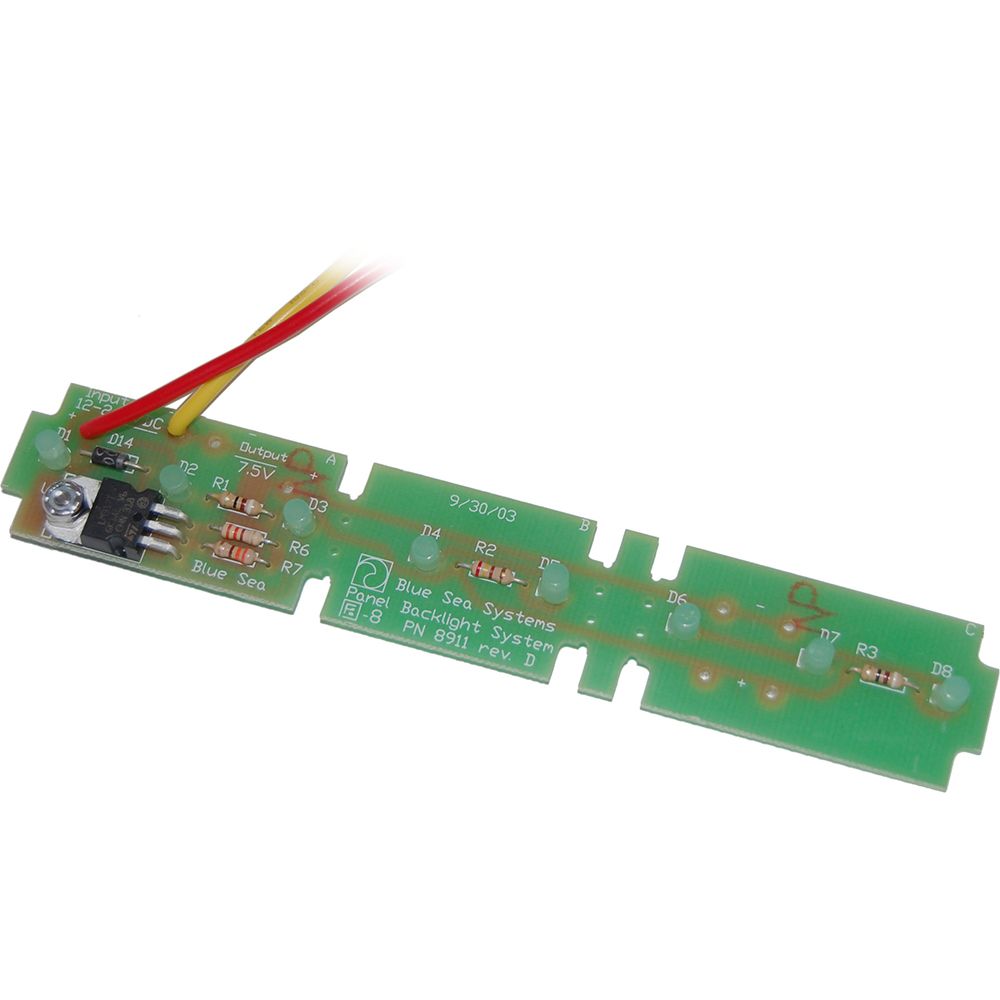

The Blue Sea Systems 8065 is a label backlight system for Blue Sea Systems circuit breaker panels, giving you illuminated circuit labels where the panel needs to stay readable after dark or in a dim cabin. It comes in an 8-position format and can be snapped apart for 5-position or 3-position layouts. It connects to 12V or 24V DC power through two 6 inch 18 AWG wire leads and includes reverse polarity protection.
This part makes sense on boats where the DC panel is used at night, in poor weather, or in enclosed spaces where cabin and helm lighting is limited. It helps keep breaker labels visible without changing the basic panel layout, which is useful when you need to identify a circuit quickly while underway, at anchor, or during electrical troubleshooting.
Key features
- Made for Blue Sea Systems circuit breaker panels
- 8-position backlight can be separated into 5-position or 3-position sections
- Works with 12V and 24V DC systems
- Connects with two 6 inch 18 AWG wire leads
- Built-in reverse polarity protection
Compatibility and fit
This backlight is meant for Blue Sea Systems breaker panels, so the main fit check is panel style and label count. On an 8-position panel it installs as supplied, and on smaller layouts it can be shortened to match 5-position or 3-position sections.
It is a good match for owners updating an existing Blue Sea Systems panel or replacing a damaged backlight section without changing the rest of the distribution setup. On a refit or new build, it suits helm, cabin, and main DC panel locations where labels need to stay readable in low light.
Installation and setup
Wiring is straightforward: the two leads connect to a 12V or 24V DC source, so it can be integrated into the boat's existing panel lighting or another switched DC feed. The reverse polarity protection adds some margin during hookup, but correct polarity and clean wire routing still matter before the panel is closed up.
Because the assembly can be snapped apart, it is easier to match the lighting length to the panel section you are working on rather than filling unused positions. That keeps the installation neater and helps the finished panel look consistent.
