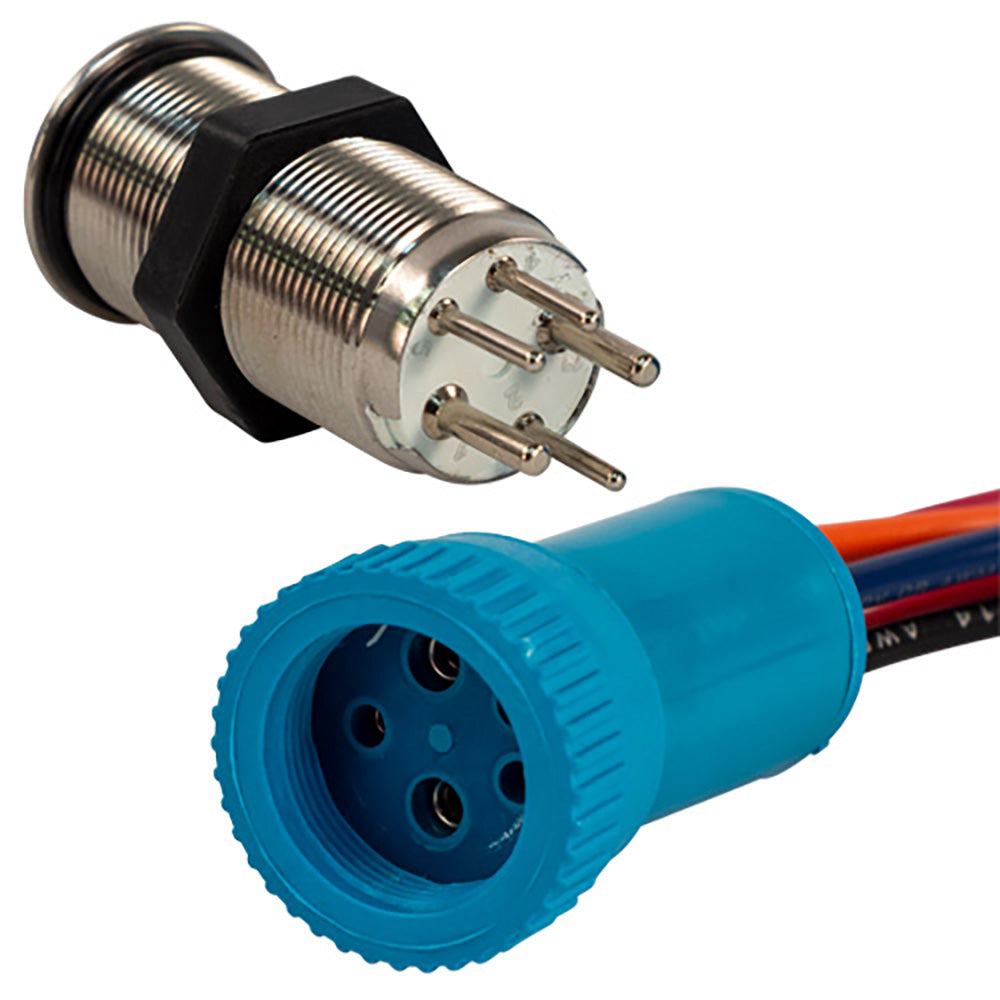

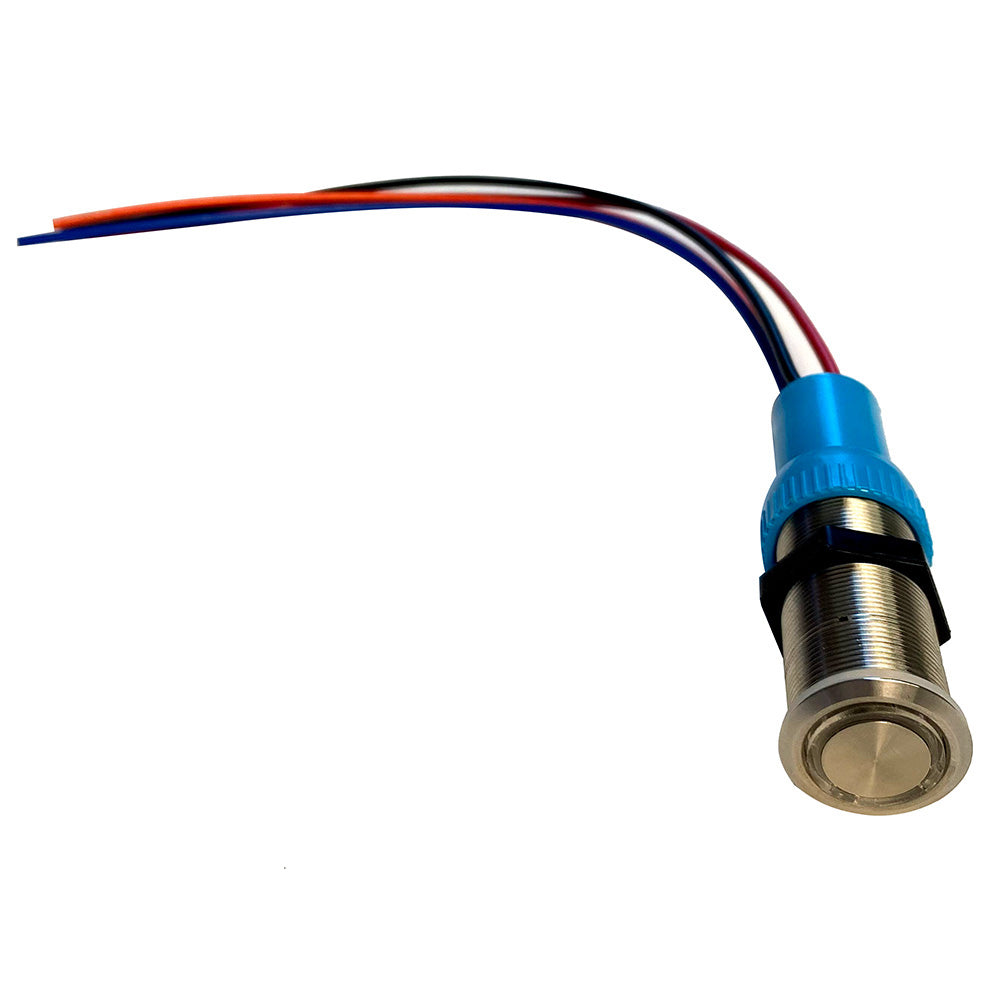

Bluewater - Push Button Switch - Off/On/On Contact, Blue/Green/Red LED, 4' Lead, 19mm

Modern Design Meets Marine Durability

Transform your marine vessel's dashboard with the Bluewater 19mm Push Button Switch. Designed for both functionality and style, this stainless-steel plated switch adds a touch of modern flair to any control panel while providing reliable performance in marine environments. Its versatile Off/On/On contact setup makes it an essential component for any boat, ensuring clear and efficient control of your vessel’s systems.

Unmatched Visibility and Control

The Bluewater Push Button Switch features a state-of-the-art LED backlight that provides exceptional visibility, even in low-light conditions. The switch is backlit with a blue LED when off, changing to green and then to red when activated, giving you a clear indication of its status. This intuitive color-coding ensures you always know the operational state at a glance.

• LED Backlighting: Blue when off, green for the first on position, and red for the second on position.
• IP69K Waterproof Rating: Fully protected against water and dust ingress.
• Stainless Steel Construction: Built to withstand harsh marine environments.

Key Features and Benefits

Enhance your boat’s functionality with the Bluewater Push Button Switch, designed for easy installation and reliable operation.

• 4 ft. Lead: Provides ample length for flexible installation.
• Stainless Steel Material: Ensures durability and longevity.
• High Mechanical and Electrical Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
• Easy Configuration: Compatible with various marine systems and easy to install.

Technical Specifications for Dependable Performance

Built to rigorous standards, the Bluewater Push Button Switch offers dependable performance and long-lasting durability.

• Function: Off-On-On (standard contact)
• Switch Rating: 15A/12-24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Compact and Robust Design

This switch fits into a standard 19mm hole and can be installed in materials up to 6mm thick, making it a versatile choice for various marine applications.

• Dimensions: Fits a 19mm hole, suitable for materials up to 6mm thick.

Sleek and Durable Finish

The stainless-steel finish not only provides a sleek, modern look but also offers excellent resistance to corrosion, ensuring it remains functional and attractive over time.

• Finish: Stainless steel for a modern and durable appearance.

Simple Installation Process

Installing the Bluewater Push Button Switch is straightforward and safe, thanks to color-coded contacts that ensure correct and convenient connections.

• Installation Steps:
• Drill a 19mm hole into any material up to 6mm thick.
• Connect the three contacts for the button (color-coded).
• Connect the two contacts for the LED.

Upgrade Your Marine Dashboard Today

The Bluewater 19mm Push Button Switch is the perfect upgrade for any marine vessel, offering modern design, robust construction, and reliable performance. With its easy installation and intuitive LED indicators, this switch ensures your boat's control systems are both stylish and functional. Trust Bluewater to enhance your marine experience with superior quality and design.
