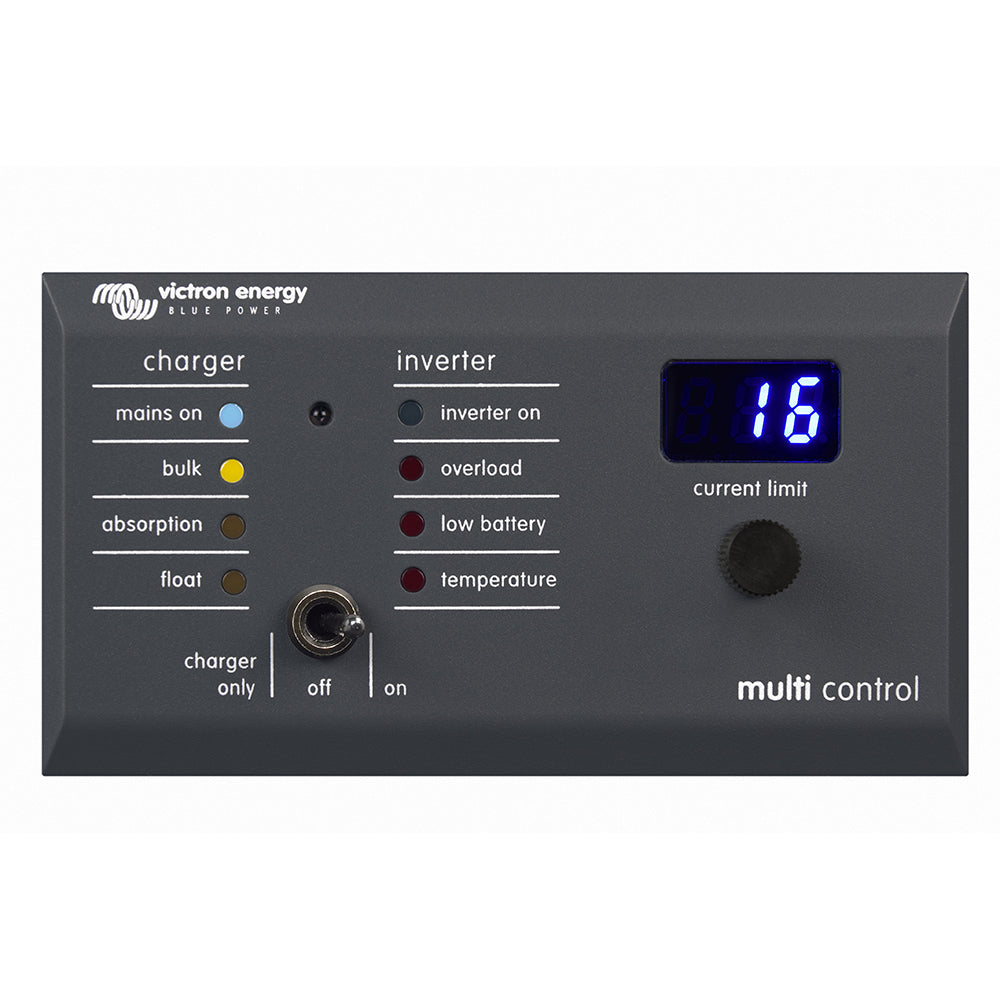

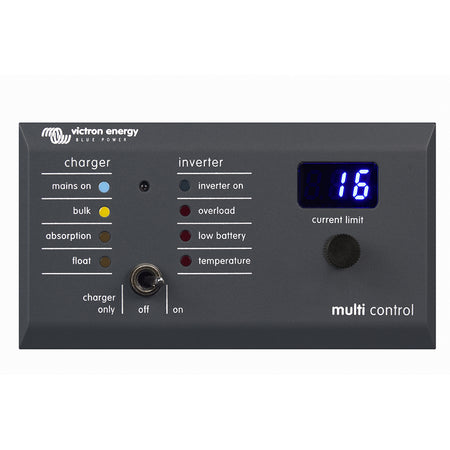

Victron Energy Digital Multi Control 200/200A GX Panel, For Multi/Quattro, 200A, RJ45

Overview

The Victron Energy DMC000200010R is a Digital Multi Control 200/200A GX remote panel for monitoring and controlling Victron inverter/charger systems from a helm, dashboard, or electrical control panel. It lets you view and adjust AC input current limits for shore power, generator input, or other configured AC sources, with a setting range up to 200 A.

This panel is made for Victron Multi and Quattro based systems, including stand-alone, parallel, 2-phase, and 3-phase configurations. On board, it gives the crew a simple way to match the inverter/charger system to the available dock power or generator capacity without opening the electrical locker.

Key features

• Remote adjustment and display of AC input current limits up to 200 A for matching shore pedestal or generator capacity.
• Supports Victron MultiCompact, MultiPlus, MultiPlus-II, MultiPlus-II GX, Quattro, Quattro-II, EasySolar, and EasySolar-II GX inverter/chargers.
• Works with stand-alone, parallel, 2-phase, and 3-phase inverter/charger configurations.
• Panel switch controls on, off, and charger-only modes without access to the inverter/charger itself.
• 7-segment display shows the AC input current limit, active AC input source on multi-input systems, or VE.Bus error codes.
• LED indicators mirror charger and inverter status, with a light sensor that lowers LED brightness in low-light conditions.
• RJ45 UTP connection keeps installation simple in most VE.Bus systems, with no extra setup needed in typical configurations.
• Right-angle RJ45 layout helps in panel installations where clearance behind the mounting surface is limited.

Installation and setup

For most installations, the panel connects to the inverter/charger system with one RJ45 UTP cable. The cable is not included, so measure the run from the helm or panel location to the inverter/charger bay before ordering; compatible RJ45 UTP cables are available in lengths from 30 cm to 30 m.

Mount the panel where the operator can see current limits and reach the control knob during shore power or generator use. In systems using generator support with an external transfer switch, two additional wires are required for the transfer-switch signal.

Use a dry, protected mounting location inside the boat or within a sheltered electrical control area. This panel should not be placed where it will be exposed directly to rain, spray, or dusty conditions.

Compatibility and fit

This control panel suits boats with a Victron VE.Bus inverter/charger setup that needs AC source limits controlled from a convenient station. It is a practical match for cruising boats, fishing boats, and service vessels that move between different marina pedestals, dock circuits, and generator operation.

On systems with more than one AC input, the display can show the active input source while the knob adjusts the allowed current. That helps the crew avoid nuisance breaker trips when moving between a higher-capacity shore supply, a lower-capacity dock outlet, or onboard generator power.

Operation on board

The current limiter knob adjusts the AC input limit in 0.5 A steps below 10 A and 1 A steps above 10 A. The panel also prevents settings below the inverter/charger system's minimum current limit, while a quick anticlockwise turn can set 0.0 A so the system stops charging and begins inverting.

The on/off/charger-only switch is useful when leaving the boat at the dock, running loads from the batteries, or using charger-only operation while connected to shore power. Status LEDs show mains on, bulk, absorption, float, inverter on, overload, low battery, and temperature conditions.

What's included

• Digital Multi Control 200/200A GX panel
• Four mounting screws

• 1336957_qbp337928.pdf
