Fusion - FM Series Subwoofer Round - 10", 400W, Flush Mount, 4 Ohms, IP65, 30Hz/2kHz
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Introducing the FM Series Flush Mount Marine Subwoofer, a remarkable combination of clear audio and clean aesthetics. Designed by Fusion, this marine subwoofer delivers high-quality bass to your vessel while seamlessly blending with the latest boat design trends. The FM Series subwoofers are engineered with innovative design aesthetics and superior audio reproduction in mind, providing an immersive sound experience. The flush mount design ensures a sleek and minimalistic form factor that enhances the visual appeal and complements the aesthetics of any boat.

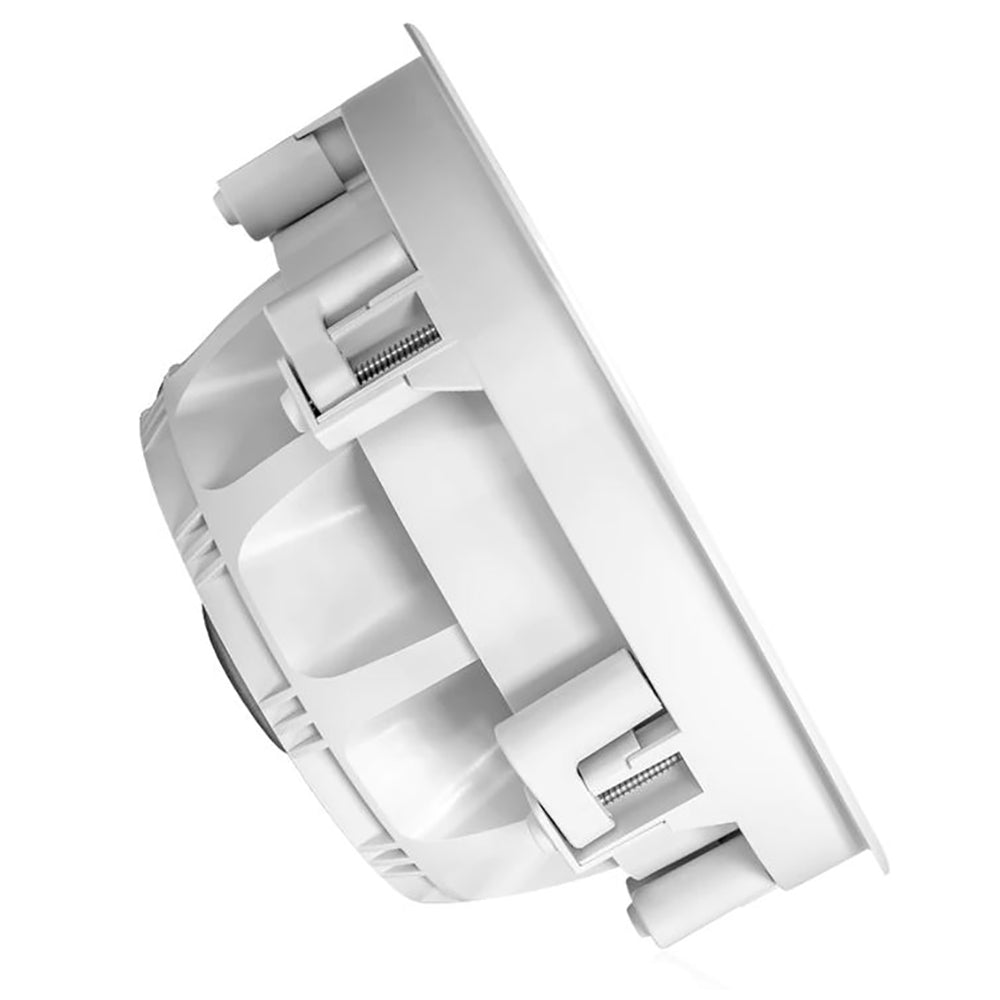

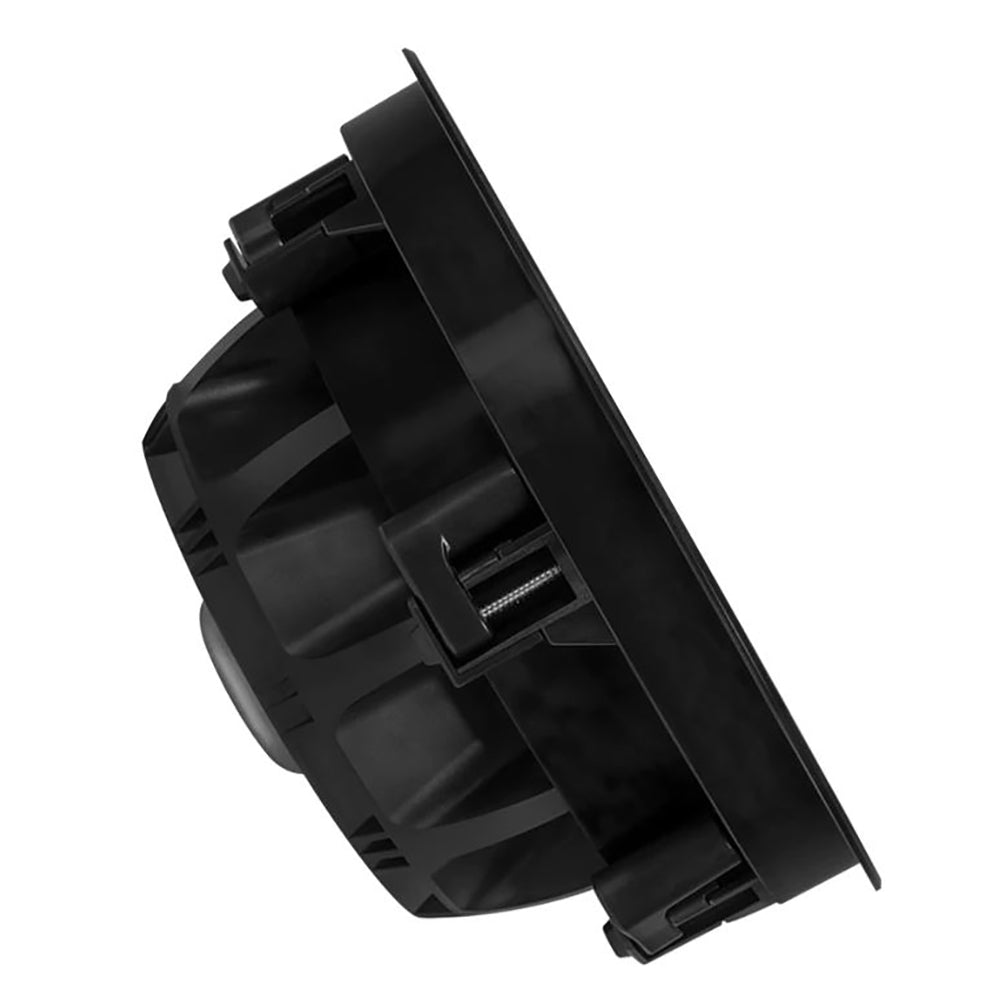

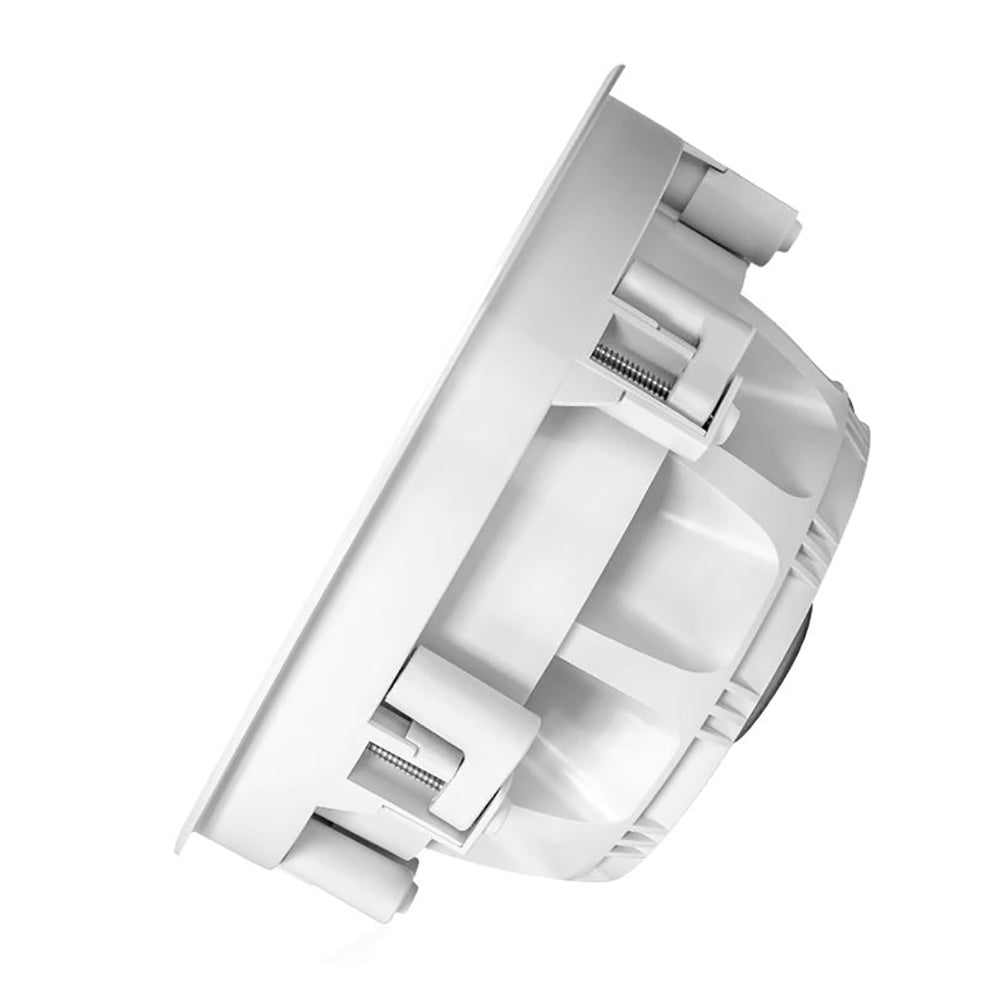

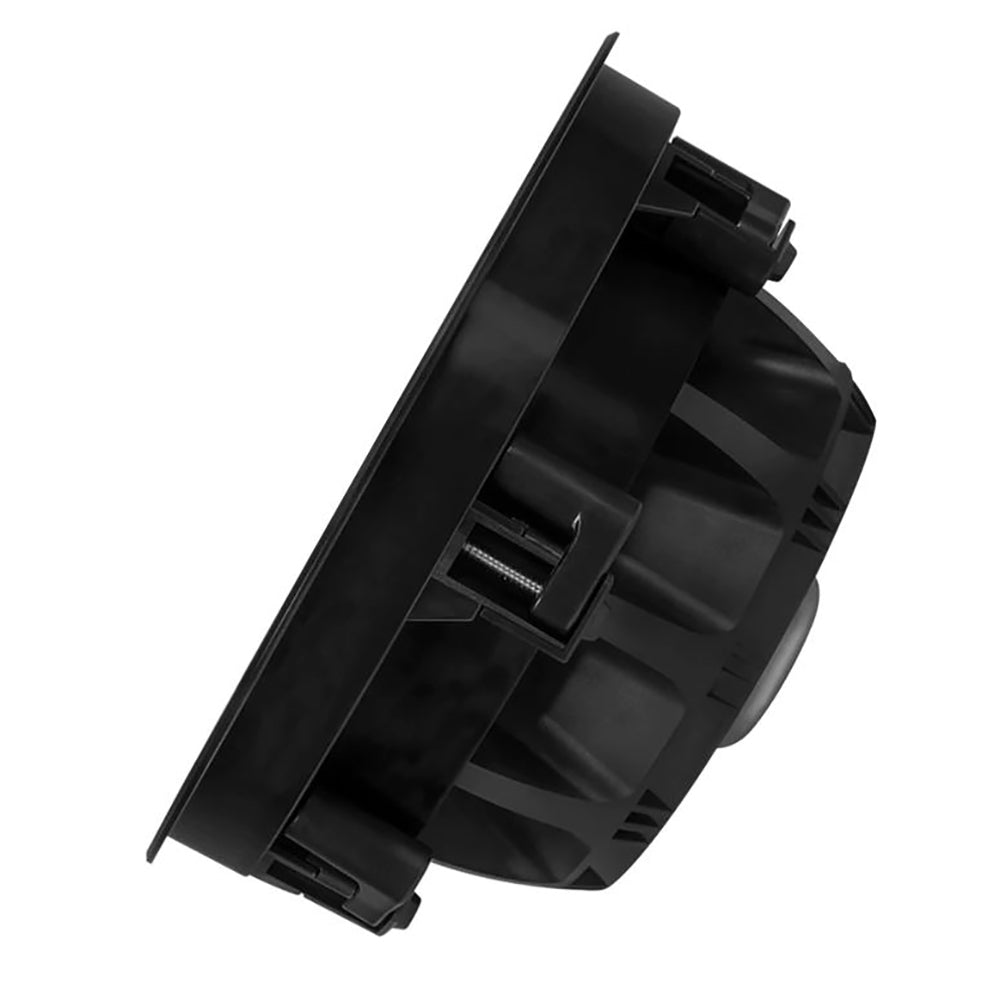

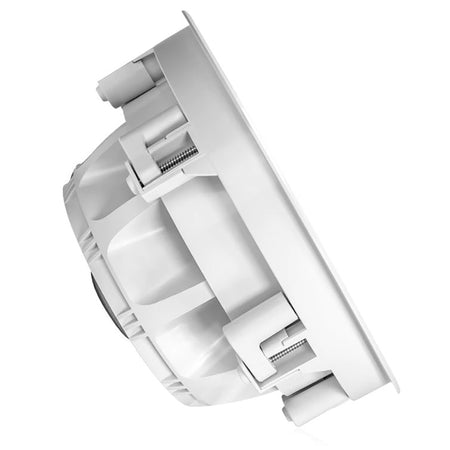

Installation is a breeze thanks to the intelligent mounting system, which requires a mounting flange no thicker than 3mm [1/8"]. This non-intrusive system offers a premium, near-flat finish that adds to the overall allure of your boat. Rest assured, the FM Series subwoofers are built to withstand the harsh marine environment. They boast an IP65 weatherproof rating and True-Marine™ accreditation, ensuring durability and reliable performance season after season. Fusion also backs their product with an industry-leading 3-year warranty, providing additional peace of mind.
When paired with a set of FM Series speakers and a Fusion Multi-Zone™ stereo with DSP, the FM Series subwoofers enable you to create a 2.1 audio zone, eliminating the need for an external amplifier. This simplifies installation, reduces system cost, and enhances the overall audio experience. Enjoy exceptional low-frequency audio quality at any volume level with the FM Series subwoofers' innovative aesthetics, low profile, and near-flat installation, which beautifully complement your vessel's style. Tested to international standards for pressure and watertightness (ISO12216), these subwoofers demonstrate their high-quality and robustness.
The FM Series Flush Mount Marine Subwoofer specifications include a 10" size, a peak power of 400W, an RMS power rating of 120W, and an efficiency of 87 dB (1W/1M). Its frequency response ranges from 30 Hz to 2 kHz, and it has a nominal impedance of 4 Ohms. The recommended amplifier power (RMS) is 40-300W/Ch. The cone and surround material is polypropylene with a rubber surround. The subwoofer requires a mounting diameter clearance of 269mm (10-9/16") and a mounting depth clearance of 140mm (5-1/2"). The optimum enclosure volume for sealed enclosures, fully filled with absorption material, is 40L. The operating temperature range is 0-50°C (32-122°F), while the storage temperature range is -20-70°C (-4-158°F). The subwoofer is water and dust-resistant with an IPX65 rating. It comes with a 3-year warranty.

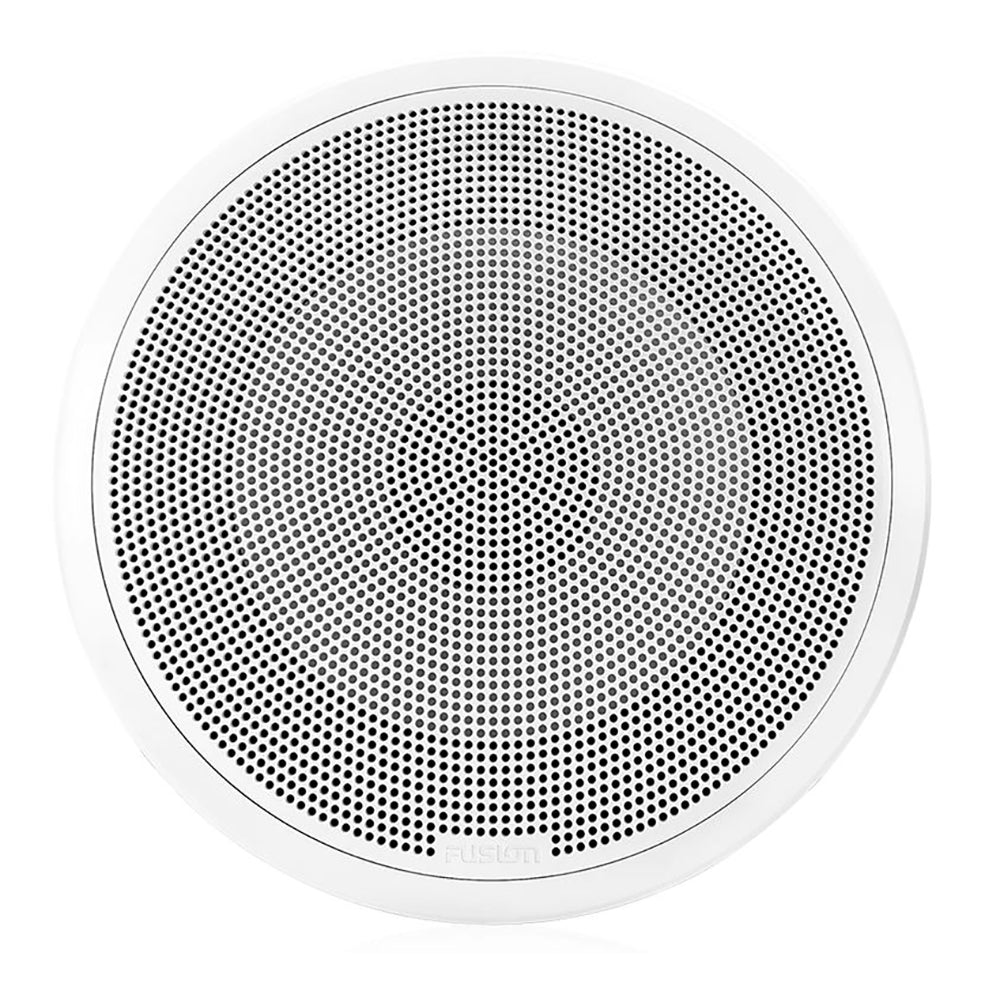

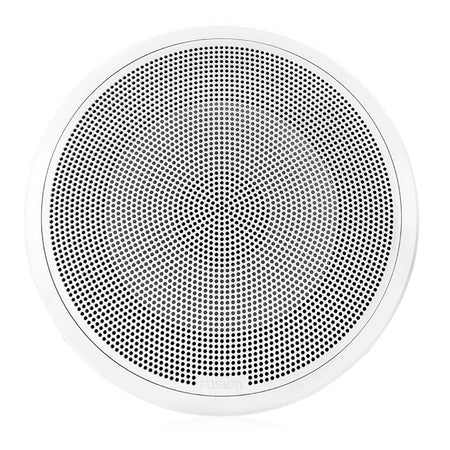

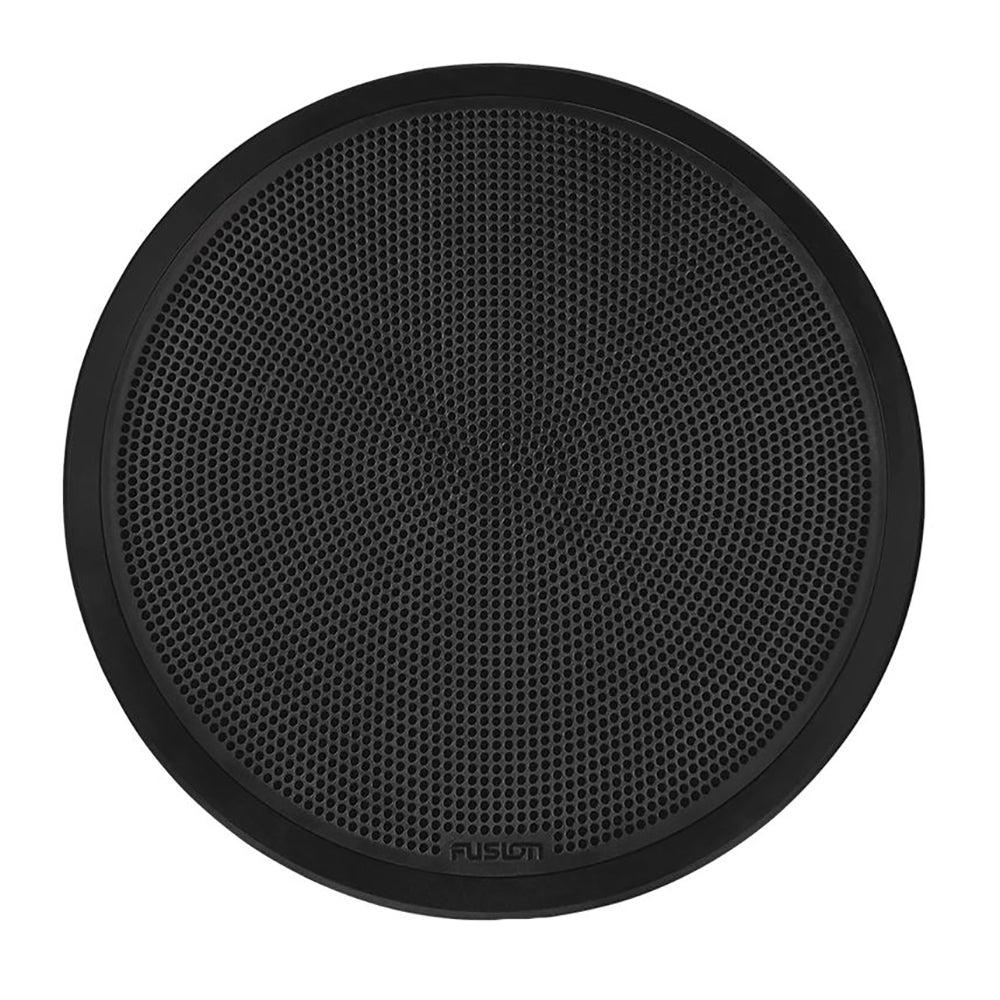

Please note that this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. The FM Series Flush Mount Marine Subwoofer is available in White and Black color options, allowing you to choose the one that best matches your vessel's style and preferences. Elevate your onboard audio experience with the FM Series Flush Mount Marine Subwoofer, where exceptional sound and sleek aesthetics come together in perfect harmony.
